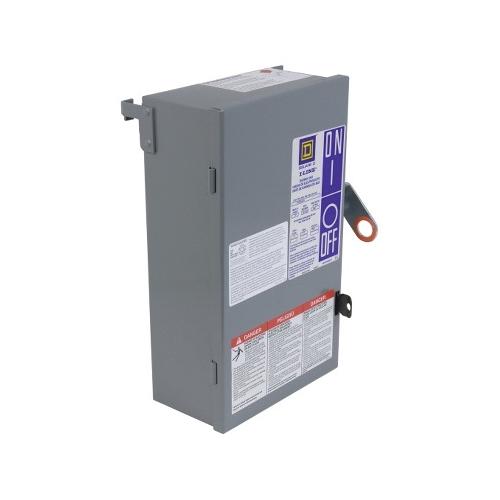

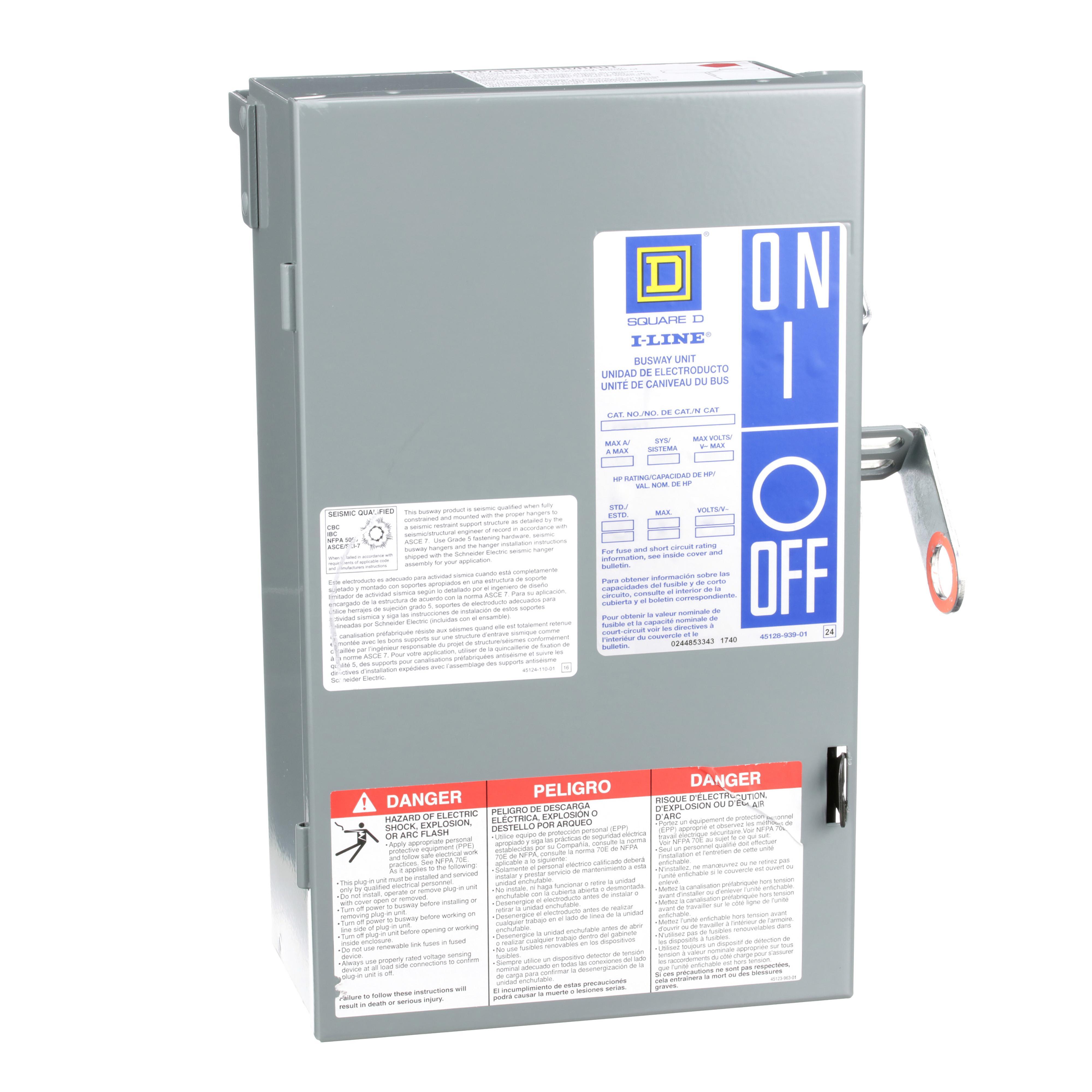

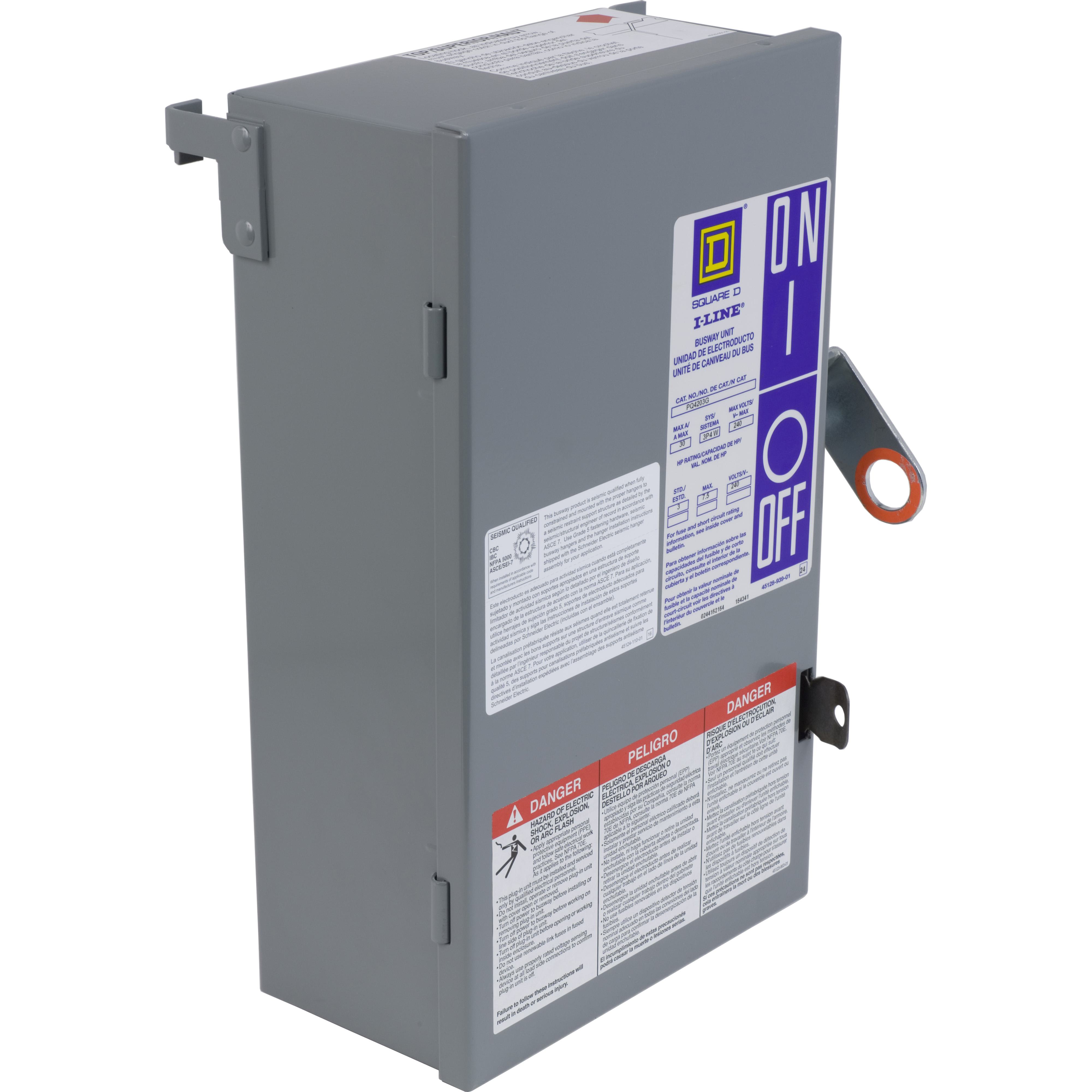

Square D™ PQ4210G
Square D™ I-Line™ II PQ4210G 4-Pole Type PQ Class H Busway Fusible Plug-In Unit With Integral Ground Bus, 120 to 208 VAC, 100 A, 3 Wires, FS Frame, NEMA 1 Enclosure
Brand: Square D™
Item ID: 487623
MPN: PQ4210G
UPC: 785901309840
Login for Price
Description
Square D™ I-Line™ II Busway Fusible Plug-In Unit, 4-Pole Type PQ Class H, 120 to 208 VAC, 100 A Trip, 3 Wires, 3 ph, FS Frame, 10 kA Interrupt, NEMA 1 Enclosure, 8.85 in W x 4.63 in D x 18.97 in H Dimensions
Specifications
Dimensions |
8.85 in W x 4.63 in D x 18.97 in H |
Enclosure Type |
NEMA 1 |
Frame |
FS |
Interrupt Rating |
10 kA |
Number of Wires |
3 |
Phase |
3 |
Trip Amperage |
100 A |
Type |
4-Pole Type PQ Class H |
Voltage Rating |
120 to 208 VAC |
Standard Approval |
RoHS Compliant|CSA Certified|UL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documentation
Catalog 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_12ee7ede3074e09ee6b5e5dc0c1e56fcc01184399cb2bd66b8cf98dd80c6b2b1.pdf
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f0912c564bbfbf4e881564fd4e820443eb253f57e4a9400dc9793bd32fa925d3.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_71121d0460932757820bf2c30d742adb4f927410610c813cfbb2c3ca732625db.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PQ3203G_Installation_Sheet.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0f38ca1c20112872c6550728cec0e78738e08948e1c2e32758a67d77bd681422.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_AF2520G10ST_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PHG36100GN_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PHG36100GN_Owners_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001K1L35LGGH5_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PQ4210G_RoHS.pdf
Specification Sheet 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_806378aba24b516f81dd33f7677b265d90048157aac2225a000dd9d87f928d4e.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ae1e2614297f14c61bf7d4508337c7f6d10b3e4c607337d19a215c46d78b51e6.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PQ4210G_Specification_Sheet.pdf
