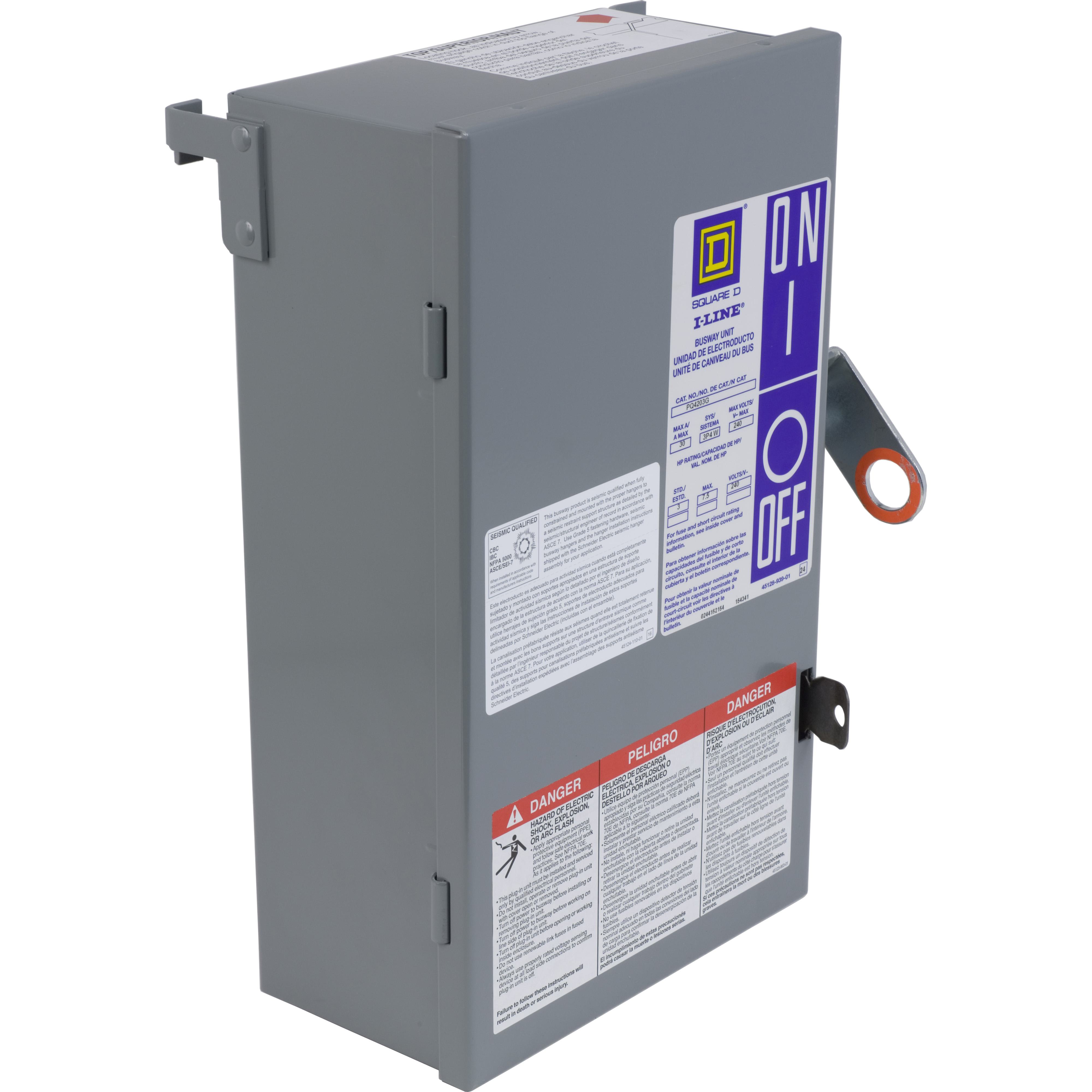

Square D™ PQ4606G
Square D™ I-Line™ II PQ4606G Type H Fusible Plug-In Unit, 277/480 VAC, 4 Wires, FS Frame, NEMA 1 Enclosure
Brand: Square D™
Item ID: 461928
MPN: PQ4606G
UPC: 785901309895
Login for Price
Features
- Without neutral
- 4-pole, 3 fuse and ground
- Hook-swing mounting
- 4-wire configuration with integral ground bus
- 60 A line rated current
Description
Square D™ I-Line™ II Plug-In Unit, Type H Fusible, 277/480 VAC, 4 Wires, 3 Phase, FS Frame, 200 kA Interrupt, NEMA 1, 15 in L x 4-2/3 in W x 8-7/8 in H
Specifications
Dimensions |
15 in L x 4-2/3 in W x 8-7/8 in H |
Enclosure Type |
NEMA 1 |
Frame |
FS |
Interrupt Rating |
200 kA |
Number of Wires |
4 |
Phase |
3 ph |
Type |
Type H Fusible |
Voltage Rating |
277/480 VAC |
Standard Approval |
RoHS Compliant|CSA Certified|UL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Busway Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Siemens_CLMCCK02_Catalog.pdf
Catalog 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PBQ3640G_Catalog.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PQ4610G_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PQ4610G_Catalog.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_493228acd69d041fd7640d6c1f1811179bd1730bb4cbd73318b79593bbfd5520.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Siemens_US243CP32WG_Specification_Sheet.pdf
Square D™ PQ4606G
