Square D™ Q4L2400

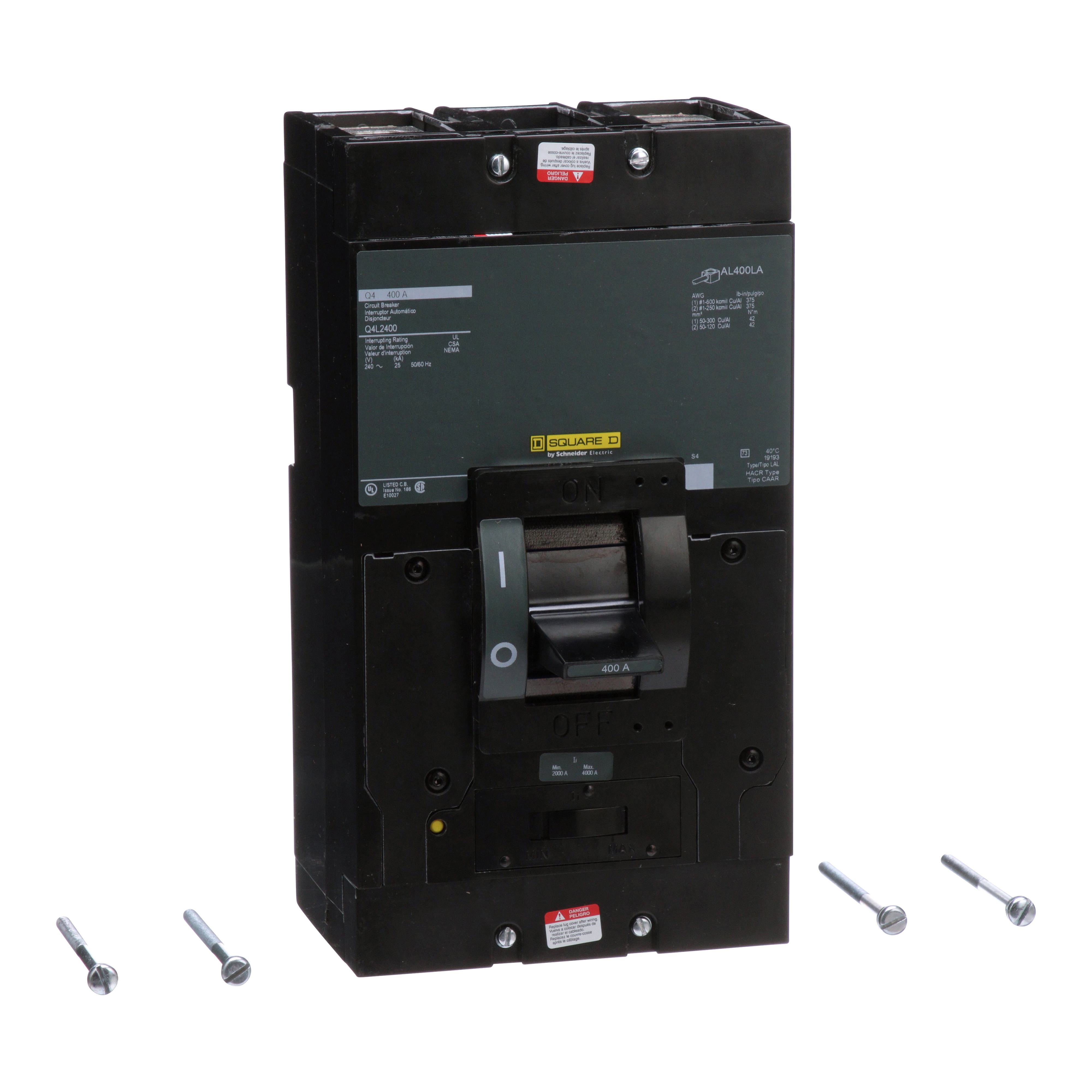

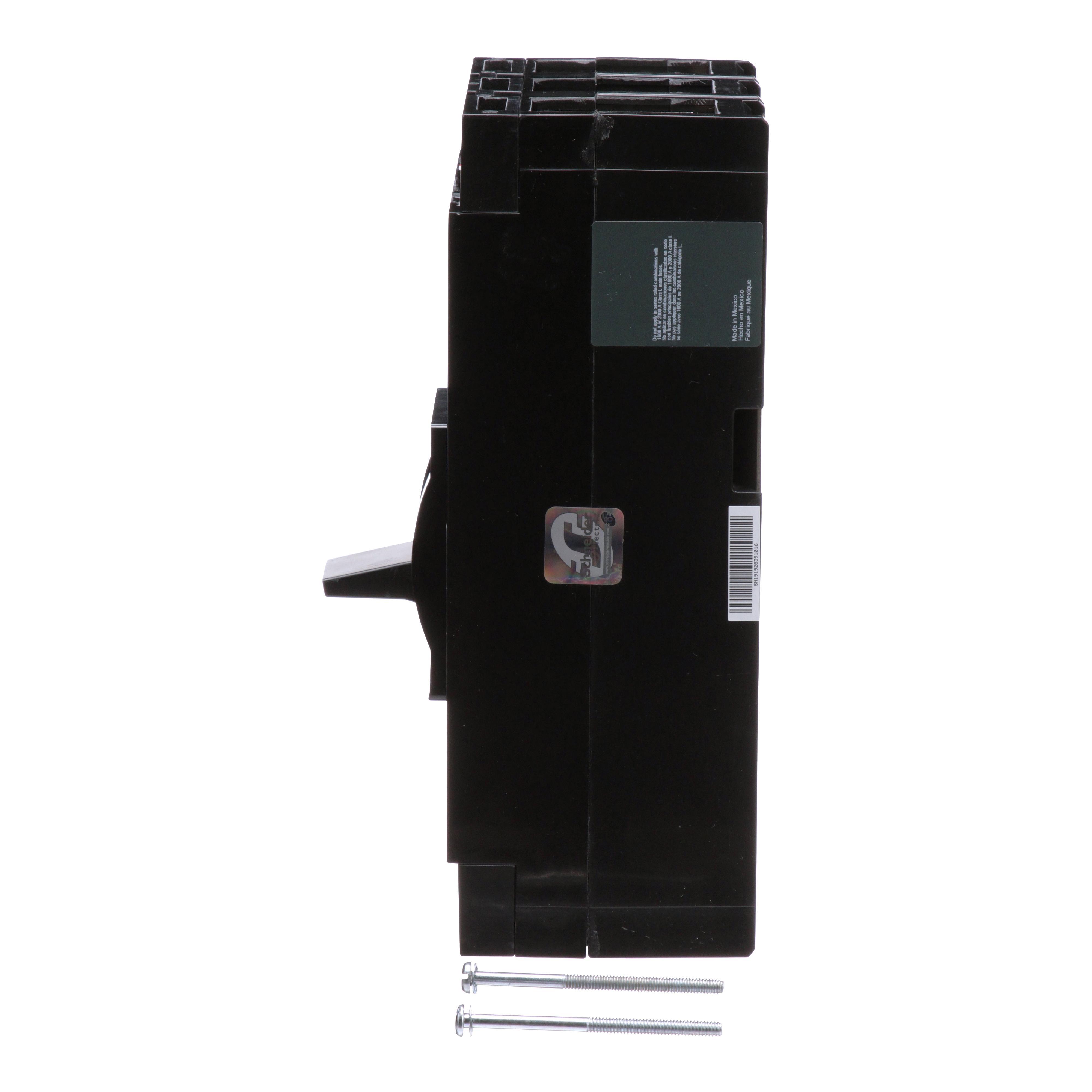

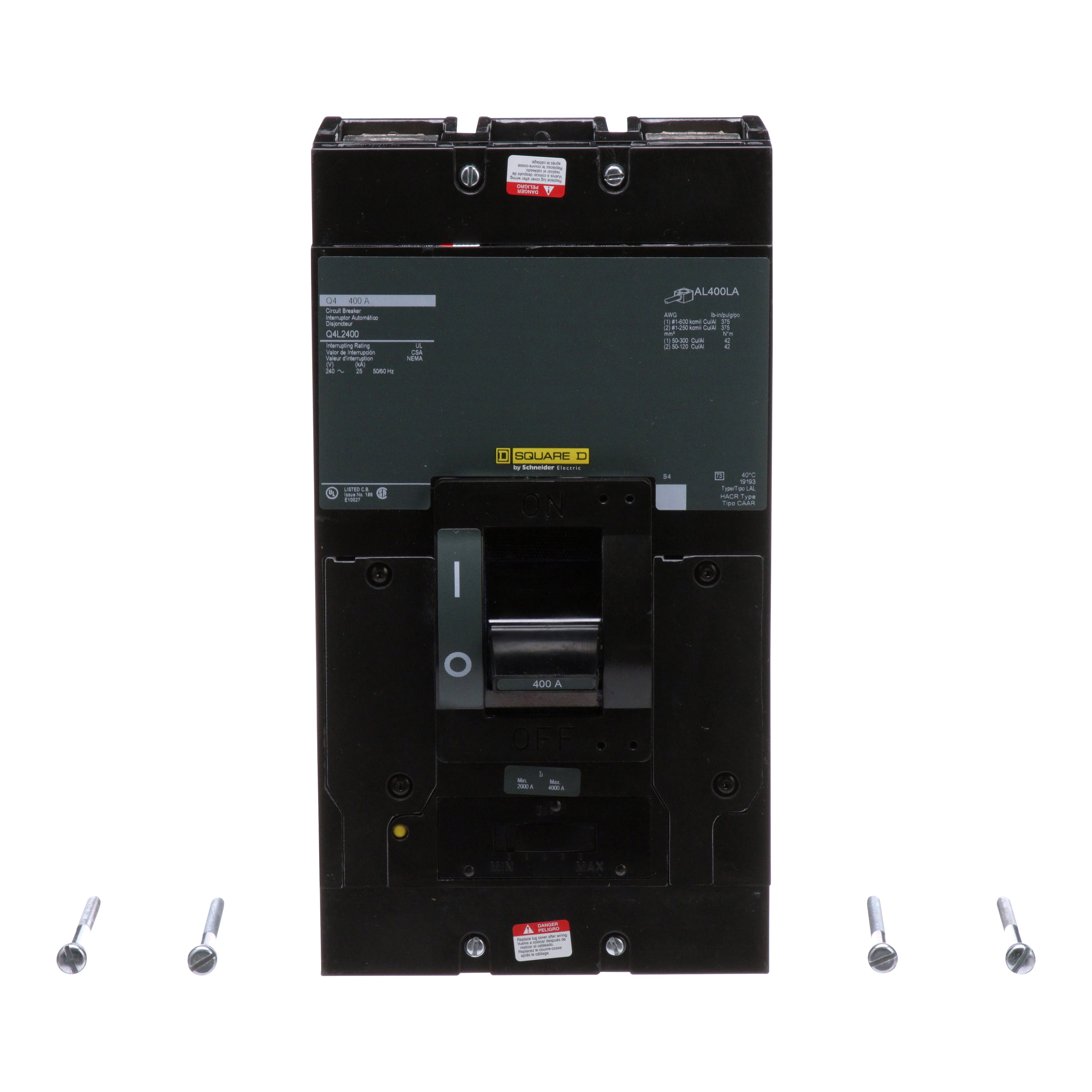

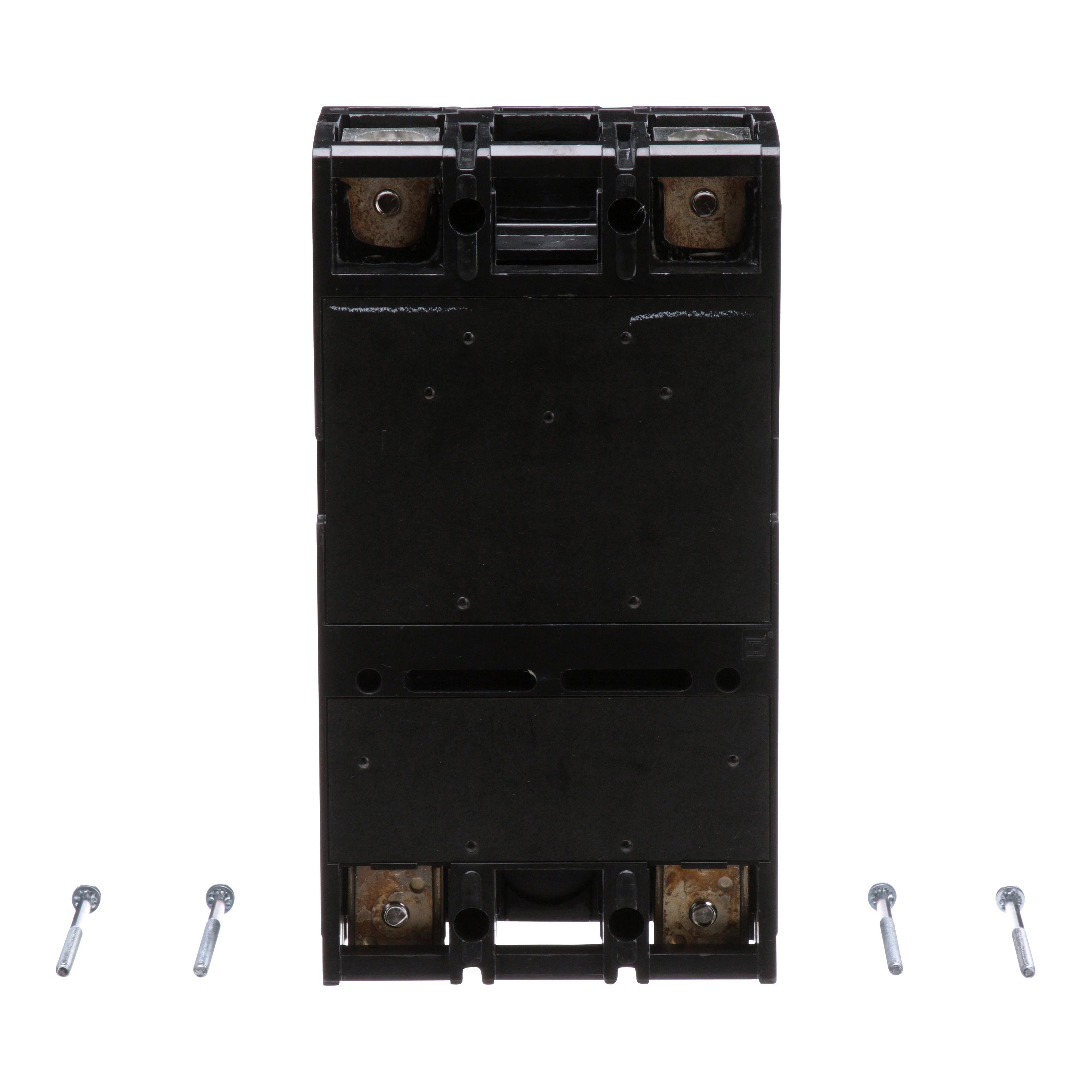

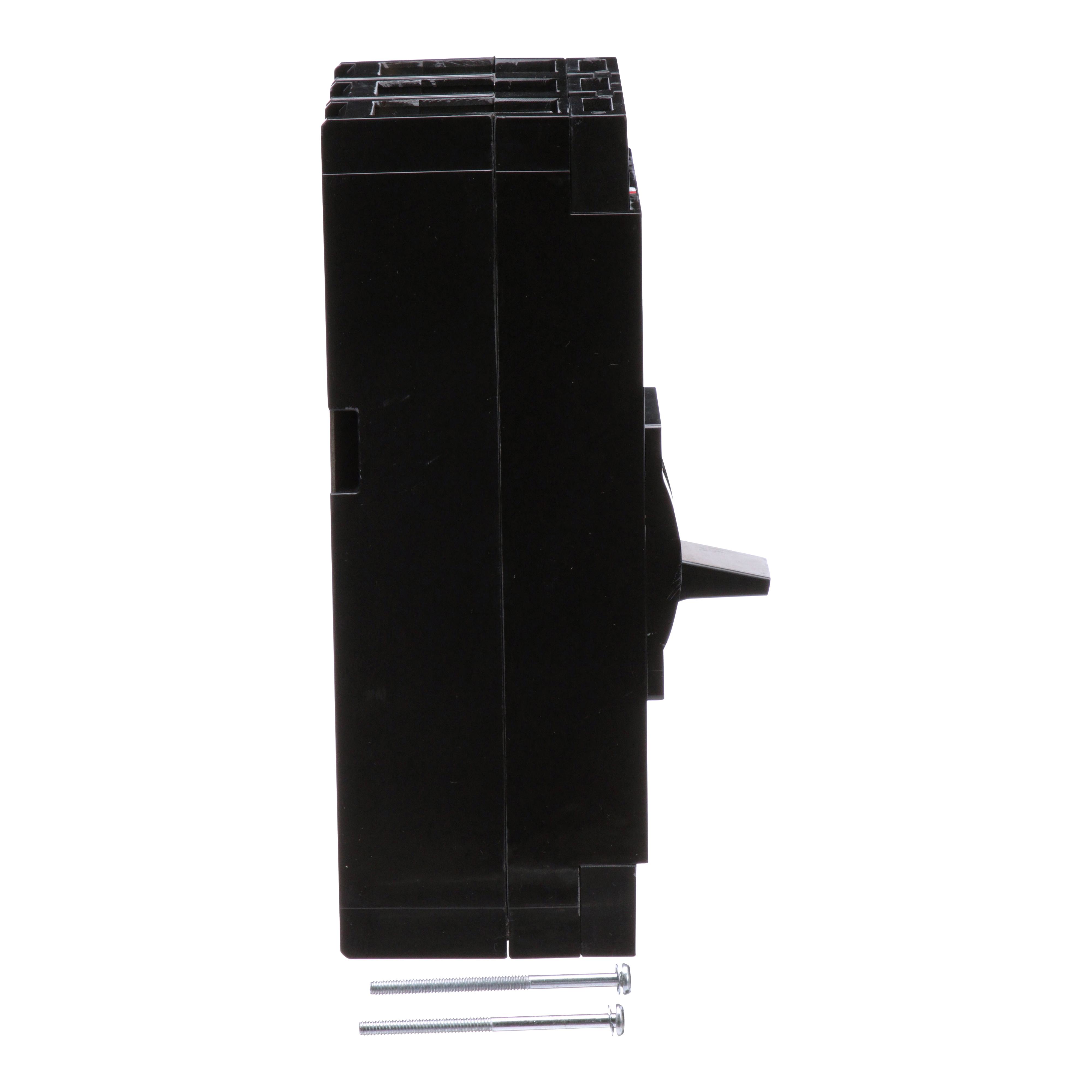

Square D™ PowerPact™ Q4L2400 Molded Case Circuit Breaker, 240 VAC, 400 A, 25 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Brand: Square D™
Item ID: 56685
MPN: Q4L2400
Login for Price
Features
- Thermal magnetic molded case circuit breakers are the most common overcurrent protection devices
- Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions
- Thermal magnetic circuit breakers use bi-metals and electromagnetic assemblies to provide over current protection
- Their characteristic inverse time tripping under overload conditions is ideally suited for many application varying from residential to heavy industrial load
- Unit mounting
Description
Square D™ PowerPact™ Molded Case Circuit Breaker, 240 VAC, 400 A, 50/60 Hz Frequency, 25 kA Interrupt, Q4 Frame, Thermal Magnetic Trip, 400/2000/4000 A Trip, 2 Pole, 1 ph, Line/Load Lug Connection, (1) 1 AWG to 600 kcmil, (2) 1 AWG to 250 kcmil Wire, Surface/Unit Mounting, 40 deg C, 5.84 in L x 6 in W x 11 in H Dimensions
Specifications
Amperage Rating |
400 A |
Connection Type |
Line/Load Lug |
Dimensions |
5.84 in L x 6 in W x 11 in H |
Frame |
Q4 |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
25 kA |
Mounting Type |
Surface/Unit |
Number of Poles |
2 |
Phase |
1 ph |
Temperature Rating |
40 deg C |
Trip Range |
400/2000/4000 A |
Trip Type |
Thermal Magnetic |
Voltage Rating |
240 VAC |
Wire Size |
(1) 1 AWG to 600 kcmil, (2) 1 AWG to 250 kcmil |
Standard Approval |
CCC Marked|IEC/CSA Certified|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov|RoHS Compliant|UL Listed |
Application |
Industrial Enclosures, Panelboards, Switchboards, Busway Plug-In Units, Combination Starters and Motor Control Centers Applications |
