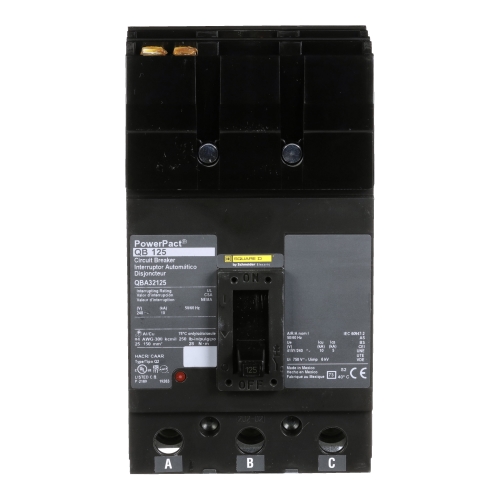

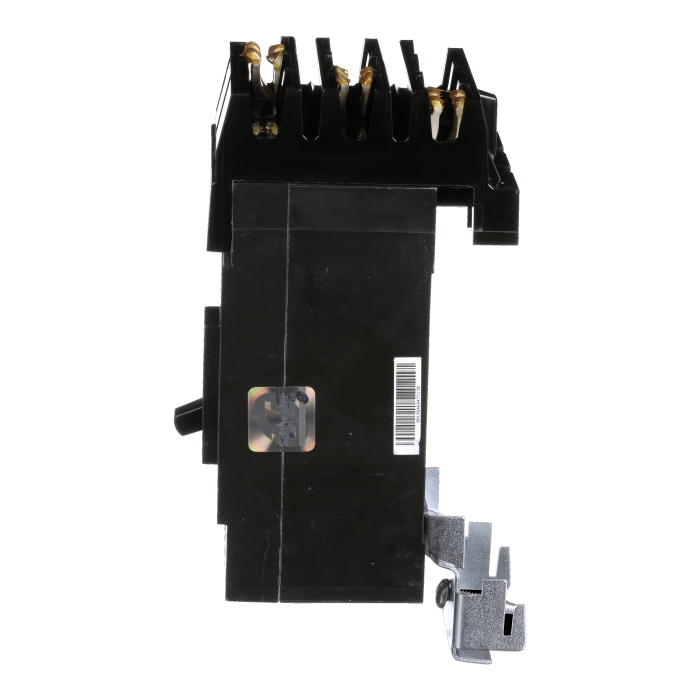

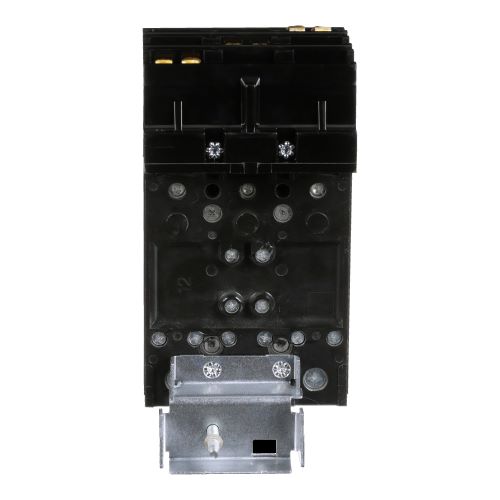

Square D™ I-Line™ PowerPact™ Q QBA32125 Molded Case Circuit Breaker, 240 VAC, 125 A, 10 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
Brand: Square D™
Item ID: 312932
MPN: QBA32125
Login for Price
Description
The PowerPact™ Q-frame line of circuit breakers include QB, QD, QG and QJ molded case circuit breakers and QB automatic switches. They are rated 240 VAC, 250 a maximum and are available in lug or bus connected unit mount constructions or I-Line™ group mounted construction.
Square D™ I-Line™ PowerPact™ Q Molded Case Circuit Breaker, 240 VAC, 125 A, 50/60 Hz Frequency, 10 kA Interrupt, Q Frame, Thermal/Magnetic Trip, 1200 to 2400 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 4 AWG to 300 kcmil Wire, Plug-On Mounting, -13 to 158 deg F, 3.93 in L x 4.5 in W x 6.47 in H Dimensions
Specifications
Amperage Rating |
125 A |
Connection Type |
Line/Load Lug |
Dimensions |
3.93 in L x 4.5 in W x 6.47 in H |
Frame |
Q |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-On |
Number of Poles |
3 |
Phase |
3 |
Temperature Rating |
-13 to 158 deg F |
Trip Range |
1200 to 2400 A |
Trip Type |
Thermal/Magnetic |
Voltage Rating |
240 VAC |
Wire Size |
4 AWG to 300 kcmil |
Standard Approval |
RoHS Compliant|UL 489 File No. E84905|CSA C22.2 File No. 5-02 File No. E84905|IEC Certified|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Switching On AC System, Overload and Short Circuit Protection Applications |
