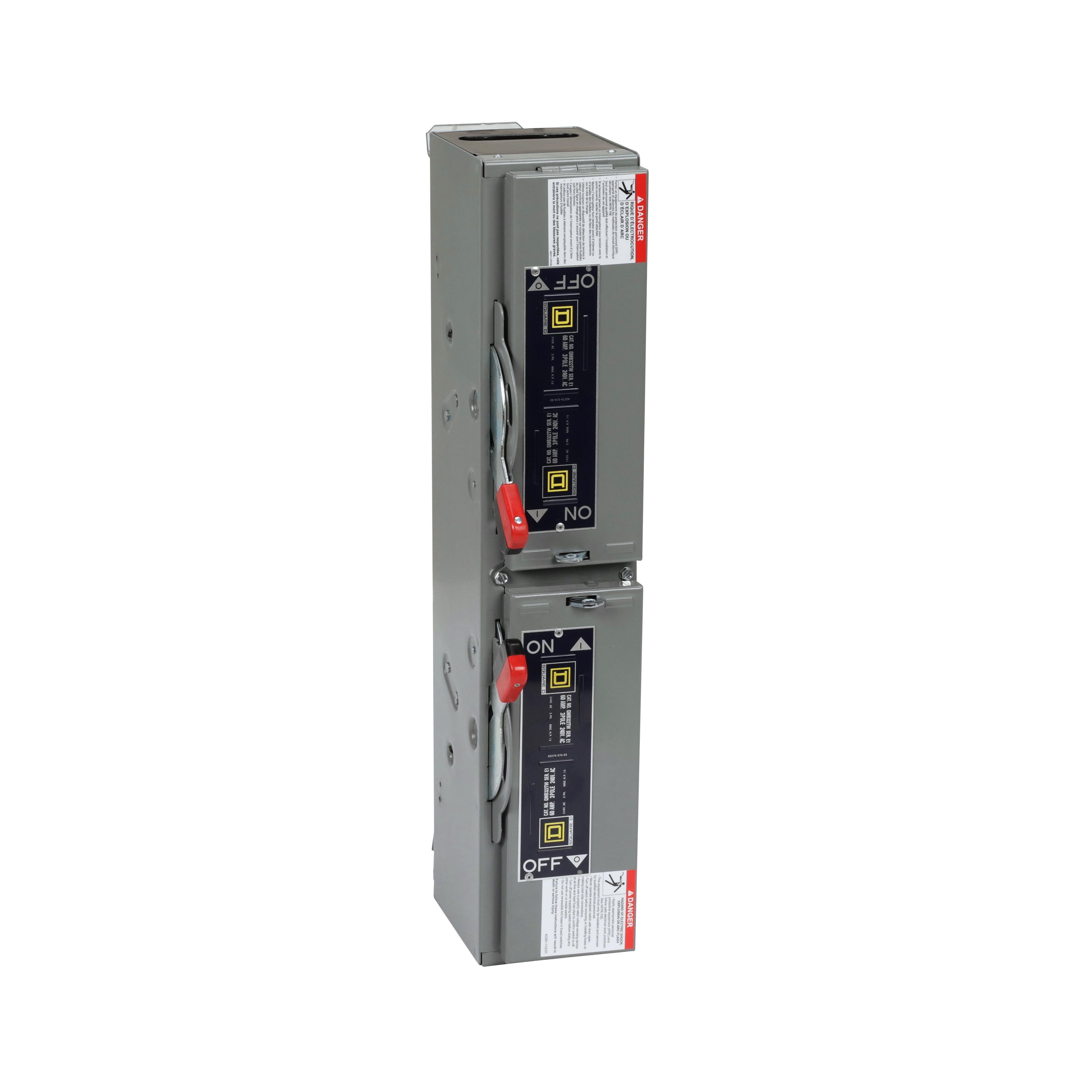

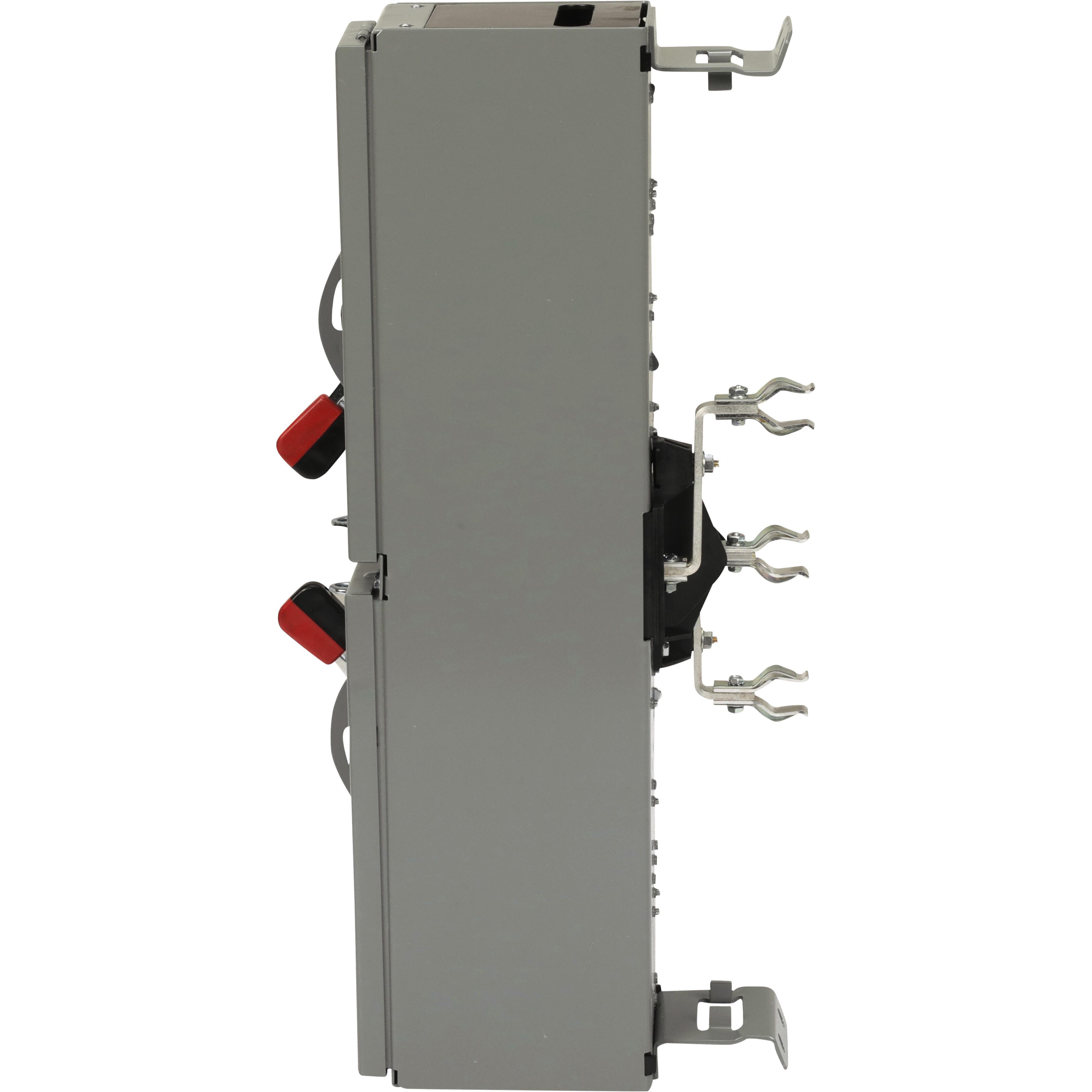

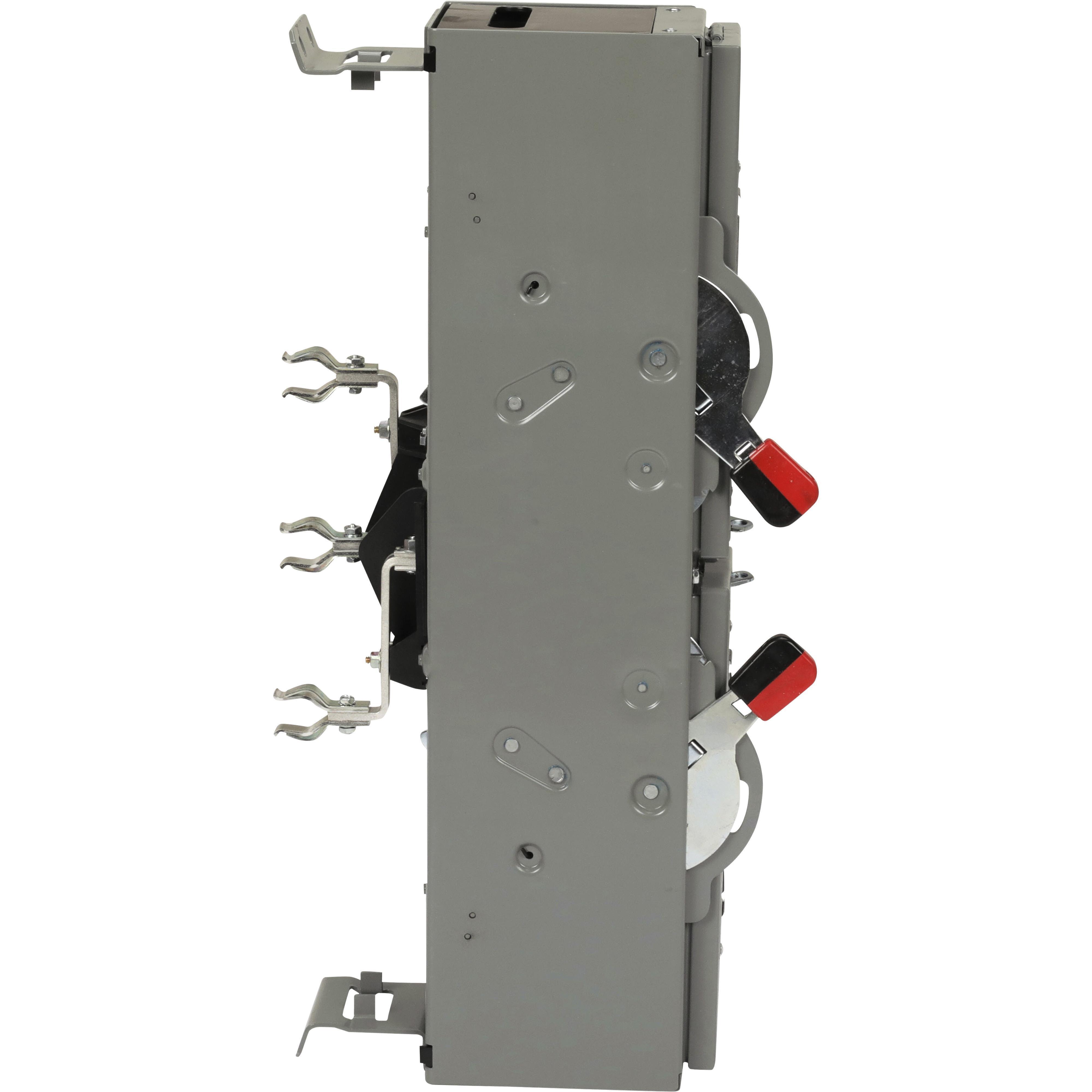

Square D™ QMB322TW
Square D™ QMB322TW Fusible Twin Branch Switch Unit, 240 VAC, 60 A, 15 hp Power Rating, 3 Poles, 200 kA Interrupt
Brand: Square D™
Item ID: 469347
MPN: QMB322TW
UPC: 785901748083
Login for Price
Features
- Positive lock off means with provisions for three 3/8 in shackle padlocks
- Dual cover interlock
- Red and black operating handle and large On/Off nameplate clearly identifies the position of the switch blades
- Hasp on the switch door latch mechanism to lock the switch door
- Mounting brackets are permanently attached to the switch enclosure
- Provides positive identification of the position of the switch blades
- Convenient aid for removing fuses
- Accepts either copper or aluminum wire
Description
QMB switches are designed for use in panelboards and switchboards to provide a means for disconnecting a load from its source, open and close a circuit and to provide overcurrent and short circuit protection.
Square D™ Branch Switch Unit, Fusible Twin, Series: QMB, 240 VAC, 60 A, 3 Pole, 15 hp Power, 200 kA Interrupt, Surface/Panel Mounting, NEMA 1 Enclosure, Steel Housing Material, 4-1/2 in H Dimensions
Specifications
Amperage Rating |
60 A |
Dimensions |
4-1/2 in H |
Enclosure Type |
NEMA 1 |
Housing Material |
Steel |
Interrupt Rating |
200 kA |
Mounting Type |
Surface/Panel |
Number of Poles |
3 |
Power Rating |
15 hp |
Series |
QMB |
Type |
Fusible Twin |
Voltage Rating |
240 VAC |
Standard Approval |
CSA File No. LL48755|Federal Specification WC-865C|UL 98, File No. E34358|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For panelboards and switchboards to provide a means for disconnecting a load from its source, open and close a circuit and to provide overcurrent and short circuit protection |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b90d8ecb4039ddd80cef25b184ce2fa3da78920bf57a2975a221b501a714d9d1.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_H221N_Full_Engineering_Drawing.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QMB322TW_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_45cc7ec10fb793502eec848557bb64bb281ec6cc242a9435ae26ace0789c4d5b.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QMB322TW_Specification_Sheet.pdf
