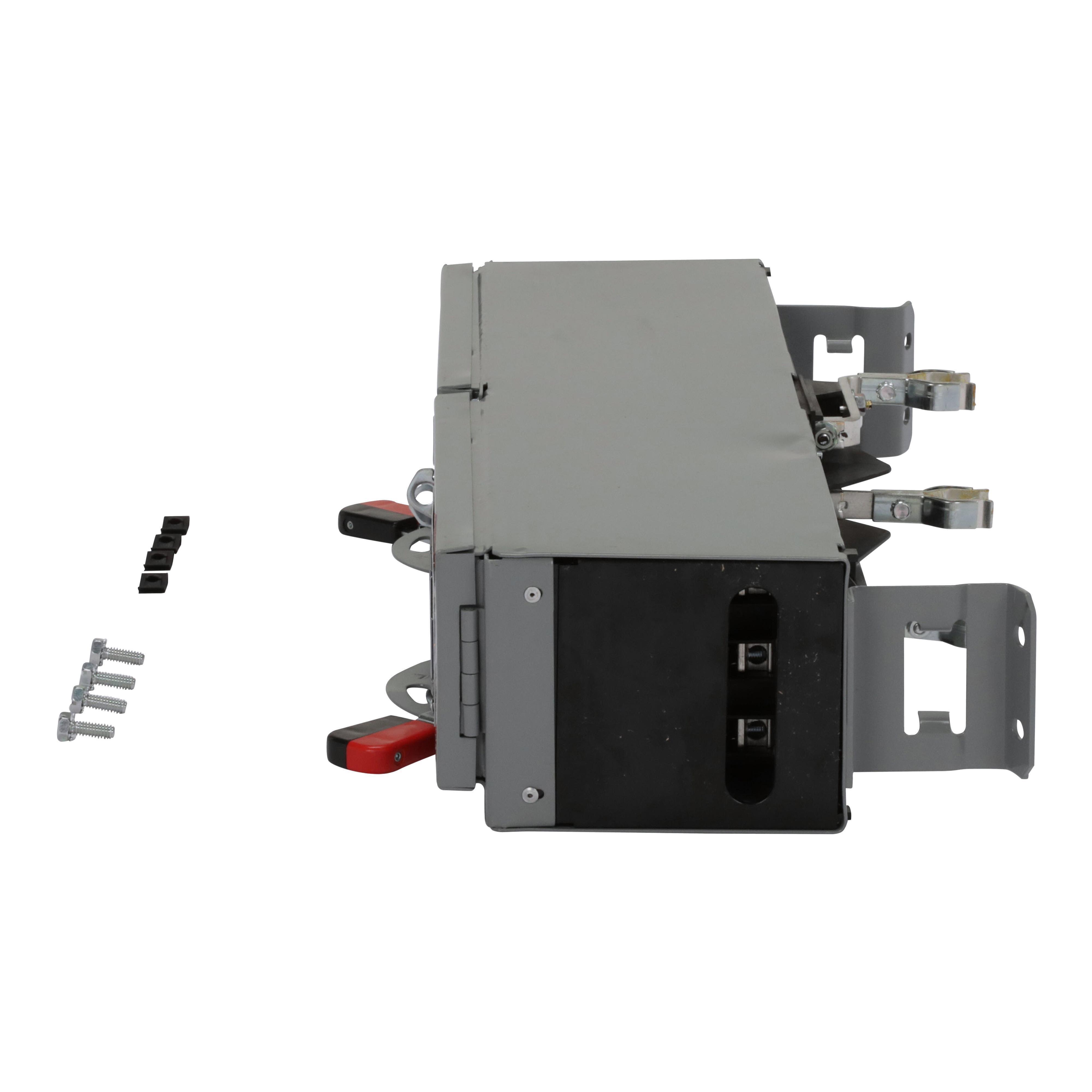

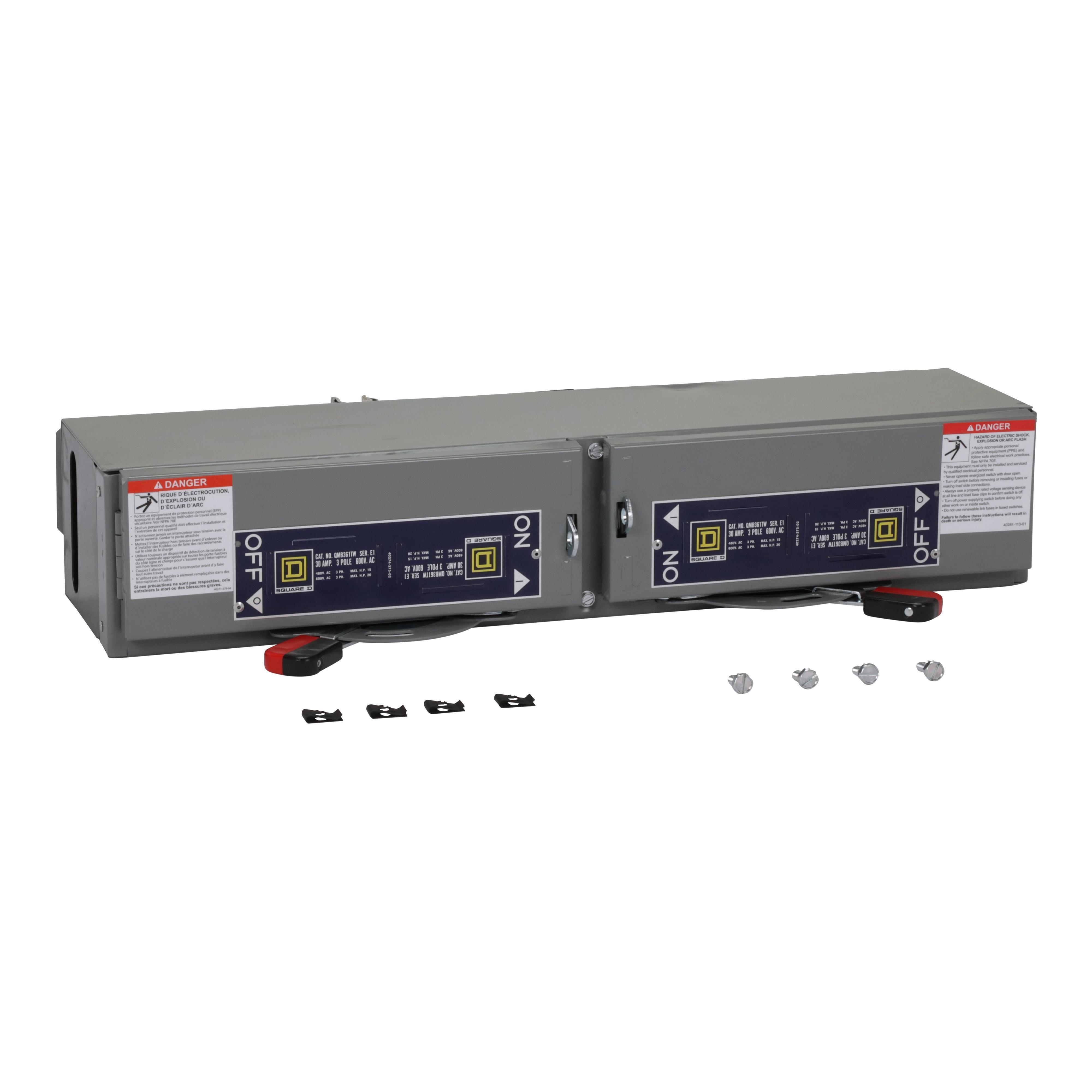

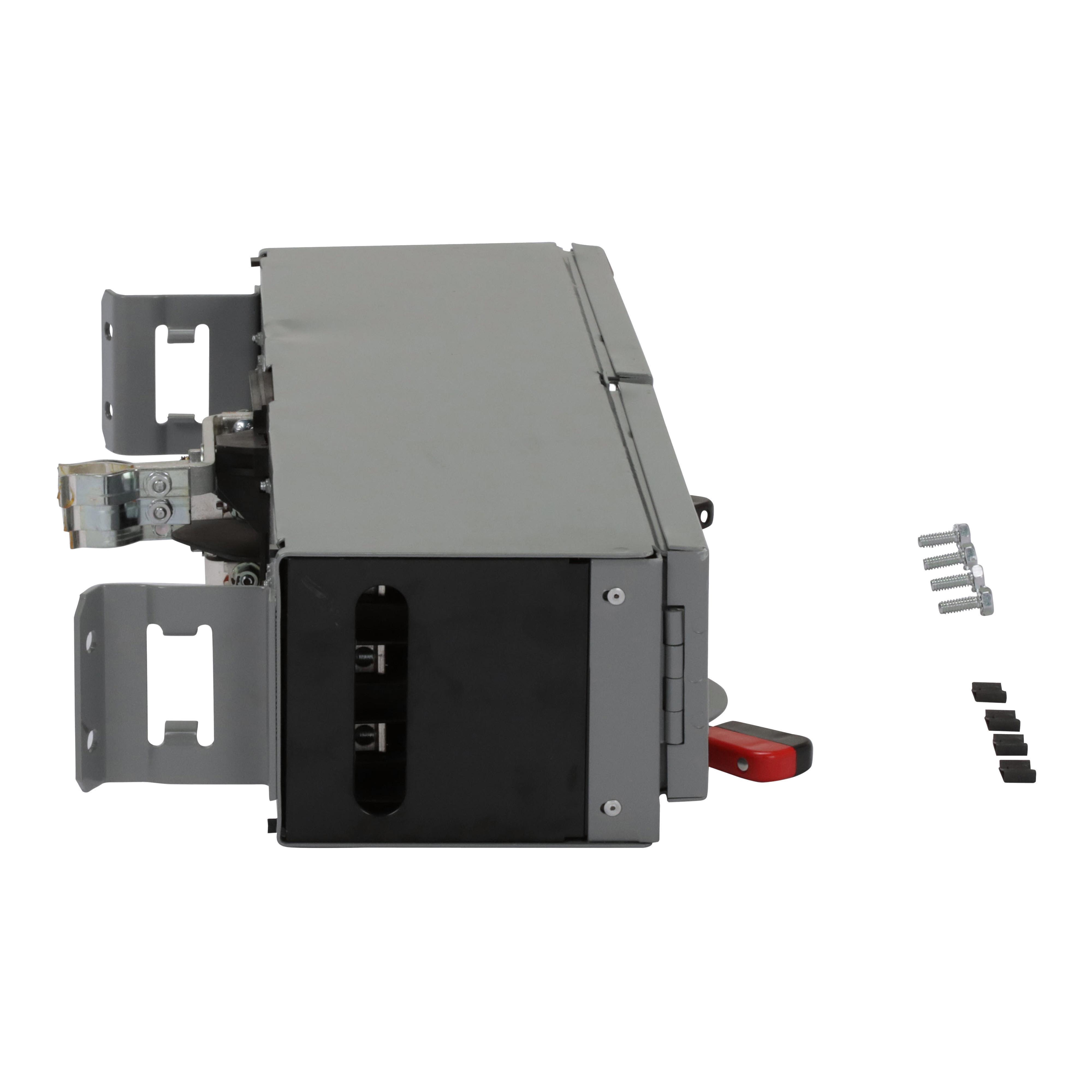

Square D™ QMB361TW
Square D™ QMB361TW Fusible Twin Branch Switch Unit, 600 VAC, 30 A, 20 hp Power Rating, 3 Poles, 200 kA Interrupt
Brand: Square D™
Item ID: 470261
MPN: QMB361TW
UPC: 785901748144
Login for Price
Features
- Positive lock-off means with provisions for three 3/8 in shackle padlocks
- Dual cover interlock
- Red and black operating handle and large ON/OFF nameplate clearly identifies the position of the switch blades
- Hasp on the switch door latch mechanism to lock the switch door
- Mounting brackets are permanently attached to the switch enclosure
- Provides positive identification of the position of the switch blades
- Convenient aid for removing fuses
- Accepts either copper or aluminum wire
Description
QMB switches are designed for use in panelboards and switchboards to provide a means for disconnecting a load from its source, open and close a circuit and to provide overcurrent and short circuit protection.
Square D™ Branch Switch Unit, Fusible Twin, Series: QMB, 600 VAC, 30 A, 3 Pole, 20 hp Power, 200 kA Interrupt, Surface/Panel Mounting, NEMA 1 Enclosure, Steel Housing Material, 114 mm H Dimensions
Specifications
Amperage Rating |
30 A |
Dimensions |
114 mm H |
Enclosure Type |
NEMA 1 |
Housing Material |
Steel |
Interrupt Rating |
200 kA |
Mounting Type |
Surface/Panel |
Number of Poles |
3 |
Power Rating |
20 hp |
Series |
QMB |
Type |
Fusible Twin |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|CSA File No. LL48755|Federal Specification W-C-865C|UL 98|UL File No. E34358|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For panelboards and switchboards to provide a means for disconnecting a load from its source, open and close a circuit and to provide overcurrent and short circuit protection applications |
Documentation
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HALV10L927FWE2_Line_Drawing.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QMB361TW_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f1690f21948e39a5786a22c06b88a6b9a2c877f3fe266dfd7c0cefbeaf5938a7.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QMB361TW_Specification_Sheet.pdf
