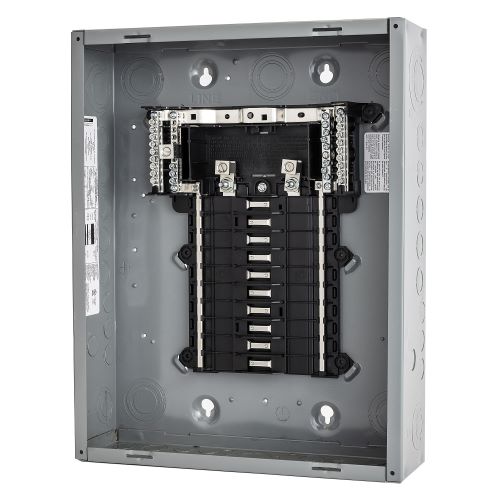

Square D™ QO112L125PG
Square D™ QO™ QO112L125PG 1-Phase Convertible Main Lug Load Center, 120/240 V, 125 A, 3 W Power Rating, 1 Poles
Brand: Square D™
Item ID: 483323
MPN: QO112L125PG
Login for Price
Description
Square D™ QO™ Convertible Main Lug Load Center, 1-Phase, 120/240 V, 125 A, 1 Pole, 3 W, 24 Circuits, 12 Spaces, NEMA 1, 14.25 in W x 3.75 in D x 17.92 in H
Specifications
Amperage Rating |
125 A |
Dimensions |
14.25 in W x 3.75 in D x 17.92 in H |
Enclosure Type |
NEMA 1 |
Number of Circuits |
24 |
Number of Poles |
1 |
Number of Spaces |
12 |
Power Rating |
3 W |
Type |
1-Phase |
Voltage Rating |
120/240 V |
Standard Approval |
ECCN: EAR99|UL Listed |
Application |
For QO plug-on circuit breaker and QO plug-on neutral circuit breaker |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PBPEDU4A100COOL2120M1_Catalog.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3dd6c010fbf848ba3a2828327ecaaa6d74013c15c64b9e1f59a28bf2480a5764.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM24L70F_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e9cc63c920848c8ac8c3d398ab299714a8b44a778dc8a0d559bb0ff65e2ac172.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO124L125PGRB_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOCMF54UCW_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOCMF54UCW_Owners_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOM70VH_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO112L125PG_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a67c88b9cb07bf12be62424b0db4f6dc2dde38553211d641258d2916ce4c9073.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO112L125PG_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120GFI_Warranty.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220GFIC_Warranty_Information.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220GFIC_Warranty_Information.pdf
