Square D™ QO112L200PG

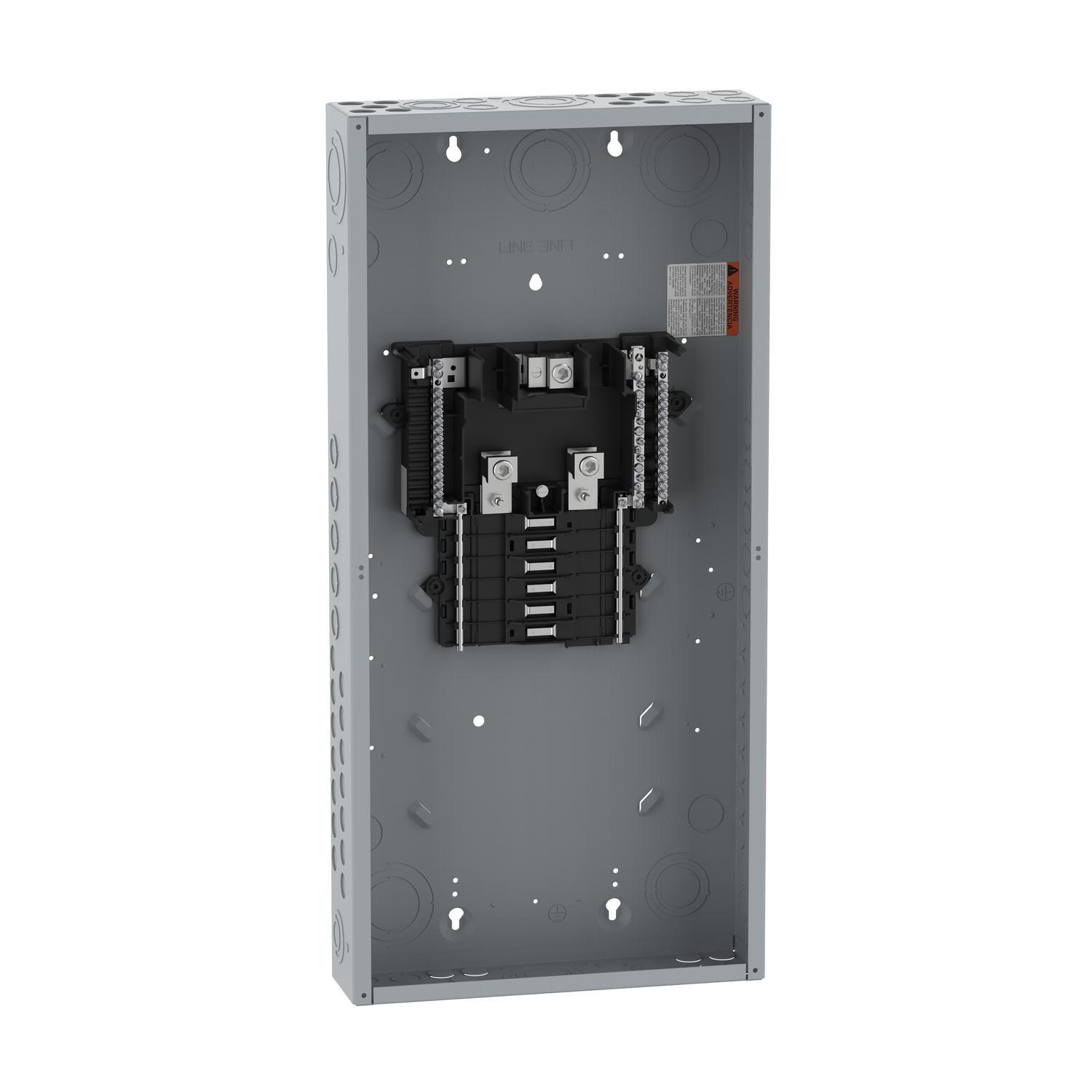

Square D™ QO™ QO112L200PG 1-Phase Convertible Main Lug Neutral Load Center, 120/240 VAC, 200 A, 1 Pole, 65 kA Interrupt
Brand: Square D™
Item ID: 526937
MPN: QO112L200PG
UPC: 785901593638
Login for Price
Features
- 3/4 in W circuit breaker
- Separate flush or surface mount covers
- Full complement of accessories
- Backed out neutral screws save labor and installation time
- Exclusive shielded copper bus features electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
- Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time
- Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements
- Standard 22000/10000 A series short circuit current rating on main breaker load centers provides increased application capability
- QO™ 3 ph main circuit breaker panels can be field upgraded to provide 100000 A short circuit current ratings
- Single, captive interior mounting screw can't be lost
- Interior mounts quickly and can easily be removed during rough-in for paint or theft protection
- Split branch neutral with up to 50% more terminations than UL requirement - simplifies wiring and reduces clutter
- Indoor enclosures designed to rotate 180 deg to accommodate top or bottom service entrance feed, saving expensive service cable
- Combination slot/square drive neutral, ground and cover screw accommodate both standard flat blade screwdrivers and square head drivers
- Three ground bar mounting locations (left, right and end) make it easier to wire
Description
Industry leading offer since 1955 with features engineered for faster installation, reliability and quality. Contractors installing QO™ know it's the world's finest.
Square D™ QO™ Convertible Main Lug Neutral Load Center, 1-Phase, 120/240 VAC, 200 A, 1 Pole, 65 kA Interrupt, 12 Circuits, Plug-On Breaker Mounting, 12 Spaces, NEMA 1 Enclosure, 14.25 in W x 3.75 in D x 29.86 in H Enclosure Box
Specifications
Amperage Rating |
200 A |
Breaker Mounting |
Plug-On |
Enclosure Box Size |
14.25 in W x 3.75 in D x 29.86 in H |
Enclosure Type |
NEMA 1 |
Interrupt Rating |
65 kA |
Number of Circuits |
12 |
Number of Poles |
1 |
Number of Spaces |
12 |
Type |
1-Phase |
Voltage Rating |
120/240 VAC |
Standard Approval |
UL Listed |
Application |
Residential, Remodels/Upgrades, Commercial, Agricultural and Indoor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a41315c90b15c9a19a009c771384b69d74b7c63b4bf60bbf5193e66e46bb8137.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO112L200PG_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO112L200PG_Catalog.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO120L125PWG_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO120L125PWG_Catalog.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_SDAG26_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_SDAG26_Catalog.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_59b2a2756d7ba34449e82fd86fd9484888e820ed43116f4dceabad032df37b01.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ebfa346d0d6ebdf63991a403d34429b296846c6fb0eabf706ebd37668b65d0d3.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_QOC30U125C_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_QOC30U125C_Instruction_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_eb62672dca63f1644d5439a119335d667106d63472e6693f33809ef7e1551866.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_BDP36025_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7424ffada523980fb6390da04ab41dcbbcd76dd78bcc67879dec35fcbea2f37d.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ed6b451c2b455354ccc0d34a5f7efd33149171b508b796145a09f249222ad2a2.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO112L125PWG_Warranty.pdf
