Schneider Electric QO112M100P

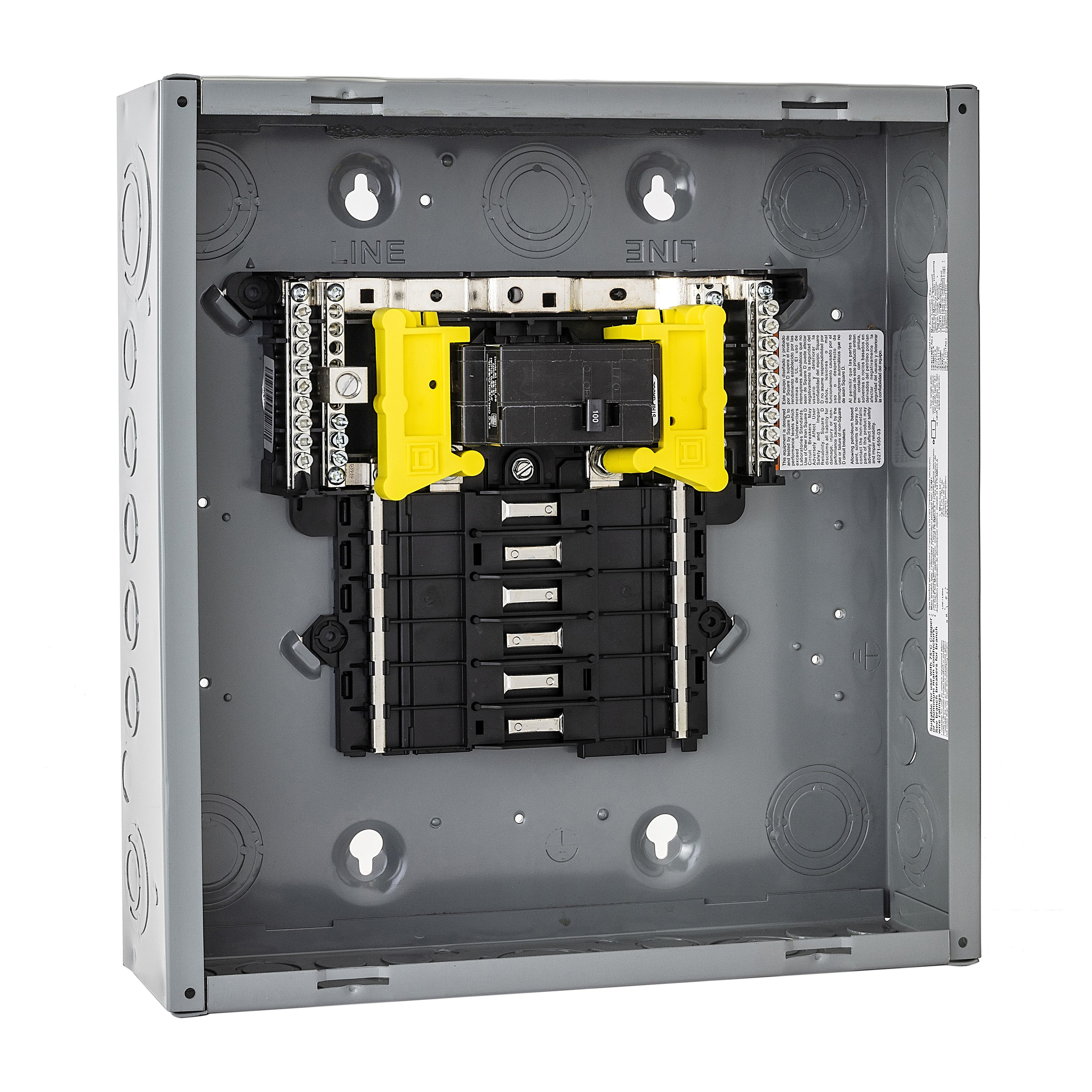

Schneider Electric Square D™ QO™ QO112M100P 1-Phase 3-Wire Convertible Main Neutral Load Center, 120/240 VAC, 100 A, 22 kA Interrupt
Brand: Schneider Electric
Item ID: 481717
MPN: QO112M100P
Login for Price
Features
- Convertible to main lugs or lower amperage main breaker
- Factory installed main breaker
- Copper bus
Description
Schneider Electric Square D™ QO™ Convertible Main Neutral Load Center, 1-Phase 3-Wire, 120/240 VAC, 100 A, 50/60 Hz Frequency, 22 kA Interrupt, 12 Circuits, Plug-On Breaker Mounting, 12 Spaces, 6 to 2/0 AWG AL, 6 to 1 AWG CU Wire, NEMA 1 Enclosure, 14.25 in W x 3.75 in D x 14.92 in H Dimensions
Specifications
Amperage Rating |
100 A |
Breaker Mounting |
Plug-On |
Dimensions |
14.25 in W x 3.75 in D x 14.92 in H |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
22 kA |
Number of Circuits |
12 |
Number of Spaces |
12 |
Type |
1-Phase 3-Wire |
Voltage Rating |
120/240 VAC |
Wire Size |
6 to 2/0 AWG AL, 6 to 1 AWG CU |
Standard Approval |
ECCN: EAR99|REACH Compliant|UL Listed |
Application |
For QO™ plug-on neutral circuit breaker and indoor applications |
