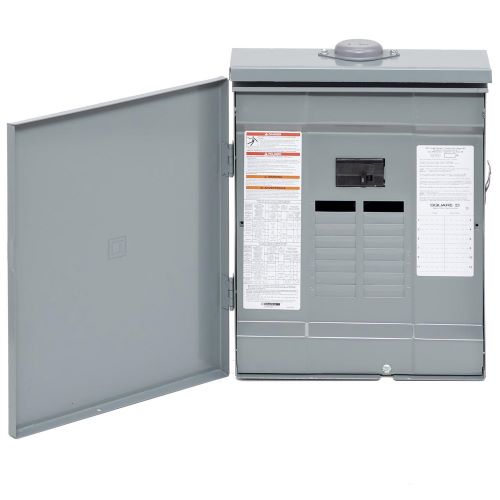

Square D™ QO112M100PRB
Square D™ QO112M100PRB 1-Phase Convertible Main Lug Load Center, 120/240 V, 100 A, 3 W Power Rating, 1 Poles
Brand: Square D™
Item ID: 483325
MPN: QO112M100PRB
Login for Price
Description
Square D™ Convertible Main Lug Load Center, 1-Phase, 120/240 V, 100 A, 1 Pole, 3 W, 24 Circuits, 12 Spaces, NEMA 3R, 14.75 in W x 4.52 in D x 18.92 in H
Specifications
Amperage Rating |
100 A |
Dimensions |
14.75 in W x 4.52 in D x 18.92 in H |
Enclosure Type |
NEMA 3R |
Number of Circuits |
24 |
Number of Poles |
1 |
Number of Spaces |
12 |
Power Rating |
3 W |
Type |
1-Phase |
Voltage Rating |
120/240 V |
Standard Approval |
UL Listed |
Application |
For QO plug-on circuit breaker and QO plug-on neutral circuit breaker |
