Square D™ QO115PDF

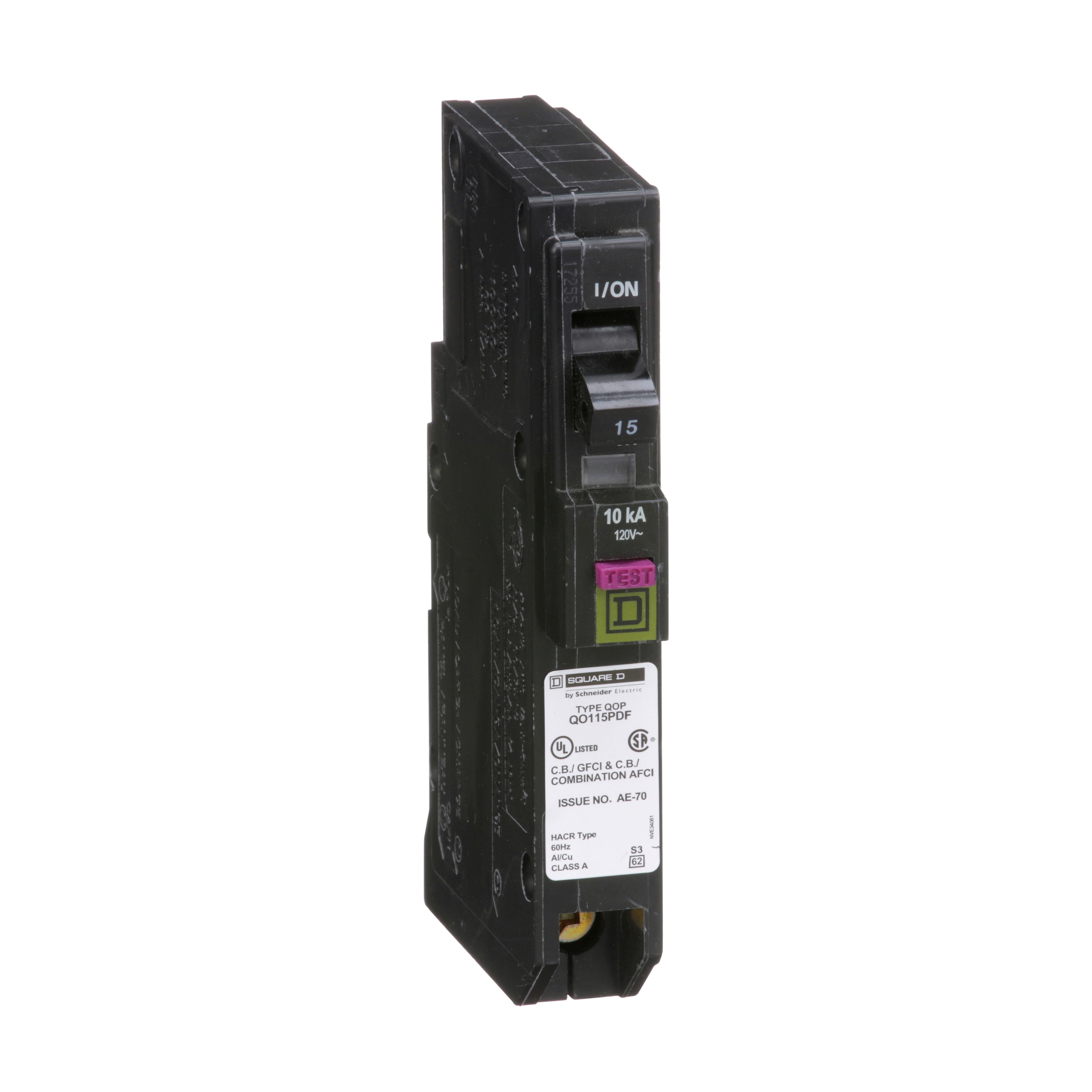

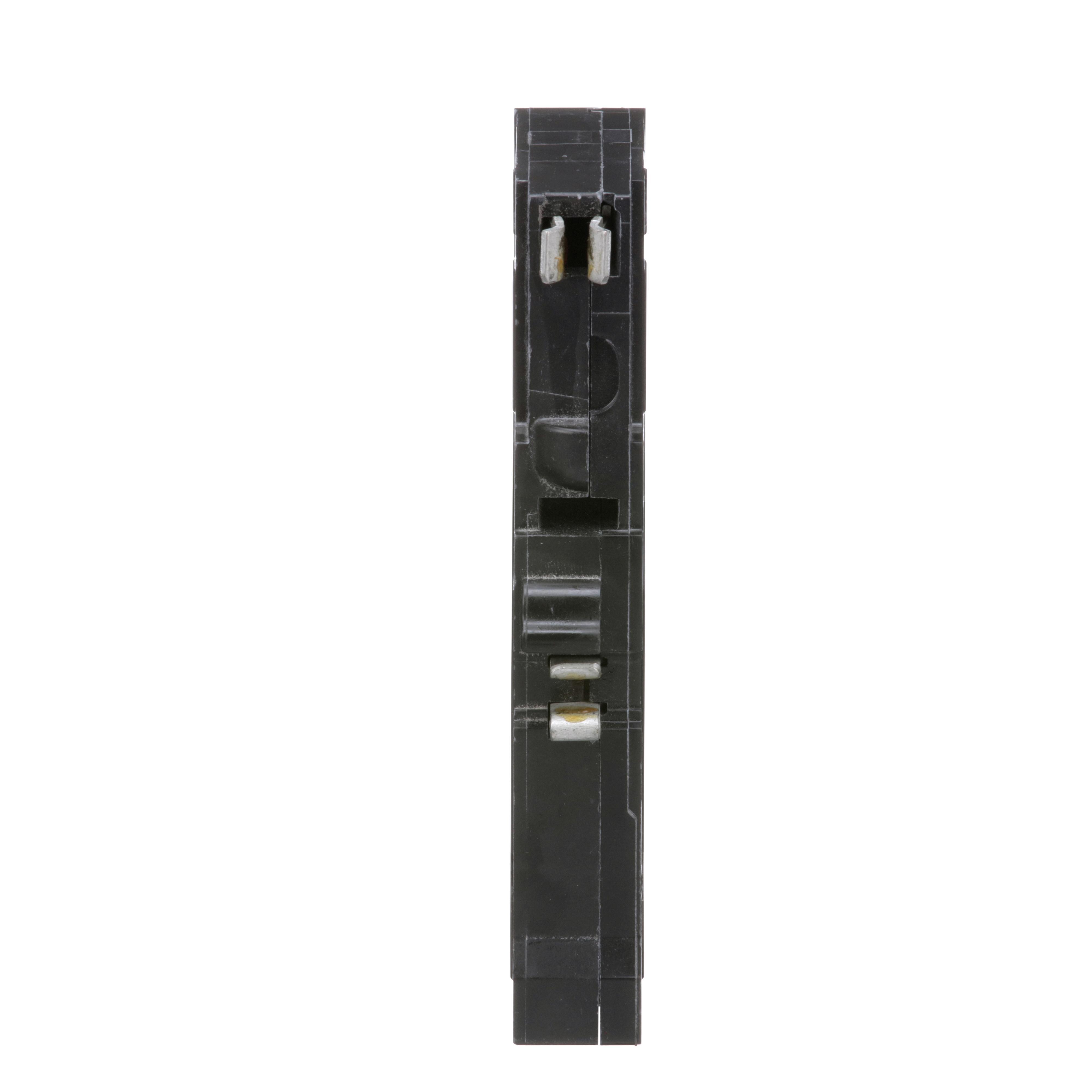

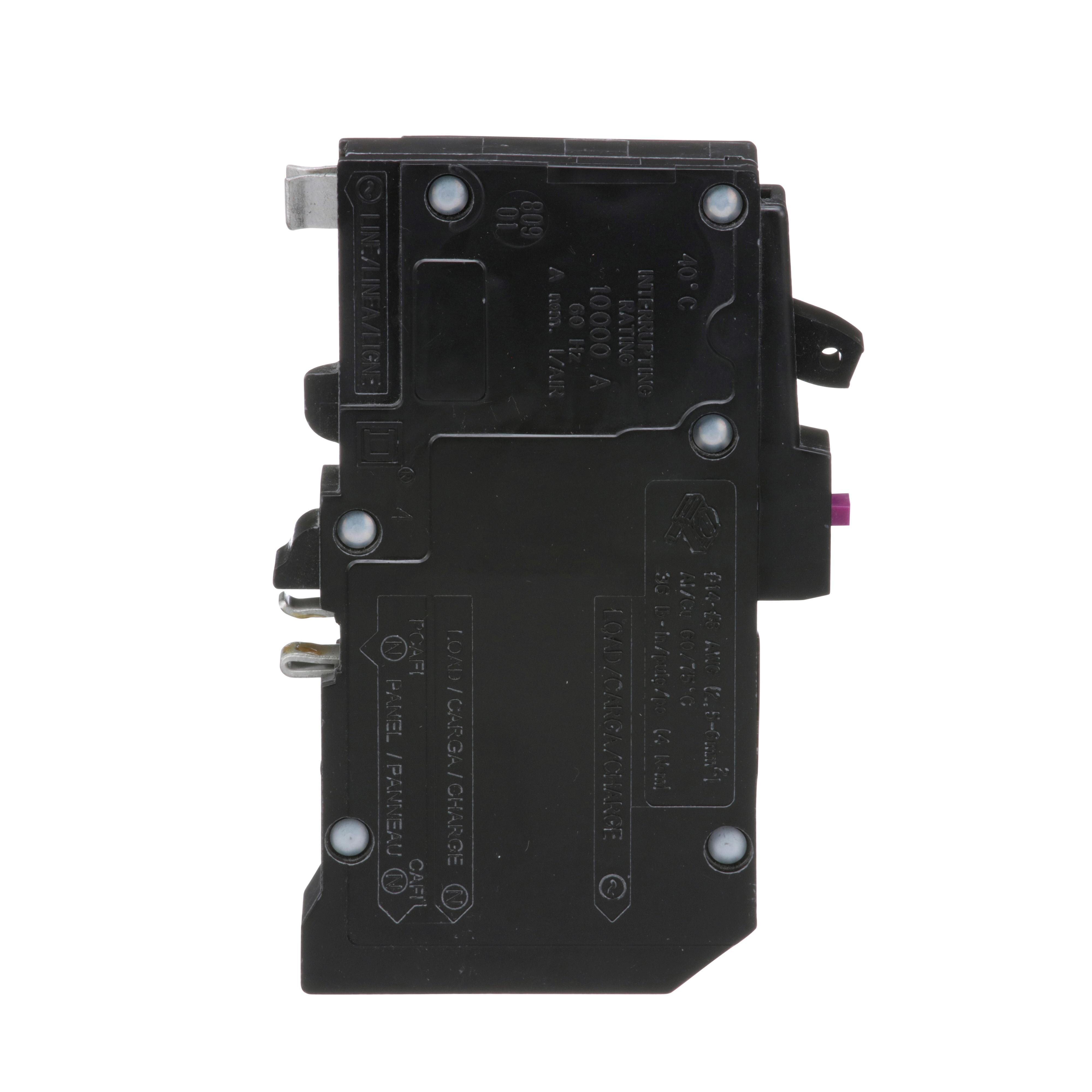

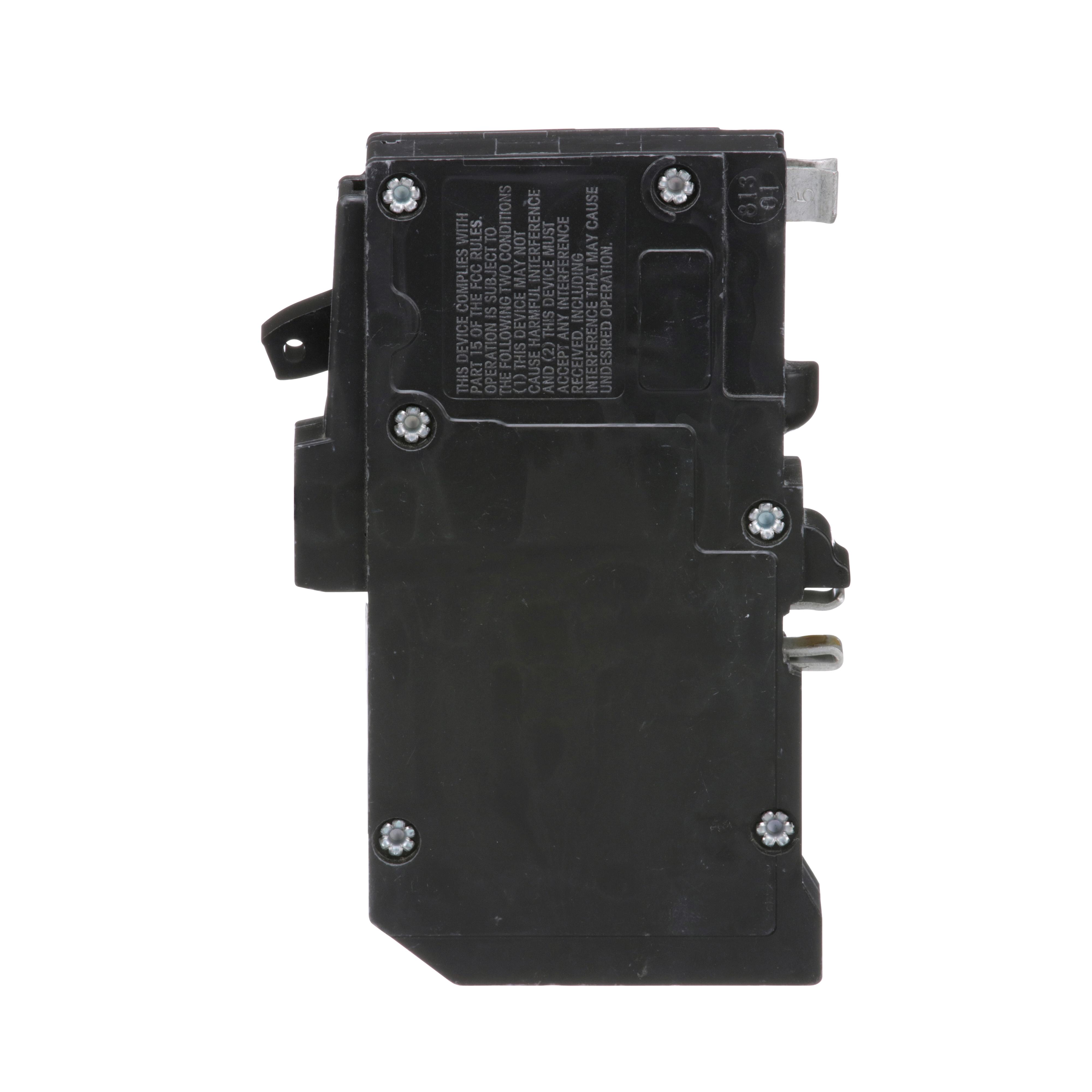

Square D™ QO™ QO115PDF Dual Function Miniature Circuit Breaker, 120 VAC, 15 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Brand: Square D™
Item ID: 428889
MPN: QO115PDF
UPC: 785901741169
Login for Price
Features
- Plug-on neutral
- Dual function - combination arc fault and ground fault circuit interrupters
Description
QO™ (plug-on) 1, 2 and 3-pole thermal-magnetic circuit breakers provide overcurrent protection and switching on AC and DC systems. Plug-on QO™ circuit breakers are for use in QO™ load centers, NQ and NQOD panel boards, OEM mounting bases and speed D™ switchboard distribution panels. QO™ circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication. The tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously. Each pole has an individual thermal-magnetic trip element calibrated for 40 deg C ambient temperature.
Square D™ QO™ Miniature Circuit Breaker, Dual Function, 120 VAC, 15 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Pressure Plate, 14 to 8 AWG Wire, Plug-On Mount, 104 deg F, 2.91 in L x 0.75 in W x 4.75 in H
Specifications
Amperage Rating |
15 A |
Connection Type |
Pressure Plate |
Dimensions |
2.91 in L x 0.75 in W x 4.75 in H |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-On |
Number of Poles |
1 |
Phase |
1 ph |
Temperature Rating |
104 deg F |
Trip Type |
Thermal Magnetic |
Type |
Dual Function |
Voltage Rating |
120 VAC |
Wire Size |
14 to 8 AWG |
Standard Approval |
CSA C22.2 #5|Federal Specification W-C-375B/GEN|NOM/ANCE Marked|RoHS Compliant|UL 489 File No. E84967|NEMA AB1|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For providing overload, short circuit protection |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f0912c564bbfbf4e881564fd4e820443eb253f57e4a9400dc9793bd32fa925d3.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5db8560573365cfe541ff5b48111541ae4a2c4fd003a8d0babb6399beda1dd05.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO115VHDF_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3a71a44f0a9c09bf6f017b25b50d5d756875cdd3cdf6ef7d261d0fe05977da3f.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO240EPD2100_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO240EPD2100_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOB350VH_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO115PDF_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5a494d05accb8b81b90e66a5527a59d9881a48942fe60791fabf0c6afdb0ad5a.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO115PDF_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120GFI_Warranty.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220GFIC_Warranty_Information.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220GFIC_Warranty_Information.pdf
