Schneider Electric QO116L125PG

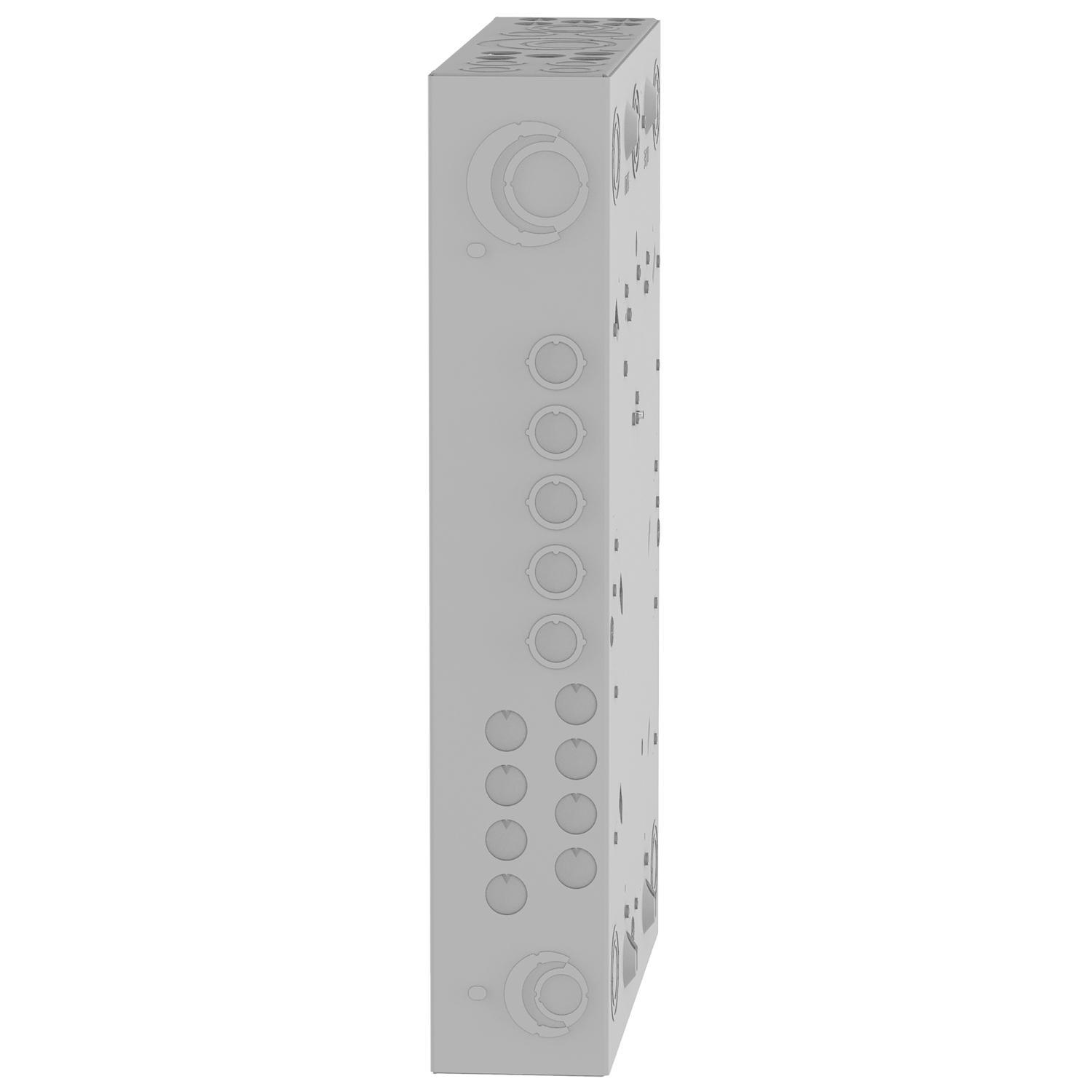

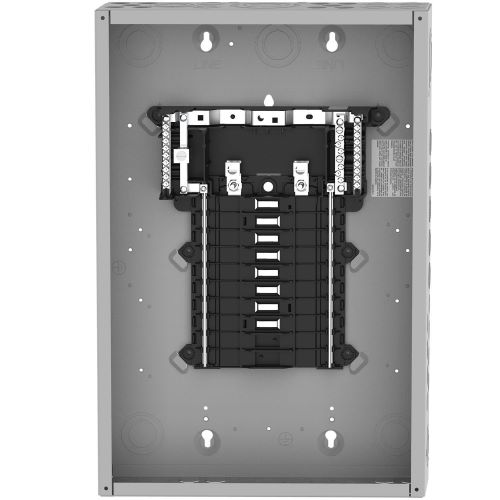

Schneider Electric Square D™ QO™ QO116L125PG 1-Phase 3-Wire Convertible Main Lug Neutral Load Center, 120/240 VAC, 125 A, 65 kA Interrupt
Brand: Schneider Electric
Item ID: 481736
MPN: QO116L125PG
Login for Price
Features
- 12-spaces and higher panels convertible to main breaker
- Factory installed main lugs
- Copper bus bar only on 12-spaces and higher
Description
Schneider Electric Square D™ QO™ Convertible Main Lug Neutral Load Center, 1-Phase 3-Wire, 120/240 VAC, 125 A, 50/60 Hz Frequency, 65 kA Interrupt, 16 Circuits, Plug-On Breaker Mounting, 16 Spaces, 6 to 2/0 AWG AL/CU Wire, NEMA 1 Enclosure, 14.25 in W x 3.75 in D x 20.92 in H Dimensions
Specifications
Amperage Rating |
125 A |
Breaker Mounting |
Plug-On |
Dimensions |
14.25 in W x 3.75 in D x 20.92 in H |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
65 kA |
Number of Circuits |
16 |
Number of Spaces |
16 |
Type |
1-Phase 3-Wire |
Voltage Rating |
120/240 VAC |
Wire Size |
6 to 2/0 AWG AL/CU |
Standard Approval |
ECCN: EAR99|REACH Compliant|UL Listed |
Application |
For QO™ plug-on neutral circuit breaker and indoor applications |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ebfa346d0d6ebdf63991a403d34429b296846c6fb0eabf706ebd37668b65d0d3.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM24L70F_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_211ad3204597fa417e1fe938c9db8f83684522ad657f8c0d603370c4c99a3789.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO130M150PC_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO130M150PC_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOM70VH_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_BDP36035_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_QO116L125PG_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0af262cd65b97b389257ac821cdefd210a429455da9dbe6068127c929a1b3f25.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_QO116L125PG_Specification_Sheet.pdf
