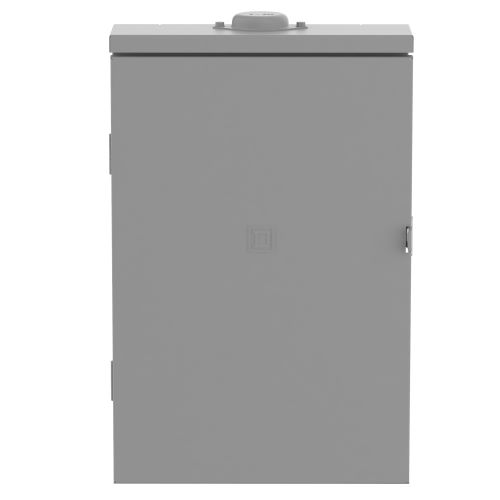

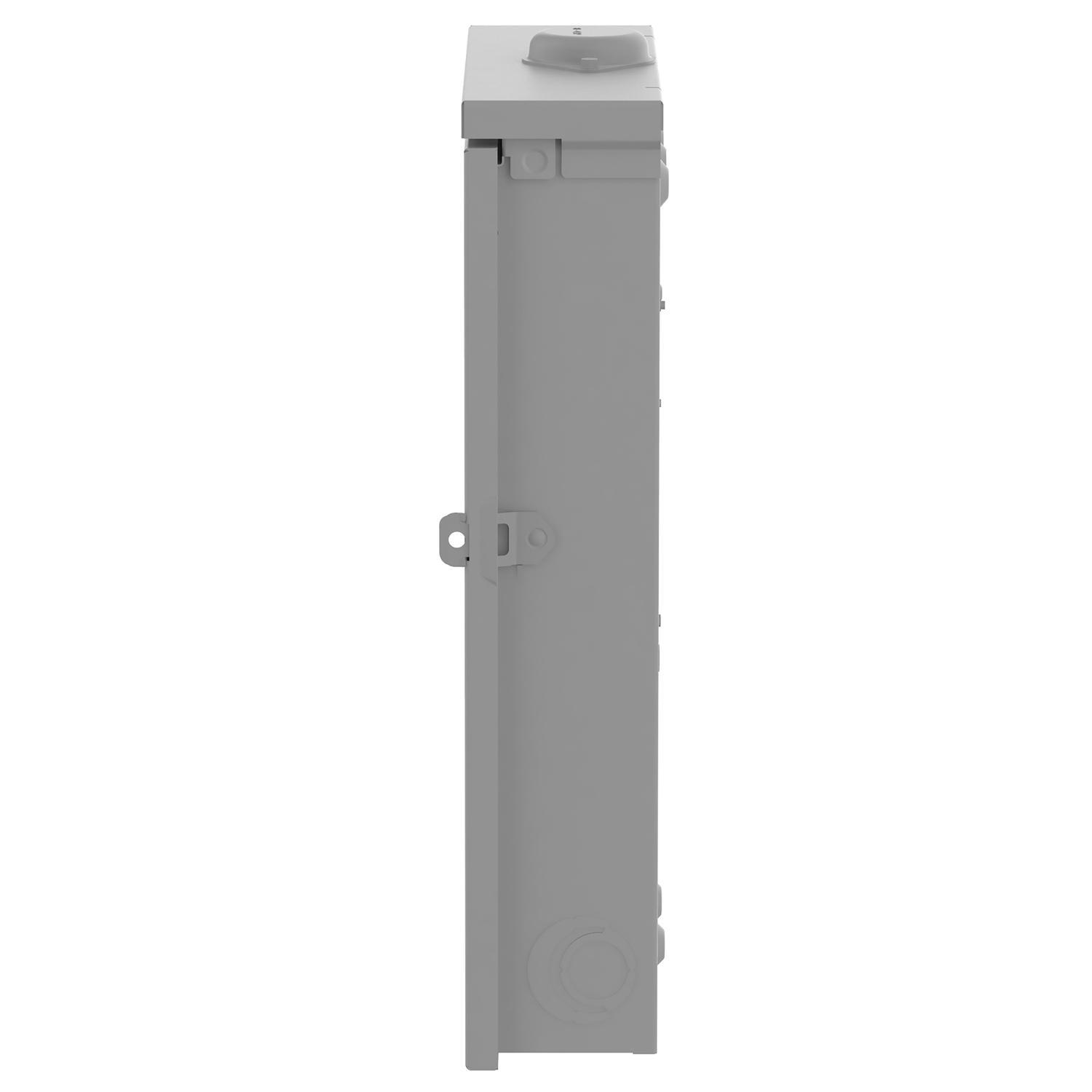

Schneider Electric QO116L125PGRB
Schneider Electric Square D™ QO™ QO116L125PGRB 1-Phase 3-Wire Rainproof Convertible Main Lug Neutral Load Center, 120/240 VAC, 125 A, 65 kA Interrupt
Brand: Schneider Electric
Item ID: 482845
MPN: QO116L125PGRB
Login for Price
Features
- 12-spaces and higher panels convertible to main breaker
- Factory installed main lugs
- Copper bus bar only on 12-spaces and higher
Description
Schneider Electric Square D™ QO™ Convertible Main Lug Neutral Load Center, 1-Phase 3-Wire Rainproof, 120/240 VAC, 125 A, 50/60 Hz Frequency, 65 kA Interrupt, 16 Circuits, Plug-On Breaker Mounting, 16 Spaces, 6 to 2/0 AWG AL/CU Wire, NEMA 3R Enclosure, 14.75 in W x 4.52 in D x 22.06 in H Dimensions
Specifications
Amperage Rating |
125 A |
Breaker Mounting |
Plug-On |
Dimensions |
14.75 in W x 4.52 in D x 22.06 in H |
Enclosure Type |
NEMA 3R |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
65 kA |
Number of Circuits |
16 |
Number of Spaces |
16 |
Type |
1-Phase 3-Wire Rainproof |
Voltage Rating |
120/240 VAC |
Wire Size |
6 to 2/0 AWG AL/CU |
Standard Approval |
ECCN: EAR99|REACH Compliant|UL Listed |
Application |
For QO™ plug-on neutral circuit breaker and indoor applications |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_QO116L125PGRB_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOCMF54UCW_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOCMF54UCW_Owners_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_QO116L125PGRB_RoHS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_QO116L125PGRB_RoHS.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_QO116L125PGRB_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_QO116L125PGRB_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220GFIC_Warranty_Information.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220GFIC_Warranty_Information.pdf
