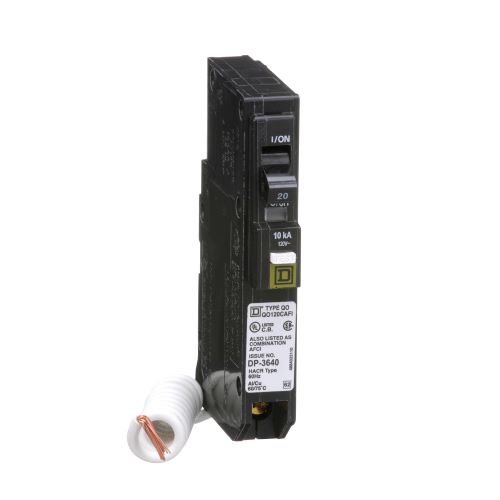

Square D™ QO120CAFI
Square D™ QO120CAFI Combination Miniature Arc Fault Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Poles, K-Curve/Thermal Magnetic Trip
Brand: Square D™
Item ID: 372288
MPN: QO120CAFI
Login for Price
Features
- An arc fault circuit breaker opens the circuit and stops the arcing and high intensity heat before a fire is likely to ignite
- Special microprocessor based arc identification to differentiate necessary operational arcs (associated with loads such as electric motors, switches and receptacles) from actual arc faults which can cause damage and fires
- Differentiate true arc faults from chopped wave-forms associated with switched mode power supplies on electrical appliances, computers and lamp dimmers
- 14 - 8 AWG copper, 12 - 8 AWG aluminum
- Have special microprocessor-based arc identification to differentiate necessary operational arcs (associated with loads such as electric motors, switches and receptacles) from actual arc faults which can cause damage and fires
- K-Curve trip
- Combination ARC fault
Description
QO™ (plug-on) and QOB (bolt-on) 1, 2 and 3-pole thermal-magnetic circuit breakers provide over current protection and switching on ac and dc systems. Plug-on QO™ circuit breakers are for use in QO™ load centers, NQ and NQOD panel boards, OEM mounting bases and Speed D™ switchboard distribution panels. Bolt-on QOB circuit breakers are for use in NQO and NQOD panel boards. QO™ and QOB circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. The tripping mechanisms in 2 and 3-pole circuit breakers operate such that an over current on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously. Each pole has an individual thermal-magnetic trip element calibrated for 40 deg C ambient temperature.
Square D™, QO120CAFI, Combination Miniature Arc Fault Circuit Breaker, 120 VAC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, QO/100 A Frame, K-Curve/Thermal Magnetic Trip, 1 Pole, 1 ph, Pressure Plate Connection, 12 to 8 AWG, 14 to 8 AWG Wire, Plug-On Mounting, 104 deg F, 2.91 in L x 0.75 in W x 4.75 in H Dimensions
Specifications
Amperage Rating |
20 A |
Connection Type |
Pressure Plate |
Dimensions |
2.91 in L x 0.75 in W x 4.75 in H |
Frame |
QO/100 A |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-On |
Number of Poles |
1 |
Phase |
1 ph |
Temperature Rating |
104 deg F |
Trip Type |
K-Curve/Thermal Magnetic |
Voltage Rating |
120 VAC |
Wire Size |
12 to 8 AWG, 14 to 8 AWG |
Standard Approval |
Buy American Act Compliant|CSA 22.2 #5|RoHS Compliant|UL 489|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For providing overload and short circuit protection designed to detect arc faults |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f0912c564bbfbf4e881564fd4e820443eb253f57e4a9400dc9793bd32fa925d3.pdf
Full Engineering Drawing 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BV033S_Full_Engineering_Drawing.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO120VHGFI_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_71121d0460932757820bf2c30d742adb4f927410610c813cfbb2c3ca732625db.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOB345_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU220H_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU220H_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU220H_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU370_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001K3L35LYAH13_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO120CAFI_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f4014d8bdf38a7127a52255116de232ce692eea69ad033c4a01a9fa7a8decd55.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO120CAFI_Specification_Sheet.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO220CAFI_Technical_Bulletin.pdf
