Square D™ QO120DF

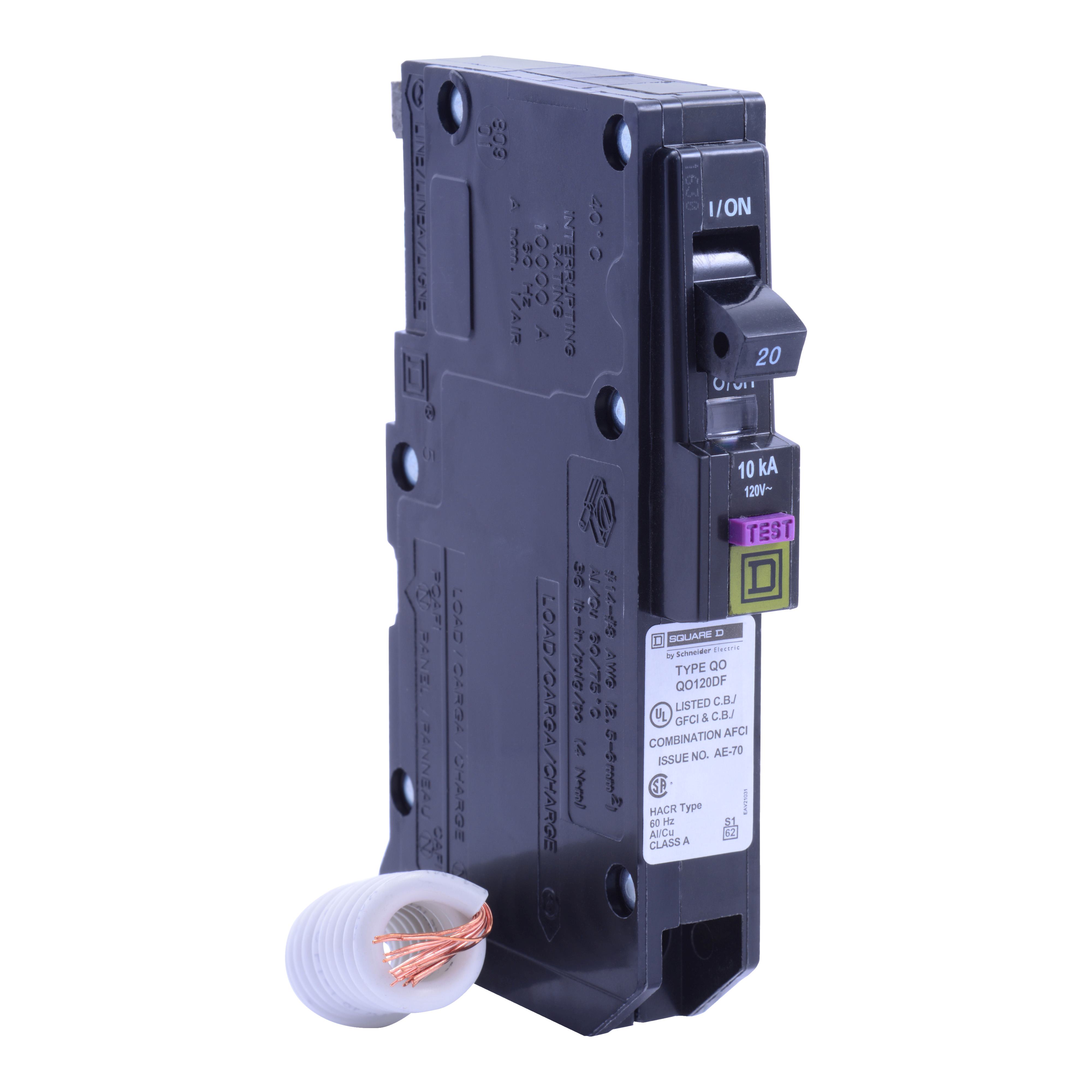

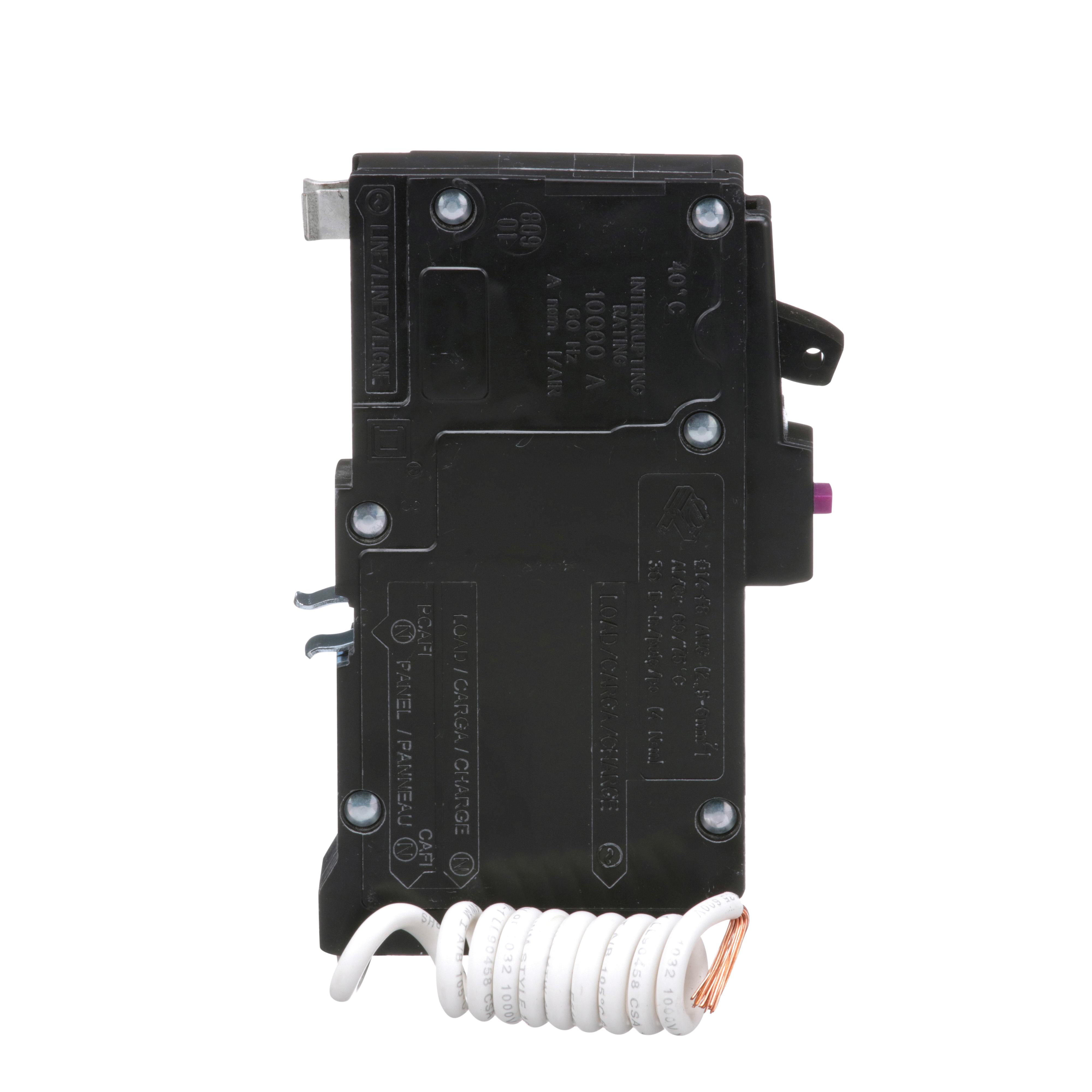

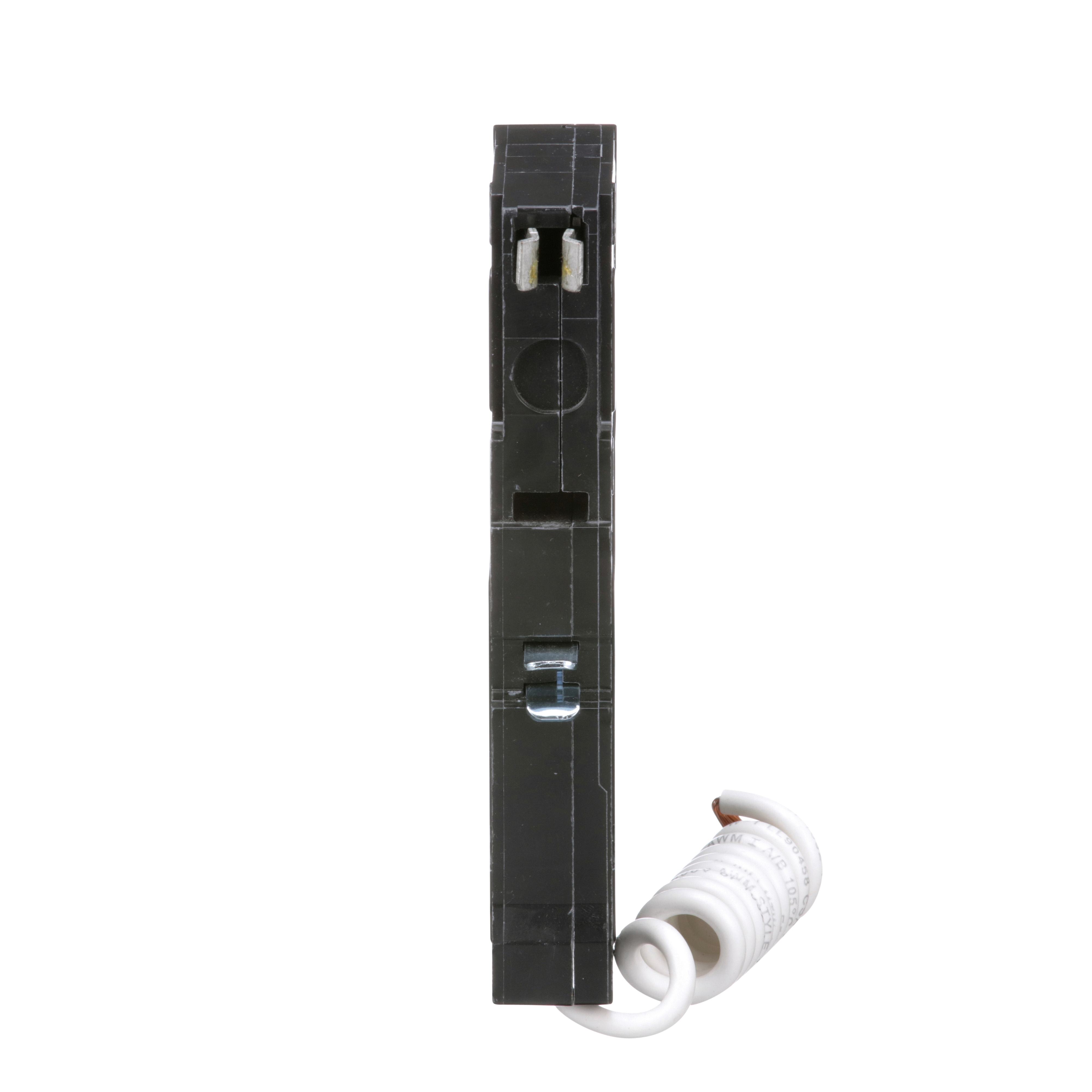

Square D™ QO™ QO120DF Dual Function Combination Miniature Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Brand: Square D™
Item ID: 423137
MPN: QO120DF
Login for Price
Features
- Dual function - combination arc fault and ground fault circuit interrupters
- 10 kA at 120 VAC interrupt rating
- 14 to 8 AWG Al/Cu wire
Description
QO™ (plug-on) and QOB (bolt-on) 1, 2 and 3-pole thermal-magnetic circuit breakers provide over current protection and switching on ac and dc systems. Plug-on QO™ circuit breakers are for use in QO™ load centers, NQ and NQOD panel boards, OEM mounting bases and Speed D™ switchboard distribution panels. Bolt-on QOB circuit breakers are for use in NQO and NQOD panel boards. QO™ and QOB circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. The tripping mechanisms in 2 and 3-pole circuit breakers operate such that an over current on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously. Each pole has an individual thermal-magnetic trip element calibrated for 40 deg C ambient temperature.
Square D™ QO™ Combination Miniature Circuit Breaker, Dual Function, 120 VAC, 20 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Pressure Plate, 14 to 8 AWG Wire, Plug-In Mount, 40 deg C, 2.91 in L x 0.75 in W x 4.75 in H
Specifications
Amperage Rating |
20 A |
Connection Type |
Pressure Plate |
Dimensions |
2.91 in L x 0.75 in W x 4.75 in H |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-In |
Number of Poles |
1 |
Phase |
1 ph |
Temperature Rating |
40 deg C |
Trip Type |
Thermal Magnetic |
Type |
Dual Function |
Voltage Rating |
120 VAC |
Wire Size |
14 to 8 AWG |
Standard Approval |
Buy American Act Compliant|CSA Certified|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For providing overload and short circuit protection, plus arc fault and ground fault protection in a single device |
