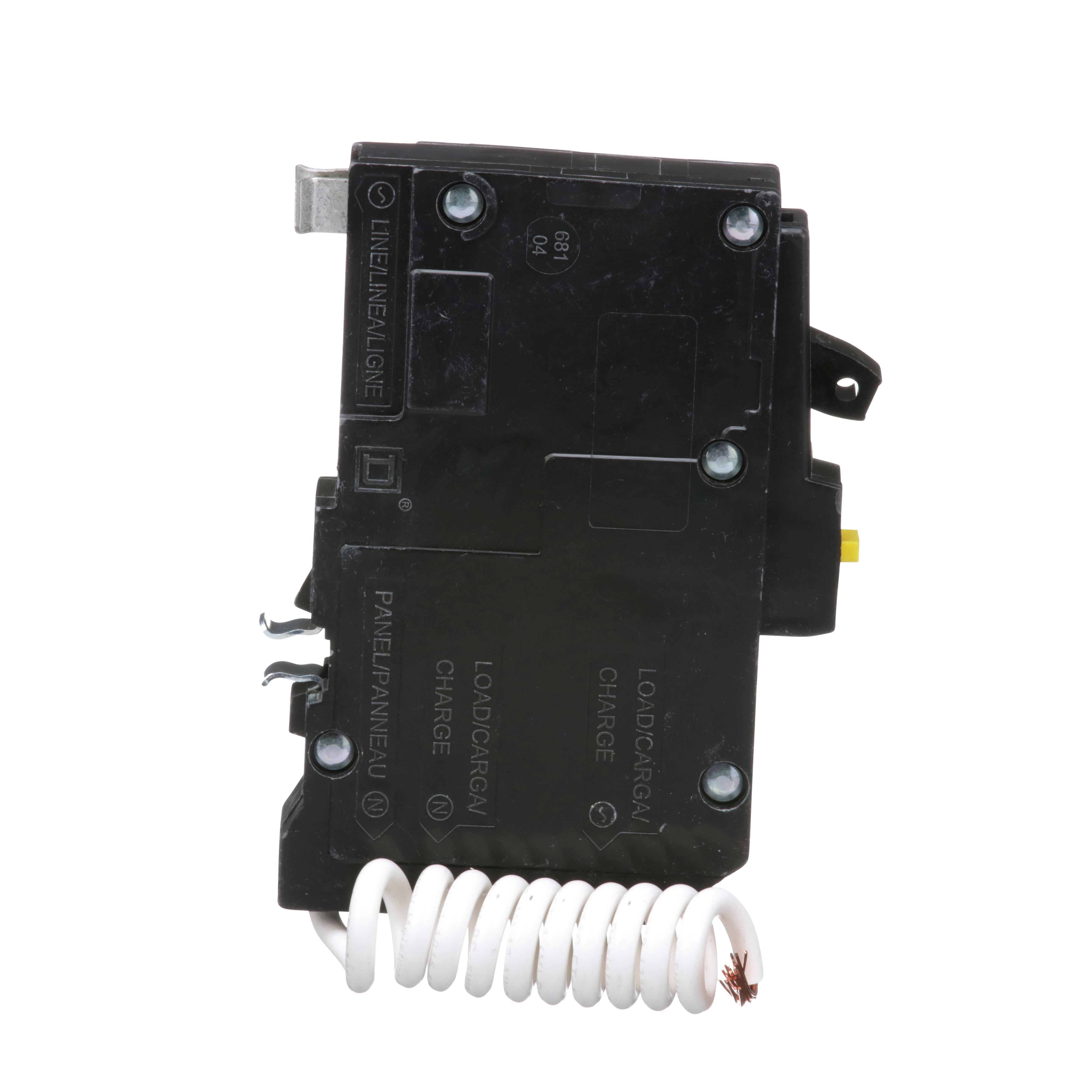

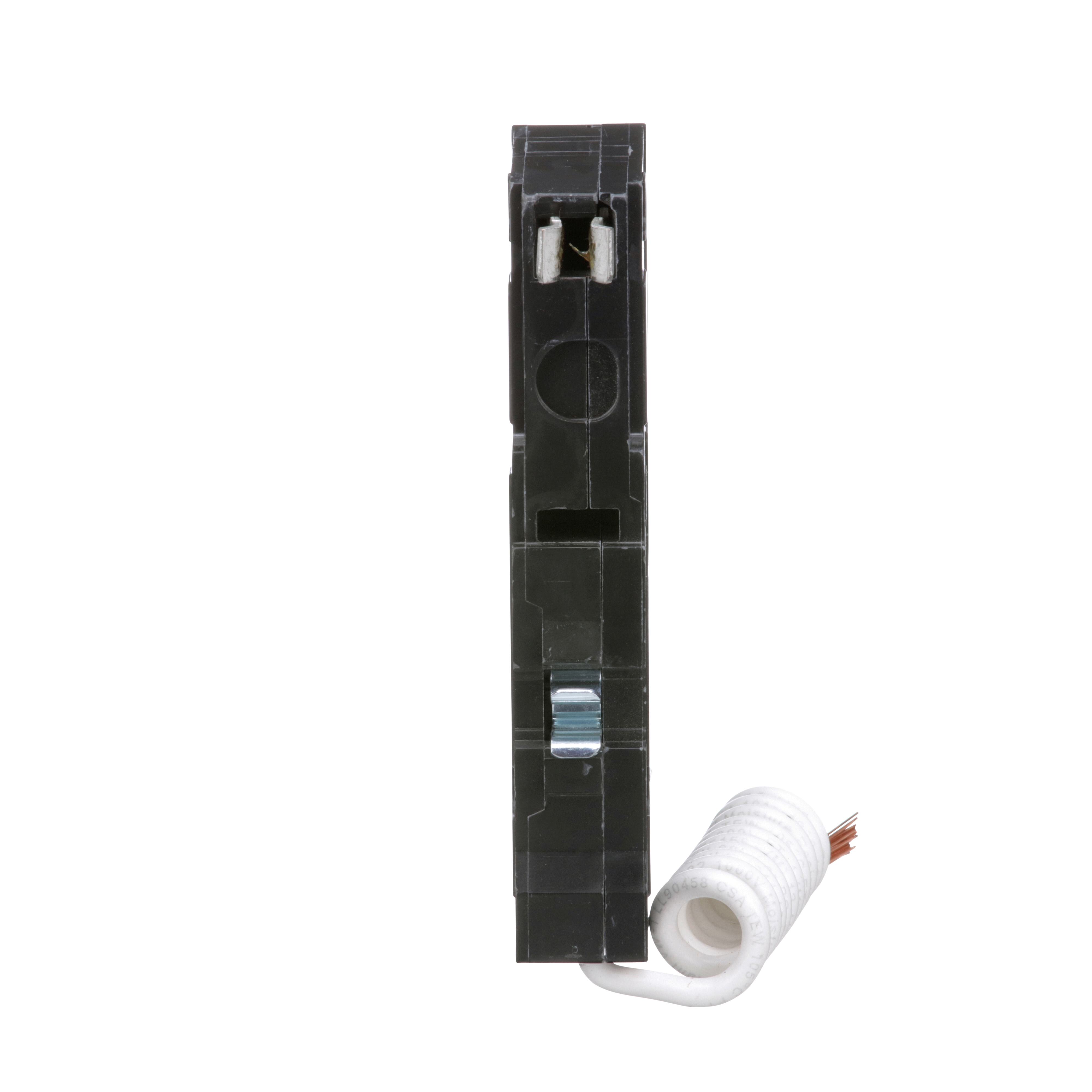

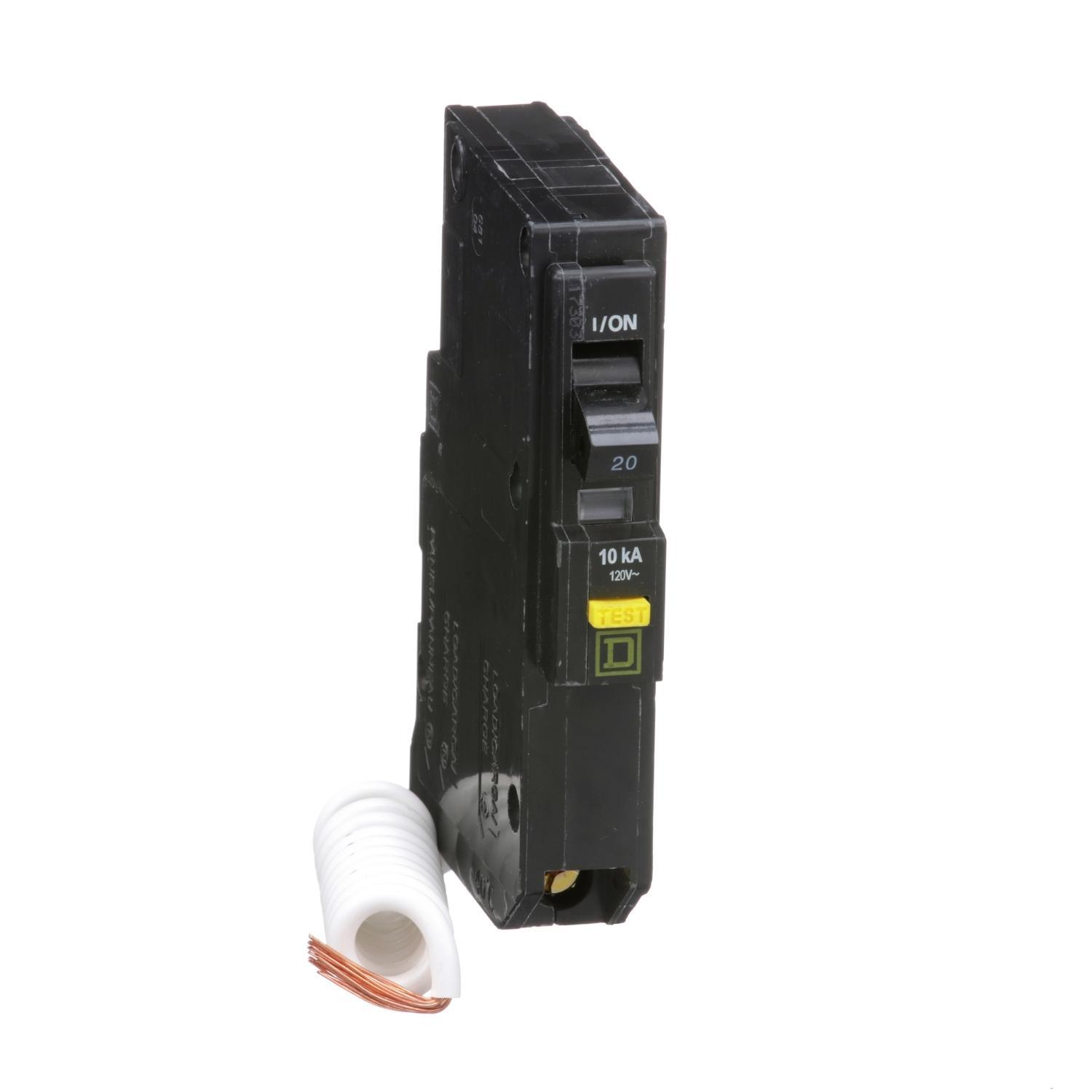

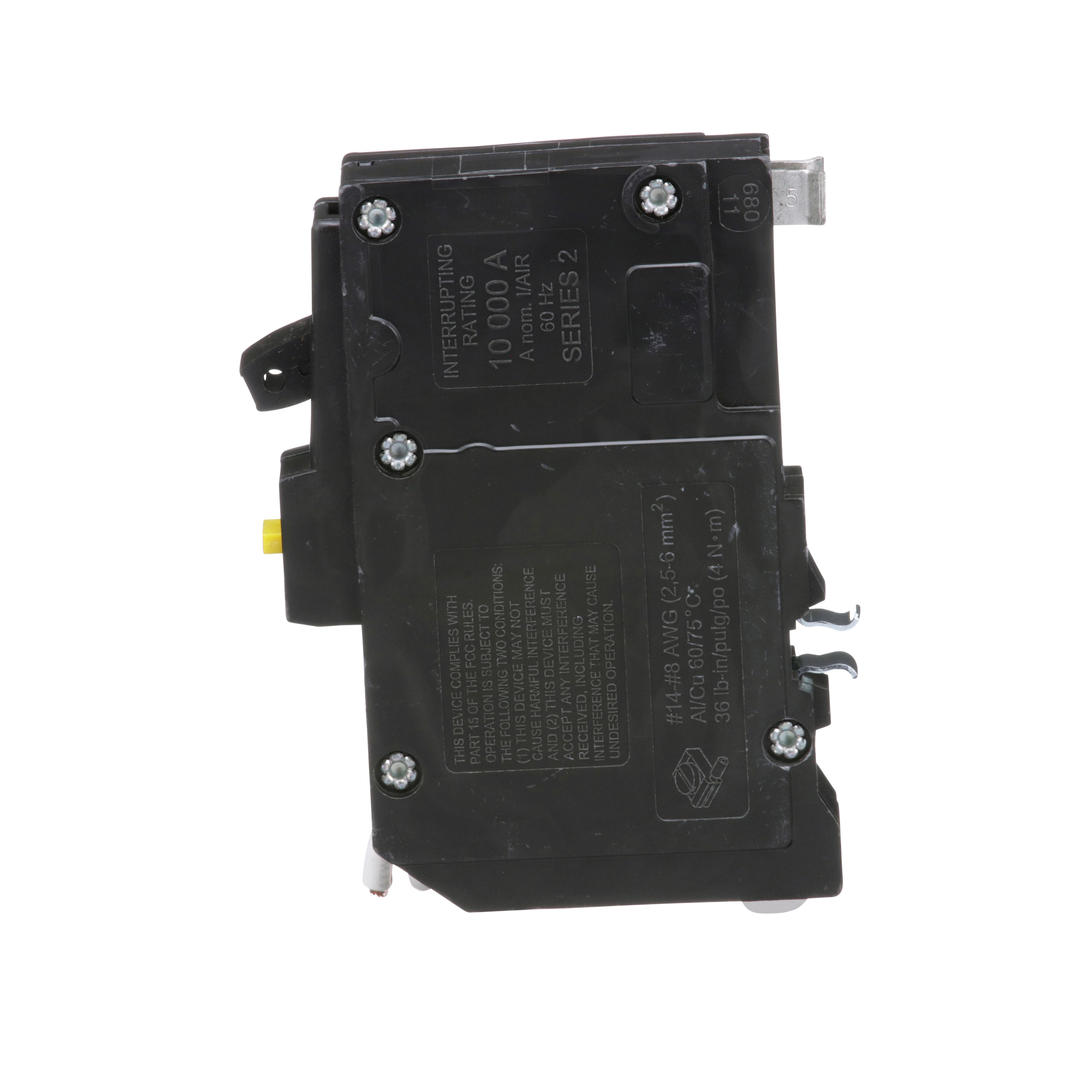

Square D™ QO120GFI
Square D™ QO120GFI Class A Ground Fault Miniature Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Poles, K-Curve/Thermal Magnetic Trip
Brand: Square D™
Item ID: 56969
MPN: QO120GFI
Login for Price
Features
- Qwik-Gard® GFCIs provide the same branch circuit protection as standard QO™ circuit breakers
- 14 to 8 AWG Cu, 12 to 8 AWG Al wire
- They are longer than standard QO circuit breakers, and thus require more gutter space
- Class A devices must trip at 6 mA of ground-fault current and above, and hold below 4 mA of ground-fault current
- 14 to 8 AWG copper, 12 to 8 AWG aluminum
- K-Curve trip
Description
The ground fault sensor in a Qwik-Gard® GFCI continuously monitors the current flow in the load and neutral conductors. The sensor compares the current flow in all directions. If the current flowing back to the source is less than the current flowing out to the load, a ground fault exists. When the difference in current flow exceeds 6 mA, the sensor sends a signal to trip the GFCI. The trip will be indicated by the Visi-Trip® indicator and the operating handle will move to the center tripped position.
Square D™, QO120GFI, Miniature Circuit Breaker, Class A Ground Fault, 120 VAC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, QO Frame, K-Curve/Thermal Magnetic Trip, 1 Pole, 1 ph, Pressure Plate Connection, 12 to 8 AWG, 14 to 8 AWG Wire, Plug-On Mounting, 40 deg C, 2.91 in L x 0.75 in W x 4.12 in H Dimensions
Specifications
Amperage Rating |
20 A |
Connection Type |
Pressure Plate |
Dimensions |
2.91 in L x 0.75 in W x 4.12 in H |
Frame |
QO |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-On |
Number of Poles |
1 |
Phase |
1 ph |
Temperature Rating |
40 deg C |
Trip Type |
K-Curve/Thermal Magnetic |
Type |
Class A Ground Fault |
Voltage Rating |
120 VAC |
Wire Size |
12 to 8 AWG, 14 to 8 AWG |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|CSA 22.2 No. 144 Certified|UL 489 Listed |
Application |
For providing overload and short circuit protection designed to offer class A ground fault protection for people |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_20386f0f5fe6a5e1afc9a1bf935770283ba673a9f4cf49199afa5b499d3851db.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO120VHGFI_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0bad395b7f6b684c5fb3f850d6b5e63acf24181ba91ebb6ddb26e323dd9a0ee2.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BC5_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO120GFI_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_49cbd63a0b9e6630e595fe299c4a2bb6a70eb803c5abc898f1be49769ef7f1a6.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO120GFI_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120GFI_Warranty.pdf
