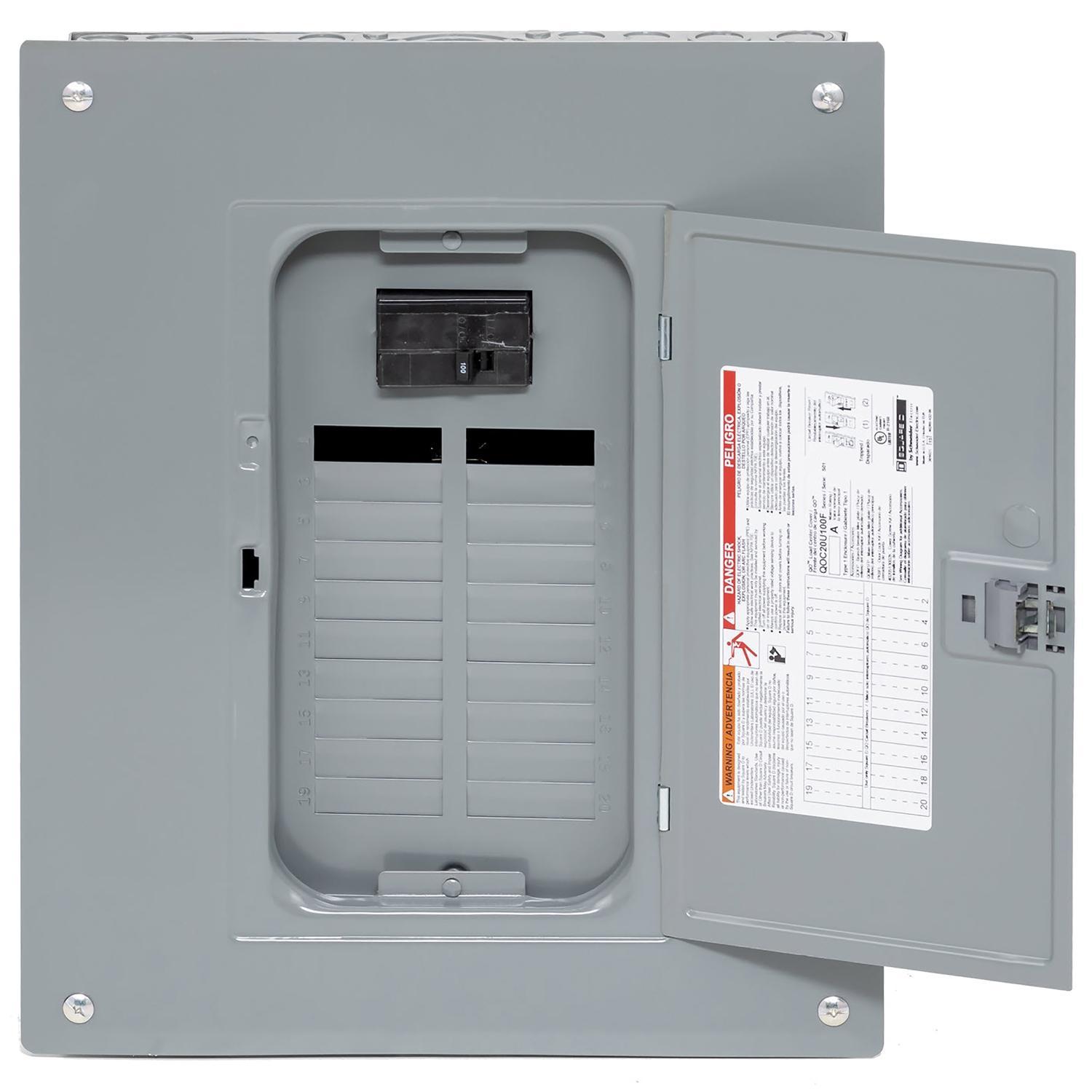

Square D™ QO120M100P
Square D™ QO120M100P 1-Phase Convertible Main Lug Load Center, 120/240 V, 100 A, 3 W Power Rating, 1 Poles
Brand: Square D™
Item ID: 481730
MPN: QO120M100P
Login for Price
Description
Square D™ Convertible Main Lug Load Center, 1-Phase, 120/240 V, 100 A, 1 Pole, 3 W, 24 Circuits, 20 Spaces, NEMA 1, 14.25 in W x 3.75 in D x 17.92 in H
Specifications
Amperage Rating |
100 A |
Dimensions |
14.25 in W x 3.75 in D x 17.92 in H |
Enclosure Type |
NEMA 1 |
Number of Circuits |
24 |
Number of Poles |
1 |
Number of Spaces |
20 |
Power Rating |
3 W |
Type |
1-Phase |
Voltage Rating |
120/240 V |
Standard Approval |
UL Listed |
Application |
For QO plug-on circuit breaker and QO plug-on neutral circuit breaker |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_64bbe287686aaa2f67f12d5c2da63b98af7e474ff4d8dfe0ddece280cd0c34d2.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM24L70F_Installation_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9e165d44aec9a6966fc2d6b8bf2d86ba70da6554cedd1adb731a0a71c840421a.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR3RH6_User_Manual.pdf
Owners/User Manual 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BC5_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO120M100P_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7c0ecfda8816cea068e3c761517714209b7e10160d2f6bd08e9ff0c37d4edd55.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO120M100P_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120GFI_Warranty.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220GFIC_Warranty_Information.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220GFIC_Warranty_Information.pdf
