Square D™ QO120PDF

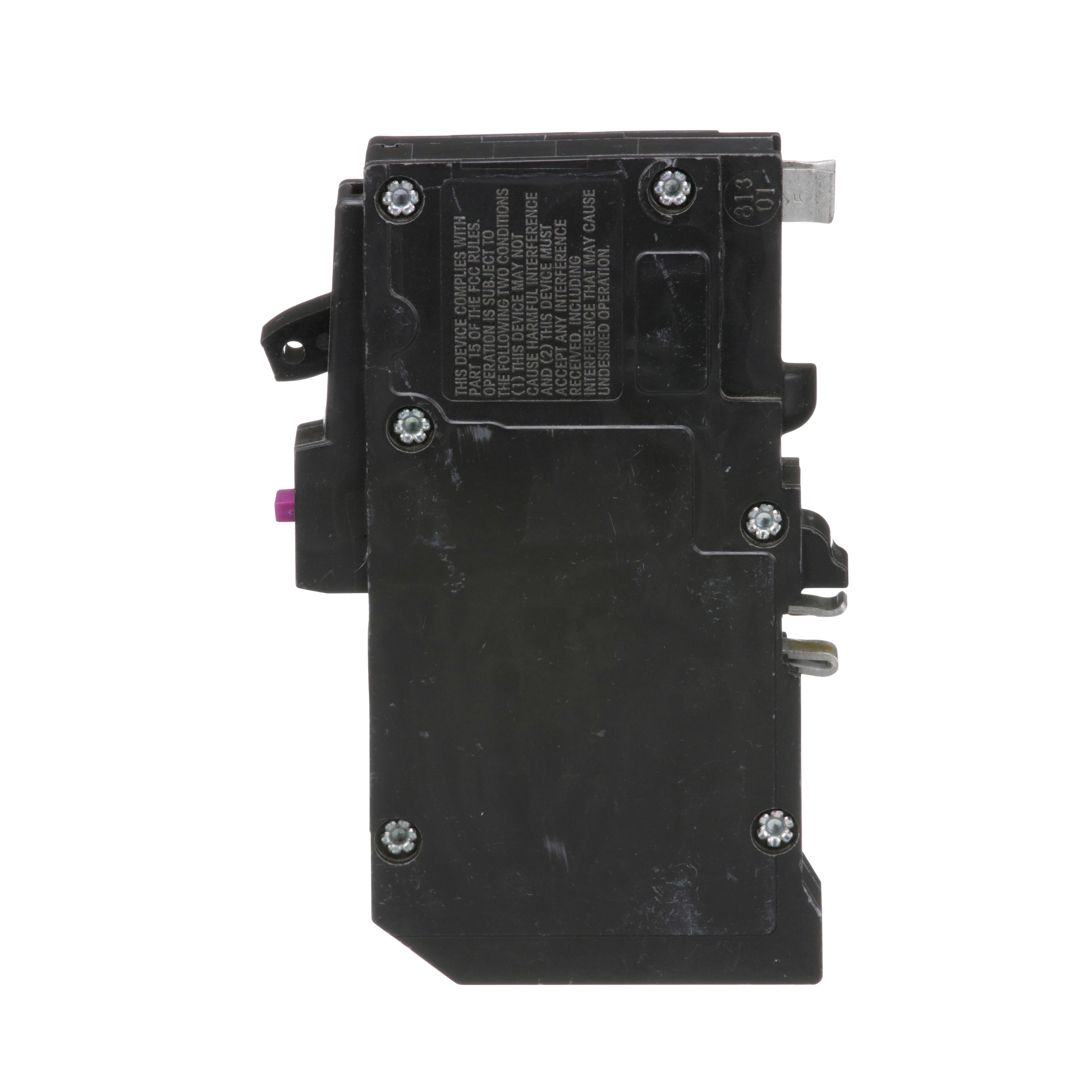

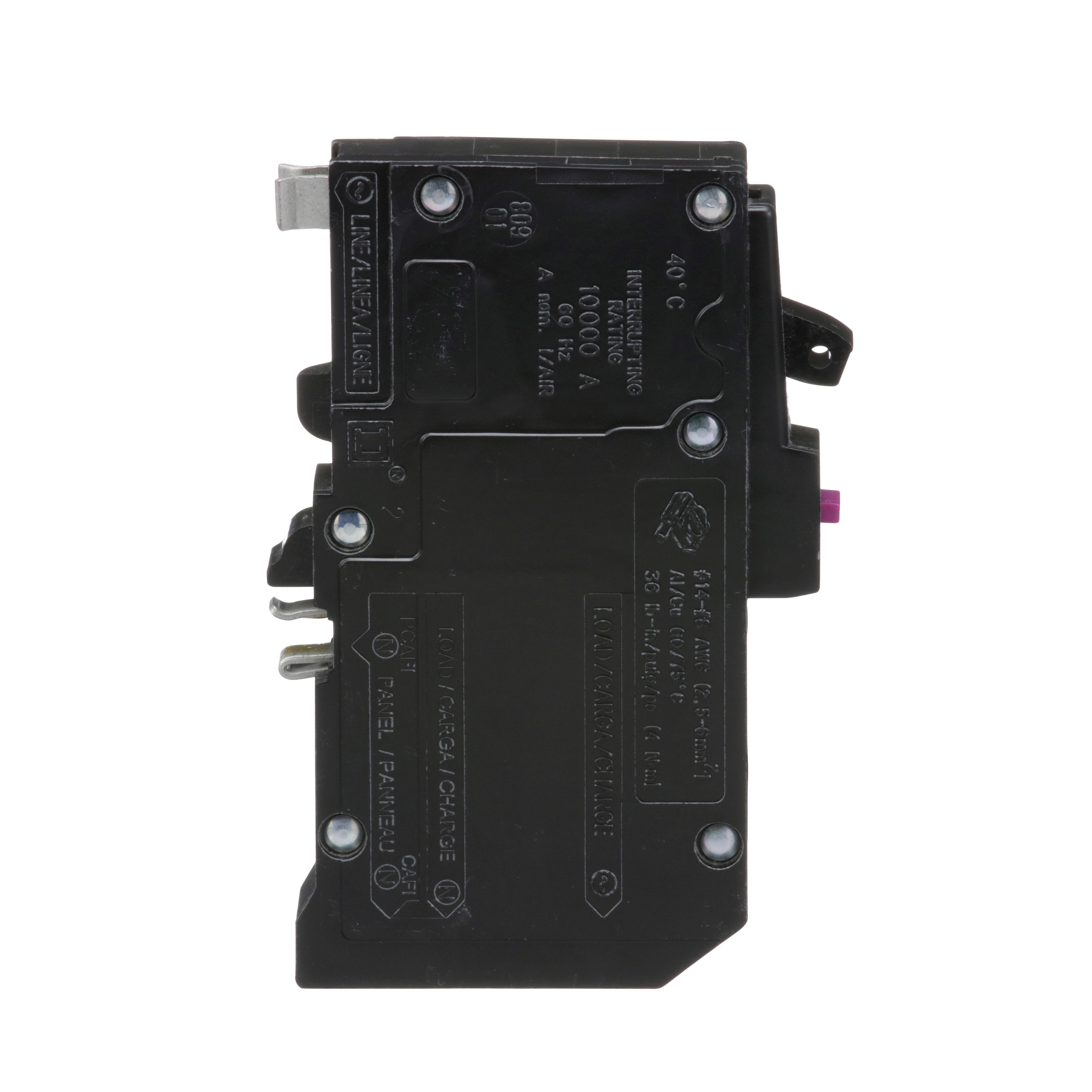

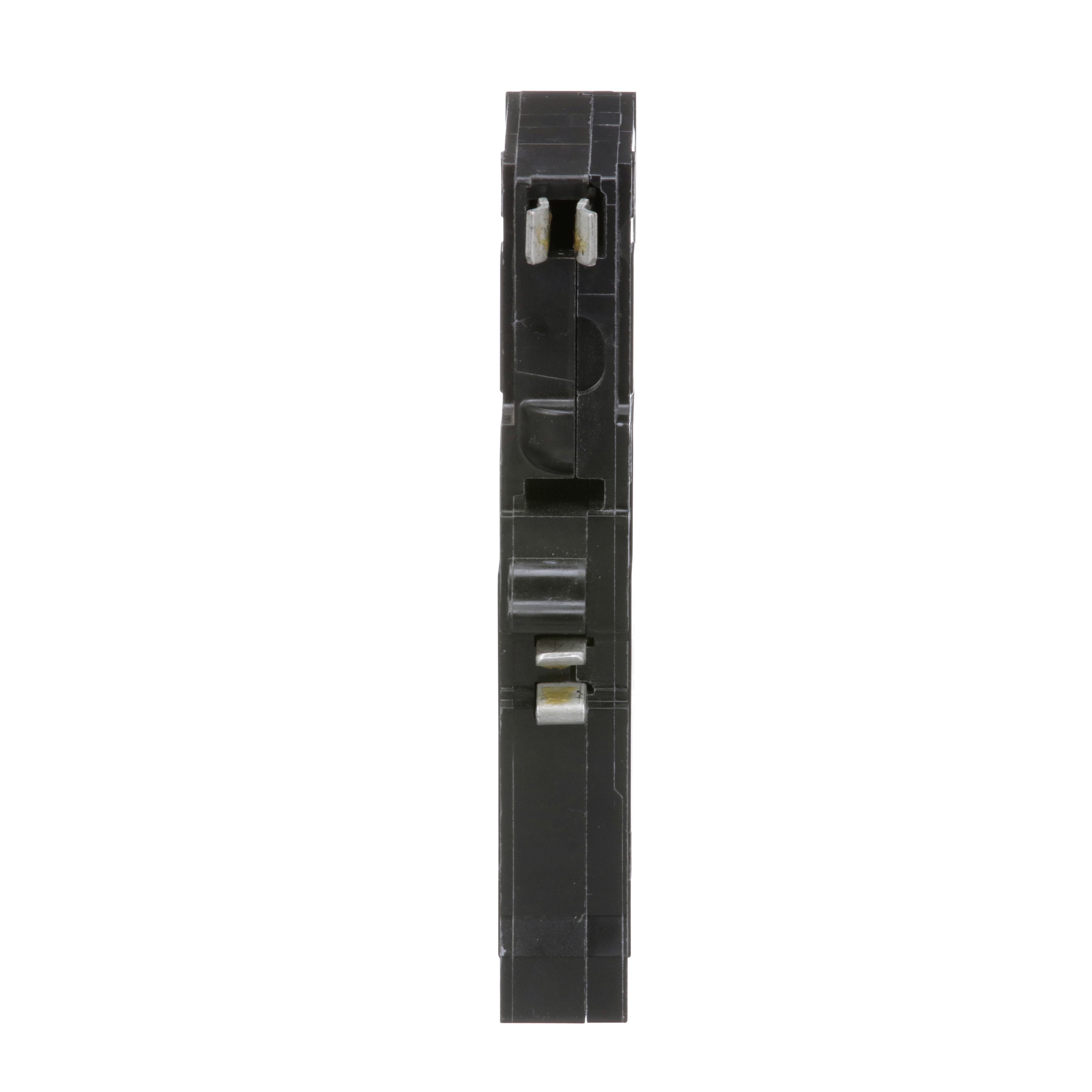

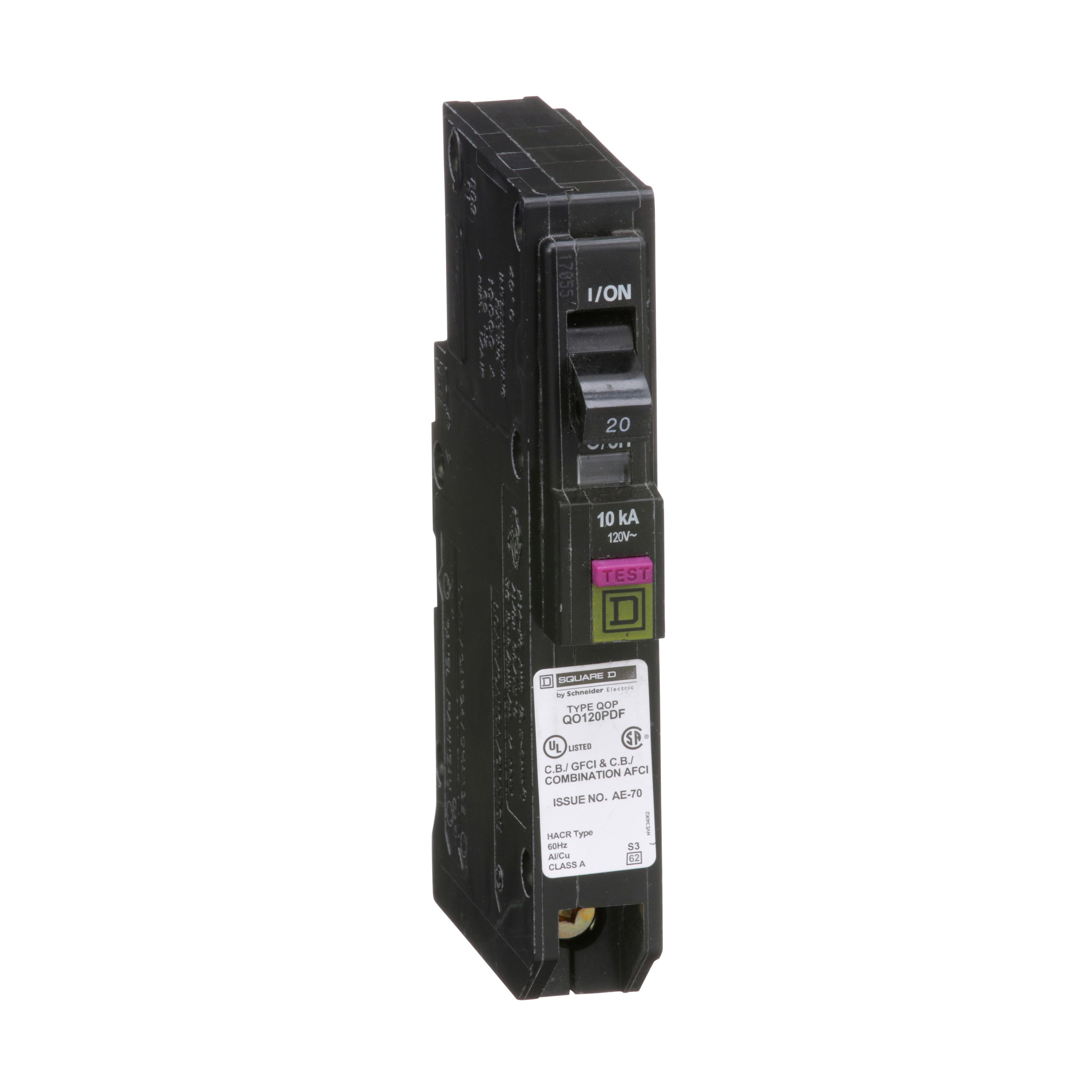

Square D™ QO™ QO120PDF Dual Function Combination Miniature Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Brand: Square D™
Item ID: 423929
MPN: QO120PDF
UPC: 785901741176
Login for Price
Features
- Dual function - combination arc fault and ground fault circuit interrupters
- 10 kA at 120 VAC interrupt rating
- 14 to 8 AWG Al/Cu wire
Description
QO™ (plug-on) and QOB (bolt-on) 1, 2 and 3-pole thermal-magnetic circuit breakers provide over current protection and switching on ac and dc systems. Plug-on QO™ circuit breakers are for use in QO™ load centers, NQ and NQOD panel boards, OEM mounting bases and Speed D™ switchboard distribution panels. Bolt-on QOB circuit breakers are for use in NQO and NQOD panel boards. QO™ and QOB circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. The tripping mechanisms in 2 and 3-pole circuit breakers operate such that an over current on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously. Each pole has an individual thermal-magnetic trip element calibrated for 40 deg C ambient temperature.
Square D™ QO™ Combination Miniature Circuit Breaker, Dual Function, 120 VAC, 20 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Pressure Plate, 14 to 8 AWG Wire, Plug-In Mount, 40 deg C, 2.91 in L x 0.75 in W x 4.75 in H
Specifications
Amperage Rating |
20 A |
Connection Type |
Pressure Plate |
Dimensions |
2.91 in L x 0.75 in W x 4.75 in H |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-In |
Number of Poles |
1 |
Phase |
1 ph |
Temperature Rating |
40 deg C |
Trip Type |
Thermal Magnetic |
Type |
Dual Function |
Voltage Rating |
120 VAC |
Wire Size |
14 to 8 AWG |
Standard Approval |
CSA Certified|RoHS Compliant|UL Listed|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For providing overload and short circuit protection, plus arc fault and ground fault protection in a single device |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_76f7096983aa37dcb5e82228503d8b7cb1c9d9eb24231fad3b5edd9829fd222d.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c1f9595a98d44304920d62af970ded8cd3e0a11c3ed44d7422bbfa3dd5b7d022.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO115VHDF_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a09e453a5bc2d8bc63e855327fd24910388dc55c83a5f1d9f6f9ec822a585c98.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO240EPD2100_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO240EPD2100_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOB350VH_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO120PDF_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4e5d49f3813e5757ccdface712557fe9202358828b0b7098d58da34fc7dc5b1b.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO120PDF_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120GFI_Warranty.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220GFIC_Warranty_Information.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220GFIC_Warranty_Information.pdf
