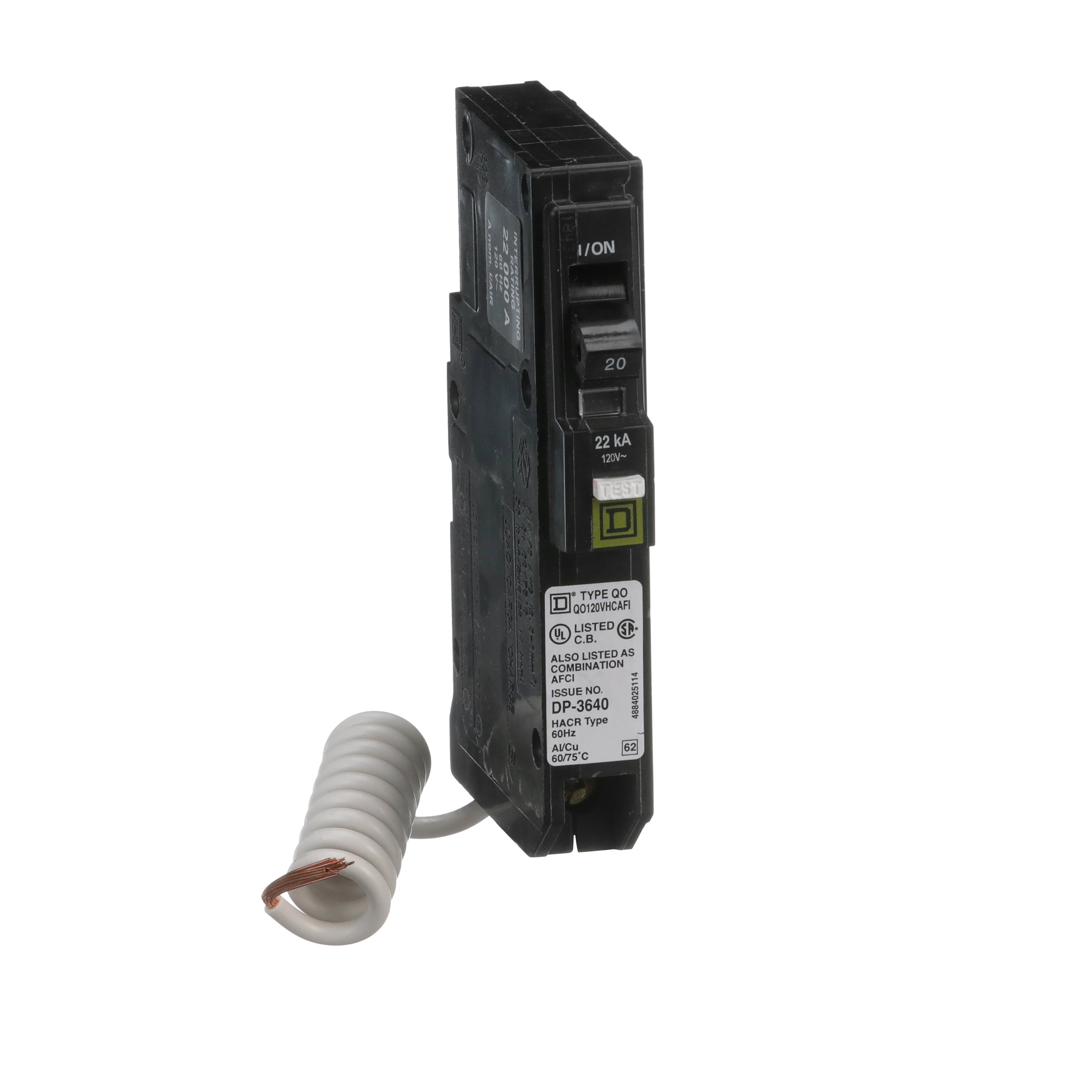

Square D™ QO120VHCAFI
Square D™ QO™ QO120VHCAFI Type QO-VHCAFI Combination Miniature Arc Fault Circuit Breaker, 120 VAC, 20 A, 22 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
Brand: Square D™
Item ID: 401847
MPN: QO120VHCAFI
UPC: 785901709831
Login for Price
Features
- Designed for superior safety, quality and reliability
- Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners
- First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection
- Saves space compact 3/4 in W design for small system footprint
- Faster installation fewer connections
- Frees gutter space no pigtails with the innovative plug-on neutral design
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
Description
QO™ arc-fault circuit interrupters (AFCI) quickly detects a wide range of arc-fault conditions, recognizes the nature and specific wave-form of an arc-fault and trips the circuit breaker. Traditional circuit breakers and fuses are designed to detect overloads and short circuits. Arc-fault circuit breakers are designed to detect overloads, short circuits and arc-faults.
Square D™ QO™ Combination Miniature Arc Fault Circuit Breaker, Type QO-VHCAFI, 120 VAC, 20 A, 50/60 Hz Frequency, 22 kA Interrupt, Thermal/Magnetic Trip, 1 Pole, 1 ph, Pressure Plate Connection, 12 to 8/14 to 8 AWG Wire, Plug-In Mounting, 104 deg F, 2.91 in L x 0.75 in W x 4.75 in H Dimensions, Fiberglass Filled Thermoset
Specifications
Amperage Rating |
20 A |
Connection Type |
Pressure Plate |
Dimensions |
2.91 in L x 0.75 in W x 4.75 in H |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
22 kA |
Material |
Fiberglass Filled Thermoset |
Mounting Type |
Plug-In |
Number of Poles |
1 |
Phase |
1 |
Temperature Rating |
104 deg F |
Trip Type |
Thermal/Magnetic |
Type |
Type QO-VHCAFI |
Voltage Rating |
120 VAC |
Wire Size |
12 to 8/14 to 8 AWG |
Standard Approval |
CSA C22.2 #5|Federal Specification W-C-375B/GEN|NEMA AB1|NOM/ANCE Certified|RoHS Compliant|UL 489 File #E84967|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For providing overload, short circuit protection and detecting arc faults |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b001ac7a96a9c4e6bf183bb58d869dd56b015cb3b23f6e6dbf55b786f177fc66.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOB345_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_76bd7b72a89243301d8348c86d2d11e8837fb33dc496d92d0061b1e2fbe0705c.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU220H_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU220H_Owners_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU220H_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOU370_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO120VHCAFI_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO120VHCAFI_Specification_Sheet.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_400ccb8296be36d9bc643b7e7b61fc087983ad04a1061924b8522d2b0a4cb395.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO220CAFI_Technical_Bulletin.pdf
