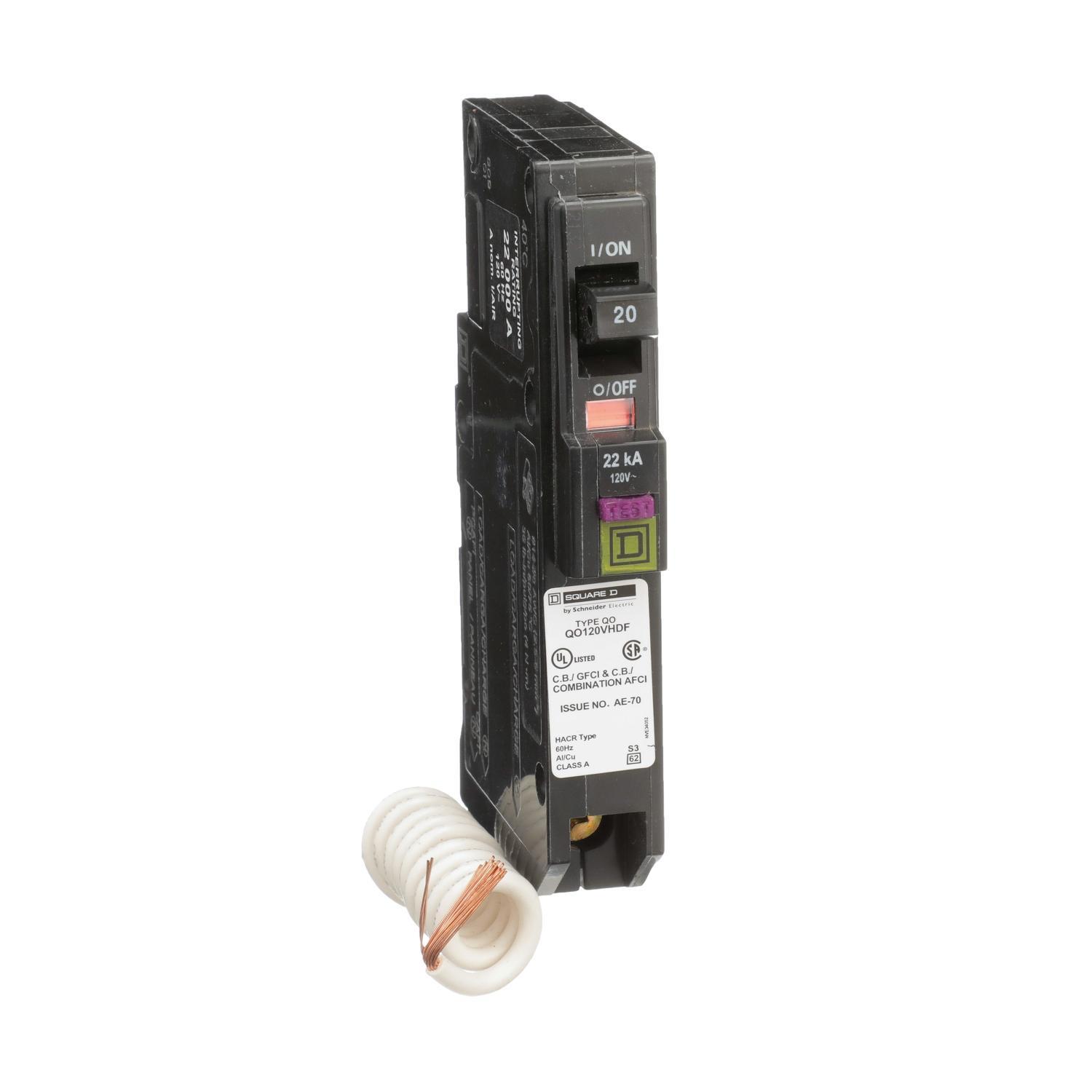

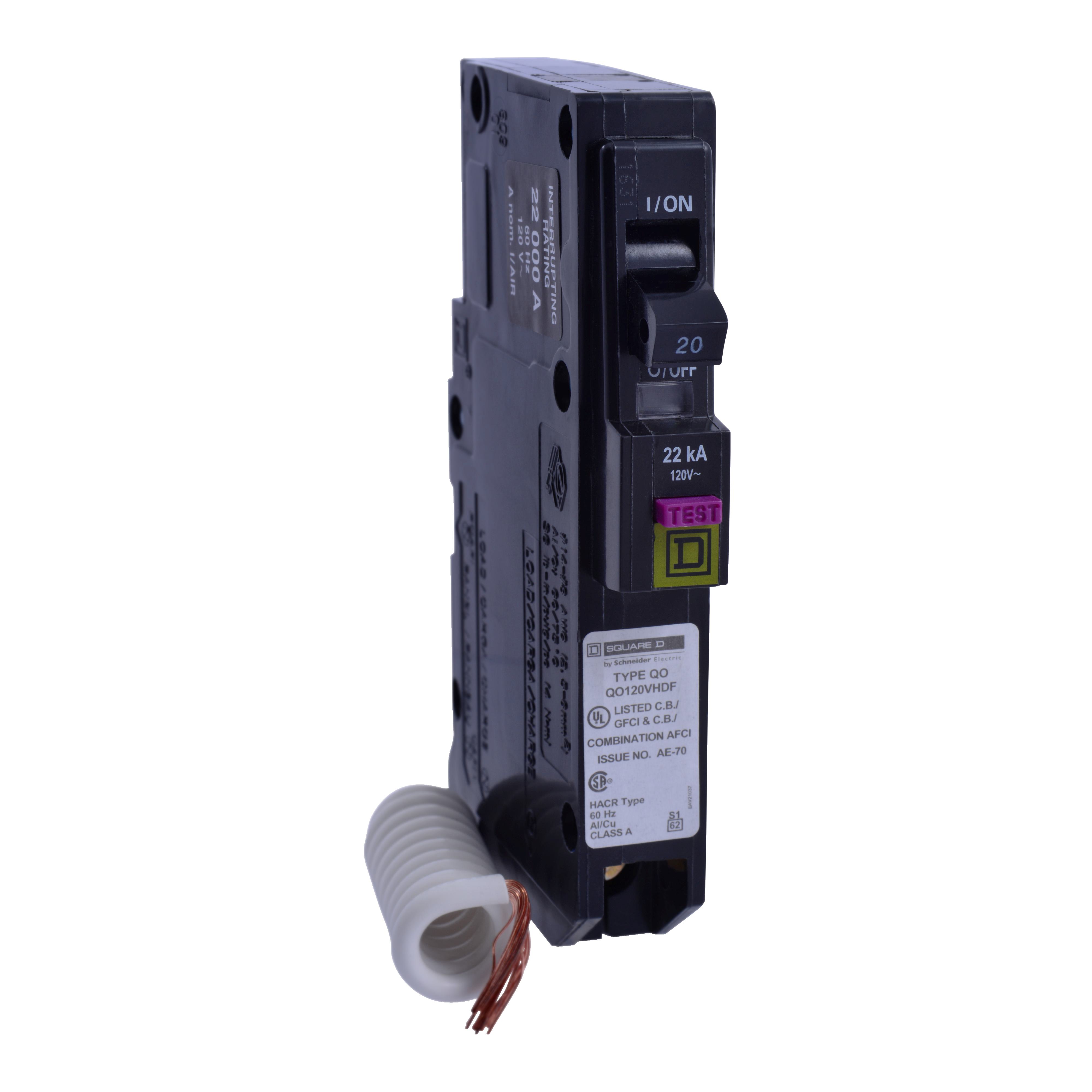

Square D™ QO120VHDF
Square D™ QO™ QO120VHDF Type QO-VH AFCI/GFCI ARC-Fault and Ground Fault Dual Function Combination Miniature Circuit Breaker, 120 VAC, 20 A, 22 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
Brand: Square D™
Item ID: 459186
MPN: QO120VHDF
UPC: 785901157755
Login for Price
Features
- Designed for superior safety, quality and reliability
- Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners
- First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection
- Saves space compact 3/4 in W design for small system footprint
- Faster installation fewer connections
- Frees gutter space no pigtails with the innovative plug-on neutral design
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
Description
QO™ (plug-on) 1, 2 and 3-pole thermal-magnetic circuit breakers provide overcurrent protection and switching on AC and DC systems. Plug-on QO™ circuit breakers are for use in QO™ load centers, NQ and NQOD panelboards, OEM mounting bases and speed D™ switchboard distribution panels. QO™ circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication. The tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously. Each pole has an individual thermal-magnetic trip element calibrated for 40 deg C ambient temperature.
Square D™ QO™ Combination Miniature Circuit Breaker, Type QO-VH AFCI/GFCI ARC-Fault and Ground Fault Dual Function, 120 VAC, 20 A, 50/60 Hz Frequency, 22 kA Interrupt, Thermal/Magnetic Trip, 1 Pole, 1 ph, Pressure Plate Connection, 14 to 8 AWG Wire, Plug-In Mounting, 104 deg F, 2.91 in L x 0.75 in W x 4.75 in H Dimensions, Fiberglass Filled Thermoset
Specifications
Amperage Rating |
20 A |
Connection Type |
Pressure Plate |
Dimensions |
2.91 in L x 0.75 in W x 4.75 in H |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
22 kA |
Material |
Fiberglass Filled Thermoset |
Mounting Type |
Plug-In |
Number of Poles |
1 |
Phase |
1 |
Temperature Rating |
104 deg F |
Trip Type |
Thermal/Magnetic |
Type |
Type QO-VH AFCI/GFCI ARC-Fault and Ground Fault Dual Function |
Voltage Rating |
120 VAC |
Wire Size |
14 to 8 AWG |
Standard Approval |
CSA C22.2 #5|Federal Specification W-C-375B/GEN|NEMA AB1|NOM/ANCE Certified|UL 489 File #E84967|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
Residential, Light Commercial, Industrial Circuit Protection, High Interruption Rating Capabilities, Overcurrent Protection, Short Circuit Protection, Parallel and Series Arc Fault/ground fault Protection |
