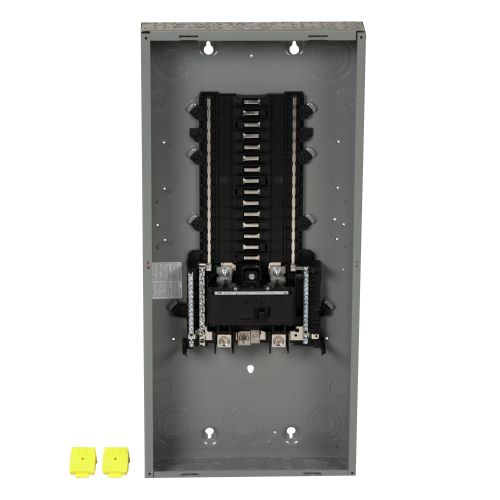

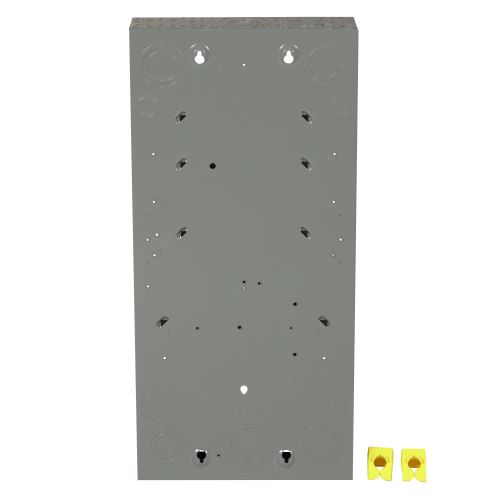

Square D™ QO130M150P
Square D™ QO130M150P 1-Phase Convertible Main Lug Load Center, 120/240 V, 150 A, 3 W Power Rating, 1 Poles
Brand: Square D™
Item ID: 471837
MPN: QO130M150P
Login for Price
Description
Square D™ Convertible Main Lug Load Center, 1-Phase, 120/240 V, 150 A, 1 Pole, 3 W, 40 Circuits, 3 Wiring Configuration, 30 Spaces, NEMA 1, 14.25 in W x 29.84 in H
Specifications
Amperage Rating |
150 A |
Dimensions |
14.25 in W x 29.84 in H |
Enclosure Type |
NEMA 1 |
Number of Circuits |
40 |
Number of Poles |
1 |
Number of Spaces |
30 |
Power Rating |
3 W |
Type |
1-Phase |
Voltage Rating |
120/240 V |
Wiring Configuration |
3 |
Standard Approval |
ECCN: EAR99|UL Listed|Prop 65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
Application |
For QO plug-on circuit breaker and QO plug-on neutral circuit breaker |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_38883d9af2fb32181f8bca874df3f5842627c8bedd5020f055c26b745d7f3963.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7f75249b30947f7045b0580941b32127682b93ca678868d2594ba77aed29ac83.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM24L70F_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR3RH6_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XB7NS8445_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XB7NS8445_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO130M150P_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8f5753dd2e40f3d123fbea75bf0632226a0519123c808e02716b5a452c7816a8.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO130M150P_Specification_Sheet.pdf
