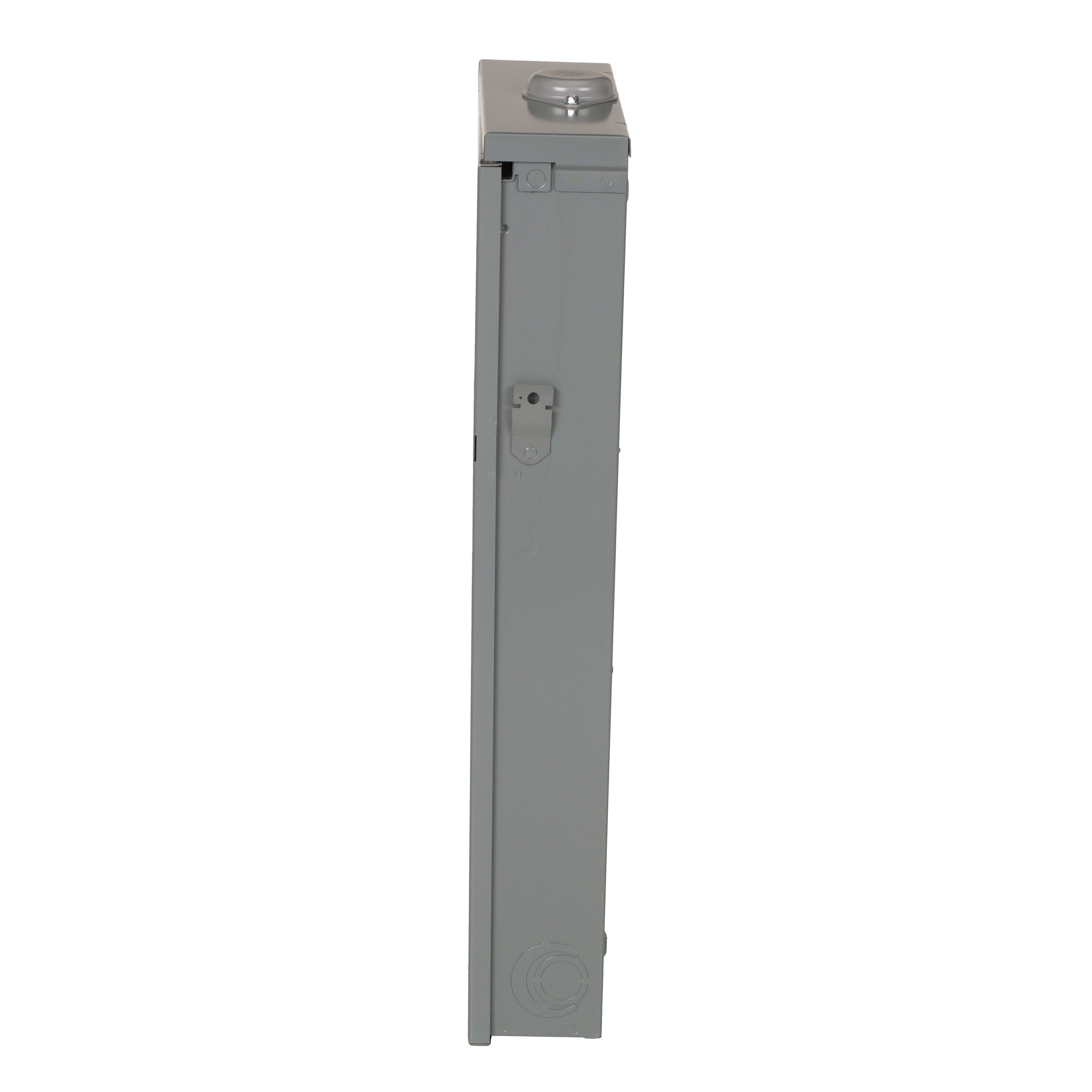

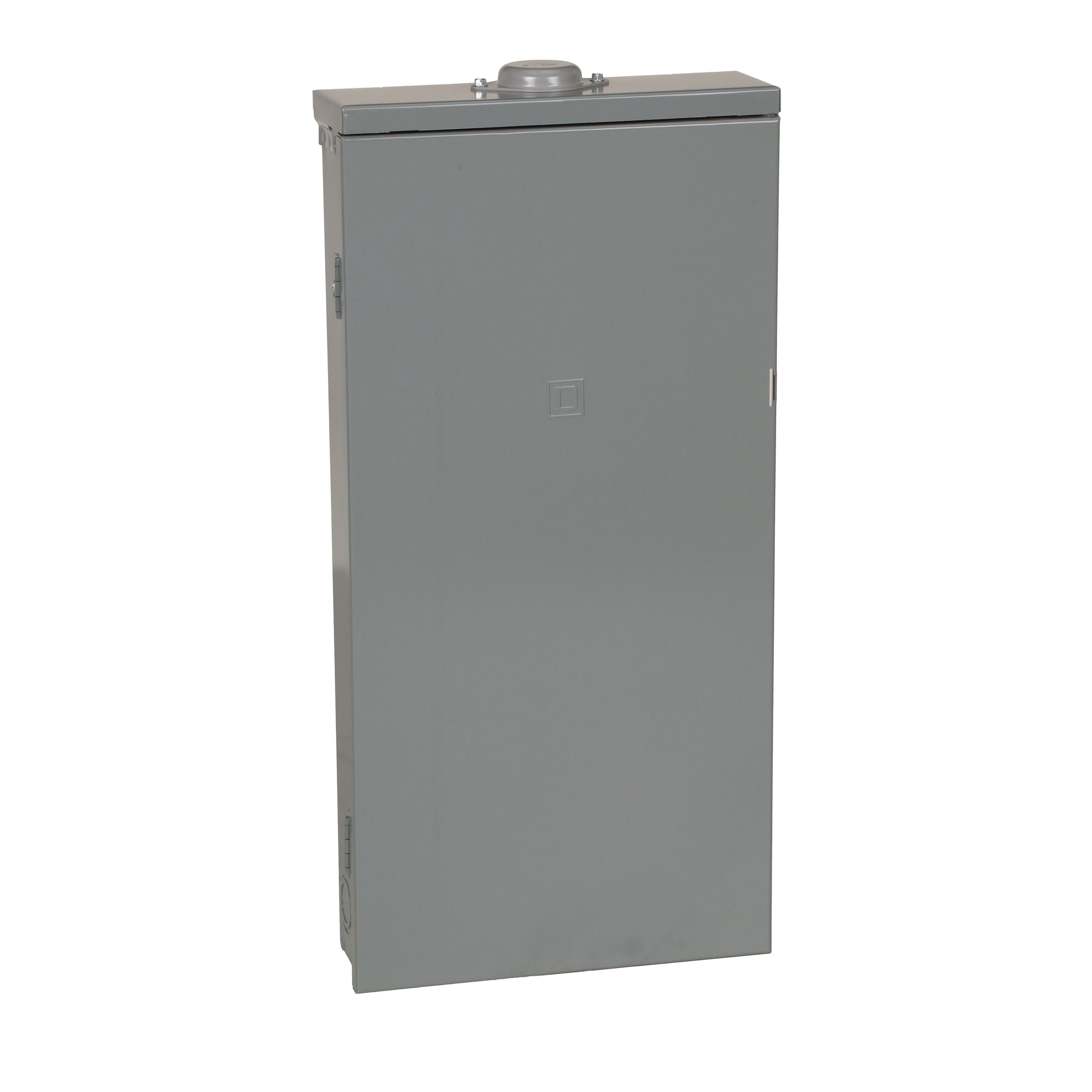

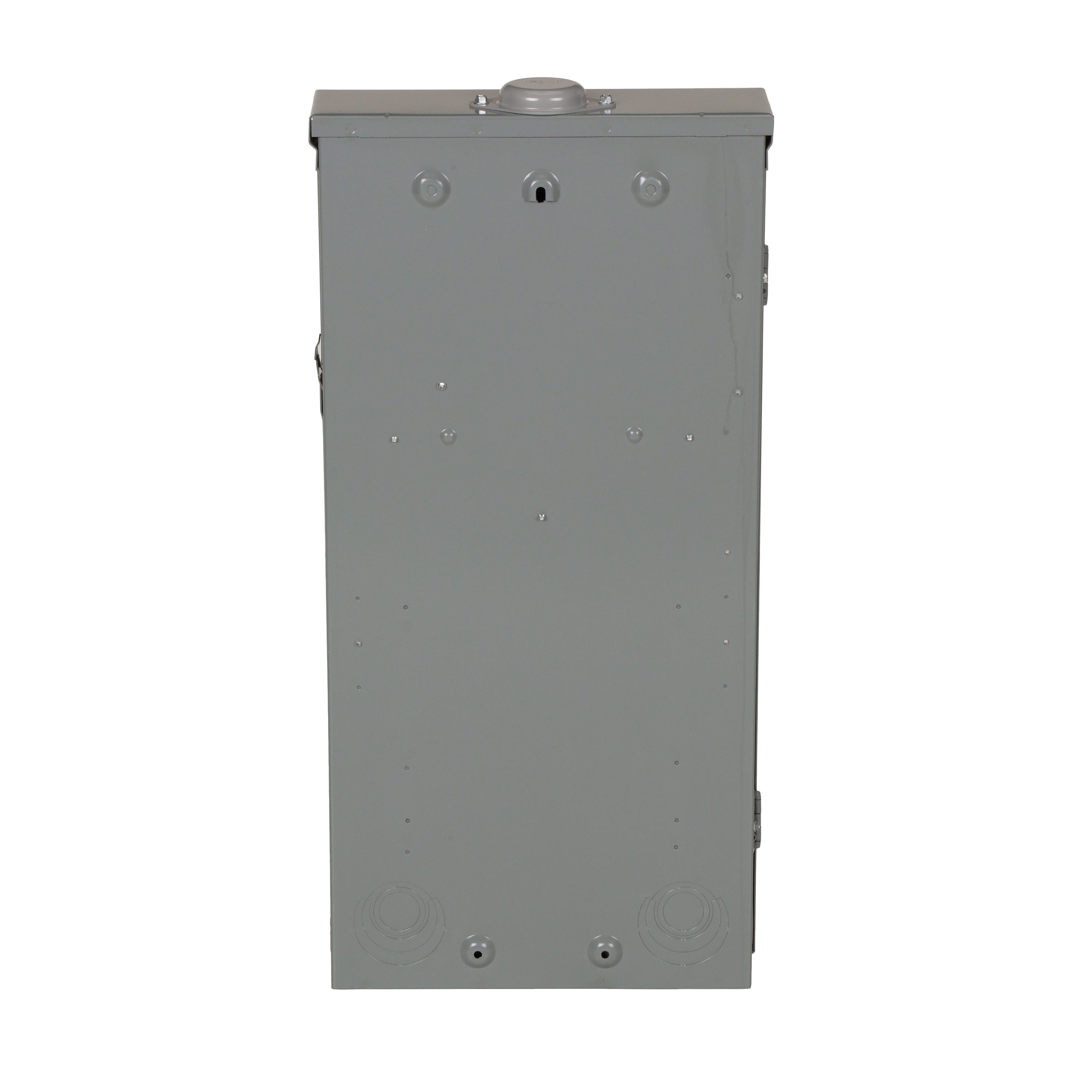

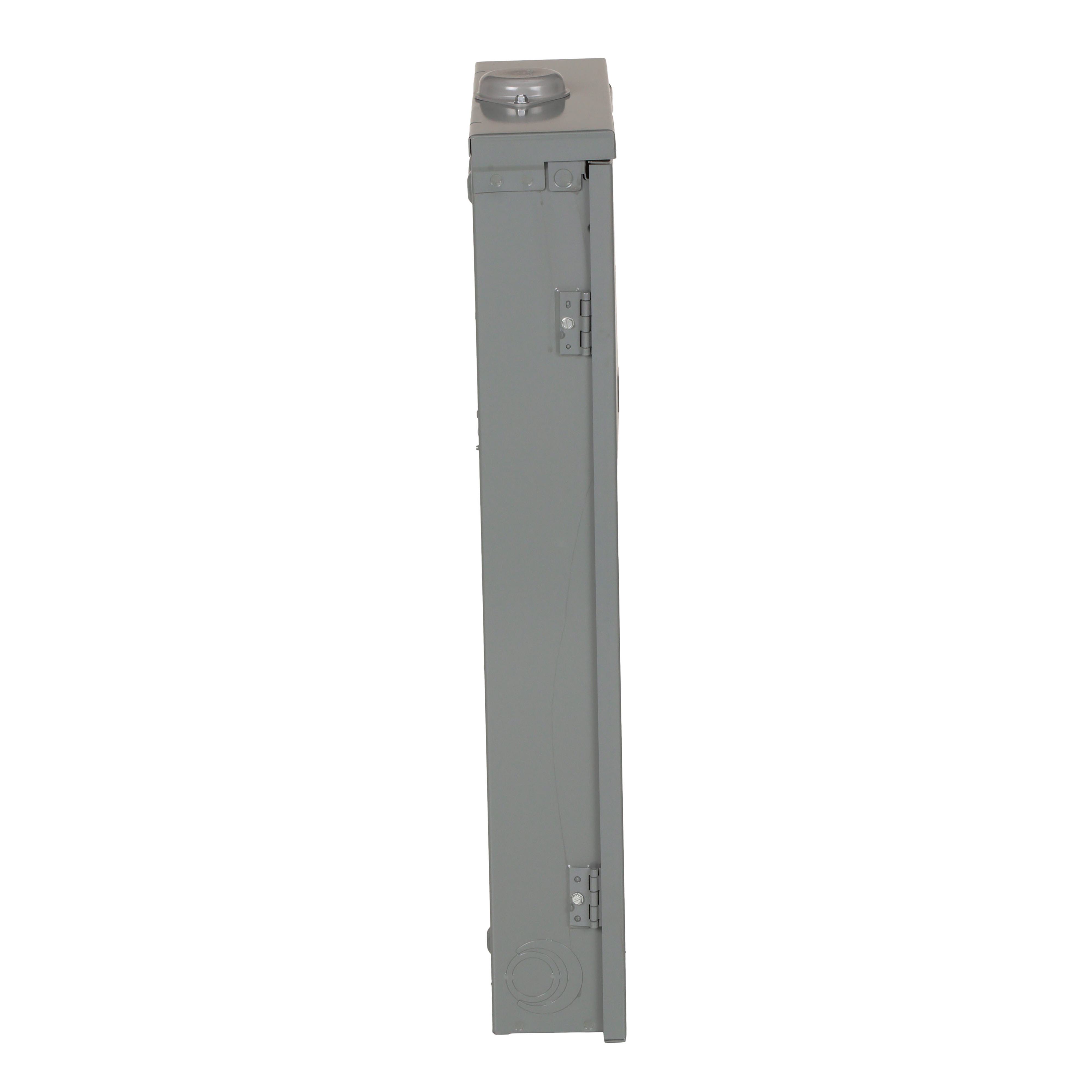

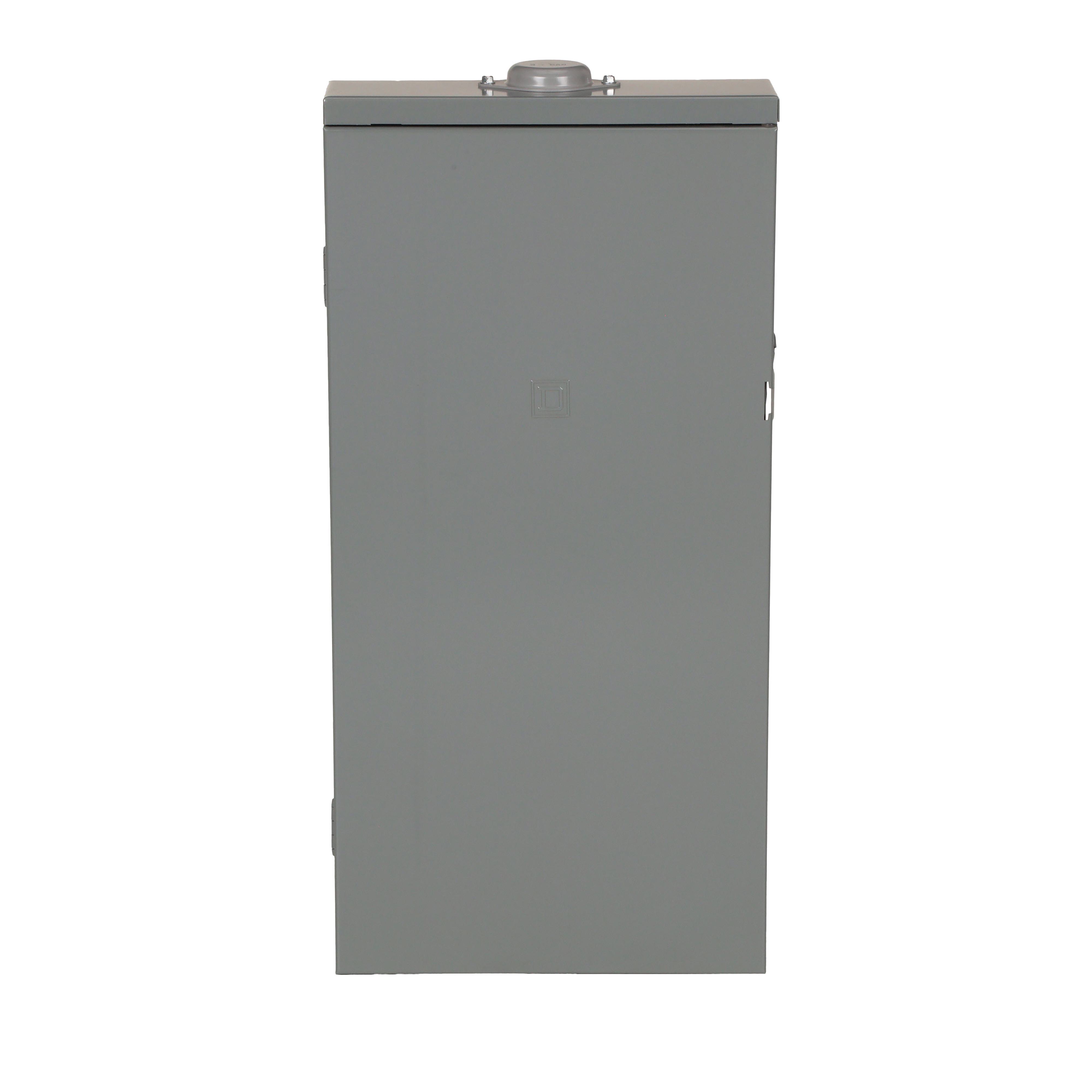

Square D™ QO130M200PRB
Square D™ QO® QO130M200PRB 1-Phase Convertible Neutral Main Breaker Load Center With Rainproof Cover, 120/240 VAC, 200 A, 1 Poles, 22 kA Interrupt
Brand: Square D™
Item ID: 481721
MPN: QO130M200PRB
Login for Price
Features
- Aluminum bus construction on fixed mains panels
- Tin plated copper busbar
- Service entrance equipment capable panels
- Split branch neutral for clutter-free wiring
- Top or bottom feed by rotating convertible mains panels 180 deg
- Single captive screw interior mounting on indoor panels to ease removal
- Straight in wiring to help minimize service cable installation
- Side hinge doors on outdoor convertible main panels
- Gray baked enamel surface finish
Description
Square D™ QO® Main Breaker Load Center, 1-Phase Convertible Neutral, 120/240 VAC, 200 A, 1 Pole, 50/60 Hz Frequency, 22 kA Interrupt, 30 Circuits, QO Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 30 Spaces, 4 AWG to 250 kcmil Aluminum/Copper Wire, Plug-On Mounting, NEMA 3R Enclosure, 6R Enclosure Box, Galvanized Steel Housing Material, 14.75 in W x 4.52 in D x 29.86 in H Dimensions
Specifications
Amperage Rating |
200 A |
Breaker Mounting |
Panel |
Breaker Type |
QO |
Dimensions |
14.75 in W x 4.52 in D x 29.86 in H |
Enclosure Box Size |
6R |
Enclosure Type |
NEMA 3R |
Frequency Rating |
50/60 Hz |
Housing Material |
Galvanized Steel |
Interrupt Rating |
22 kA |
Mounting Type |
Plug-On |
Number of Circuits |
30 |
Number of Poles |
1 |
Number of Spaces |
30 |
Type |
1-Phase Convertible Neutral |
Voltage Rating |
120/240 VAC |
Wire Size |
4 AWG to 250 kcmil Aluminum/Copper |
Wiring Configuration |
3-Wire |
Standard Approval |
RoHS Compliant|UL Listed|NOM Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
For outdoor, residential, commercial, industrial requirements to protect electrical systems, equipment and people applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4526510e07e1c5af84f8268ae9877844185927e85b62c61c4788d8b3c95e1a7e.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM24L70F_Installation_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO124L125PGRB_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOCMF54UCW_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOCMF54UCW_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOM70VH_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XS612B1PBM12_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO130M200PRB_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b790a20247ea6e926c329eb5ec6639d3978adbf898cfa2e850614f4905c4b3fa.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO130M200PRB_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120GFI_Warranty.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220GFIC_Warranty_Information.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220GFIC_Warranty_Information.pdf
