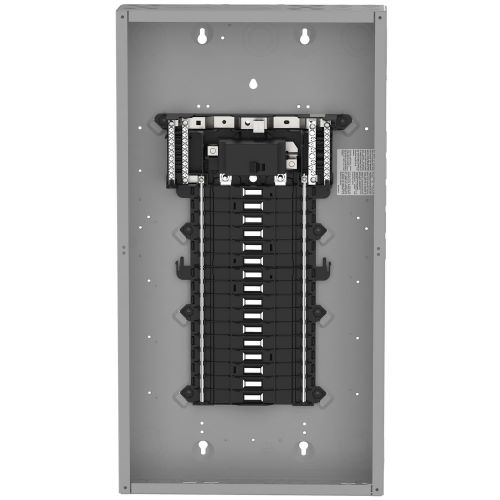

Square D™ QO132M100P
Square D™ QO132M100P 1-Phase Convertible Main Lug Load Center, 120/240 V, 100 A, 3 W Power Rating, 1 Poles
Brand: Square D™
Item ID: 481732
MPN: QO132M100P
Login for Price
Description
Square D™ Convertible Main Lug Load Center, 1-Phase, 120/240 V, 100 A, 1 Pole, 3 W, 38 Circuits, 32 Spaces, NEMA 1, 14.25 in W x 3.75 in D x 26.04 in H
Specifications
Amperage Rating |
100 A |
Dimensions |
14.25 in W x 3.75 in D x 26.04 in H |
Enclosure Type |
NEMA 1 |
Number of Circuits |
38 |
Number of Poles |
1 |
Number of Spaces |
32 |
Power Rating |
3 W |
Type |
1-Phase |
Voltage Rating |
120/240 V |
Standard Approval |
UL Listed |
Application |
For QO plug-on circuit breaker and QO plug-on neutral circuit breaker |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b2691c7338b24a2c72e4540cca7b06b4d4a0e3f235f3ac1cb4546d544de885bb.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_241f1d34013ee8e5f8601a4e8cb92da8165787528f9eed3ed5d139efc49cb403.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM24L70F_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0f80a09b1f89c07a9689afae4a8543722c3a6a136c9d3693d50ce14c529cba10.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR3RH6_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XB7NS8445_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XB7NS8445_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PKF36060U33A_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO132M100P_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_afa6bba9de8897d4377fca2874fc397d9843ae20814bd873b83060d6dc833496.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO132M100P_Specification_Sheet.pdf
