Schneider Electric QO142M150PC

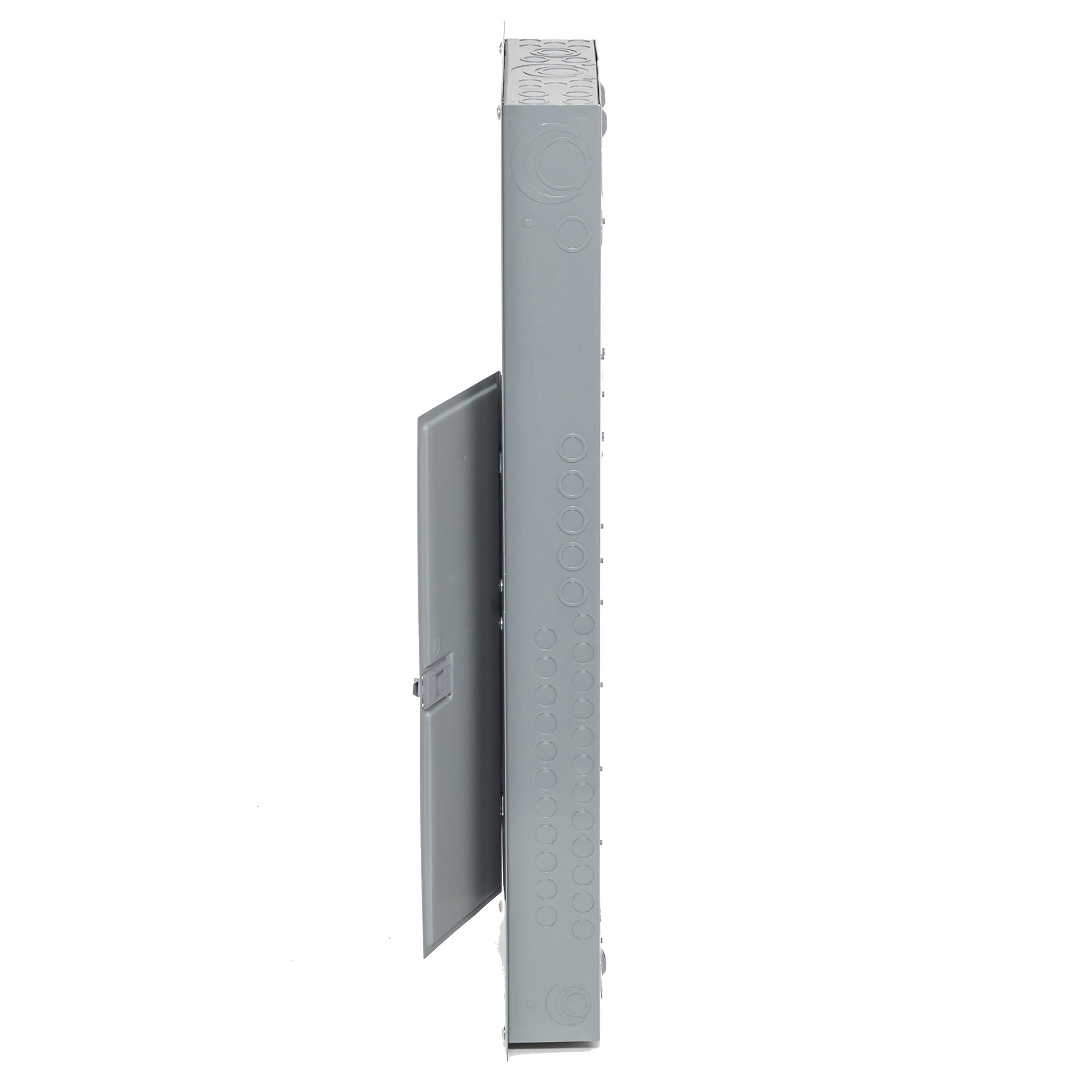

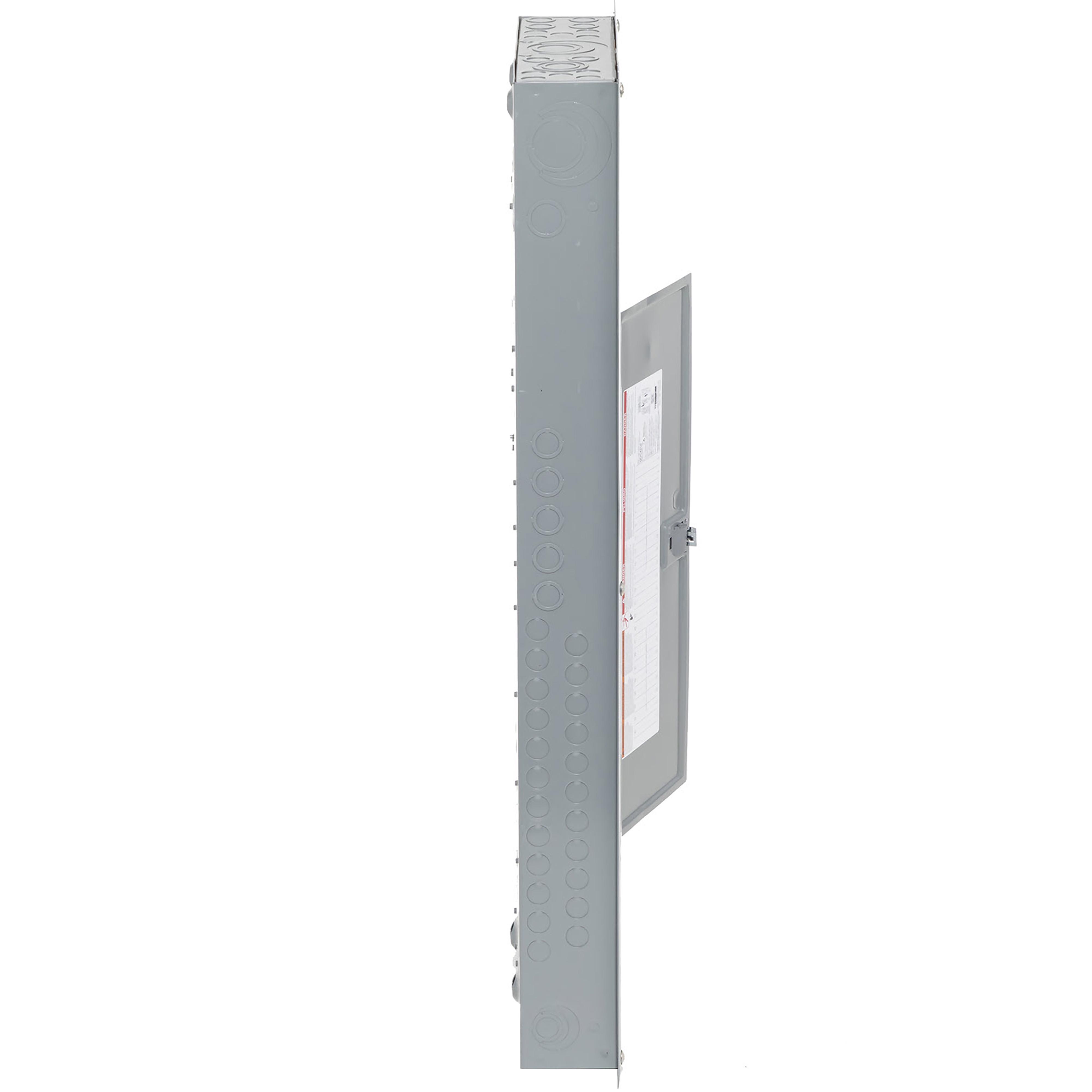

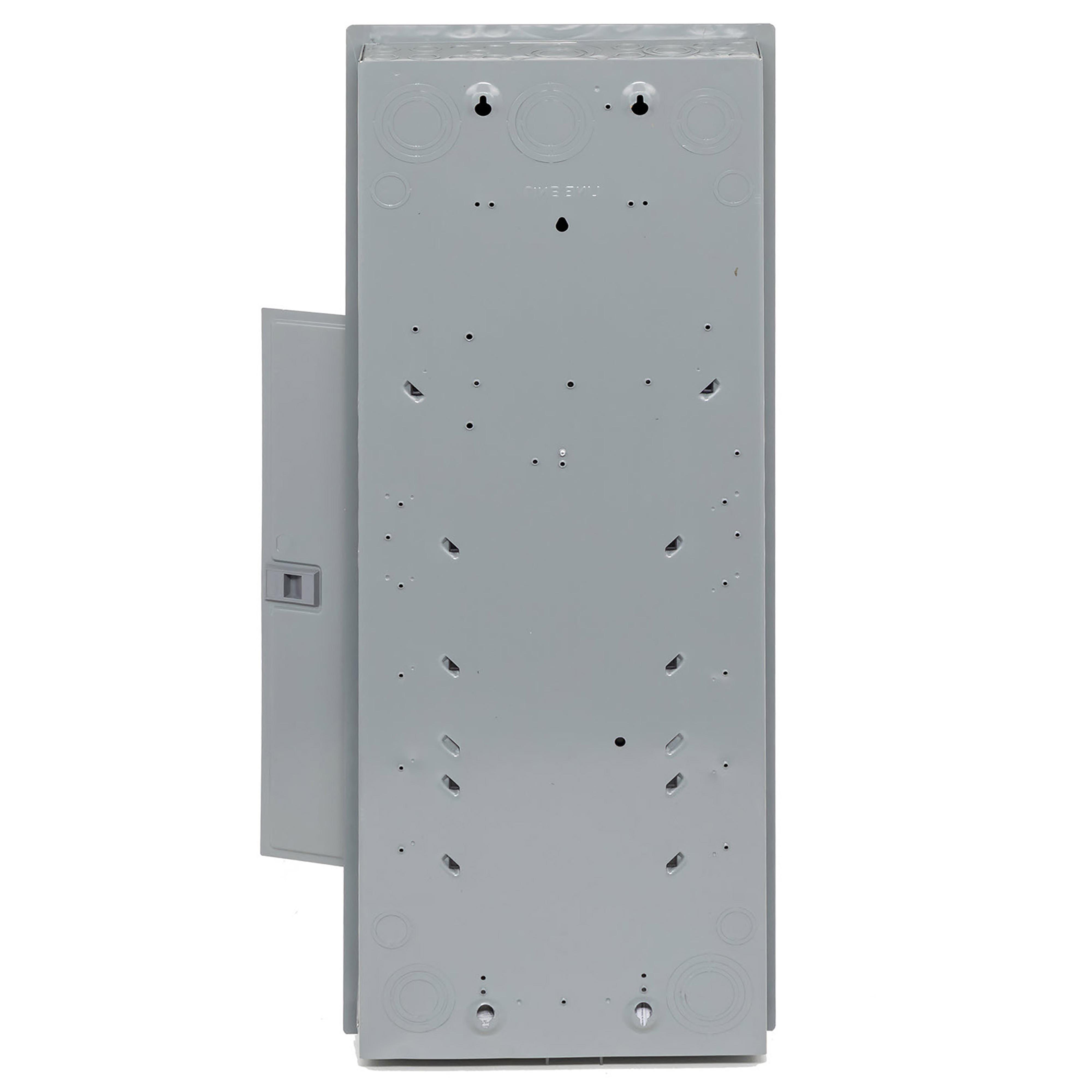

Schneider Electric Square D™ QO™ QO142M150PC 1-Phase 3-Wire Convertible Main Neutral Load Center, 120/240 VAC, 150 A, 22 kA Interrupt
Brand: Schneider Electric
Item ID: 467653
MPN: QO142M150PC
Login for Price
Features
- Convertible to main lugs or lower amperage main breaker
- Factory installed main breaker
- Copper bus
Description
Schneider Electric Square D™ QO™ Convertible Main Neutral Load Center, 1-Phase 3-Wire, 120/240 VAC, 150 A, 50/60 Hz Frequency, 22 kA Interrupt, 42 Circuits, Plug-On Breaker Mounting, 42 Spaces, 4 AWG to 300 kcmil AL/CU Wire, NEMA 1 Enclosure, 14.25 in W x 3.75 in D x 37.99 in H Dimensions
Specifications
Amperage Rating |
150 A |
Breaker Mounting |
Plug-On |
Dimensions |
14.25 in W x 3.75 in D x 37.99 in H |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
22 kA |
Number of Circuits |
42 |
Number of Spaces |
42 |
Type |
1-Phase 3-Wire |
Voltage Rating |
120/240 VAC |
Wire Size |
4 AWG to 300 kcmil AL/CU |
Standard Approval |
ECCN: EAR99|REACH Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For QO™ plug-on neutral circuit breaker and indoor applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_32926755bd52d4e6c8a2752df570025b2f05c95a042b9d6f911a0e5d246aa3e7.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_11478355d5af9b918a508c5960921916115b5eb6d403b0a9e61aa703aa6d8a13.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM24L70F_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO130M150PC_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO130M150PC_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOM70VH_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_QO142M150PC_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b2e925c4af7f985662382a883f72fd232055f29ec96af8673845d14612a561ce.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_QO142M150PC_Specification_Sheet.pdf
