Square D™ QO1515

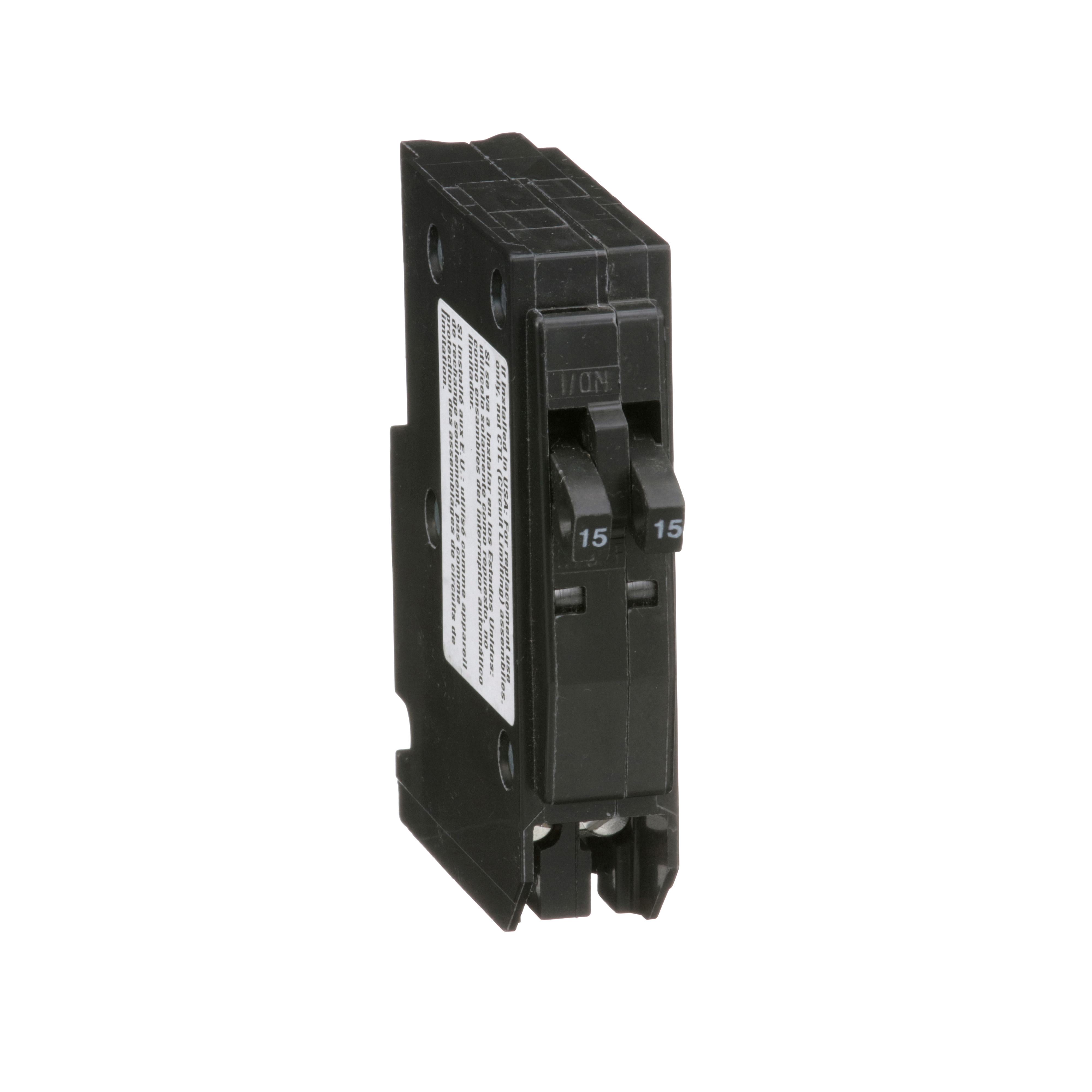

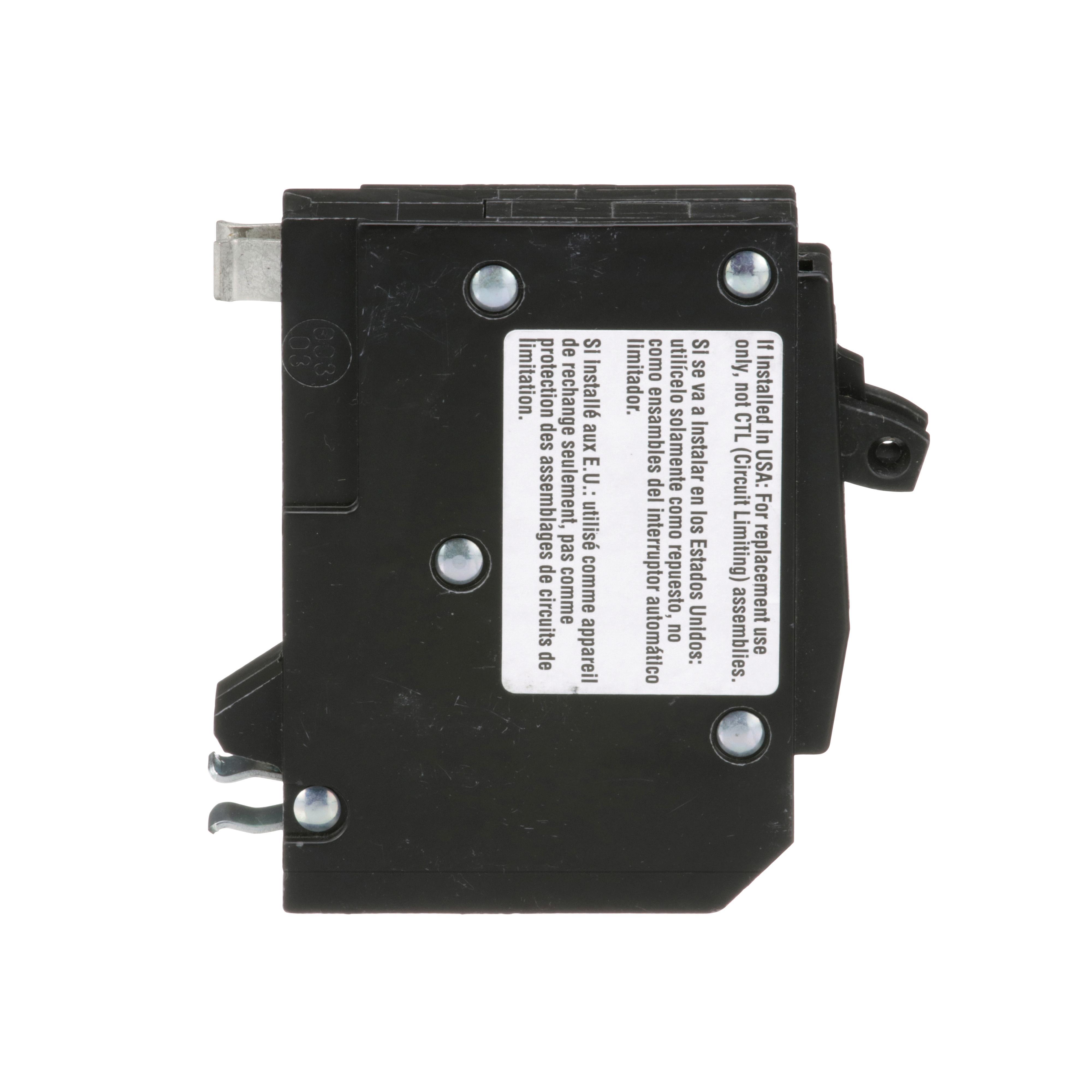

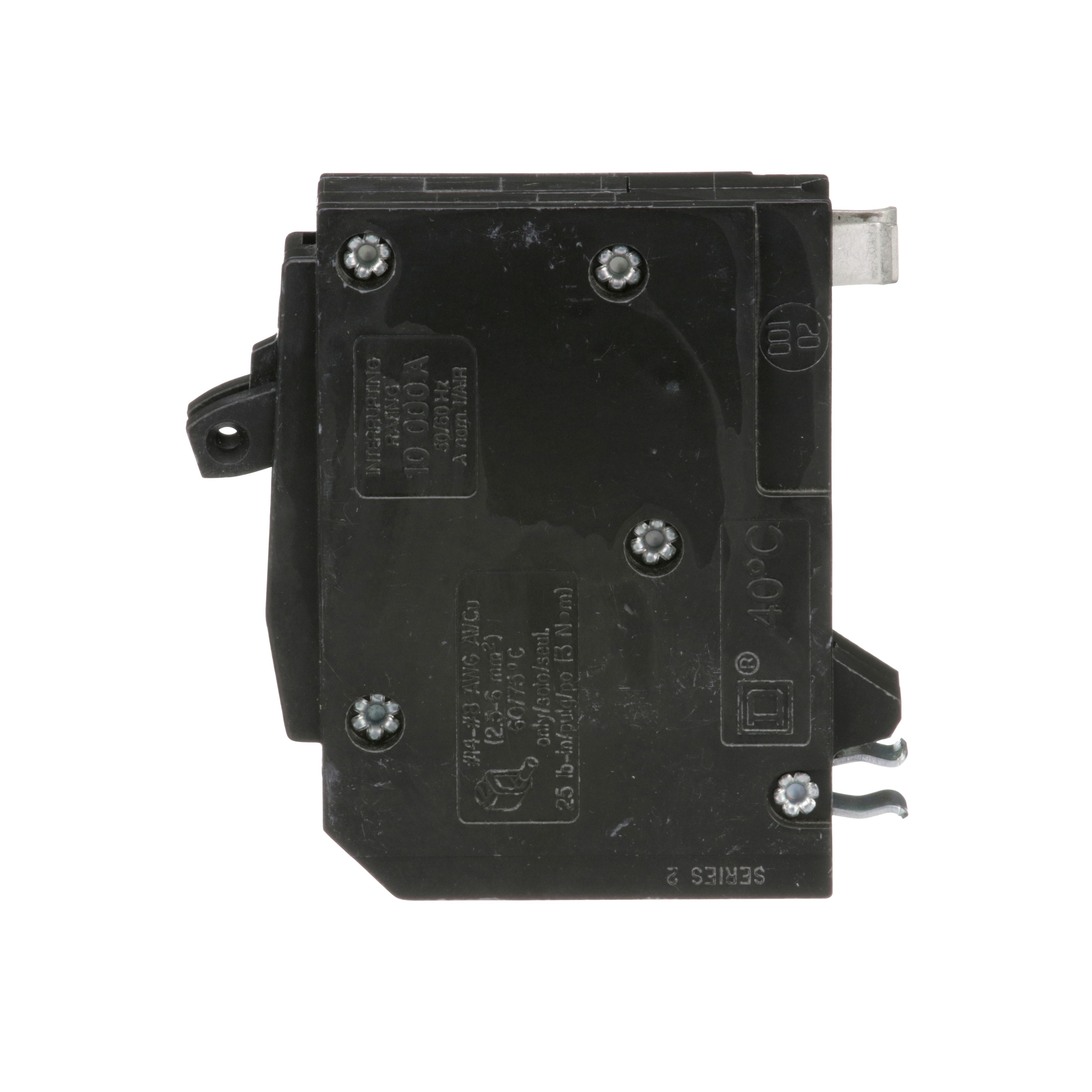

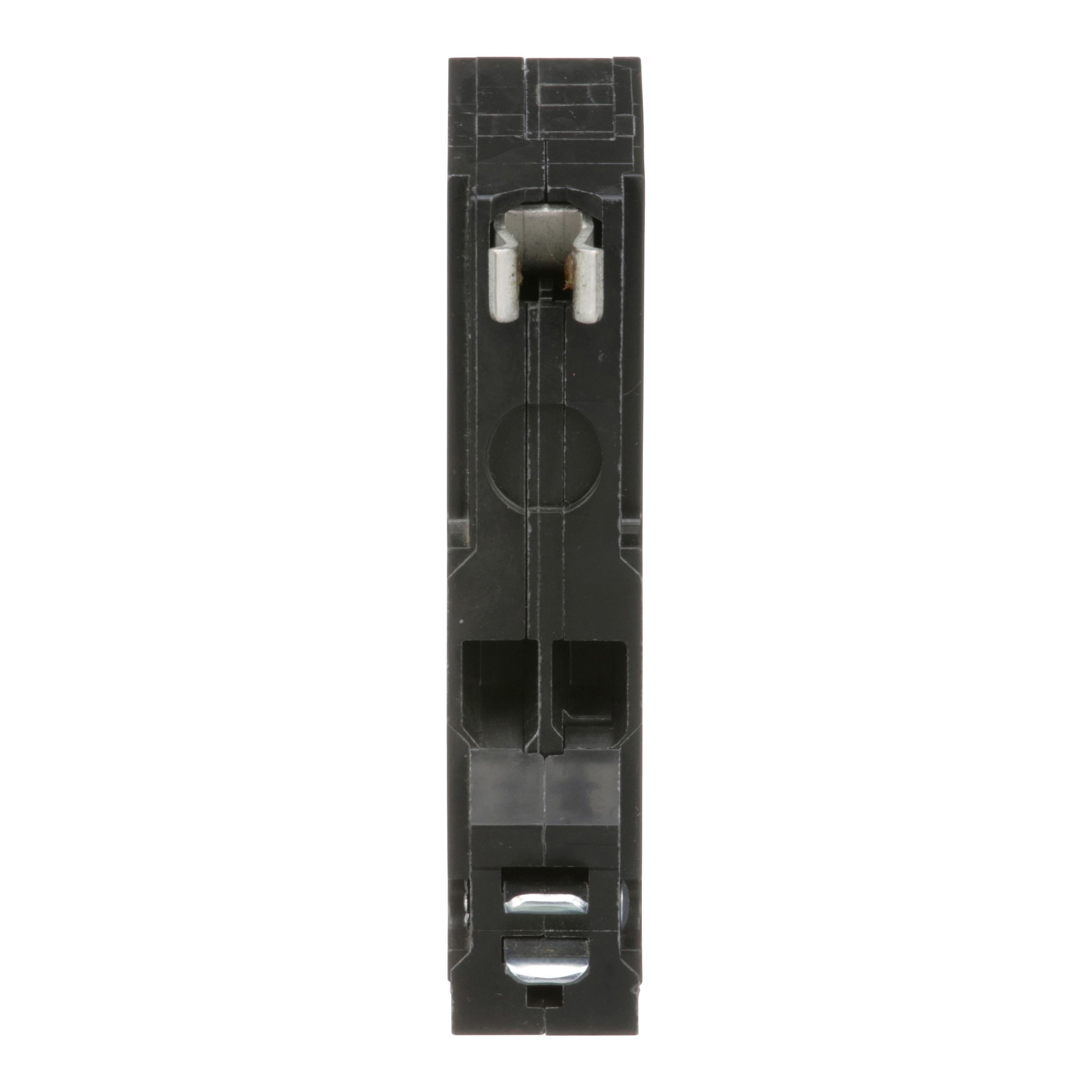

Square D™ QO™ QO1515 Tandem Miniature Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 1 Pole, Thermal/Magnetic Trip
Brand: Square D™
Item ID: 57061
MPN: QO1515
Login for Price
Features
- Al/Cu wire
- Box lugs electrical connection
- 14 to 8 AWG Al/Cu wire
Description
Standard thermal-magnetic QO™ and Homeline™ 15 and 20 A circuit breakers are listed to UL489 and provide overload and short circuit protection for conductors. The QO™ and Homeline™ thermal-magnetic circuit breakers are for general use in protecting branch circuit in residential and commercial applications. Use QO™ and Homeline™ 15 and 20 A arc fault circuit interrupter circuit breakers that have been listed to UL1699 in order to provide arc fault circuit protection for the entire branch circuit in accordance with the installation requirements in National Electrical Code section 210.12. Thermal-magnetic circuit breakers are not designed, listed or intended to provide protection against low level hazardous arcing conditions in branch circuit wiring.
Square D™ QO™ Miniature Circuit Breaker, Tandem, 120/240 VAC, 15 A, 50/60 Hz, 10 kA Interrupt, Thermal/Magnetic Trip, 1 Pole, 1 ph, Pressure Plate, 14 to 8 AWG Wire, Plug-On Mount, 104 deg F, 2.91 in L x 0.75 in W x 3 in H
Specifications
Amperage Rating |
15 A |
Connection Type |
Pressure Plate |
Dimensions |
2.91 in L x 0.75 in W x 3 in H |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-On |
Number of Poles |
1 |
Phase |
1 ph |
Temperature Rating |
104 deg F |
Trip Type |
Thermal/Magnetic |
Type |
Tandem |
Voltage Rating |
120/240 VAC |
Wire Size |
14 to 8 AWG |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL Listed|CSA Certified|Federal Specification WC375B/GEN|HACR Rated|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a41315c90b15c9a19a009c771384b69d74b7c63b4bf60bbf5193e66e46bb8137.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_59b2a2756d7ba34449e82fd86fd9484888e820ed43116f4dceabad032df37b01.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO403L60NS_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR3RH6_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BC5_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM245_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO1515_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1bc66cacde05d771d93fb2778319b2985d5e6ae2a198a25589372fc95d9e1e9e.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO1515_Specification_Sheet.pdf
