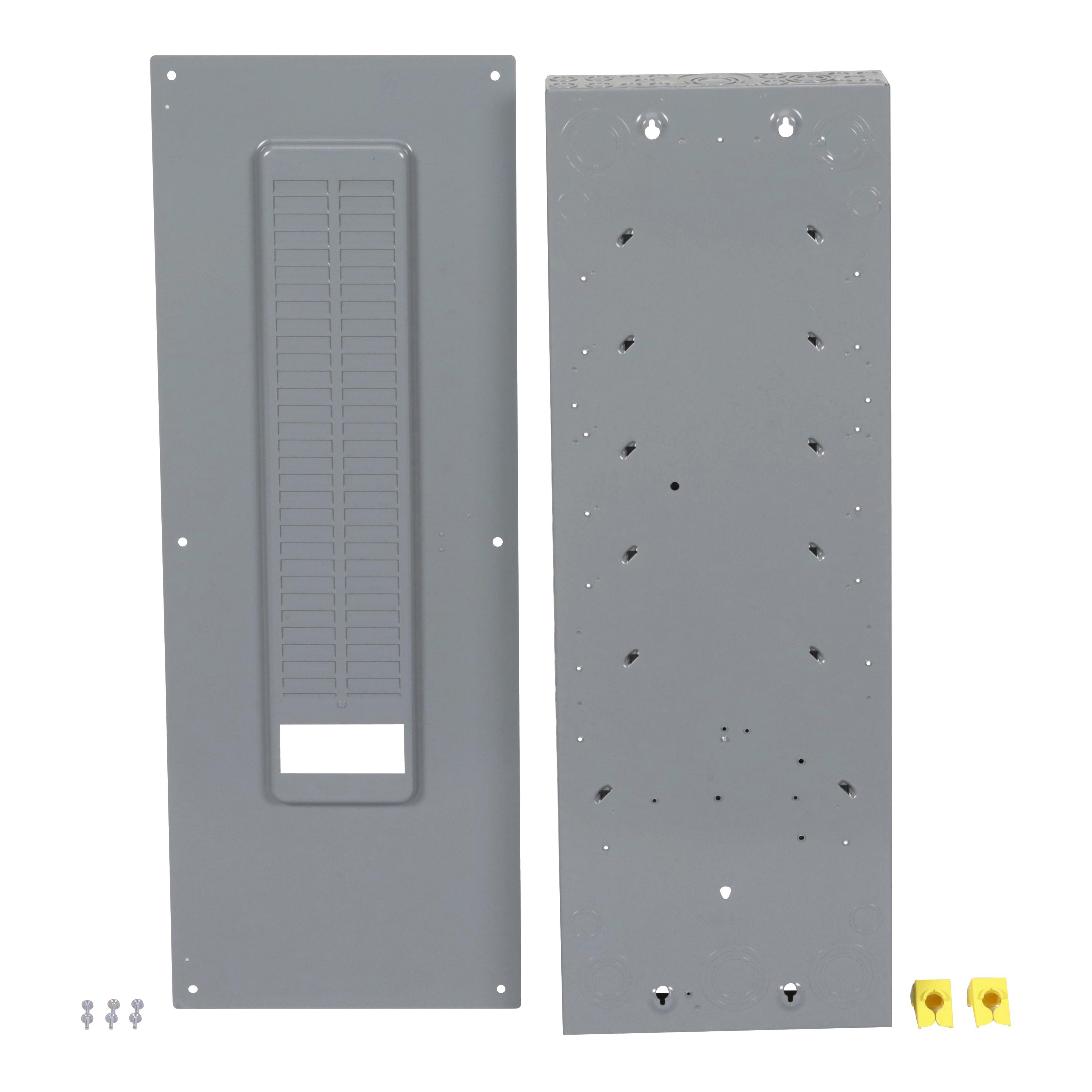

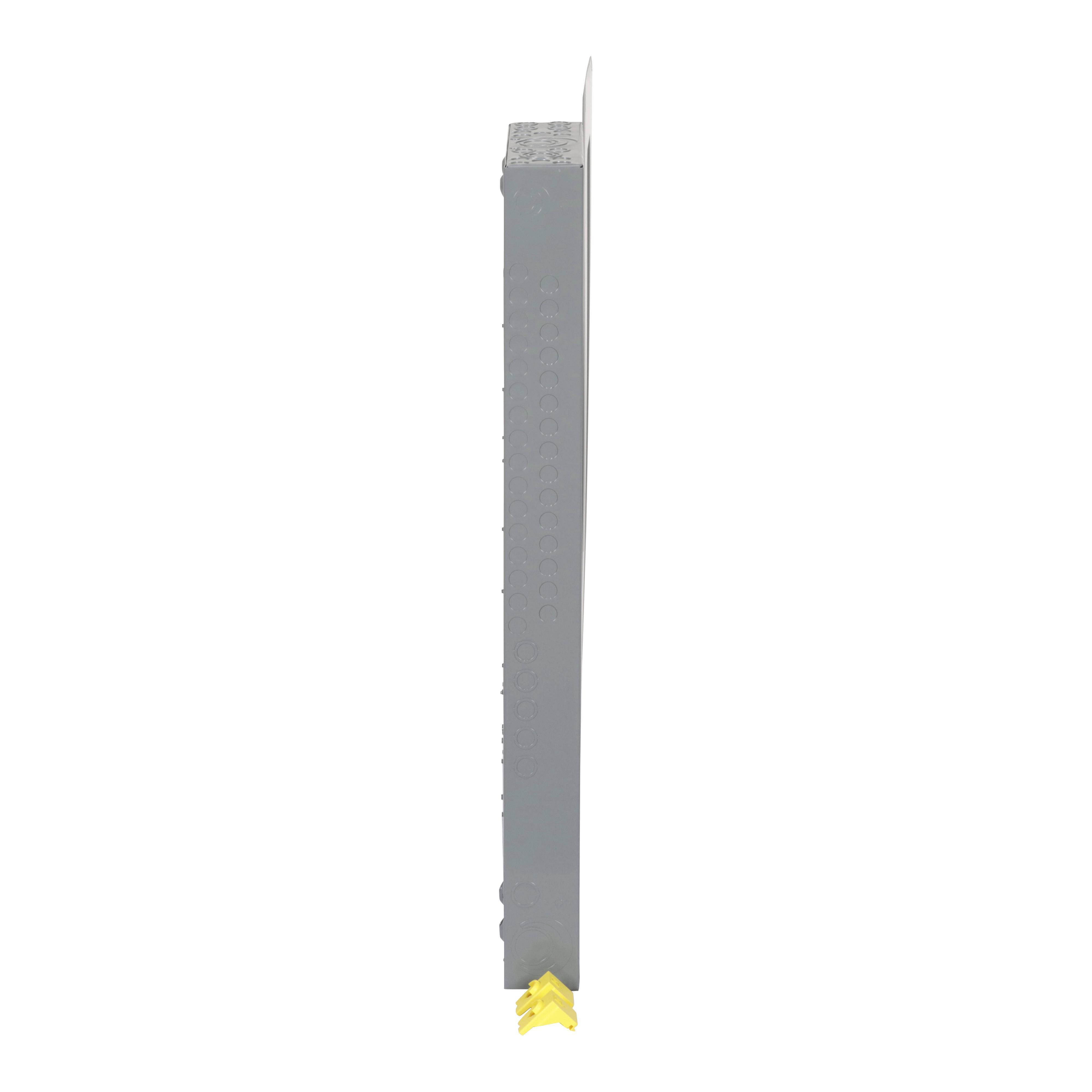

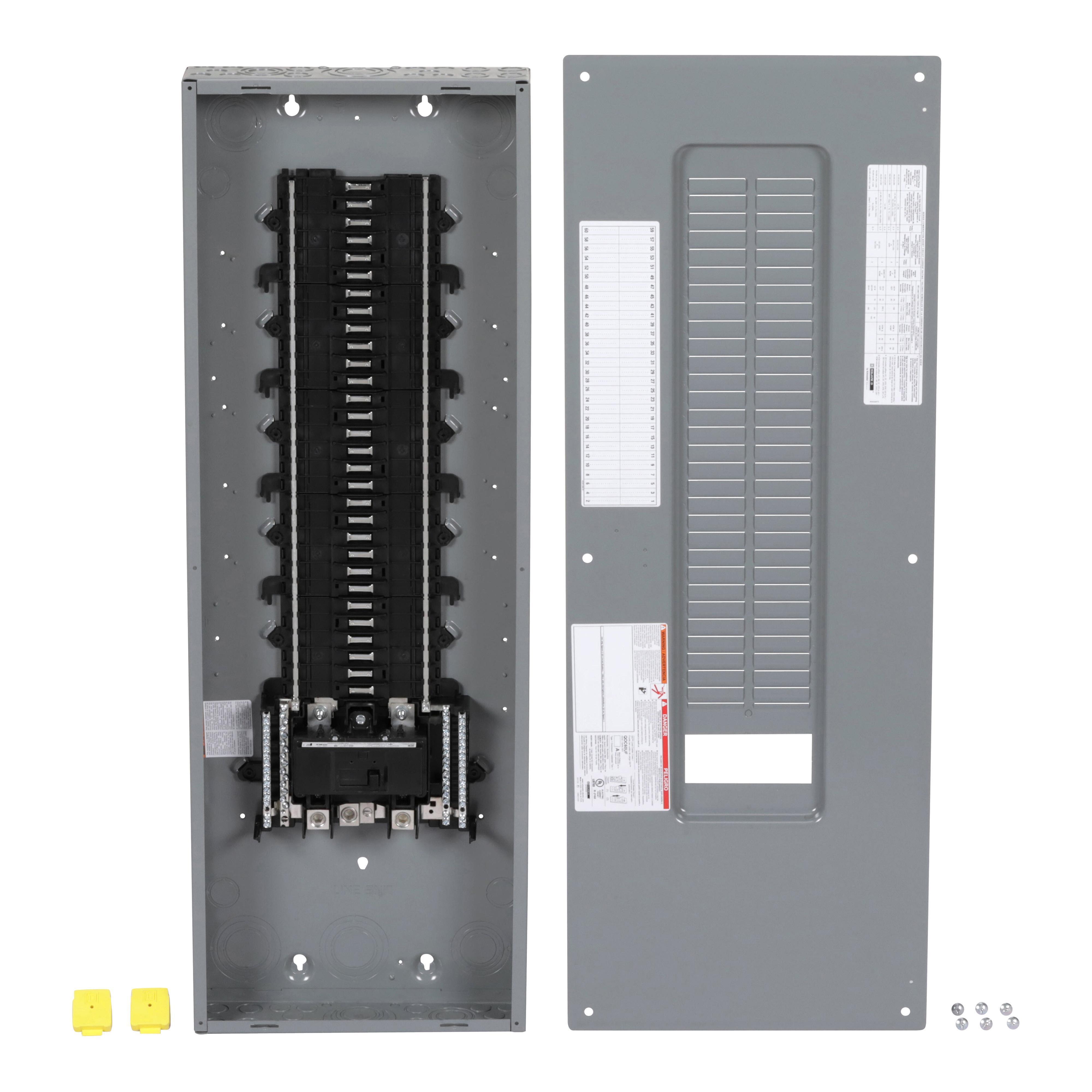

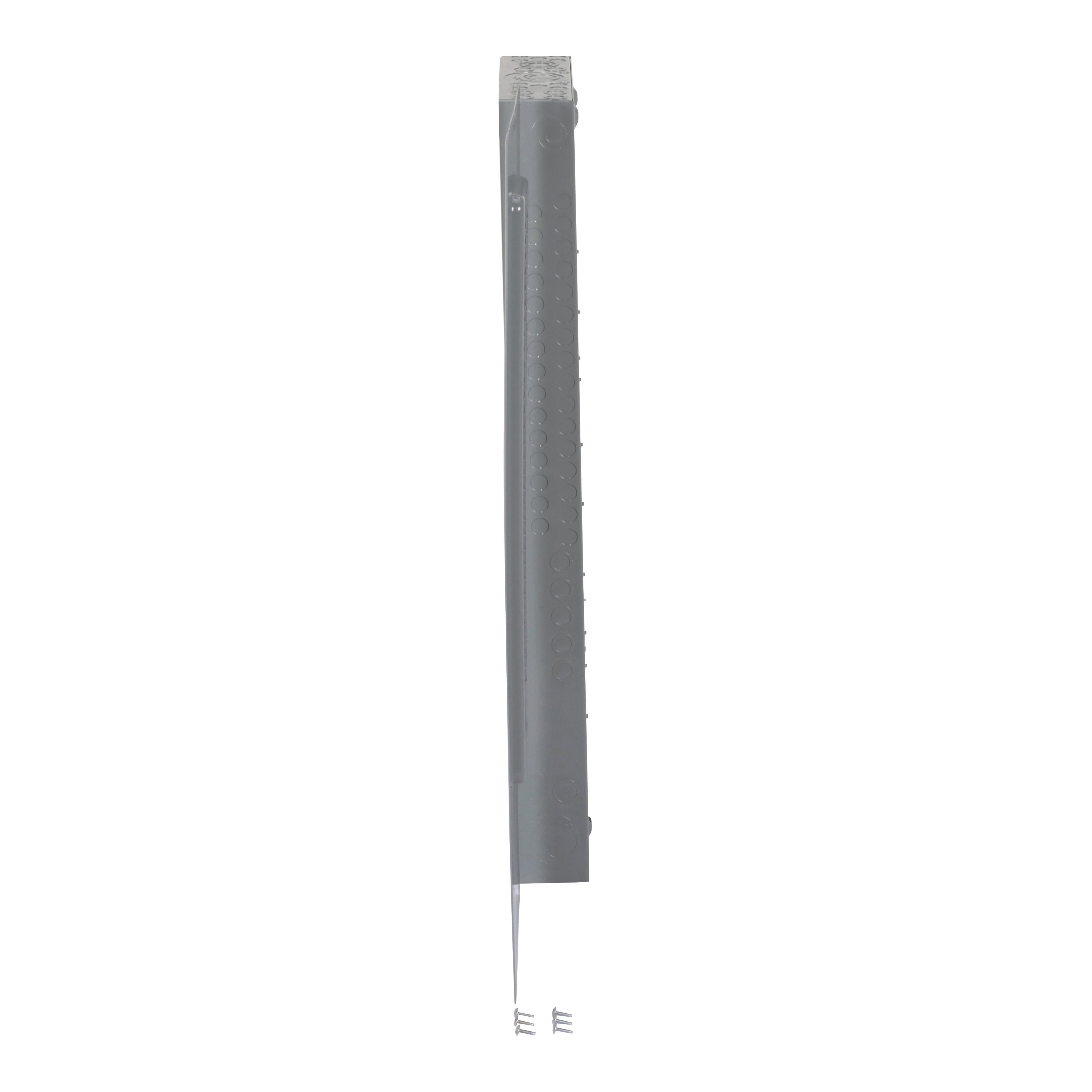

Square D™ QO160M200PC
Square D™ QO® QO160M200PC 1-Phase Convertible Neutral Main Breaker Load Center With Combination Flush/Surface Cover, 120/240 VAC, 200 A, 1 Poles, 22 kA Interrupt
Brand: Square D™
Item ID: 430782
MPN: QO160M200PC
Login for Price
Features
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Shielded one piece tin plated aluminum bus construction on convertible mains panels, an industry exclusive for protection and performance
- Service entrance equipment capable panels
- Split branch neutral for clutter-free wiring
- Top or bottom feed by rotating convertible mains panels 180 deg
- Single captive screw interior mounting on indoor panels to ease removal
- Straight in wiring to help minimize service cable installation
- Side hinge doors on outdoor convertible main panels
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Outdoor panel covers are lockable with padlock
Description
Square D™ QO® Main Breaker Load Center, 1-Phase Convertible Neutral, 120/240 VAC, 200 A, 1 Pole, 50/60 Hz Frequency, 22 kA Interrupt, 60 Circuits, QO Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 60 Spaces, 4 AWG to 250 kcmil Wire, Flush/Plug-On Mounting, NEMA 1 Enclosure, 24 Enclosure Box, Steel Housing Material, 14.25 in W x 3.75 in D x 43.15 in H Dimensions
Specifications
Amperage Rating |
200 A |
Breaker Mounting |
Panel |
Breaker Type |
QO |
Dimensions |
14.25 in W x 3.75 in D x 43.15 in H |
Enclosure Box Size |
24 |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Housing Material |
Steel |
Interrupt Rating |
22 kA |
Mounting Type |
Flush/Plug-On |
Number of Circuits |
60 |
Number of Poles |
1 |
Number of Spaces |
60 |
Type |
1-Phase Convertible Neutral |
Voltage Rating |
120/240 VAC |
Wire Size |
4 AWG to 250 kcmil |
Wiring Configuration |
3-Wire |
Standard Approval |
RoHS Compliant|UL Listed|NOM Certified|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov |
Application |
For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people applications |
