Square D™ QO1PAF

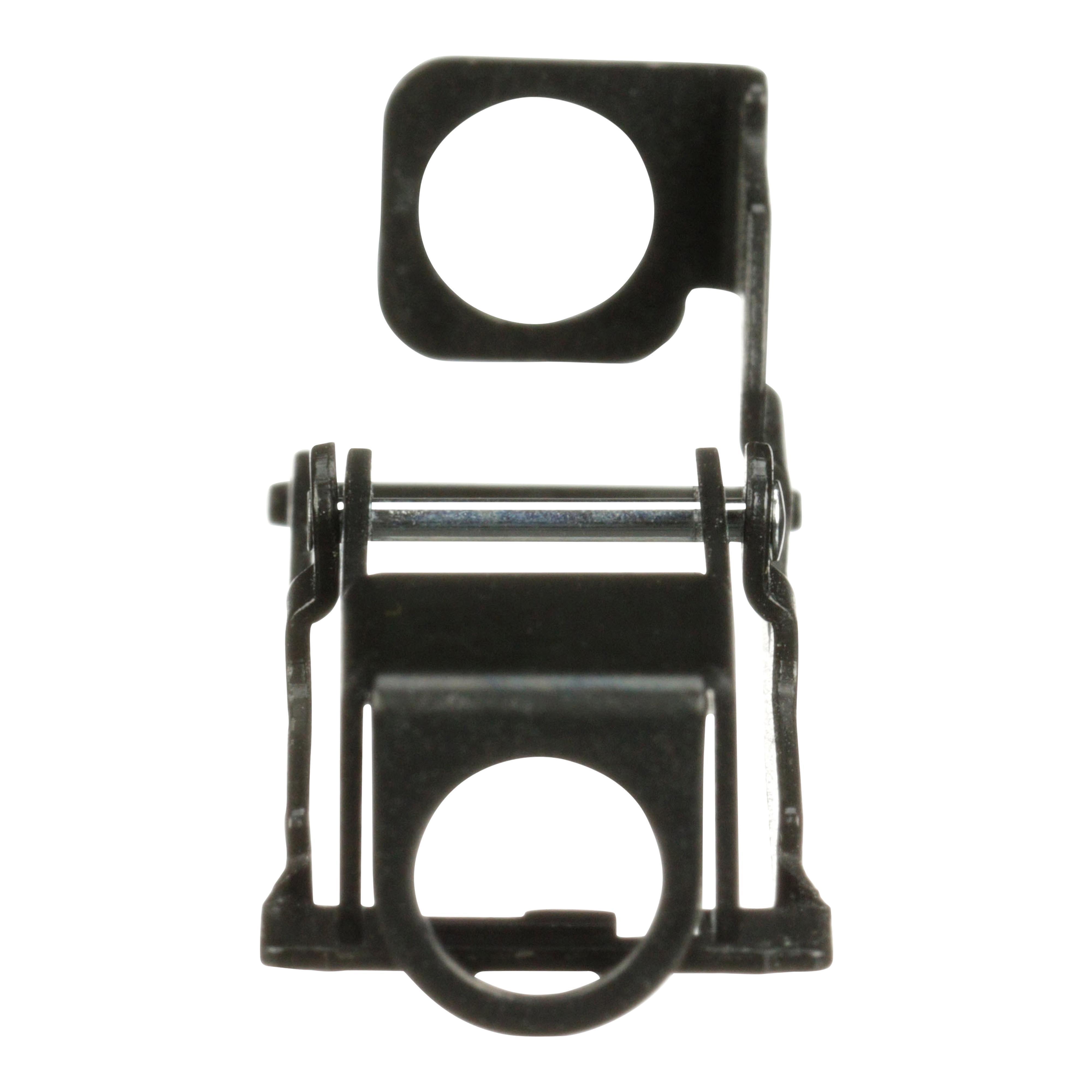

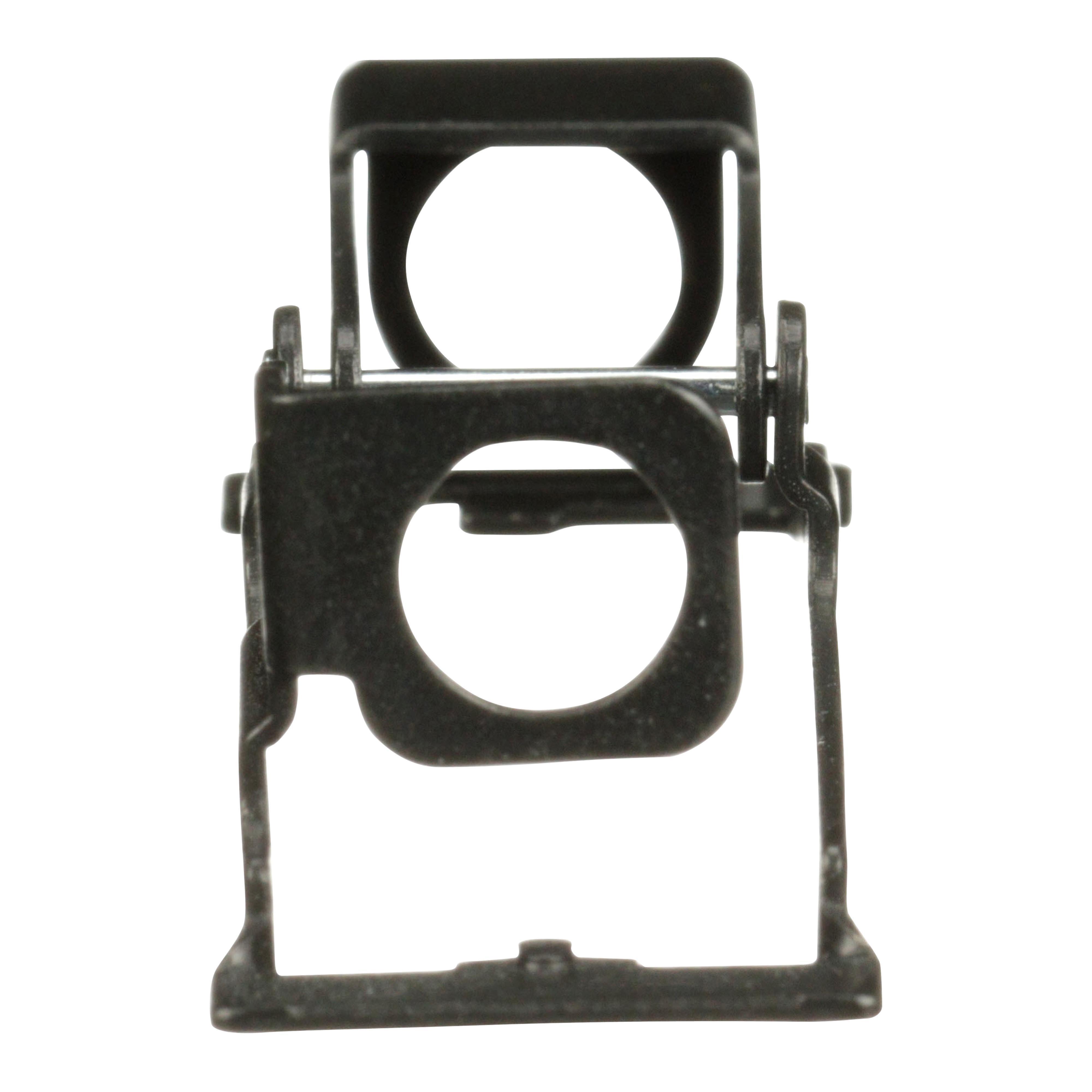

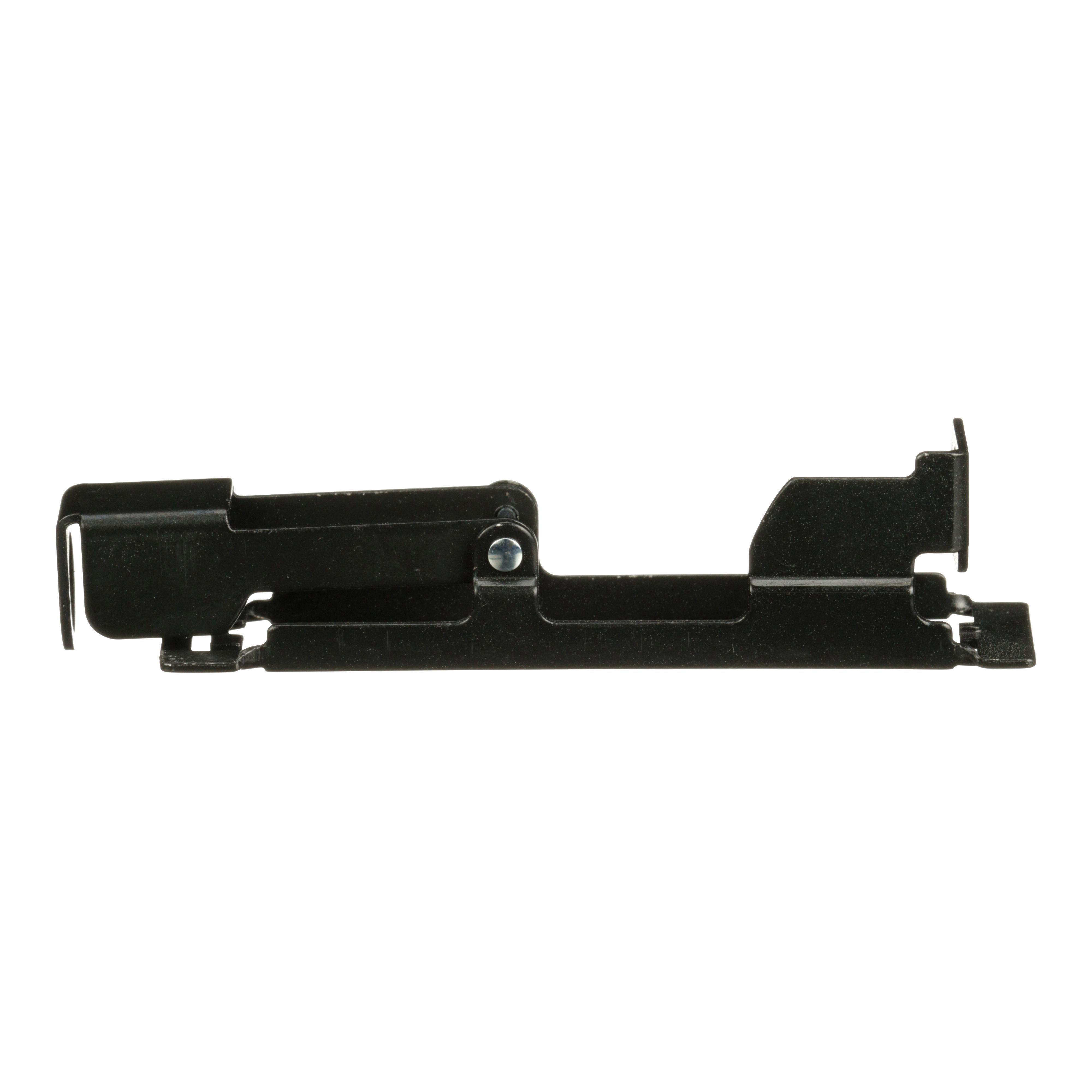

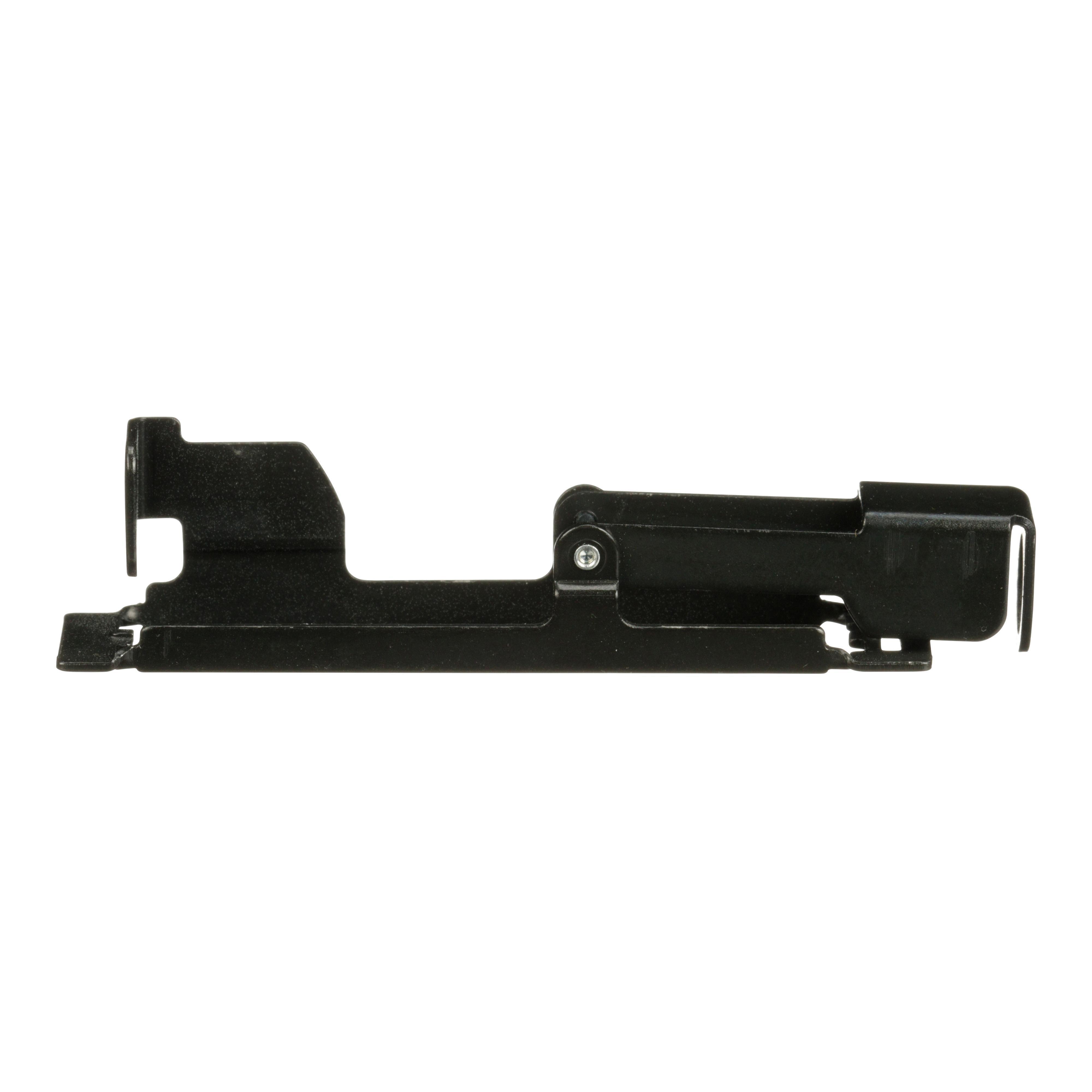

Square D™ QO1PAF Handle Padlock Attachment, For Use With QO Series 1-Pole Standard Circuit Breaker, Steel
Brand: Square D™
Item ID: 533816
MPN: QO1PAF
UPC: 785901641674
Login for Price
Features
- Padlock in off position
Description
QO™ circuit breakers come in plug-on or bolt-on options and a complete range of amperages and interrupting ranges to fit into various QO™ distribution panels. QO™ is the ''World's Finest" industry leading offer since 1955, with features engineered for faster installation, reliability and quality.
Square D™ Handle Padlock Attachment, For Use With: QO Series 1-Pole Standard Circuit Breaker, Steel
Specifications
Amperage Rating |
15 A |
Connection Type |
Pressure Plate |
Dimensions |
0.75 in W x 2.91 in D x 4.75 in H |
Enclosure Type |
NEMA AB1 |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Material |
Steel |
Mounting Type |
Bolted-On |
Number of Poles |
1 |
Suitable For Use With |
QO Series 1-Pole Standard Circuit Breaker |
Temperature Rating |
104 deg F |
Trip Type |
Thermal/Magnetic |
Type |
Type QOB AFI |
Voltage Rating |
120 VAC |
Wire Size |
14 to 10 AWG Cu, 14 to 8 AWG Al/Cu |
Standard Approval |
RoHS Compliant|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov |
Application |
Residential and Light Commercial Circuit Protection, Commercial and Industrial Circuit Protection, High Interruption Rating Capabilities, Overcurrent Protection, Short Circuit Protection, Parallel And Series Arc Fault Protection and Ground Fault Protection Applications |
