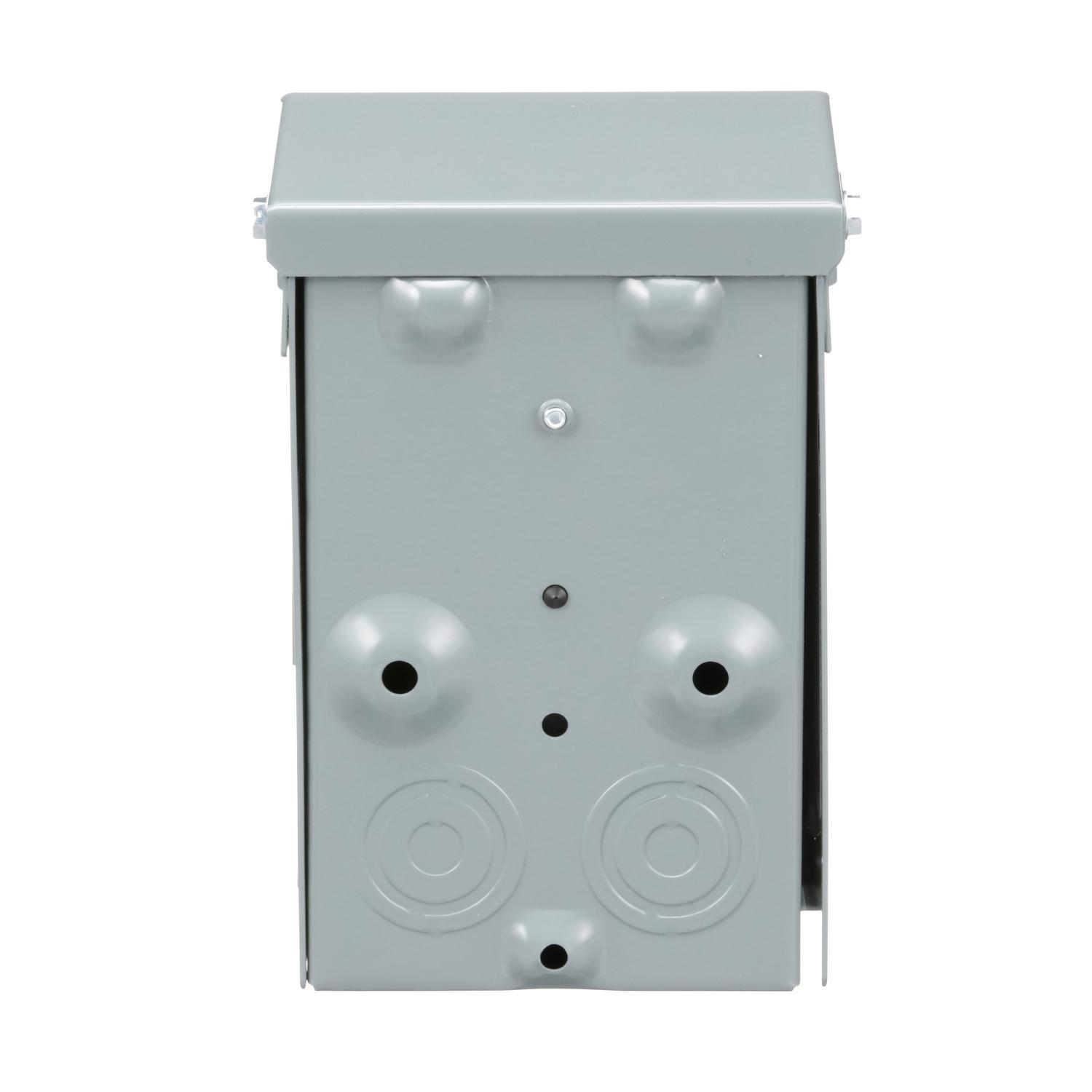

Square D™ QO200TR
Square D™ QO200TR QO Series Non-Fusible Air Conditioning Disconnect, 240 VAC, 60 A, 10 hp, 2PST Contact, 2 Poles
Brand: Square D™
Item ID: 57097
MPN: QO200TR
Login for Price
Features
- Metallic rain proof and ice proof (indoor outdoor)
- Surface device mounting and panel mounting support
Description
Square D™, QO200TR, Air Conditioning Disconnect, Non-Fusible, Series: QO Series, 240 VAC, 60 A, 10 hp, 1 ph, 2 Pole, 2 Wires, 10 kA Short Circuit, 2PST Contact Form, NEMA 3R Enclosure, Surface Mounting, Screw Terminal, 40 deg C, 6-1/2 in H x 4-39/64 in W x 3-29/32 in D Dimensions, Galvanized Steel
Specifications
Amperage Rating |
60 A |
Contact Form |
2PST |
Dimensions |
6-1/2 in H x 4-39/64 in W x 3-29/32 in D |
Enclosure Type |
NEMA 3R |
Finish |
Galvanized |
Horsepower |
10 hp |
Material |
Galvanized Steel |
Mounting Type |
Surface |
Number of Poles |
2 |
Number of Wires |
2 |
Phase |
1 |
Series |
QO Series |
Short Circuit Current Rating |
10 kA |
Temperature Rating |
40 deg C |
Terminal Type |
Screw |
Type |
Non-Fusible |
Voltage Rating |
240 VAC |
Standard Approval |
UL Listed|RoHS Compliant |
Application |
Residential and Light Commercial Applications |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO200TR_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOB350VH_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO200TR_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO200TR_Specification_Sheet.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO200_Technical_Bulletin.pdf
