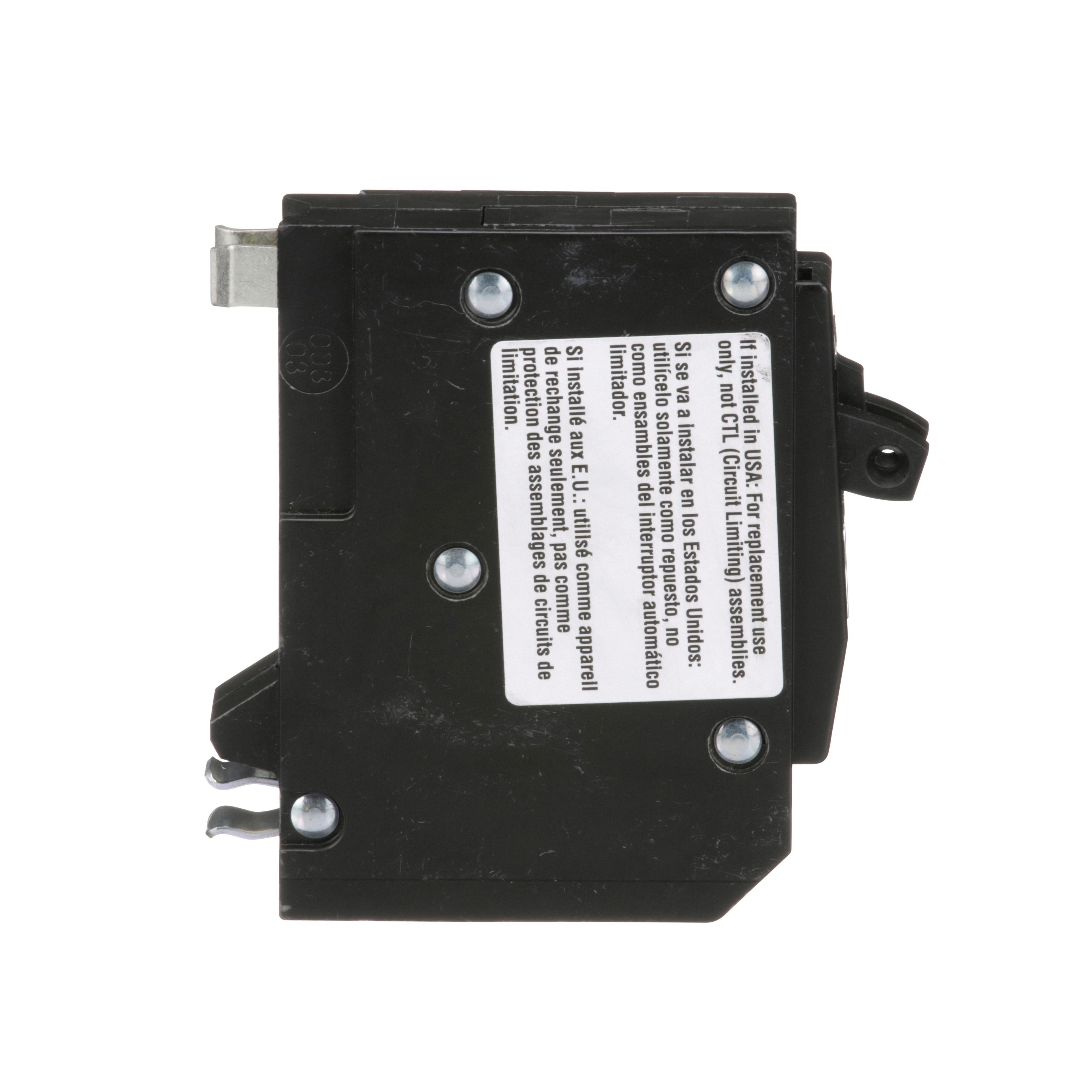

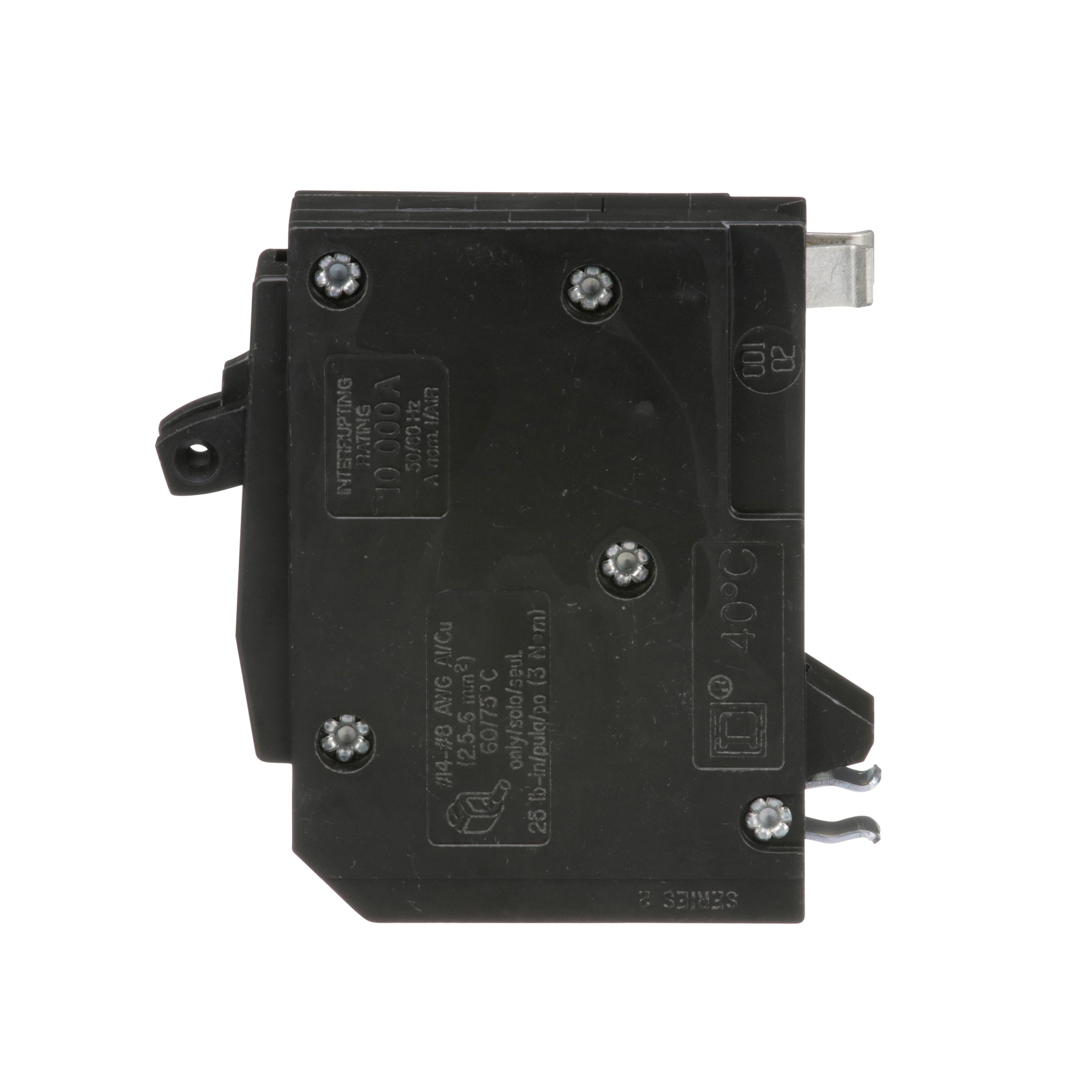

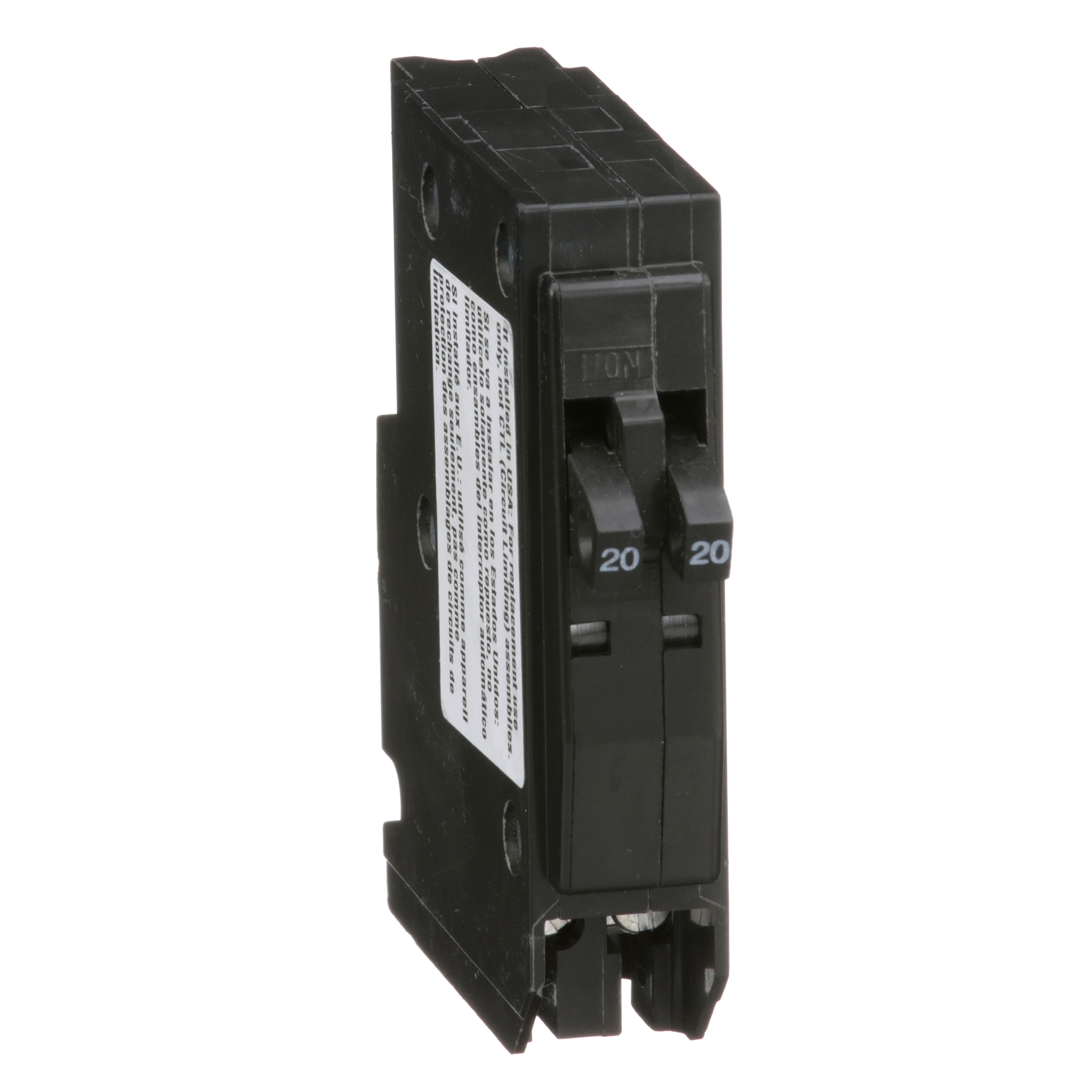

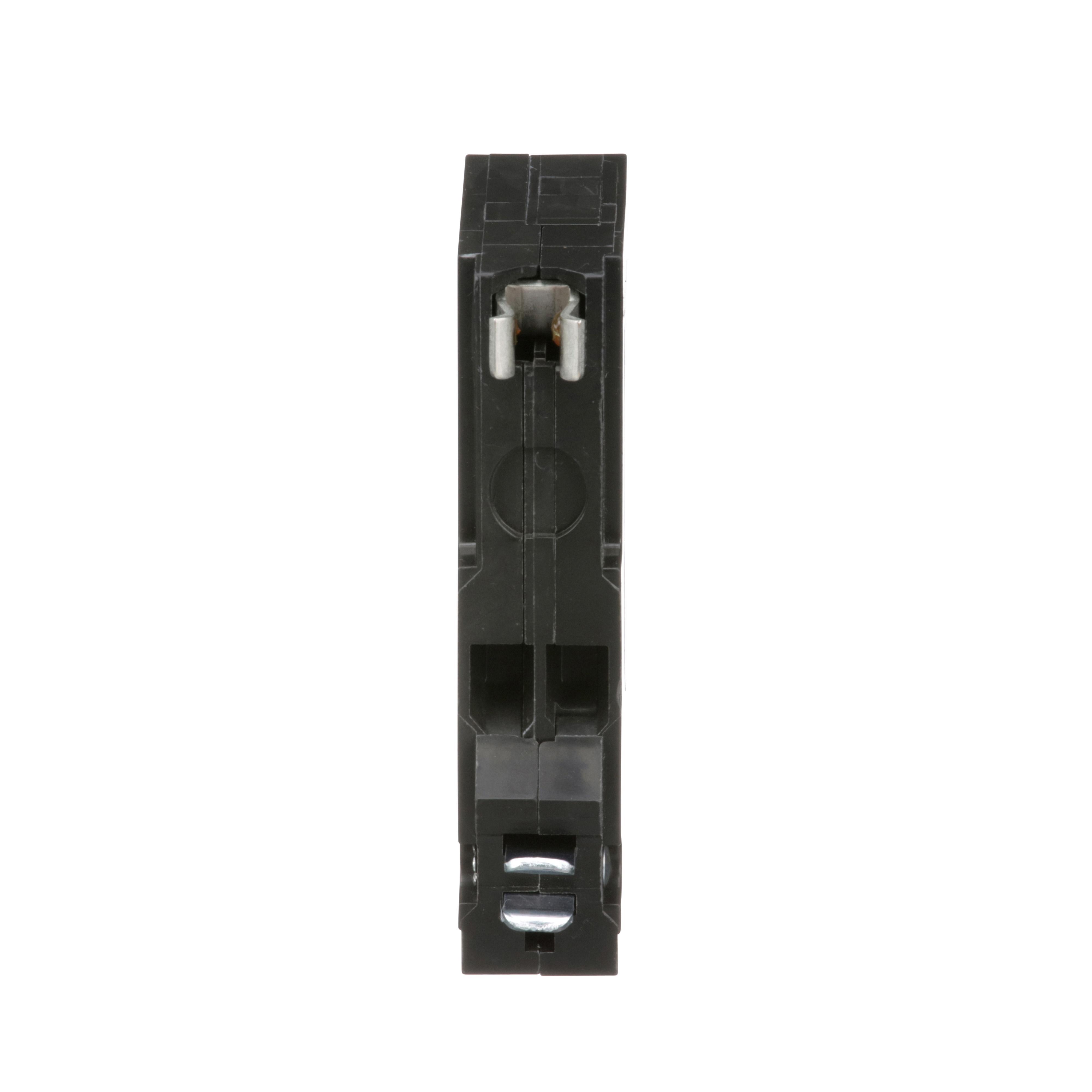

Square D™ QO2020
Square D™ QO™ QO2020 Tandem Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Pole, Thermal/Magnetic Trip
Brand: Square D™
Item ID: 57098
MPN: QO2020
Login for Price
Features
- Qwik-Open™ circuit breaker protection (trips within 1/60th of a second)
- Trips thermally (in an overload situation) or magnetically (under a short circuit situation)
- quick-make, quick-break mechanisms
- SWD rated
- 14 to 8 AWG Al/Cu, (2) 14 to 10 AWG Cu
- Box lug terminal
Description
The industry leader in circuit protection is easily recognized by the industry's only trip indicator-the red Visi-Trip® Indicator makes it easy to spot a tripped circuit breaker. Compact 3/4 in W format for 1-pole circuit breakers helps minimize panel space and footprint. The Square D™ exclusive QO™ protection is standard on all 15 A and 20 A circuit breakers trip reaction within 1/60 the of a second. No other circuit breaker trips faster.
Square D™ QO™ Miniature Circuit Breaker, Tandem, 120/240 VAC, 20 A, 50/60 Hz, 10 kA Interrupt, Thermal/Magnetic Trip, 1 Pole, 1 ph, Pressure Plate, 14 to 8 AWG Wire, Plug-In Mount, 40 deg C, 2.91 in L x 0.75 in W x 3 in H
Specifications
Amperage Rating |
20 A |
Connection Type |
Pressure Plate |
Dimensions |
2.91 in L x 0.75 in W x 3 in H |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-In |
Number of Poles |
1 |
Phase |
1 ph |
Temperature Rating |
40 deg C |
Trip Type |
Thermal/Magnetic |
Type |
Tandem |
Voltage Rating |
120/240 VAC |
Wire Size |
14 to 8 AWG |
Standard Approval |
CSA Certified|HACR Rated|RoHS Compliant|UL Listed|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For load centers and lighting panels applications |
