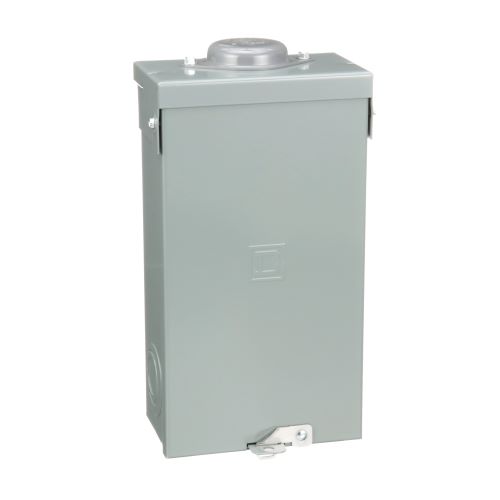

Square D™ QO2100BNRB
Square D™ QO™ QO2100BNRB 1-ph 2-Space Loadcenter Enclosure, NEMA 3R NEMA Rating, 13.19 in L x 6.93 in W x 4.12 in D, Steel
Brand: Square D™
Item ID: 57120
MPN: QO2100BNRB
Login for Price
Features
- 100 A line rated current, 22 kA short circuit current
- 2-circuits
- 120/240 VAC voltage rating
- Rainproof, tin plated copper busbar
Description
Square D™ QO™ Loadcenter Enclosure, 1-ph 2-Space, Surface Cover, 13.19 in Length, 6.93 in Width, 4.12 in D, Plug-In Mount, Steel, Baked Enamel Coated/Welded Galvanized, Gray, NEMA 3R
Specifications
Color |
Gray |
Cover Type |
Surface |
Depth |
4.12 in |
Finish |
Baked Enamel Coated/Welded Galvanized |
Length |
13.19 in |
Material |
Steel |
Mounting Type |
Plug-In |
NEMA Rating |
NEMA 3R |
Type |
1-ph 2-Space |
Width |
6.93 in |
Standard Approval |
RoHS Compliant|UL Listed|CSA Certified|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For QO circuit breakers |
Documentation
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ea8cf2256980a64bb41a80ae99ca9c08c994373d9c152976730b05ac2a205976.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO612L100TRB_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO612L100TRB_Instruction_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8ccc50ec7fd12652f059c3743bc8ef7e2d89228bcfa4ffe65a2b12c1867e1f4a.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XUYFALNEP60120_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_438dd47e730b3f6b31cd7df9be78fc0c05a1d32a3509b3ed8a56a21f43be7780.pdf
