Square D™ QO2100BNS

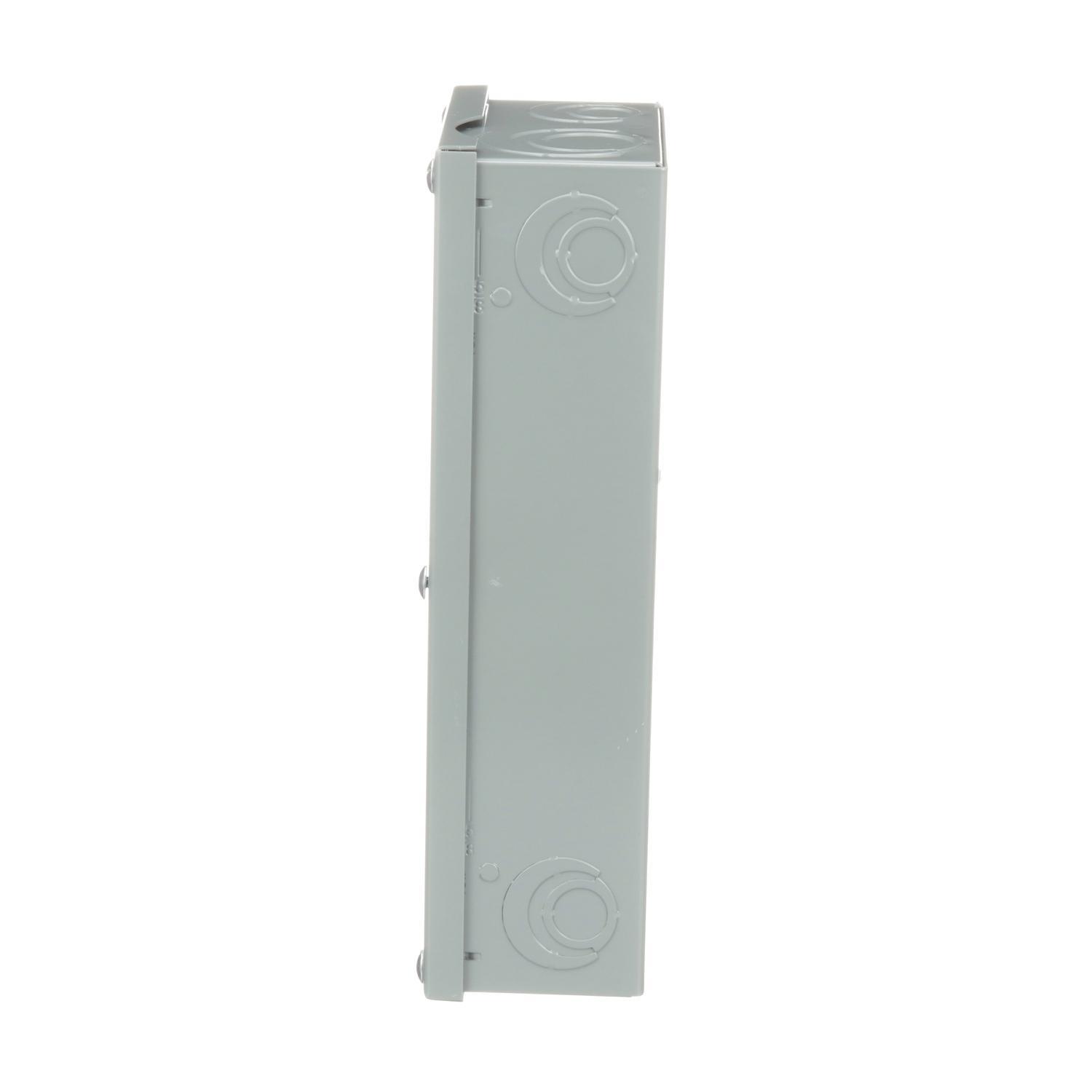

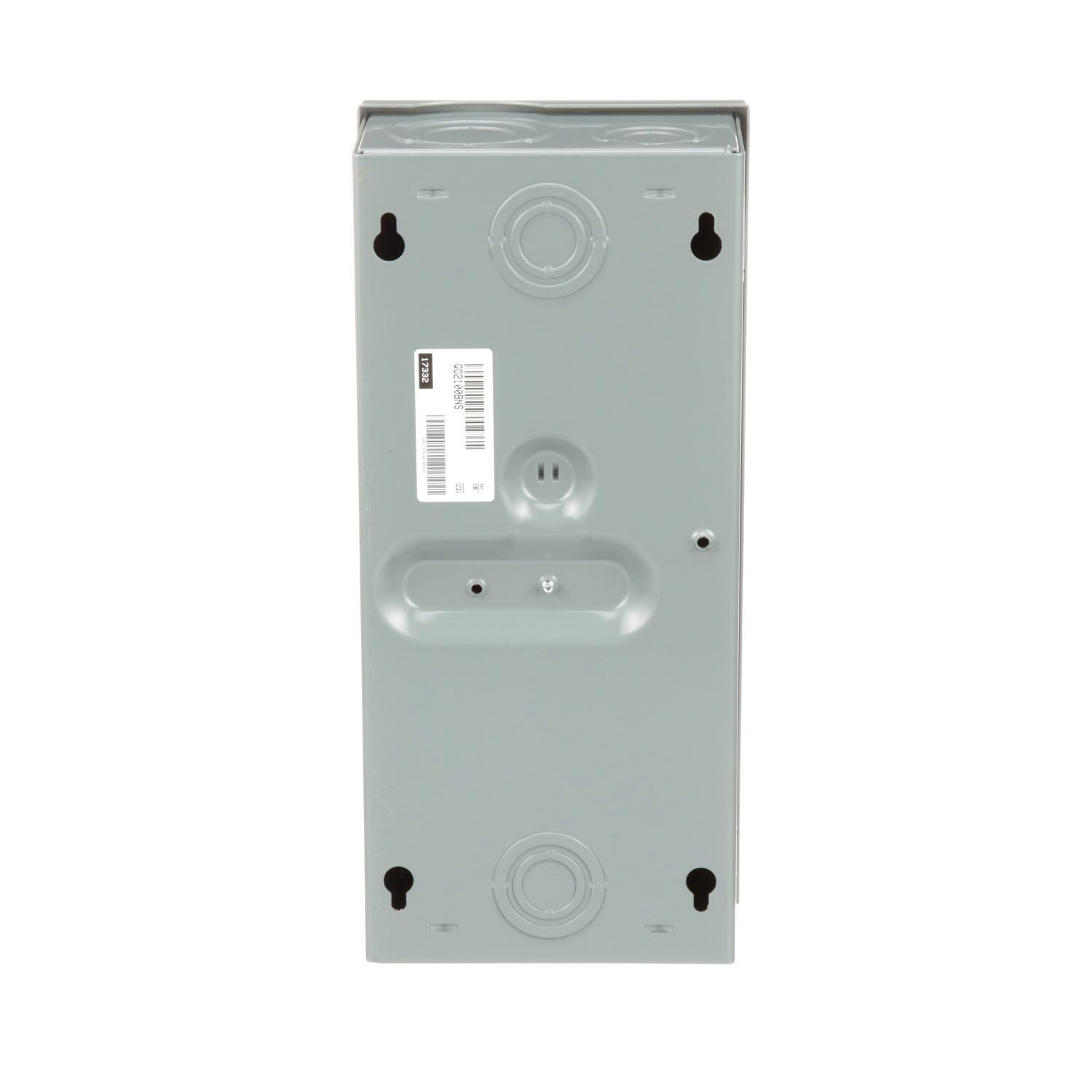

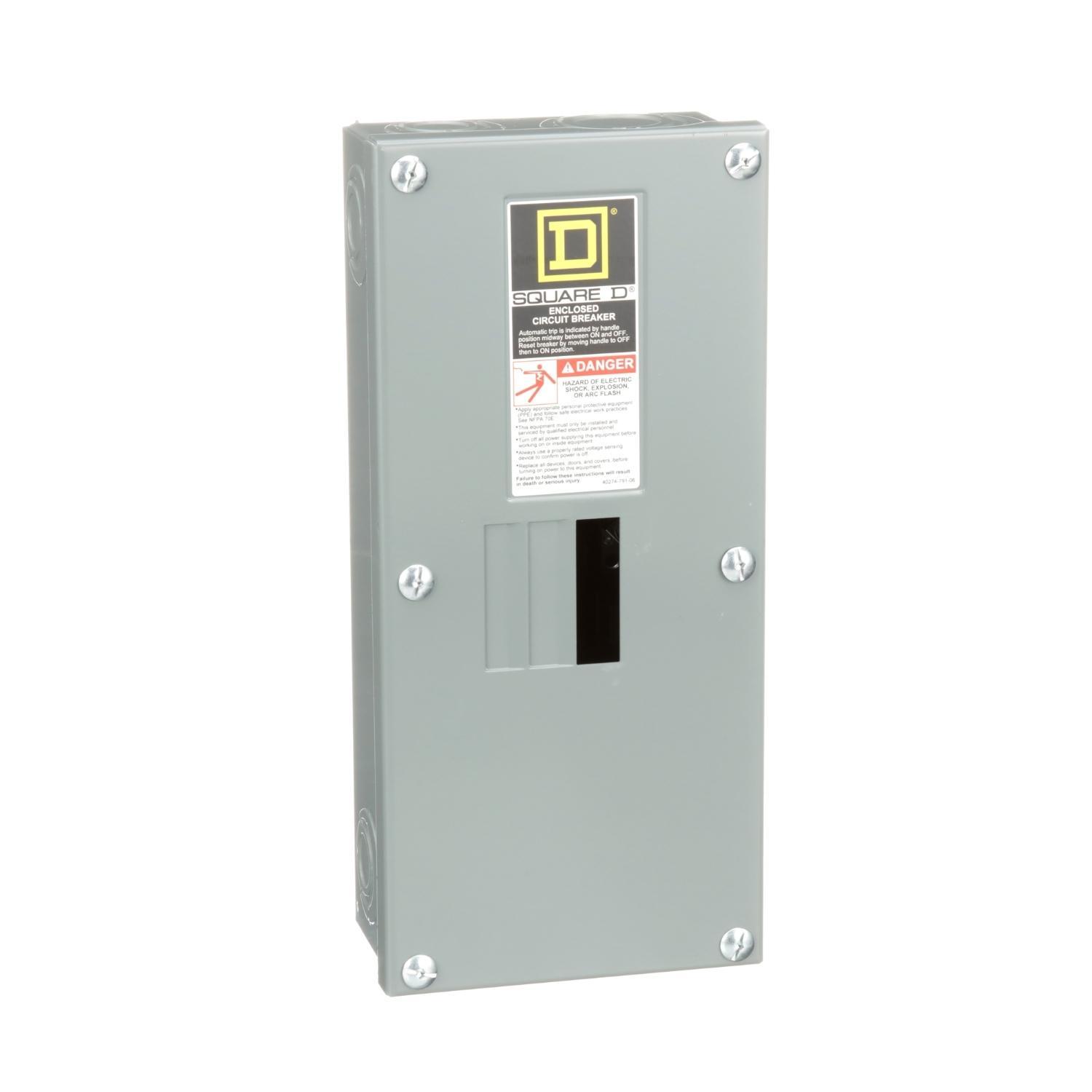

Square D™ QO™ QO2100BNS 1-ph 2-Space Loadcenter Enclosure, NEMA 1 NEMA Rating, 13.11 in L x 5.87 in W, Steel
Brand: Square D™
Item ID: 57121
MPN: QO2100BNS
Login for Price
Features
- 22 kA short circuit current, 2-circuit
- 12 to 1 AWG aluminum, 14 to 1 AWG copper wire
- Lug electrical connection
- 3-wire wiring configuration
- 120/240 VAC voltage rating
Description
Square D™ QO™ Loadcenter Enclosure, 1-ph 2-Space, Surface Cover, 13.11 in Length, 5.87 in Width, Surface Mount, Steel, TiN Coated, Gray, NEMA 1
Specifications
Color |
Gray |
Cover Type |
Surface |
Finish |
TiN Coated |
Length |
13.11 in |
Material |
Steel |
Mounting Type |
Surface |
NEMA Rating |
NEMA 1 |
Type |
1-ph 2-Space |
Width |
5.87 in |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL Listed|REACH Compliant|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For QO circuit breakers |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1d7fbce4147cccf87263cba418dc7a911c5b85c0c6096f0580b3e58369f91e82.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a226073ac14e36452bb99fe33061e9fa53fc97ea873dcd7ea319bcd541f5e4e0.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO612L100TRB_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO612L100TRB_Instruction_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ee6a1aa79f50086998cc321d00d234d0e45419d8ee97d4eb7944751c2371146e.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_TM171EP14R_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNS_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_13d5925f0e45a0a02fb4d8bb5f7dbaa5f5d346373f3286a726bf16ed5fd71466.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNS_Technical_Bulletin.pdf
