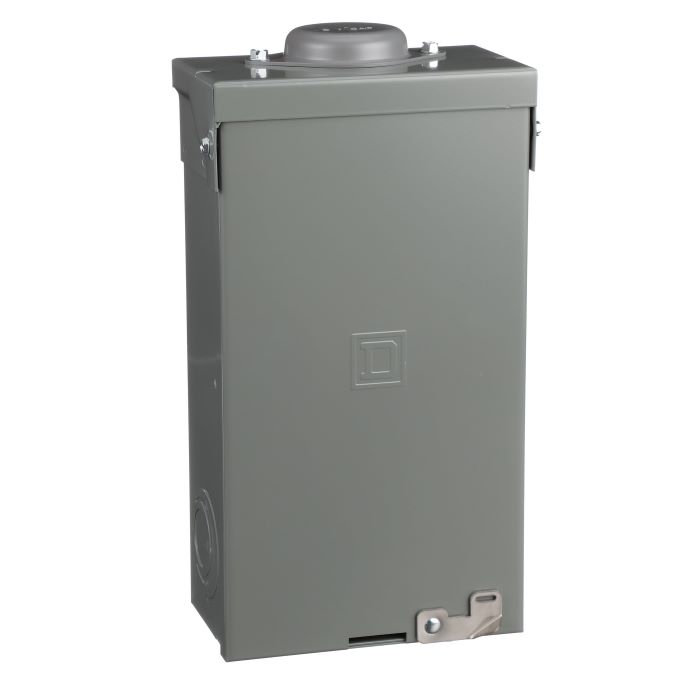

Square D™ QO2100NRBCP
Square D™ QO™ QO2100NRBCP 1-Phase Circuit Breaker Enclosure, 120/240 VAC, 100 A, 2 Poles, 22 kA Interrupt
Brand: Square D™
Item ID: 484247
MPN: QO2100NRBCP
Login for Price
Features
- Rainproof for B hub cover
Description
Square D™ QO™ Circuit Breaker Enclosure, 1-Phase, 120/240 VAC, 100 A, 2 Pole, 22 kA Interrupt, 2 Circuits, 3-Wire Wiring Configuration, 2 Spaces, #14 to 1 Cu AWG, #12 to 1 Al AWG Wire, Surface Mounting, NEMA 3R Enclosure, Galvanized Steel Housing Material, 6.93 in W Dimensions
Specifications
Amperage Rating |
100 A |
Dimensions |
6.93 in W |
Enclosure Type |
NEMA 3R |
Housing Material |
Galvanized Steel |
Interrupt Rating |
22 kA |
Mounting Type |
Surface |
Number of Circuits |
2 |
Number of Poles |
2 |
Number of Spaces |
2 |
Type |
1-Phase |
Voltage Rating |
120/240 VAC |
Wire Size |
#14 to 1 Cu AWG, #12 to 1 Al AWG |
Wiring Configuration |
3-Wire |
Standard Approval |
BAA Compliant|CSA/NOM Certified|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For use with QO miniature circuit breaker |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_AP2525GJP_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100NRBCP_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a33c1694f217502b27279bd86e6ccf82ff13c0cb5e5f7215583674f148ac2f73.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100NRBCP_Specification_Sheet.pdf
