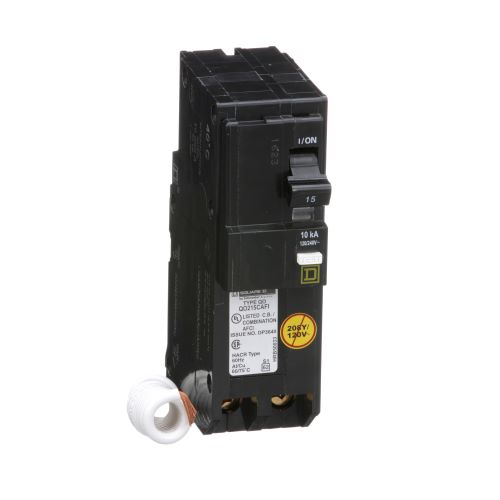

Square D™ QO™ QO215CAFI Type QO-AFI Combination Miniature Arc Fault Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Brand: Square D™
Item ID: 428892
MPN: QO215CAFI
Login for Price
Features
- Market leading circuit protection, designed for superior safety, quality and reliability
- Engineered with the quality and craftsmanship that have made square D™ the preferred brand of electrician and homeowners
- First to market innovation first and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection
- Saves space compact 3/4 in W design for small system footprint
- Faster installation fewer connections
- Frees gutter space no pigtails with the innovative plug-on neutral design
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
Description
QO™ arc-fault circuit interrupters (AFCI) quickly detects a wide range of arc-fault conditions, recognizes the nature and specific wave-form of an arc-fault and trips the circuit breaker. Traditional circuit breakers and fuses are designed to detect overloads and short circuits. Arc-fault circuit breakers are designed to detect overloads, short circuits and arc-faults.
Square D™ QO™ Combination Miniature Arc Fault Circuit Breaker, Type QO-AFI, 120/240 VAC, 15 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 1 ph, Pressure Plate Connection, 12 to 8/14 to 8 AWG Wire, Plug-In Mounting, 104 deg F, 2.91 in L x 1.5 in W x 4.75 in H Dimensions
Specifications
Amperage Rating |
15 A |
Connection Type |
Pressure Plate |
Dimensions |
2.91 in L x 1.5 in W x 4.75 in H |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-In |
Number of Poles |
2 |
Phase |
1 ph |
Temperature Rating |
104 deg F |
Trip Type |
Thermal Magnetic |
Type |
Type QO-AFI |
Voltage Rating |
120/240 VAC |
Wire Size |
12 to 8/14 to 8 AWG |
Standard Approval |
Buy American Act Compliant|CSA C22.2 #5|Federal Specification W-C-375B/GEN|NEMA AB1|NOM/ANCE Marked|RoHS Compliant|UL 489 File No. E84967|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
Residential, Light Commercial, Industrial Circuit Protection, High Interruption Rating Capabilities, Overcurrent Protection, Short Circuit Protection, Parallel and Series Arc Fault/Ground Fault Protection |
