Square D™ QO2175SB
Square D™ QO™ Surgebreaker® QO2175SB Secondary Surge Arrester, 175 VAC, 22 kA SCCR, 2 Poles
Brand: Square D™
Item ID: 57148
MPN: QO2175SB
Login for Price
Features
- Deliver superior surge suppression performance by providing the shortest lead lengths
- Use with Homeline™ load centers and combination service entrance devices

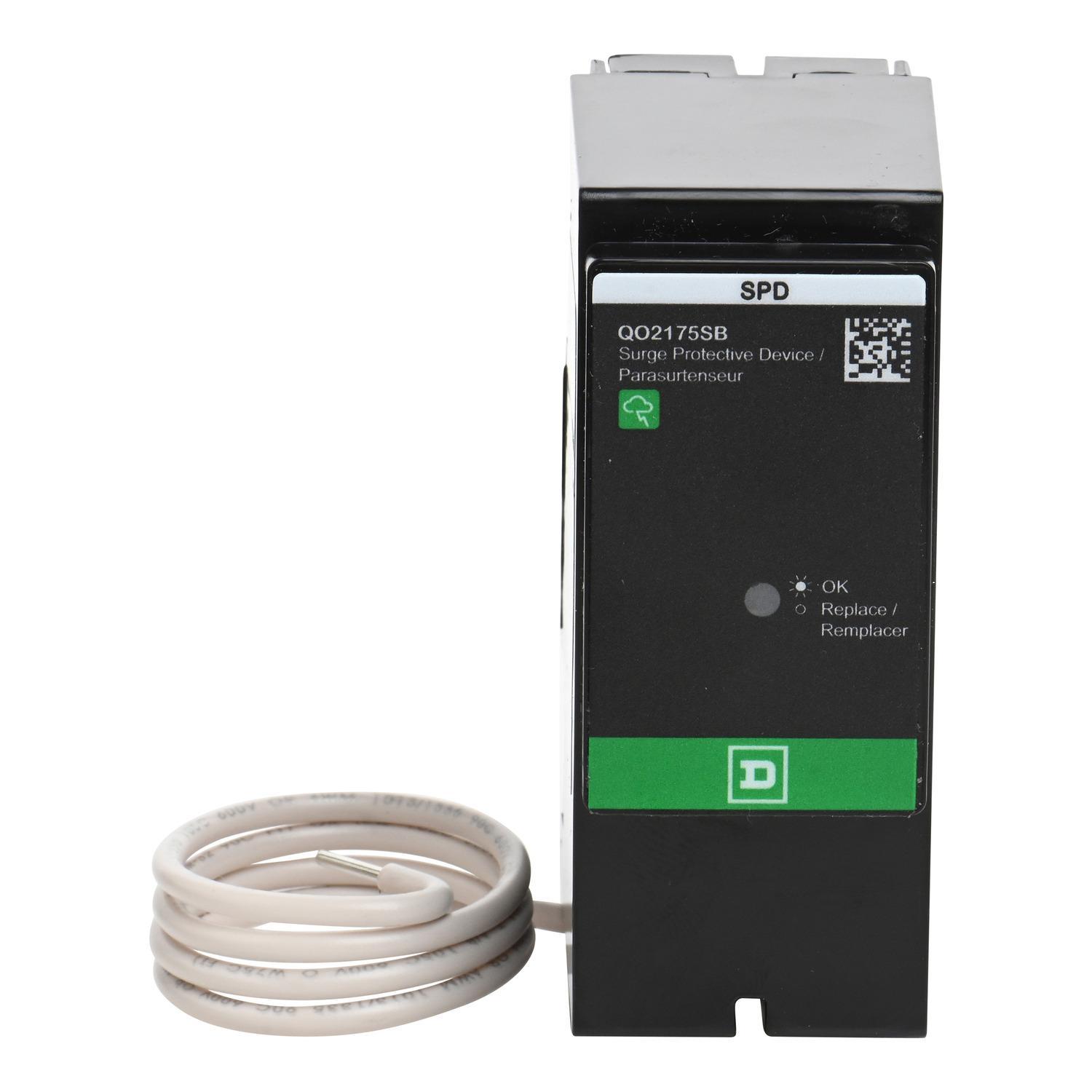

- LED indicator shows operational status of the unit

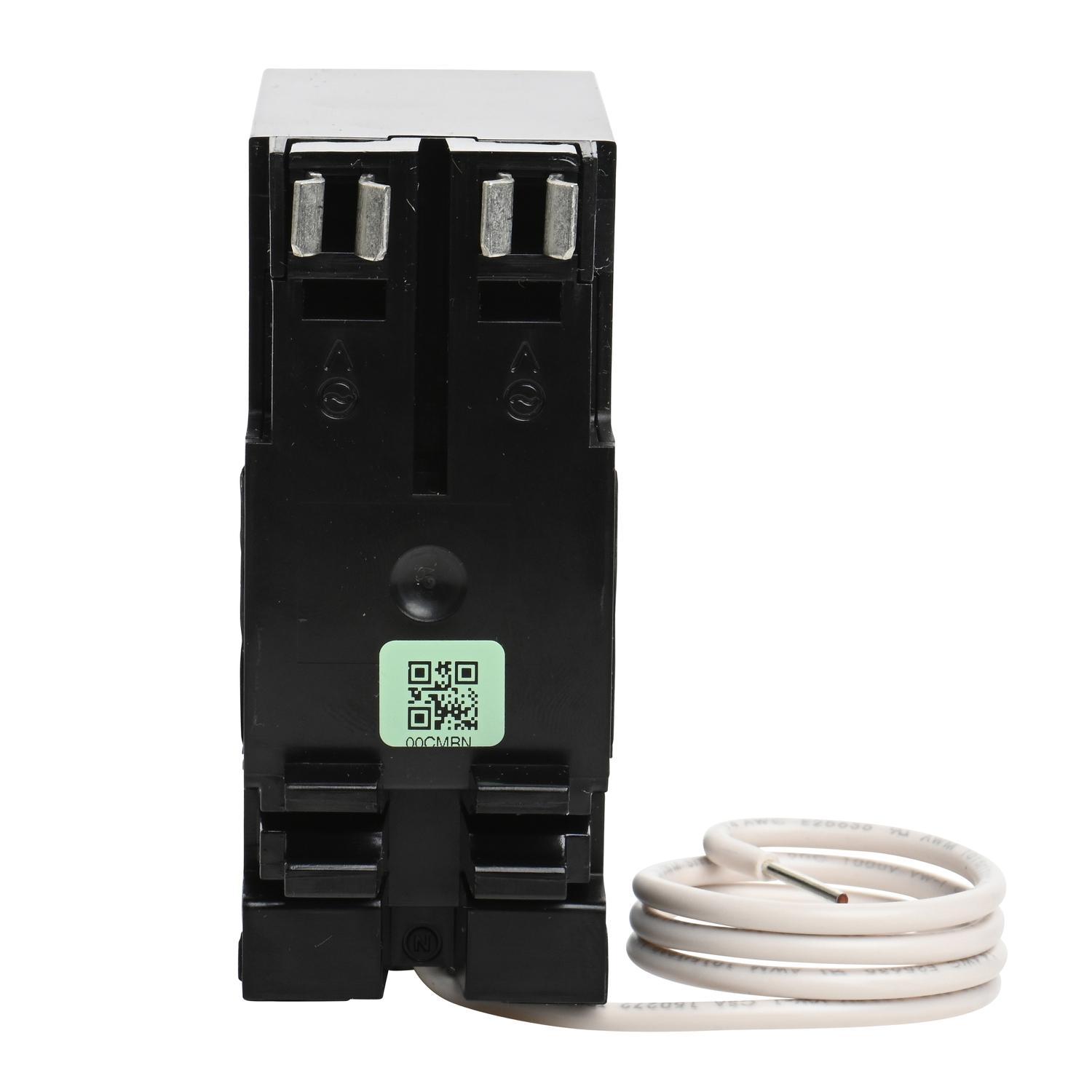

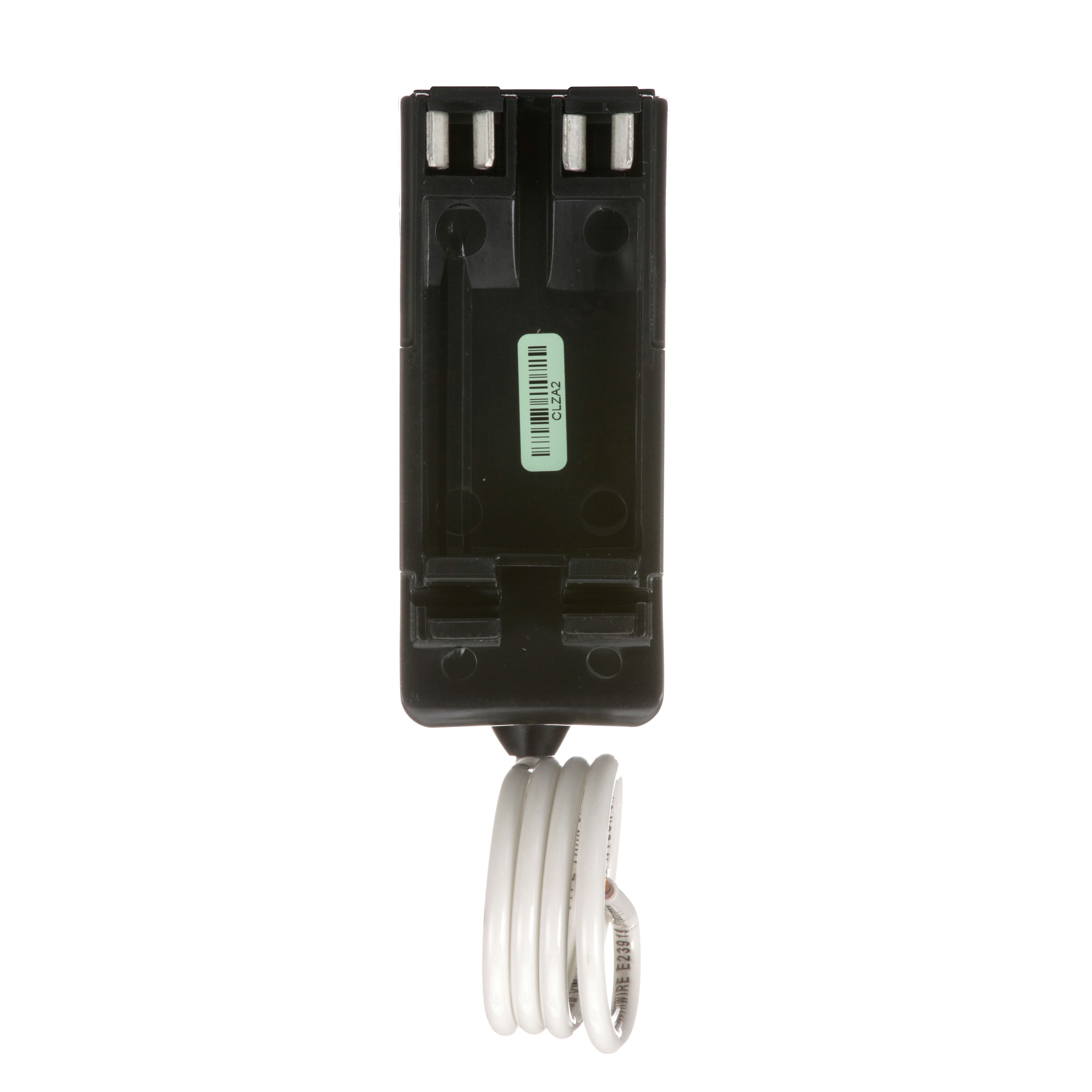

- Quick plug-on device for use in a QO™ load center or NQ panel board
- The SPD requires two adjacent mounting spaces
Description
Square D™ brand Surgelogic™ QO™ load center SPDs utilize high-energy circuitry that provides surge suppression from severe transient activity. Each MOV is individually fused.

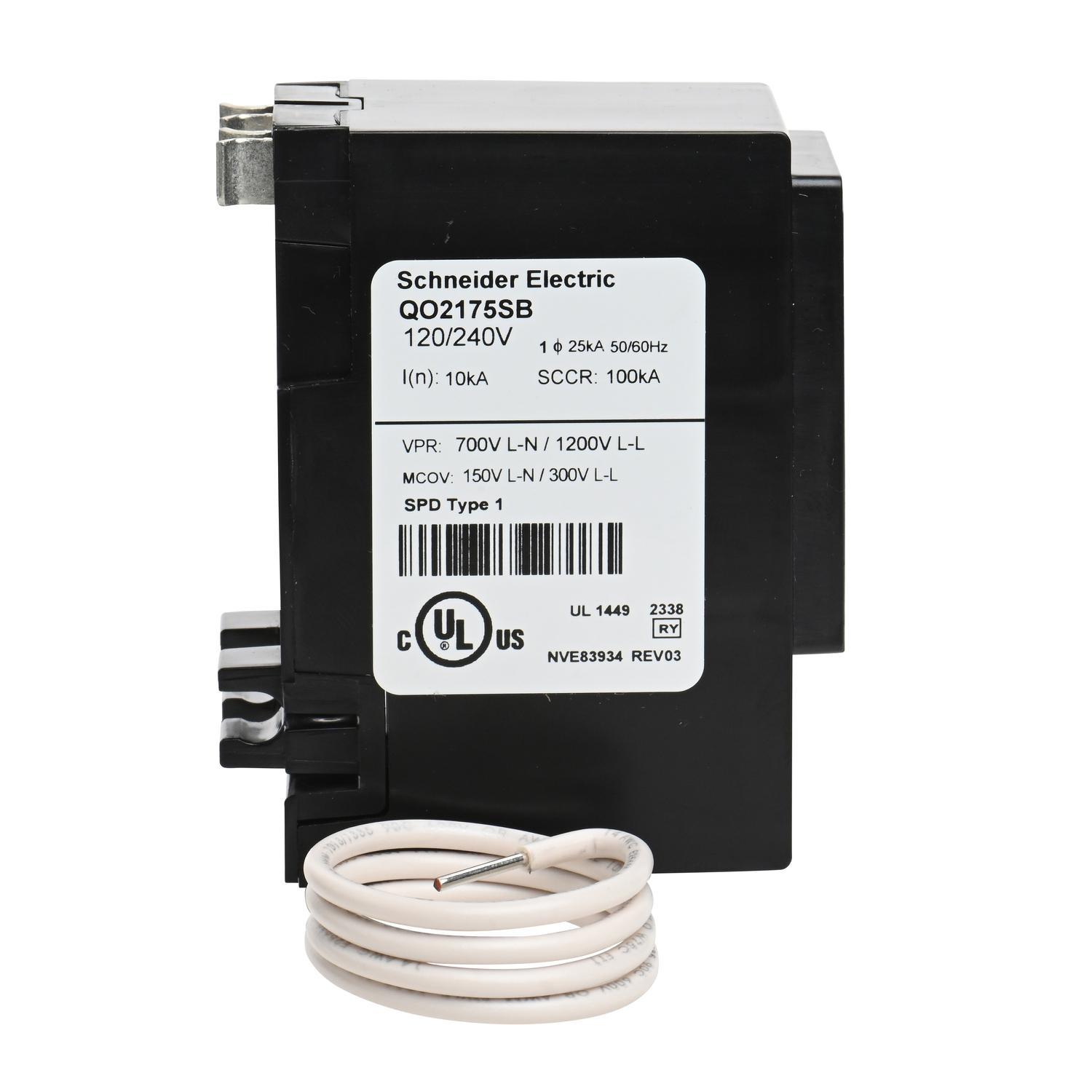

Square D™ QO™ Surgebreaker® Surge Arrester, Secondary, 175 VAC, 50/60 Hz, 2 Pole, 3 Wires, 22 kA Short Circuit Current, 22.5 kA Peak Surge, 5 kA Nominal Discharge, Modes of Protection: L-N/L-L, 3.66 in L x 1.48 in W x 2.55 in H, Plastic
Specifications
Dimensions |
3.66 in L x 1.48 in W x 2.55 in H |
Frequency Rating |
50/60 Hz |
Material |
Plastic |
Modes of Protection |
L-N/L-L |
Nominal Discharge Current |
5 kA |
Number of Poles |
2 |
Number of Wires |
3 |
Peak Surge Current |
22.5 kA |
Short Circuit Current Rating |
22 kA |
Type |
Secondary |
Voltage Rating |
175 VAC |

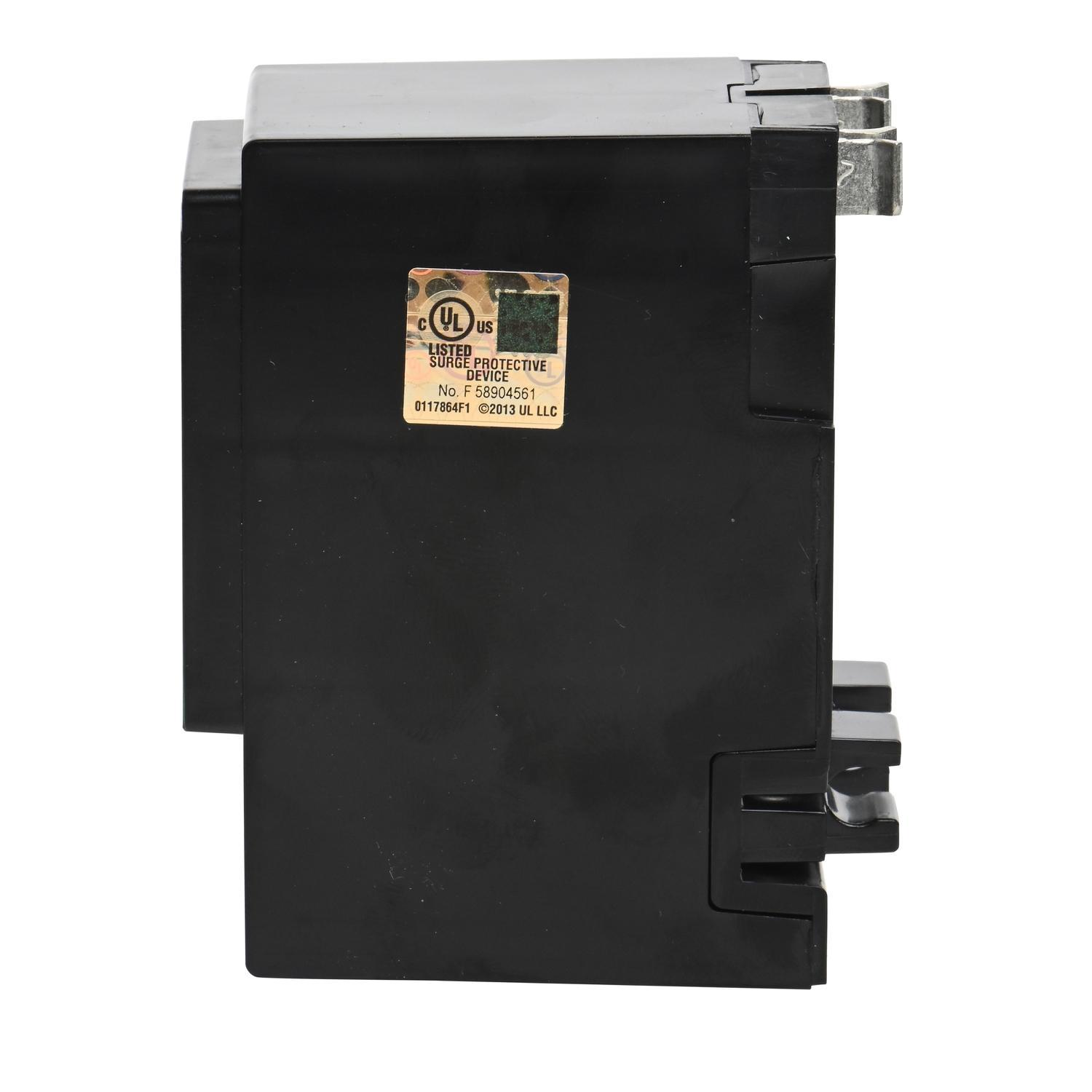

Standard Approval |
CSA Certified|cUL/UL Listed|RoHS Compliant|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For load center and service entrance equipment applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_288b9b6823ae68a82e4a6bcc651a10fa22bedb1d89bc8920a88a259736427b39.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e34b374b3b555513c615bd10b40892a37e5c34e553d671d727dd7ac691b4000b.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2175SB_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOM70VH_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2175SB_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c0a3e165af00bbb4fb91b93f2c81bef8ec50d648878cafe8474c14793fef81b2.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2175SB_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM2175SB_Warranty_Information.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM2175SB_Warranty_Information.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2175SB_Warranty.pdf
