Square D™ QO2225SL

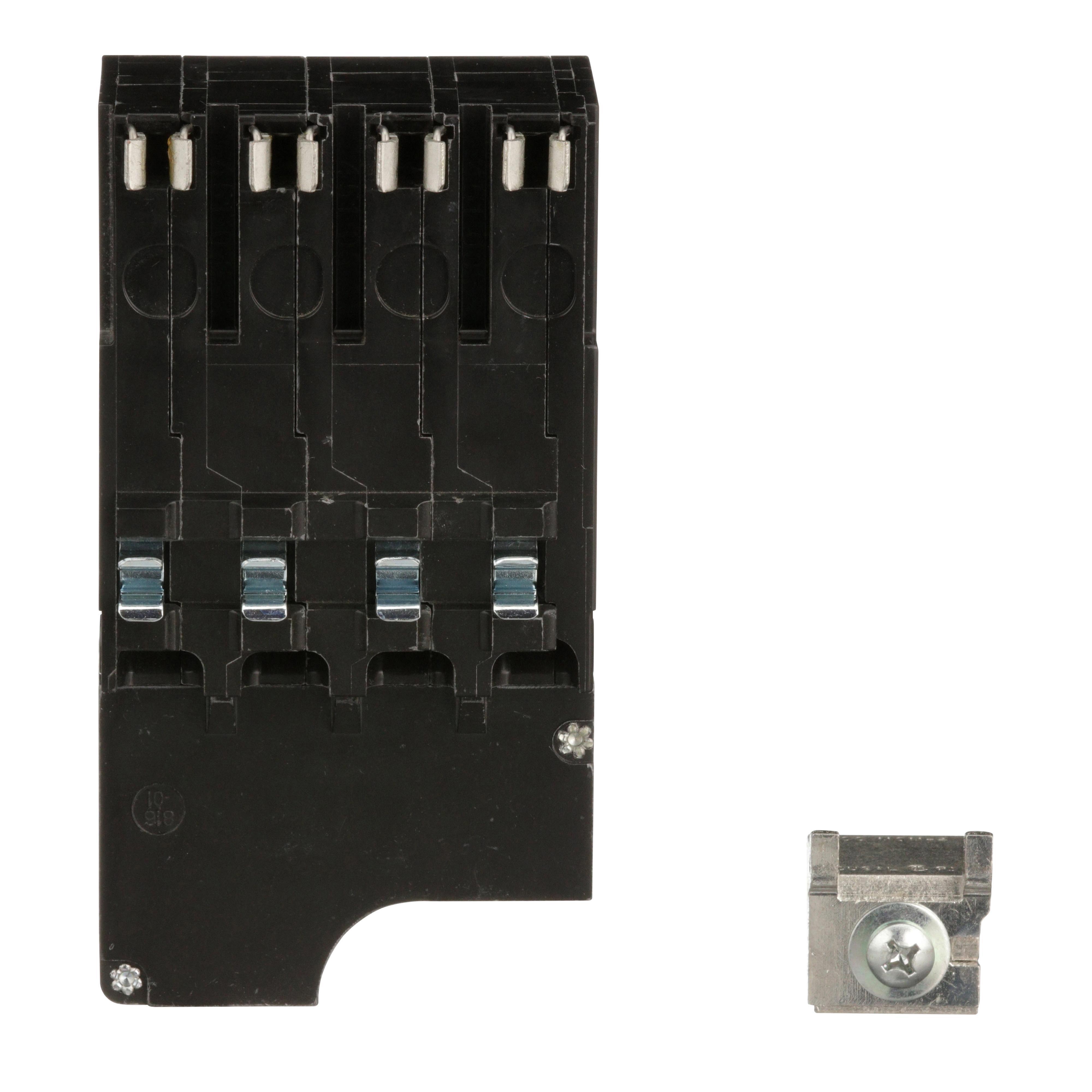

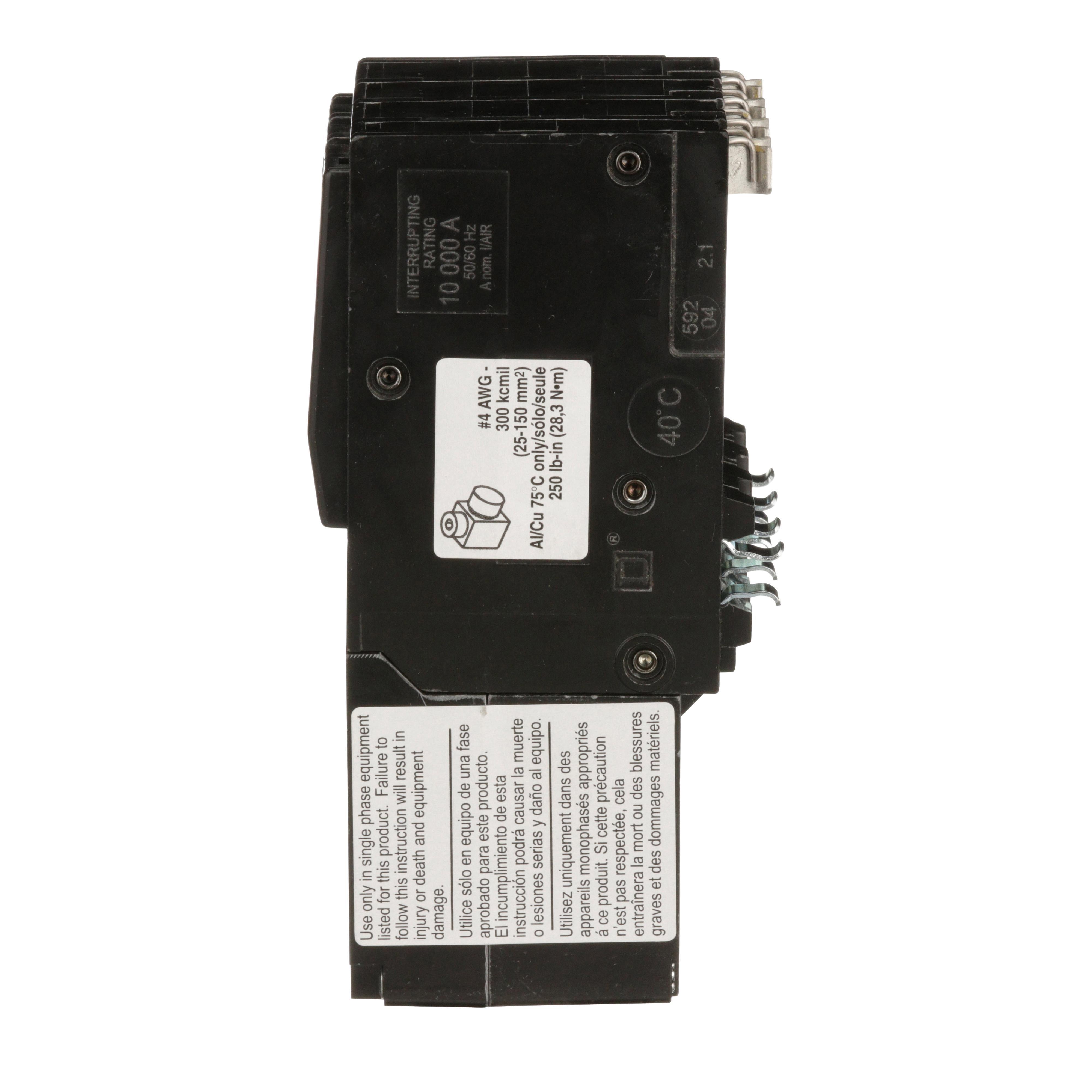

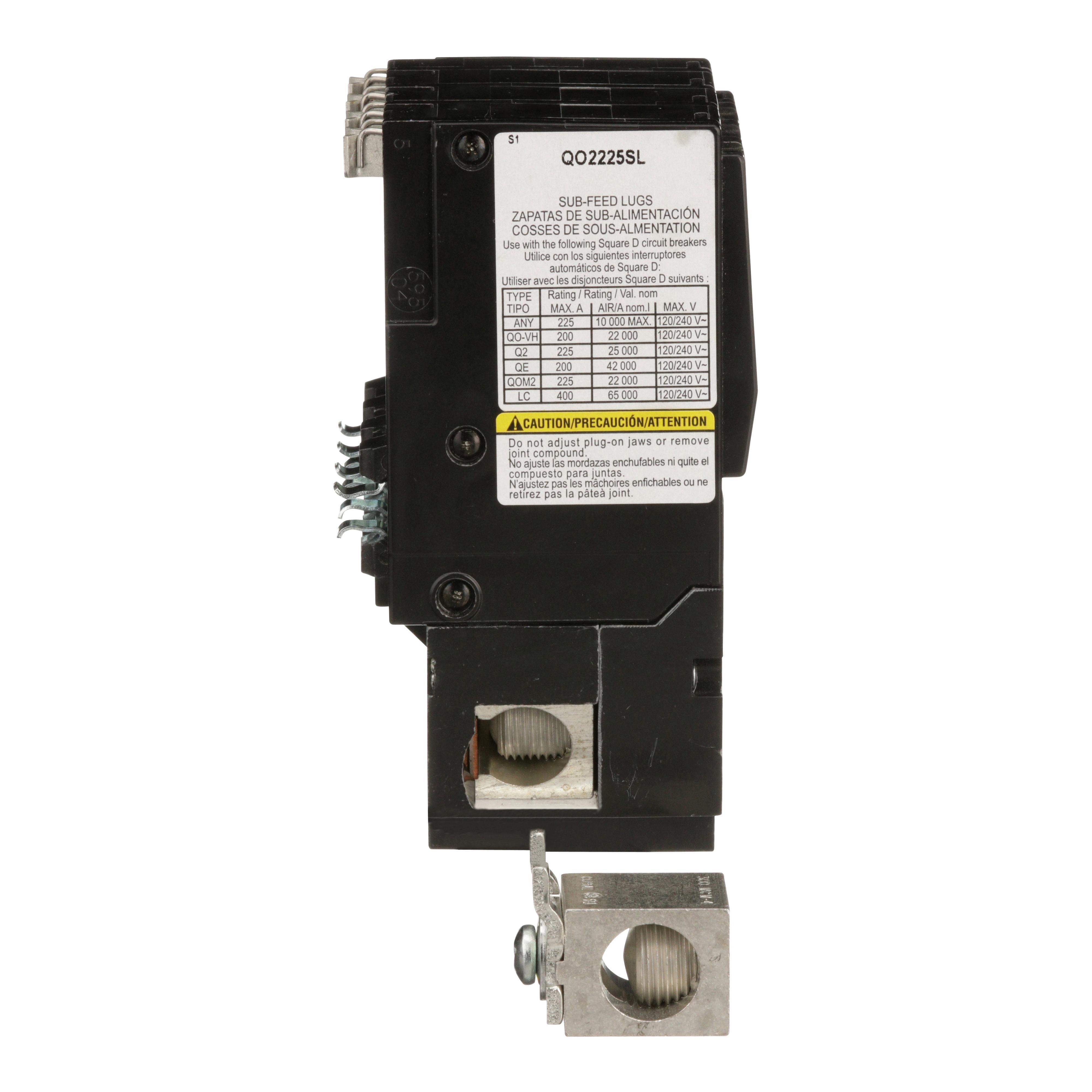

Square D™ QO™ QO2225SL 1-Phase Standard Miniature Sub-Feed Lug, 2 Poles, 25 A, For Use With QO™ and QOB Miniature Circuit Breaker
Brand: Square D™
Item ID: 530277
MPN: QO2225SL
UPC: 785901755708
Login for Price
Features
- 14 to 8 AWG aluminum/copper wire
- 120/240 VAC voltage rating
- One-phase
- 10 kA interrupting rating
- Plug-on mounting
- Trip indicator local signaling
Description
Square D™ QO™ Miniature Sub-Feed Lug, 1-Phase Standard, 2 Pole, 25 A, For Use With: QO™ and QOB Miniature Circuit Breaker, 2.31 in L x 2.988 in W x 3-1/2 in H Dimensions
Specifications
Amperage Rating |
25 A |
Dimensions |
2.31 in L x 2.988 in W x 3-1/2 in H |
Number of Poles |
2 |
Suitable For Use With |
QO™ and QOB Miniature Circuit Breaker |
Type |
1-Phase Standard |
Standard Approval |
CSA Certified|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL Listed |
Application |
HACR Rated and Qo Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_20386f0f5fe6a5e1afc9a1bf935770283ba673a9f4cf49199afa5b499d3851db.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_LK225AN_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2225SL_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2225SL_Instruction_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2225SL_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d5c01a34d187b78e726986082e9b4059e266059fb223e6db9f96b0b0793fb02a.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2225SL_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_13a8a092cb1b04461739c6b05438776c4e1618232fc008cd8c69528e6a101288.pdf
