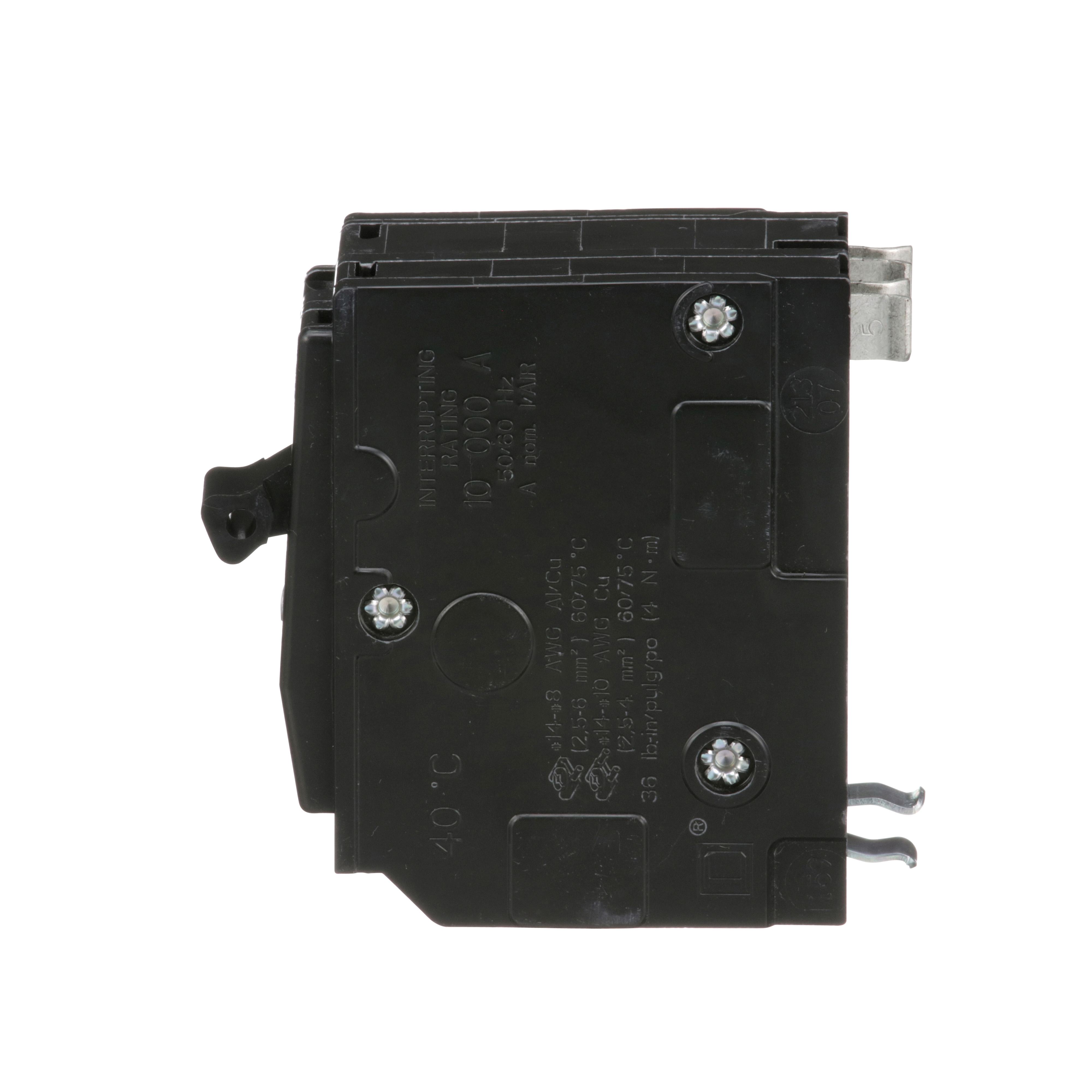

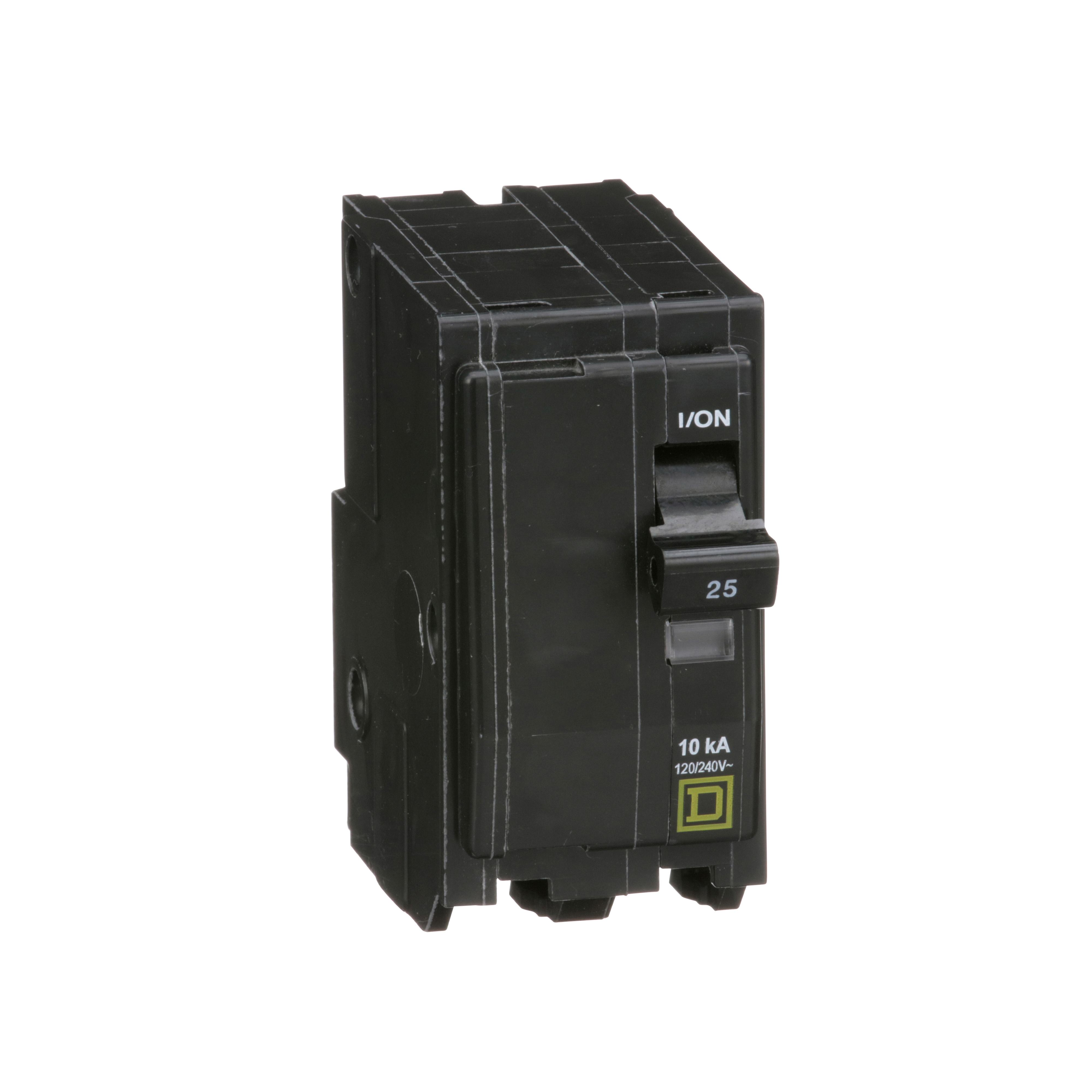

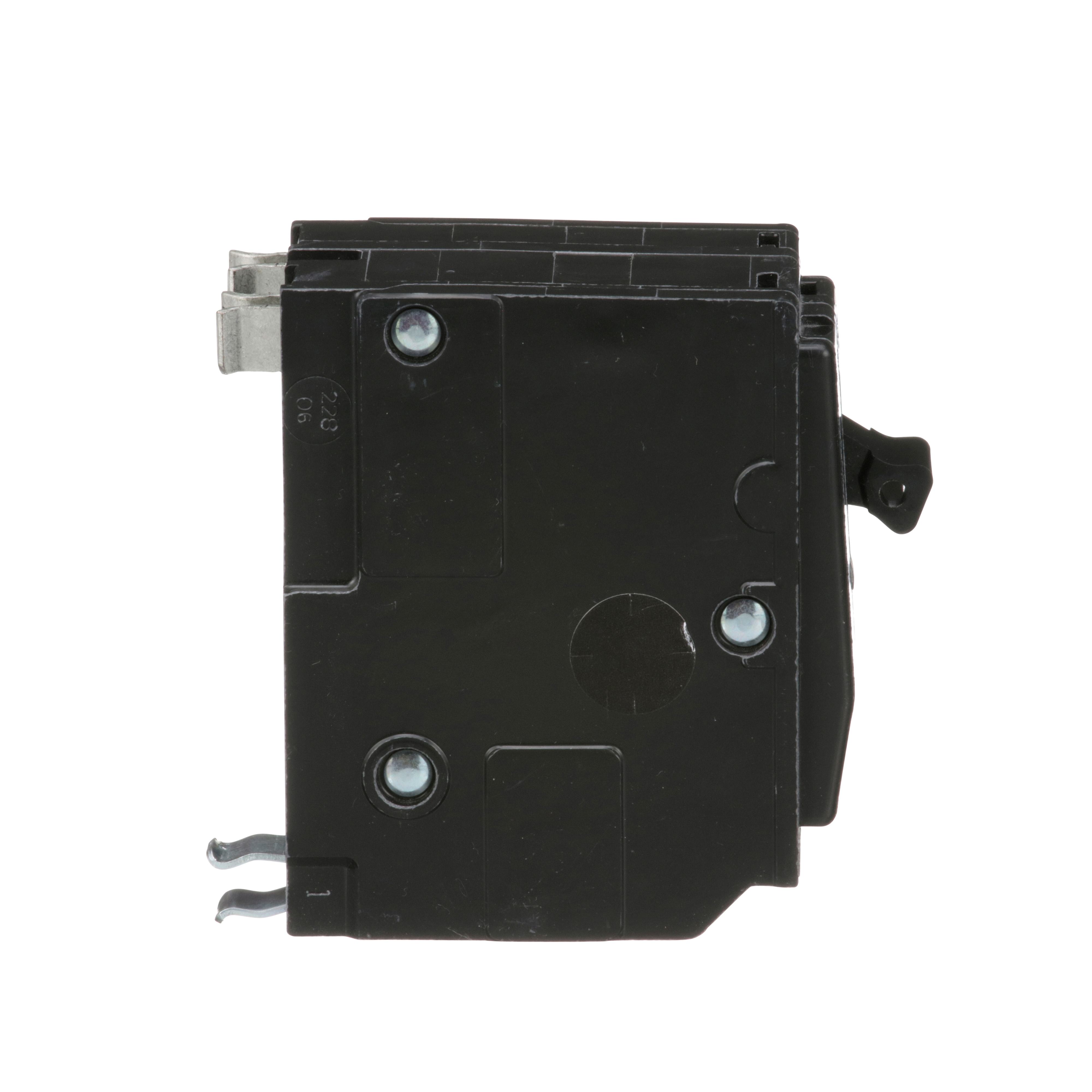

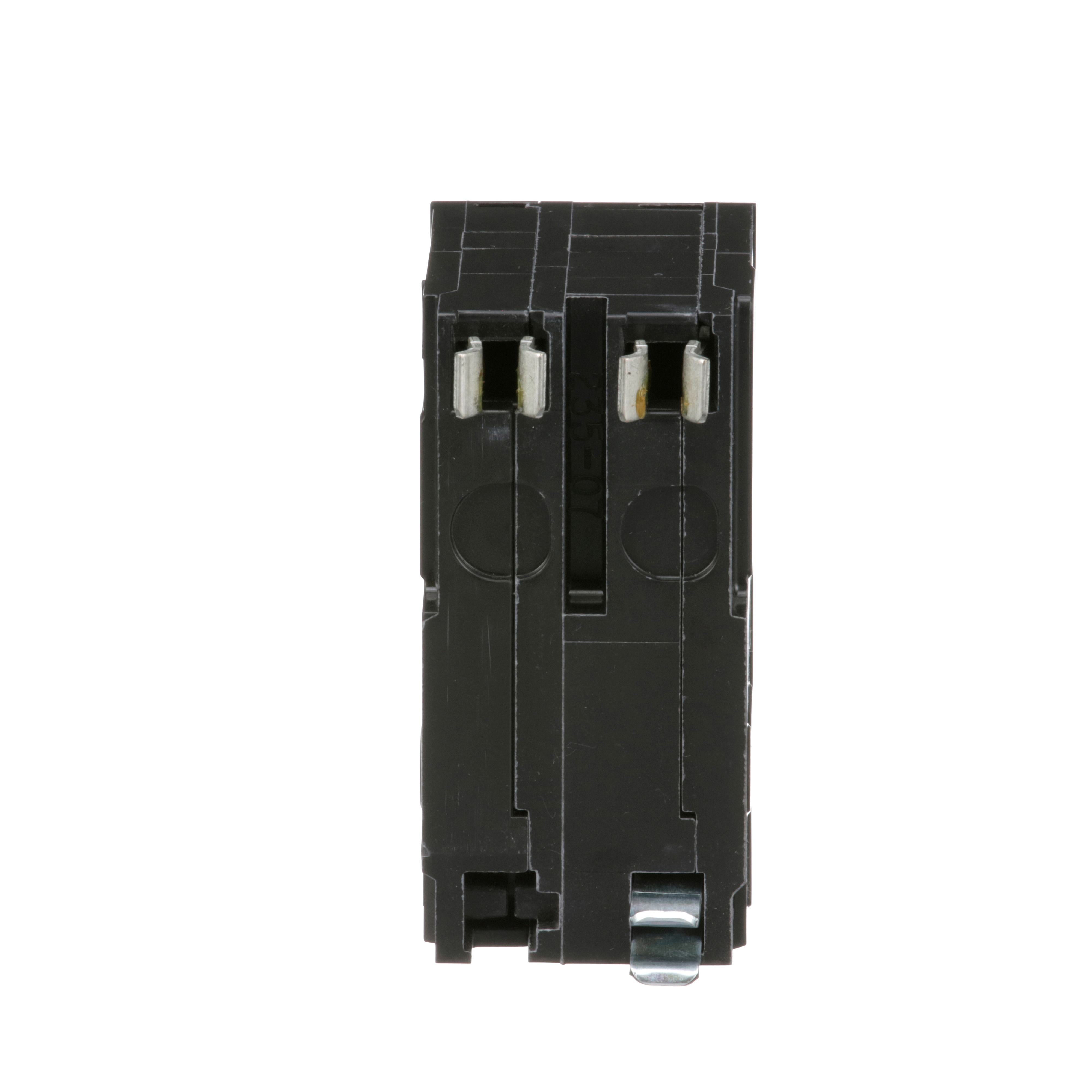

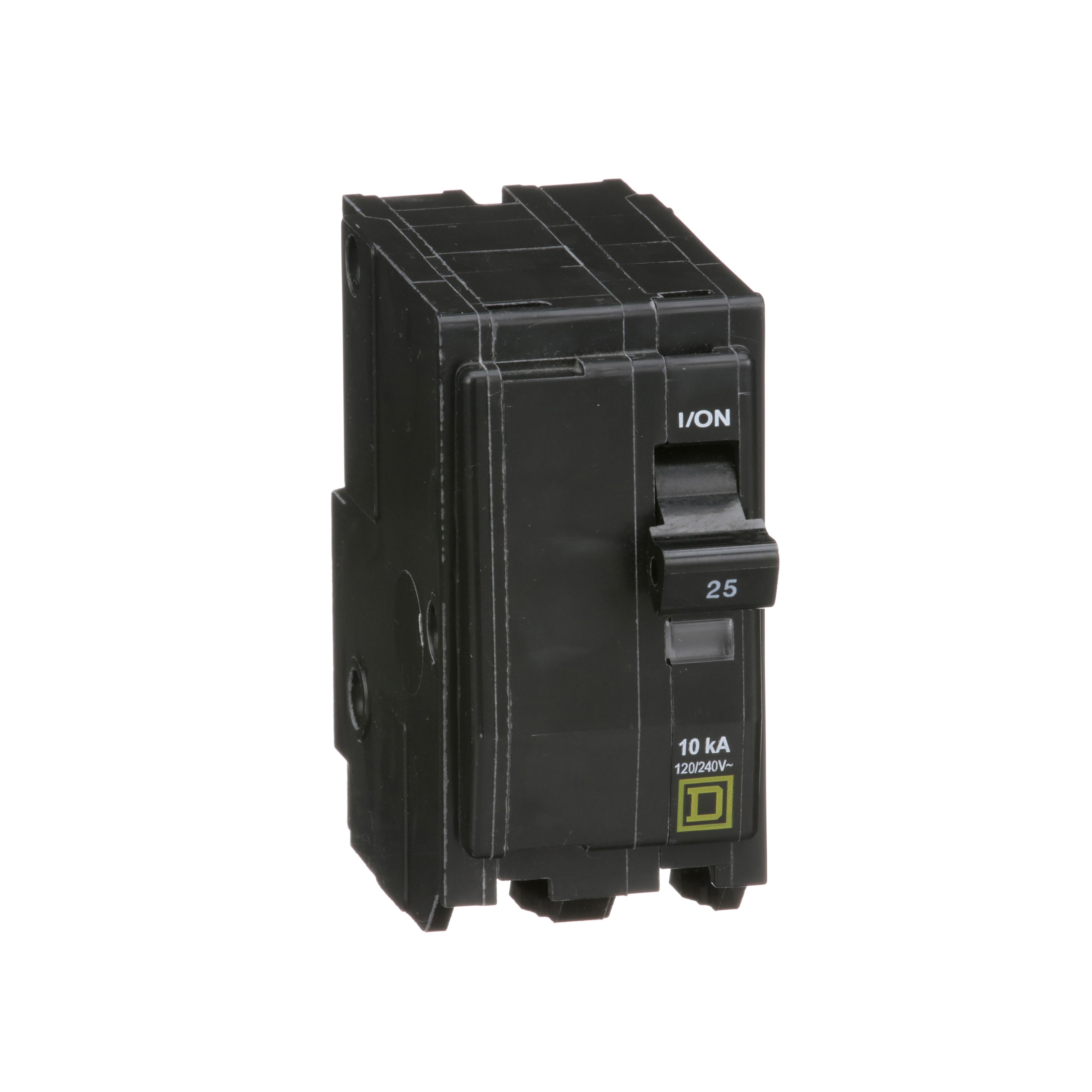

Square D™ QO225
Square D™ QO225 Standard Miniature Circuit Breaker, 120/240 VAC, 25 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
Brand: Square D™
Item ID: 57161
MPN: QO225
Login for Price
Features
- Tripping mechanisms in two and three-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously
- Plug-on QO™ circuit breakers are for use in QO™ load centers, NQ and NQOD panel boards, OEM mounting bases and Speed-D® switchboard distribution panels
- QO™ and QOB circuit breakers have Visi-Trip® feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit
- Common trip
- 14 to 8 AWG aluminum/copper wire
- Standard
Description
Standard thermal-magnetic QO® and Homeline™ 15 and 20 A circuit breakers are listed to UL489 and provide overload and short circuit protection for conductors. The QO® and Homeline™ thermal-magnetic circuit breakers are for general use in protecting branch circuit in residential and commercial applications. Use QO® and Homeline™ 15 and 20 A arc fault circuit interrupter circuit breakers that have been listed to UL1699 in order to provide arc fault circuit protection for the entire branch circuit in accordance with the installation requirements in National Electrical Code section 210.12. Thermal-magnetic circuit breakers are not designed, listed or intended to provide protection against low level hazardous arcing conditions in branch circuit wiring.
Square D™, QO225, Standard Miniature Circuit Breaker, 120/240 VAC, 25 A, 50/60 Hz Frequency, 10 kA Interrupt, QO Frame, Thermal/Magnetic Trip, 2 Pole, 1 ph, Pressure Plate Connection, 14 to 10 AWG, 14 to 8 AWG Wire, Plug-On Mounting, 40 deg C, 3 in H x 1.5 in W x 2.91 in D Dimensions
Specifications
Amperage Rating |
25 A |
Connection Type |
Pressure Plate |
Dimensions |
3 in H x 1.5 in W x 2.91 in D |
Frame |
QO |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-On |
Number of Poles |
2 |
Phase |
1 |
Temperature Rating |
40 deg C |
Trip Type |
Thermal/Magnetic |
Type |
Standard |
Voltage Rating |
120/240 VAC |
Wire Size |
14 to 10 AWG, 14 to 8 AWG |
Standard Approval |
CSA Certified|HACR Rated|PROP65: Cancer and Reproductive Harm - www.p65warnings.ca.gov|RoHS Compliant|UL Listed |
Application |
For providing overload and short circuit protection |
