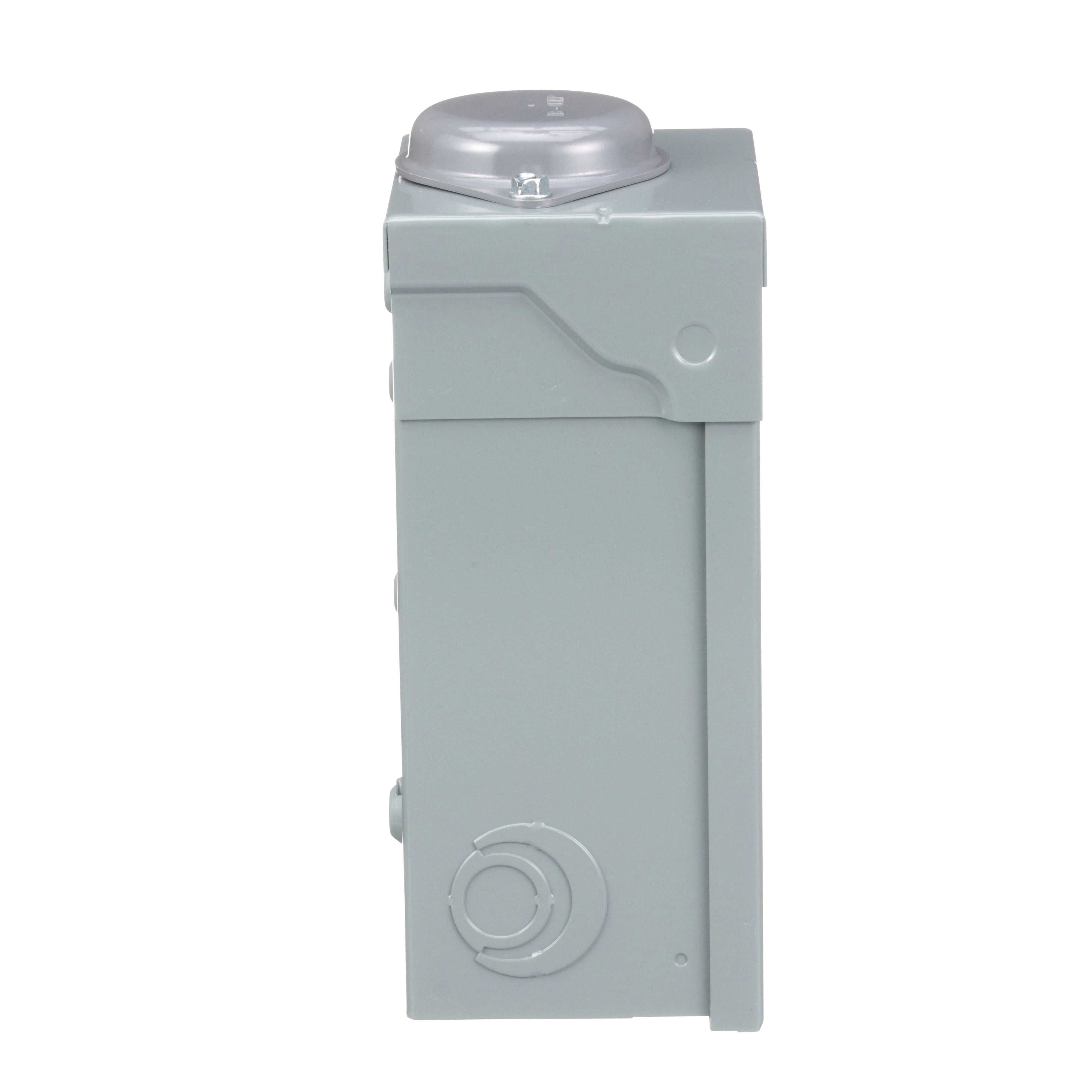

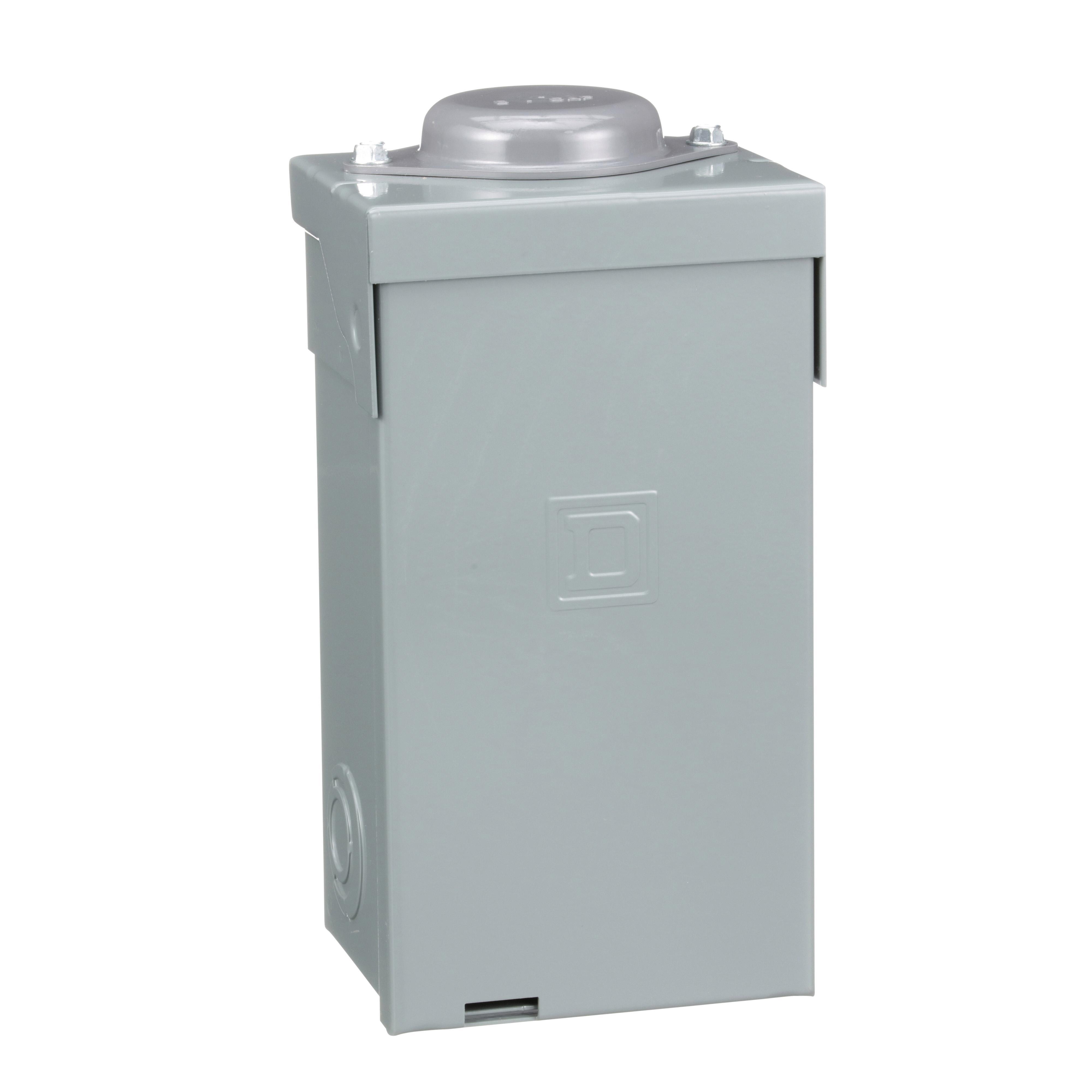

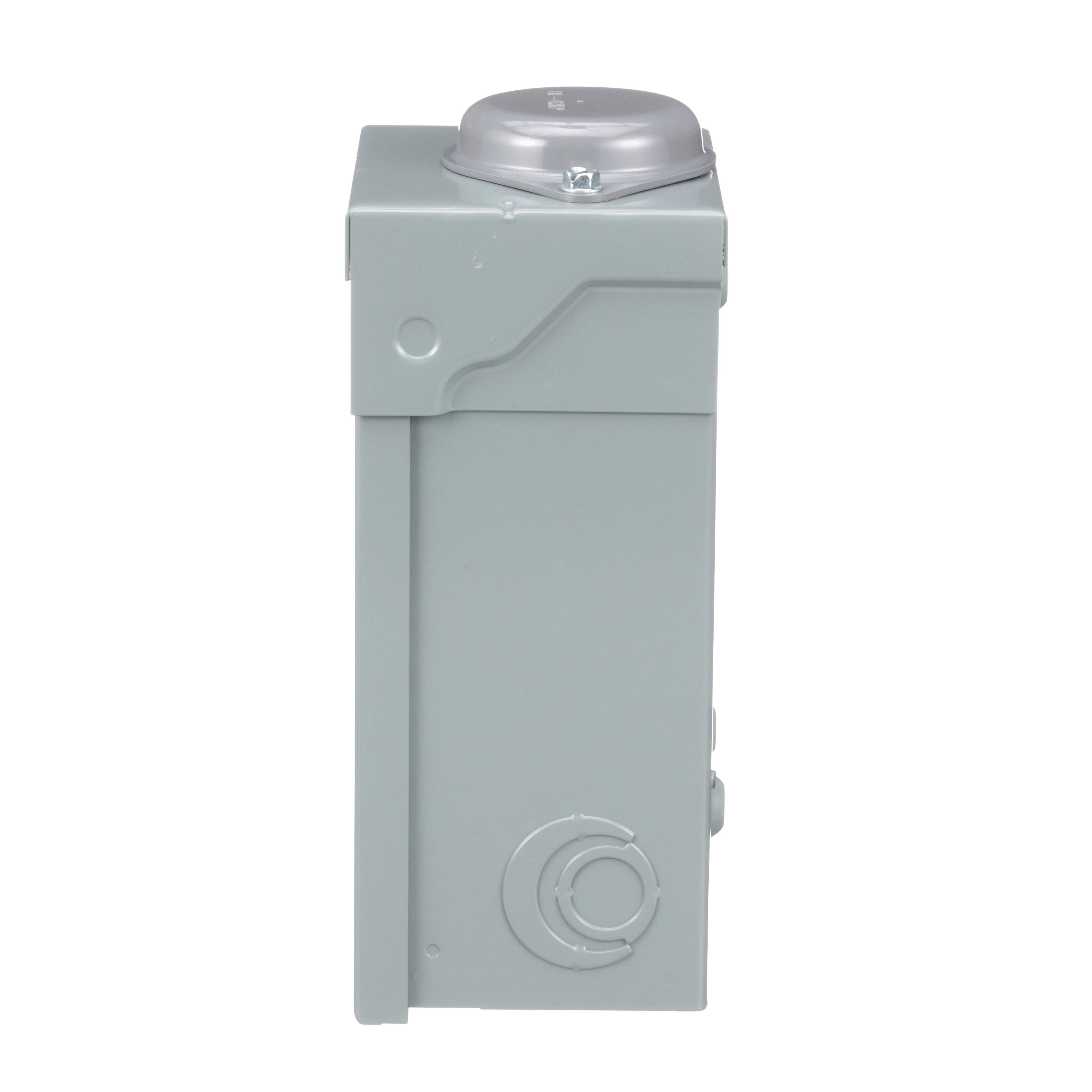

Square D™ QO24L70RB
Square D™ QO24L70RB Fixed Main Lug Loadcenter, 120/240 VAC, 70 A, 1 Poles, 65 kA Interrupt
Brand: Square D™
Item ID: 57204
MPN: QO24L70RB
Login for Price
Features
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Service entrance equipment capable panels
- Straight in wiring to help minimize service cable installation
- Single captive screw interior mounting on indoor panels to ease removal
- New side hinge doors on outdoor convertible main panels
- Outdoor panel covers are lockable with padlock
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Top or bottom feed by rotating enclosure
- Does not accepts plug-on neutral circuit breaker
- Lug electrical connection
- Two tandem circuit breaker
- 12 to 3 AWG aluminum, 14 to 4 AWG copper
Description
QO™ circuit breaker load centers from Square D™ are underwriters laboratories (UL) Listed panelboards. They are designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.
Square D™, QO24L70RB, Fixed Main Lug Loadcenter, 120/240 VAC, 70 A, 1 Pole, 50/60 Hz Frequency, 65 kA Interrupt, 4 Circuits, QO Breaker, Panel Breaker Mounting, 3-Wire Wiring Configuration, 2 Spaces, 12 to 3 AWG, 14 to 4 AWG Wire, Bolt-On Mounting, NEMA 3R Enclosure, Galvanized Steel Housing Material, 4.88 in W x 4 in D x 9.37 in H Dimensions
Specifications
Amperage Rating |
70 A |
Breaker Mounting |
Panel |
Breaker Type |
QO |
Dimensions |
4.88 in W x 4 in D x 9.37 in H |
Enclosure Type |
NEMA 3R |
Frequency Rating |
50/60 Hz |
Housing Material |
Galvanized Steel |
Interrupt Rating |
65 kA |
Mounting Type |
Bolt-On |
Number of Circuits |
4 |
Number of Poles |
1 |
Number of Spaces |
2 |
Type |
1-Phase Fixed |
Voltage Rating |
120/240 VAC |
Wire Size |
12 to 3 AWG, 14 to 4 AWG |
Wiring Configuration |
3-Wire |
Standard Approval |
RoHS Compliant|UL Listed|NOM Certified|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For residential, commercial and industrial requirements to protect electrical systems, equipment and people |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c13a9a1867908c0cea8c6b8fc57b3b8c28c3ba1184c79bcc7cd49ed067829ea2.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM24L70F_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XX7F1A2NAL01M12_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_52b5114987751691dec04bb4df90900c6f72fc3e6a9ecd50dbeee5282eeffb5e.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO312L125G_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO312L125G_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO403L60NS_Technical_Bulletin.pdf
