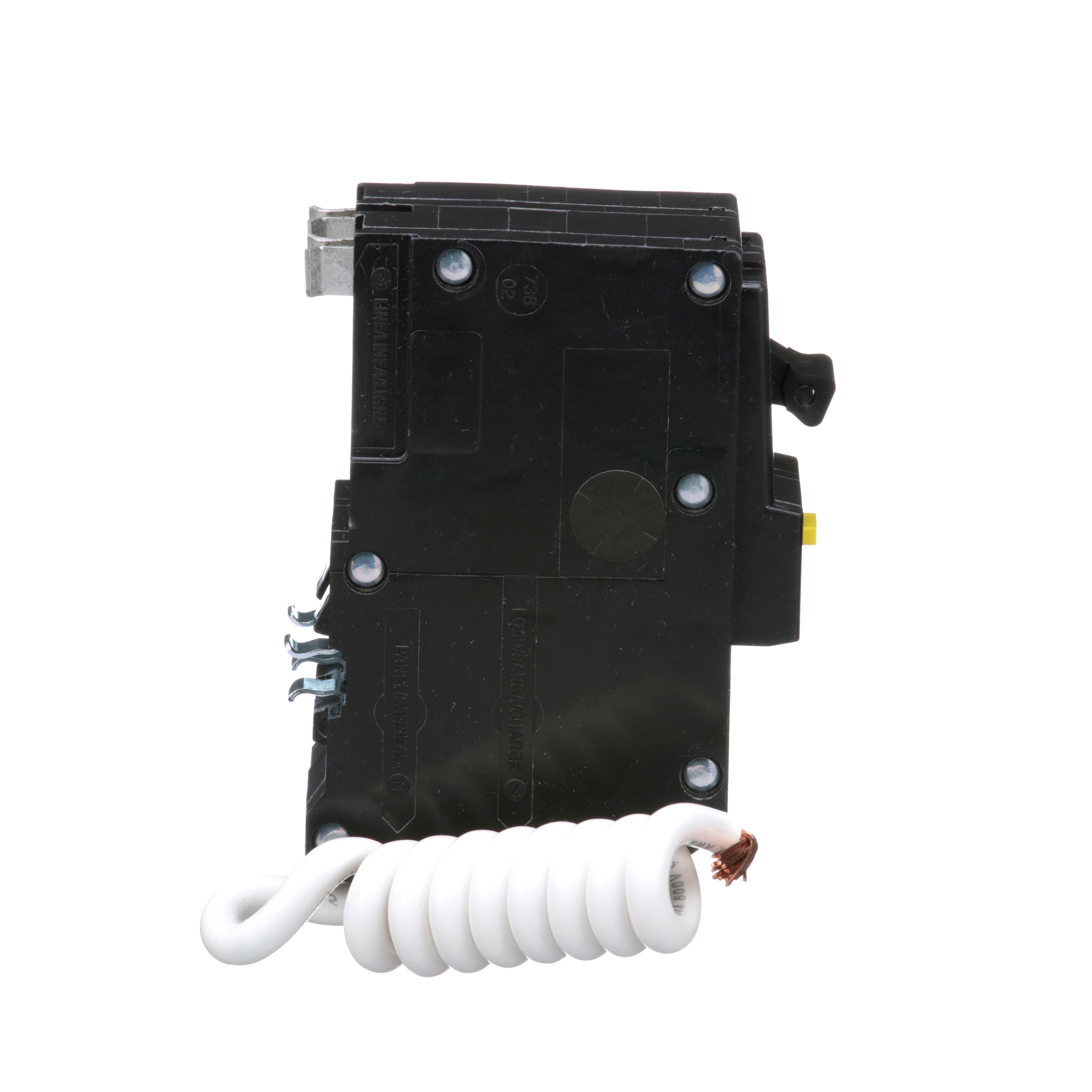

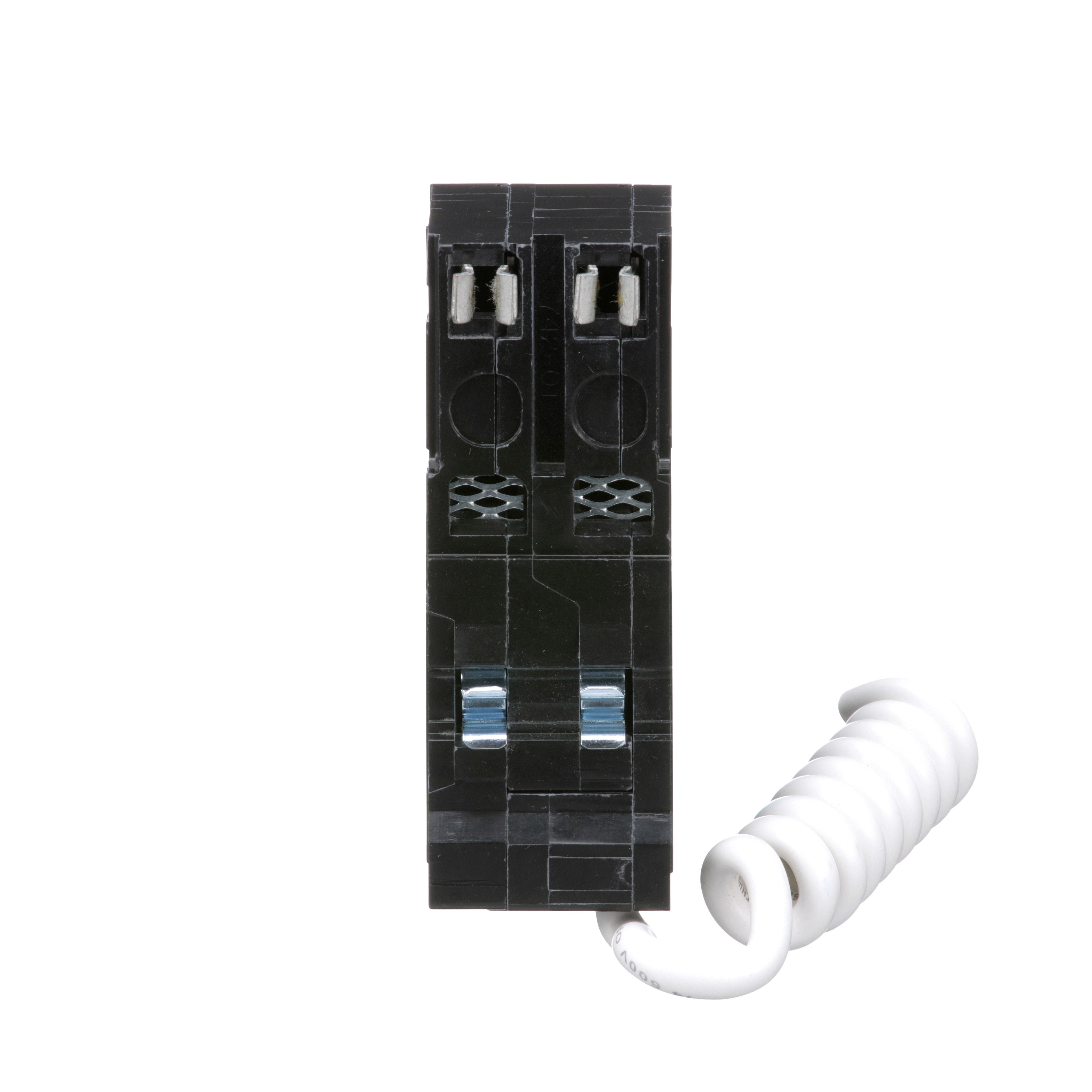

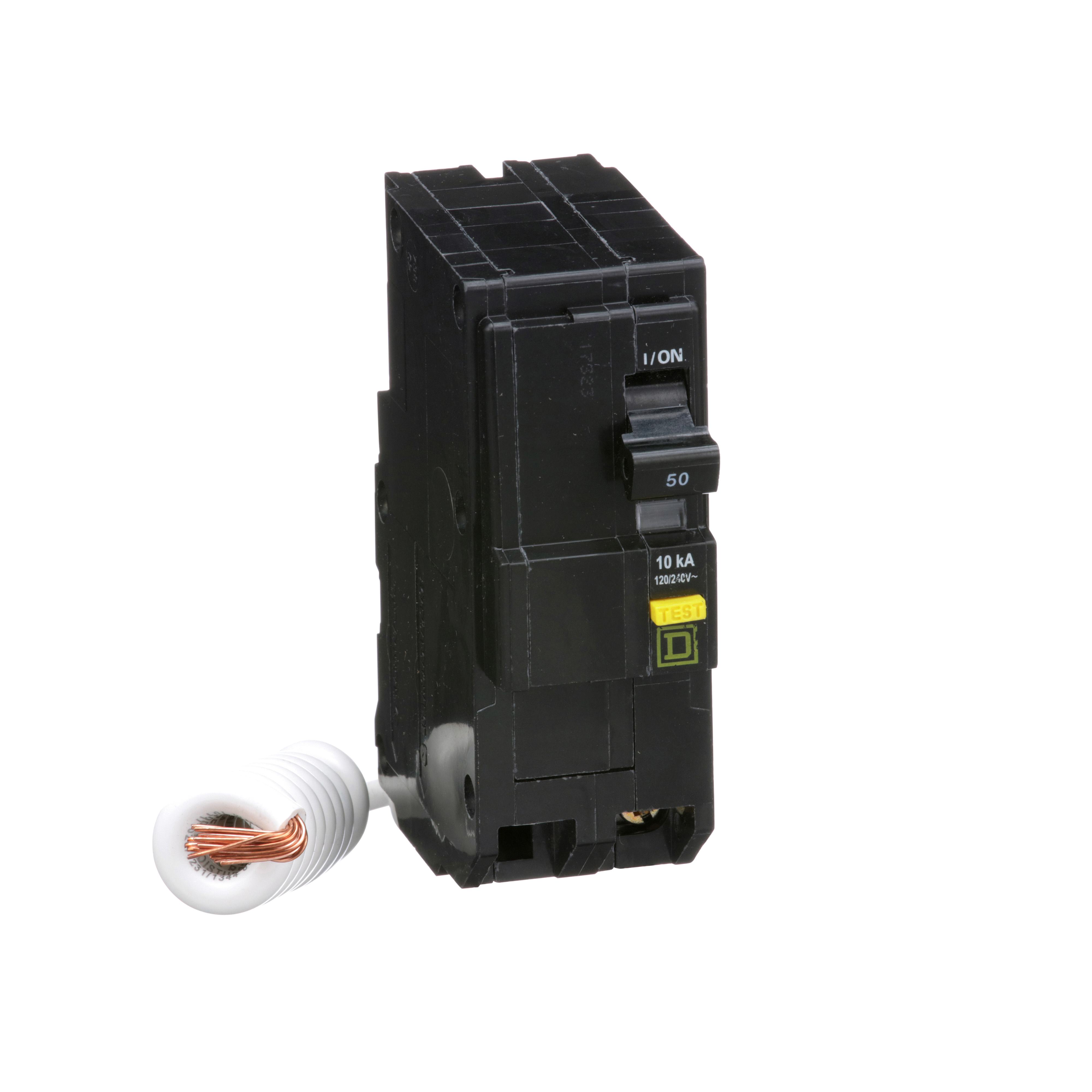

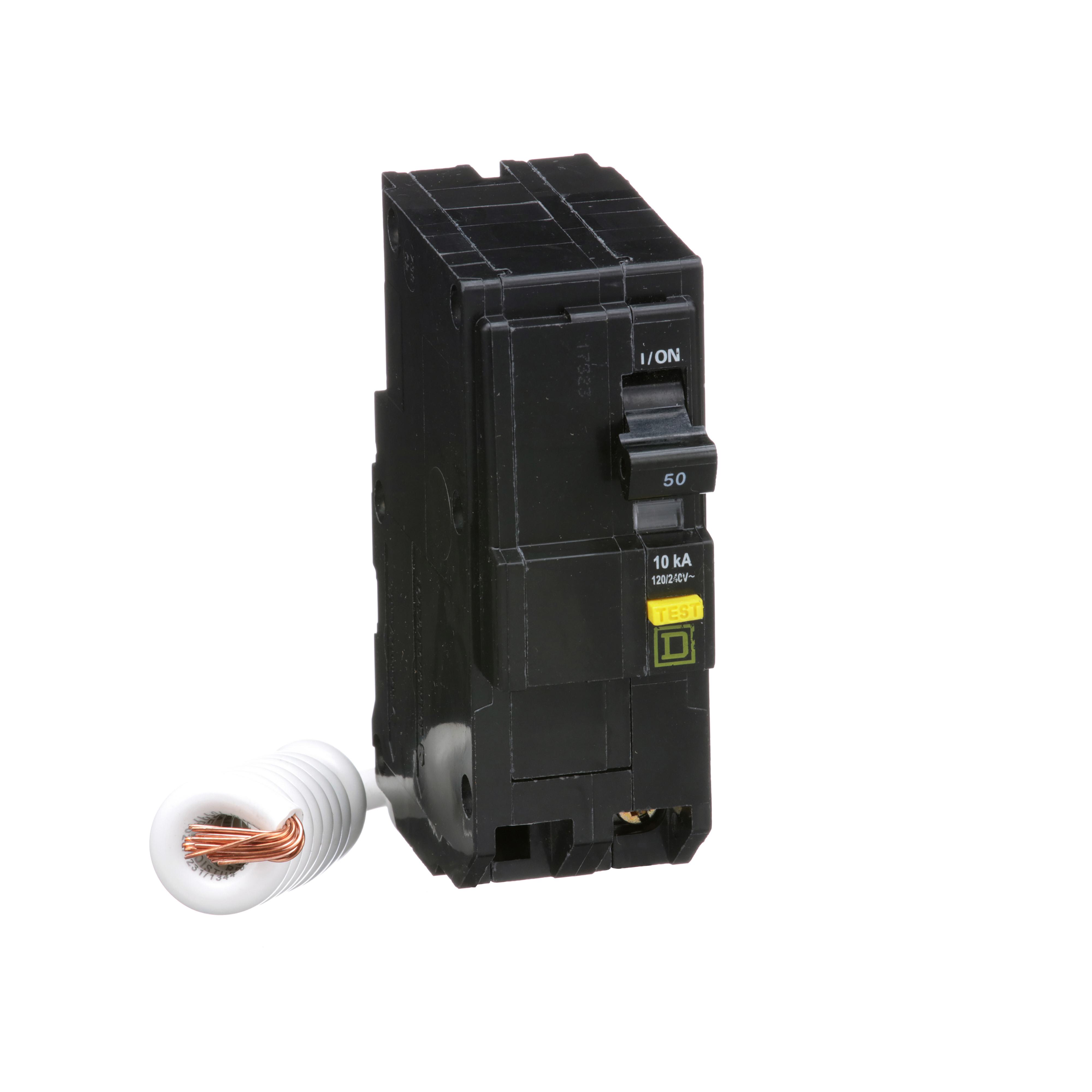

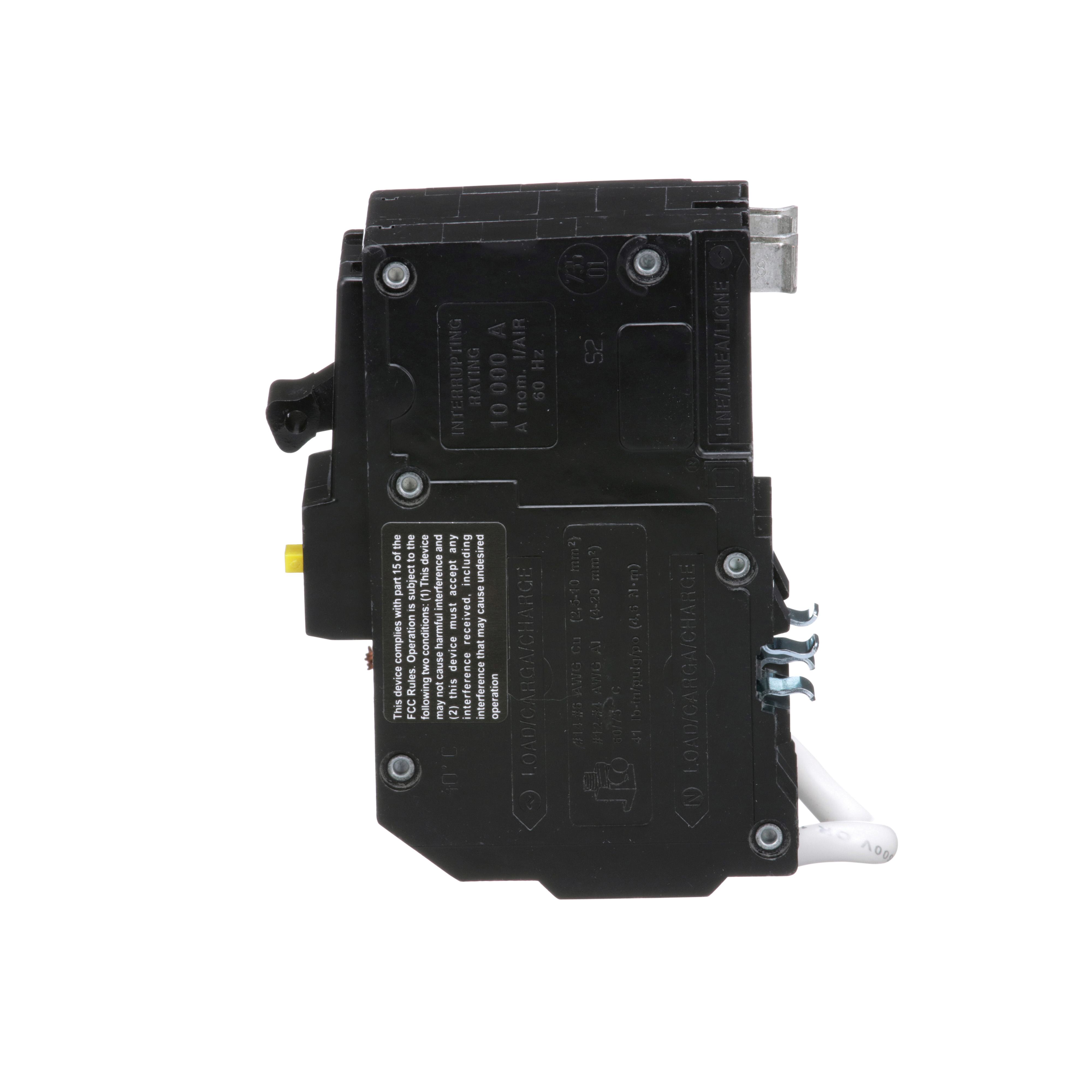

Square D™ QO250GFI
Square D™ QO250GFI Class A Ground Fault Miniature Circuit Breaker, 120/240 VAC, 50 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Brand: Square D™
Item ID: 57215
MPN: QO250GFI
Login for Price
Features
- Qwik-Gard® GFCIs provide the same branch circuit protection as standard QO™ circuit breakers
- They are longer than standard QO™ circuit breakers and thus require more gutter space
- Class A devices must trip at 6 mA of ground fault current and above and hold below 4 mA of ground fault current
- For use with QO™ load centers, NQOD panel boards/interiors and Speed-D® switchboard distribution panels
- 14 to 6 AWG Cu, 12 to 4 AWG Al wire
- Common trip
- Ground fault protecting class A 6 mA
Description
The ground fault sensor in a Qwik-Gard® GFCI continuously monitors the current flow in the load and neutral conductors. The sensor compares the current flow in all directions. If the current flowing back to the source is less than the current flowing out to the load, a ground fault exists. When the difference in current flow exceeds 6 mA, the sensor sends a signal to trip the GFCI. The trip will be indicated by the Visi-Trip® indicator and the operating handle will move to the center tripped position.
Square D™, QO250GFI, Miniature Circuit Breaker, Class A Ground Fault, 120/240 VAC, 50 A, 50/60 Hz Frequency, 10 kA Interrupt, QO Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Box Lug Connection, 14 to 6 AWG, 12 to 4 AWG Wire, Plug-On Mounting, 40 deg C, 2.91 in L x 1.5 in W x 4.12 in H Dimensions
Specifications
Amperage Rating |
50 A |
Connection Type |
Box Lug |
Dimensions |
2.91 in L x 1.5 in W x 4.12 in H |
Frame |
QO |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
Plug-On |
Number of Poles |
2 |
Phase |
1 ph |
Temperature Rating |
40 deg C |
Trip Type |
Thermal Magnetic |
Type |
Class A Ground Fault |
Voltage Rating |
120/240 VAC |
Wire Size |
14 to 6 AWG, 12 to 4 AWG |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL 489|CSA 22.2 #144|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For providing overload and short circuit protection designed to offer class A ground fault protection for people |
