Square D™ QO2DTI

• QO-EPD circuit breakers with 30 mA equipment ground-fault protection (1-pole, 2-pole, 15 A to 60 A; 3-pole, 15 A - 50 A)
• QO-SWN circuit breakers with switch neutral common trip, NEC 514-5 (2- and 3-pole, 10 A to 50 A)
• QO-HID circuit breakers for circuits feeding fluorescent or high intensity discharge (1-, 2-, and 3-pole, 15 A to 50 A)
• QO combination arc-fault circuit interrupters 1-pole, 15 A and 20 A
• A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches, is also available
• QO sub-feed lugs, 2-pole rated 60A, 125A and 225A; 3-pole rated 125A
• Additional products available with interrupting ratings of 22kA, 42kA and 65kA
• Plug-on QO circuit breakers are for use in QO load centers, NQ panelboards or Speed-D switchboard distribution panels

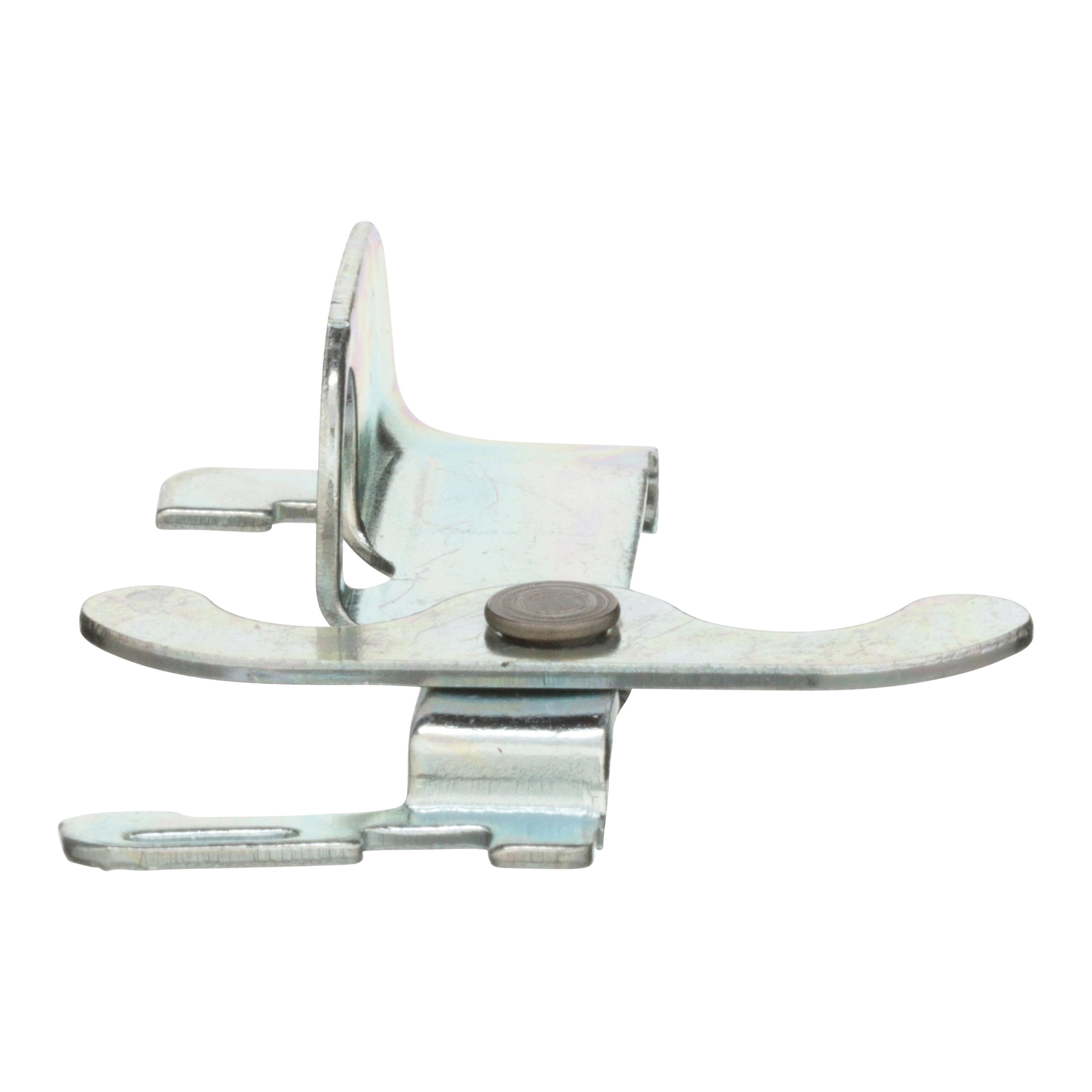

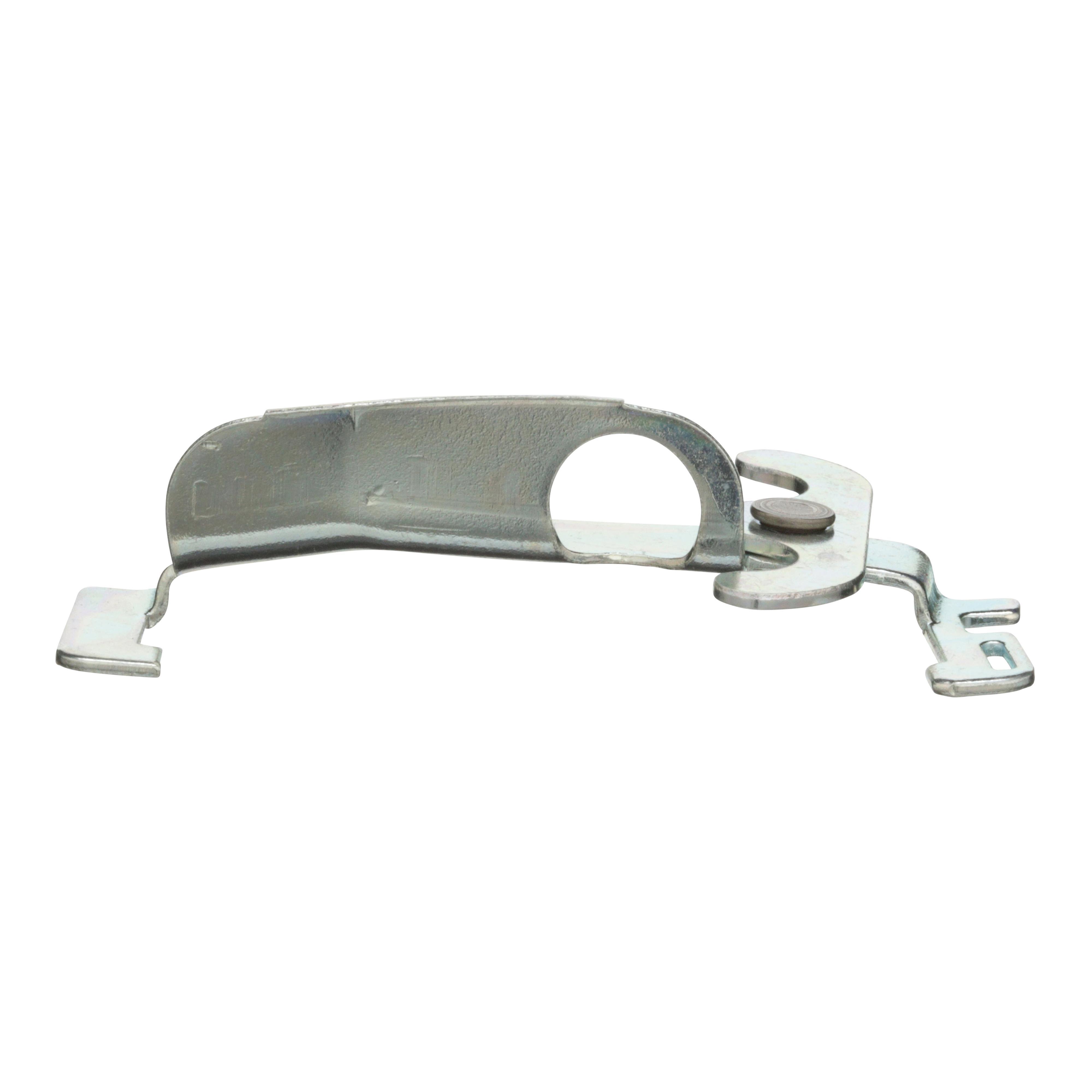

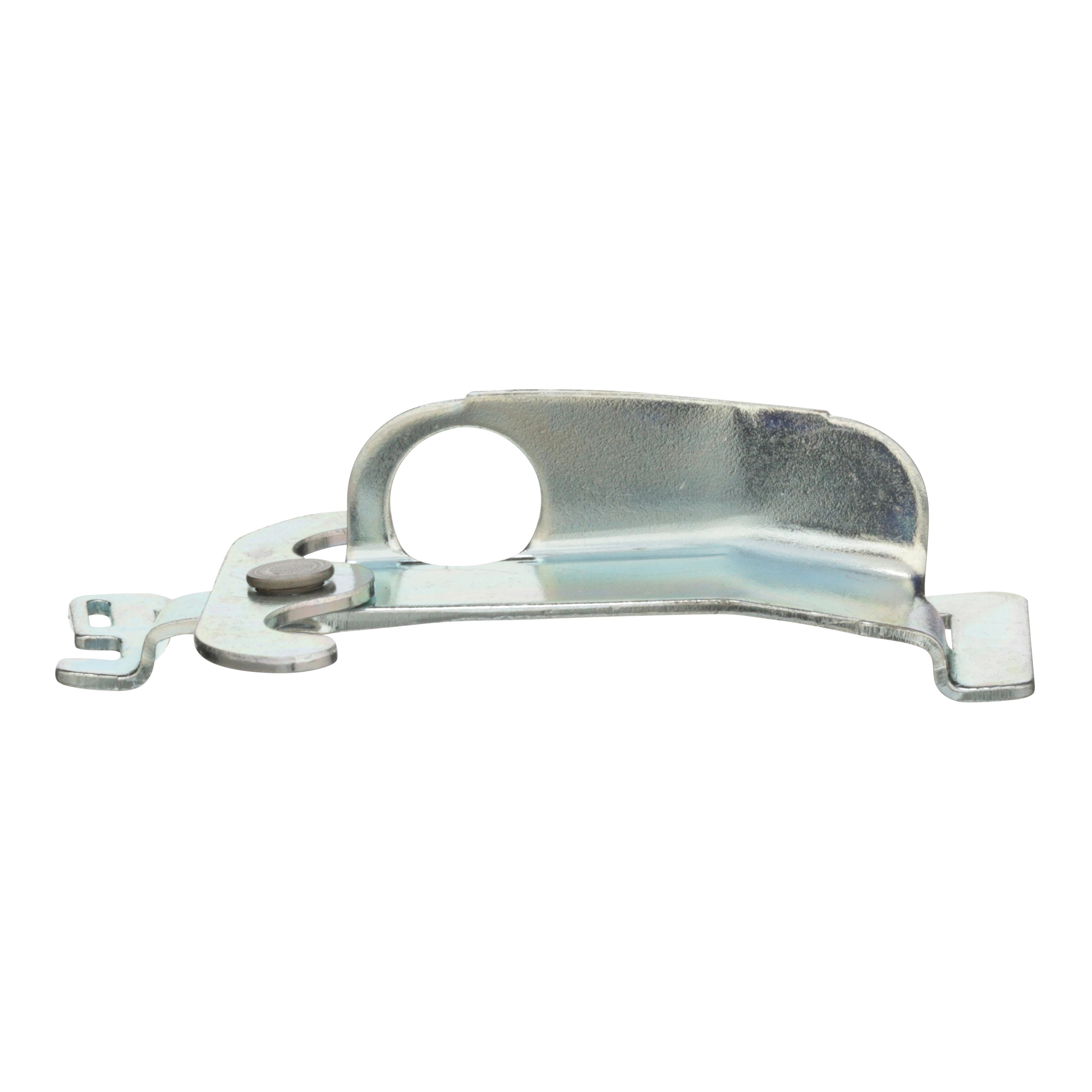

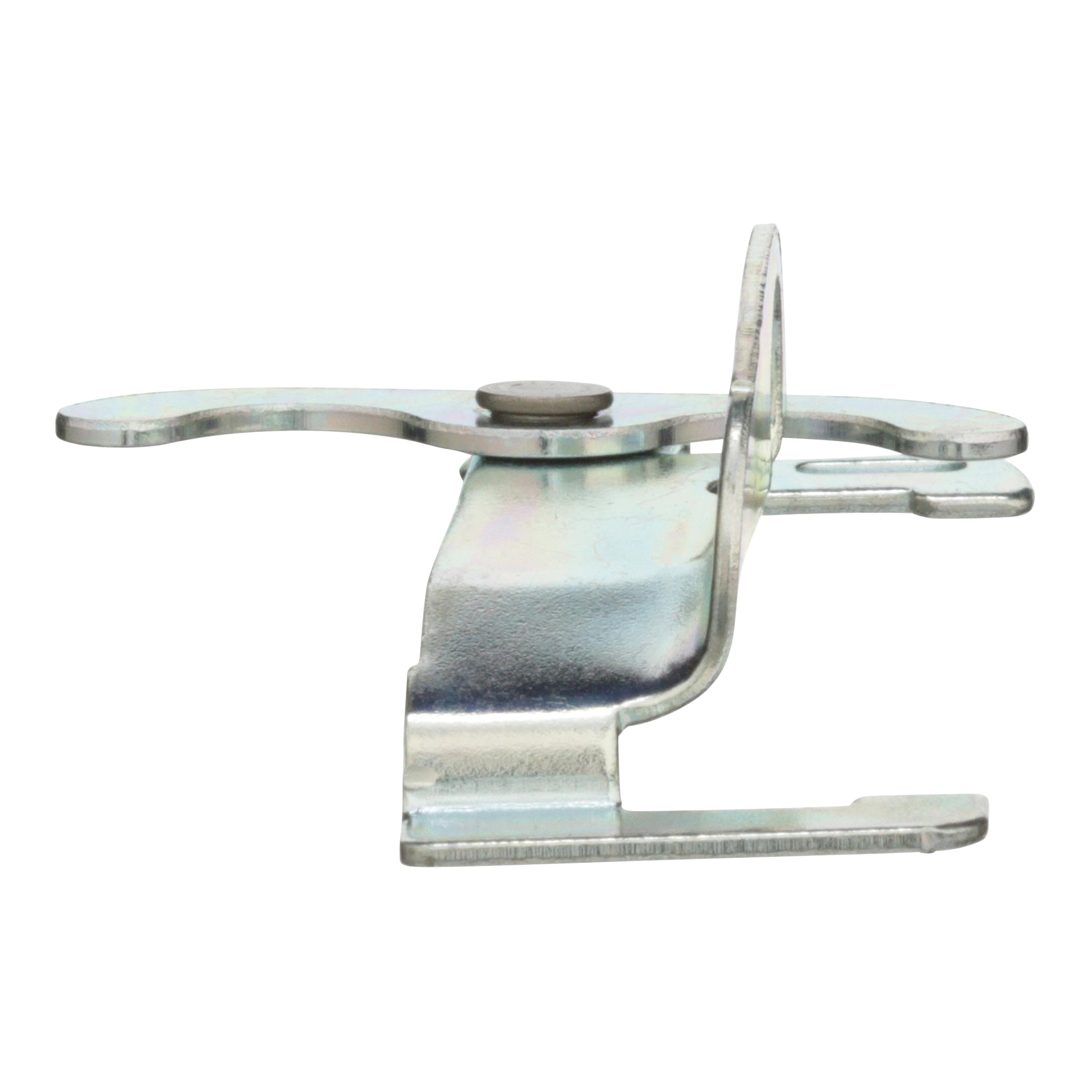

Mini circuit breaker accessory, QO, interlock, mechanical, compatible with 1 to 2 pole Square D SQD QO2DTI Mini circuit breaker acc Mini circuit breaker accessory, QO, interlock, mechanical, compatible with 1 to 2 pole QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This mechanical interlock attachment kit is for interlocking the handles of two 2P or one 2P and one 1P QO and Q1 circuit breakers. Circuit breakers are to be mounted side by side so that only one circuit breaker can be ON at a time. Can't be used with QOU breakers. Interlock

Square D™, QO2DTI, Mechanical Interlock, Miniature Circuit-Breaker, Series: QO2D, 1/2 Pole, Steel, 1.75 in H x 0.64 in W x 2.75 in L Dimensions
