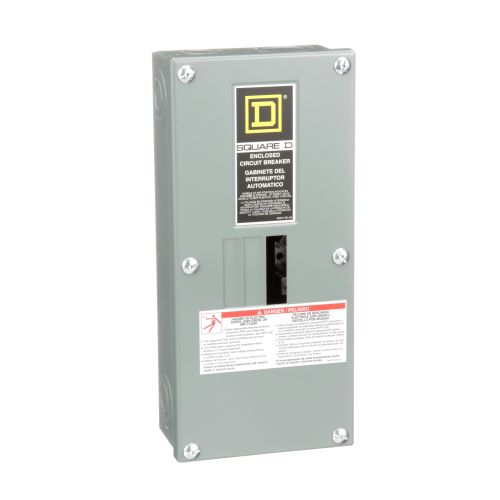

Square D™ QO3100BNS
Square D™ QO® QO3100BNS 1/3-Phase 3-Space Loadcenter Enclosure, NEMA 1 NEMA Rating, 13.11 in L x 5.87 in W, Steel
Brand: Square D™
Item ID: 57274
MPN: QO3100BNS
Login for Price
Features
- 22 kA short circuit current
- 12 to 1 AWG aluminum, 14 to 1 AWG copper wire
- Lug electrical connection
- 3-wire wiring configuration
- 240 VAC voltage rating
Description
Square D™ QO® Loadcenter Enclosure, 1/3-Phase 3-Space, Surface Cover, 13.11 in Length, 5.87 in Width, Surface Mounting, Steel, TiN Coated, Gray, NEMA 1 Rating
Specifications
Color |
Gray |
Cover Type |
Surface |
Finish |
TiN Coated |
Length |
13.11 in |
Material |
Steel |
Mounting Type |
Surface |
NEMA Rating |
NEMA 1 |
Type |
1/3-Phase 3-Space |
Width |
5.87 in |
Standard Approval |
RoHS Compliant|Buy American Act Compliant|UL Listed|CSA Certified|REACH Compliant|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For use with QO, QO-GFI, QO-AFI, QO-EPD or QO-PL circuit breakers (2 or 3-Pole) |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b2691c7338b24a2c72e4540cca7b06b4d4a0e3f235f3ac1cb4546d544de885bb.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QBA220801_Instruction_Sheet.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2100BNRB_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO612L100TRB_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO612L100TRB_Instruction_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6d8e79ebbf7550ace7a27a66785aab80adbbd18f75d9b668067b3d7cc4d57563.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO3100BNRB_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOB120VHEPD_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOB120VHEPD_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO3100BNS_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e225b14d521d9cc95554410db6999b71de5e644c758d9e22c7947f99228ee11a.pdf
