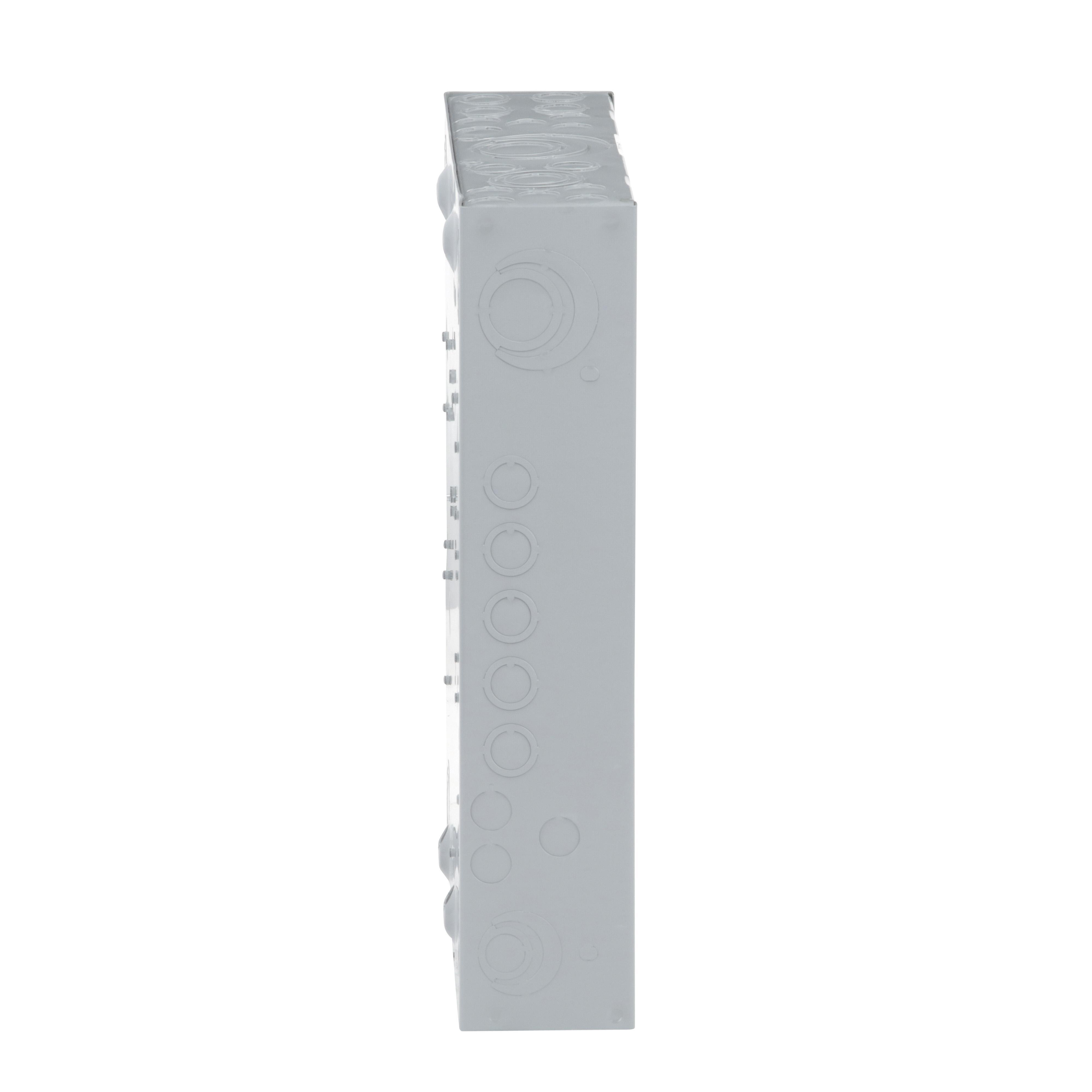

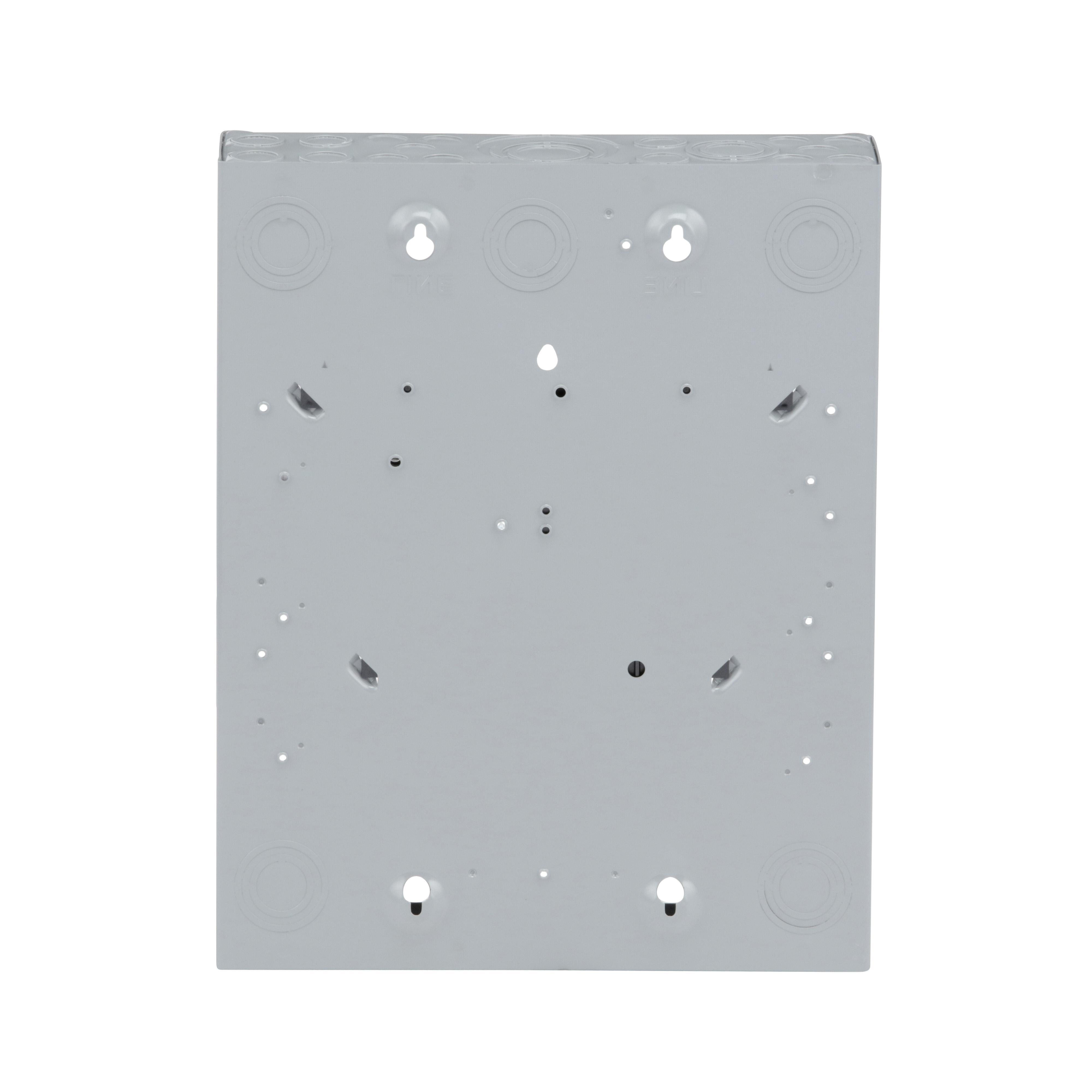

Square D™ QO312L125G
Square D™ QO312L125G 3-ph Fixed Main Lug Load Center, 208Y/120/240 VAC, 125 A, 1 Poles, 65 kA Interrupt
Brand: Square D™
Item ID: 57281
MPN: QO312L125G
UPC: 785901295037
Login for Price
Features
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Service entrance equipment capable panels
- Single captive screw interior mounting on indoor panels to ease removal
- New side hinge doors on outdoor convertible main panels
- Outdoor panel covers are lockable with padlock
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Top or bottom feed by rotating enclosure
- Does not accepts plug-on neutral circuit breaker
- Lug electrical connection
- 0 tandem circuit breaker
- Straight-in wiring to help minimize service cable installation
Description
QO™ circuit breaker load centers from square D™ are underwriters laboratories (UL) listed panel boards. They are designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.
Square D™, QO312L125G, Main Lug Load Center, 3-ph Fixed, 208Y/120/240 VAC, 125 A, 1 Pole, 50/60 Hz Frequency, 65 kA Interrupt, 12 Circuits, QO/MLO Breaker, Panel Breaker Mounting, 3/4-Wire Wiring Configuration, 12 Spaces, 6 to 2/0 AWG Wire, Bolt-On Mounting, NEMA 1 Enclosure, Sheet Steel Housing Material, 14.25 in W x 3.75 in D x 17.92 in H Dimensions
Specifications
Amperage Rating |
125 A |
Breaker Mounting |
Panel |
Breaker Type |
QO/MLO |
Dimensions |
14.25 in W x 3.75 in D x 17.92 in H |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Housing Material |
Sheet Steel |
Interrupt Rating |
65 kA |
Mounting Type |
Bolt-On |
Number of Circuits |
12 |
Number of Poles |
1 |
Number of Spaces |
12 |
Type |
3-ph Fixed |
Voltage Rating |
208Y/120/240 VAC |
Wire Size |
6 to 2/0 AWG |
Wiring Configuration |
3/4-Wire |
Standard Approval |
RoHS Compliant|UL Listed|NOM Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
For residential, commercial and industrial requirements to protect electrical systems, equipment and people applications |
