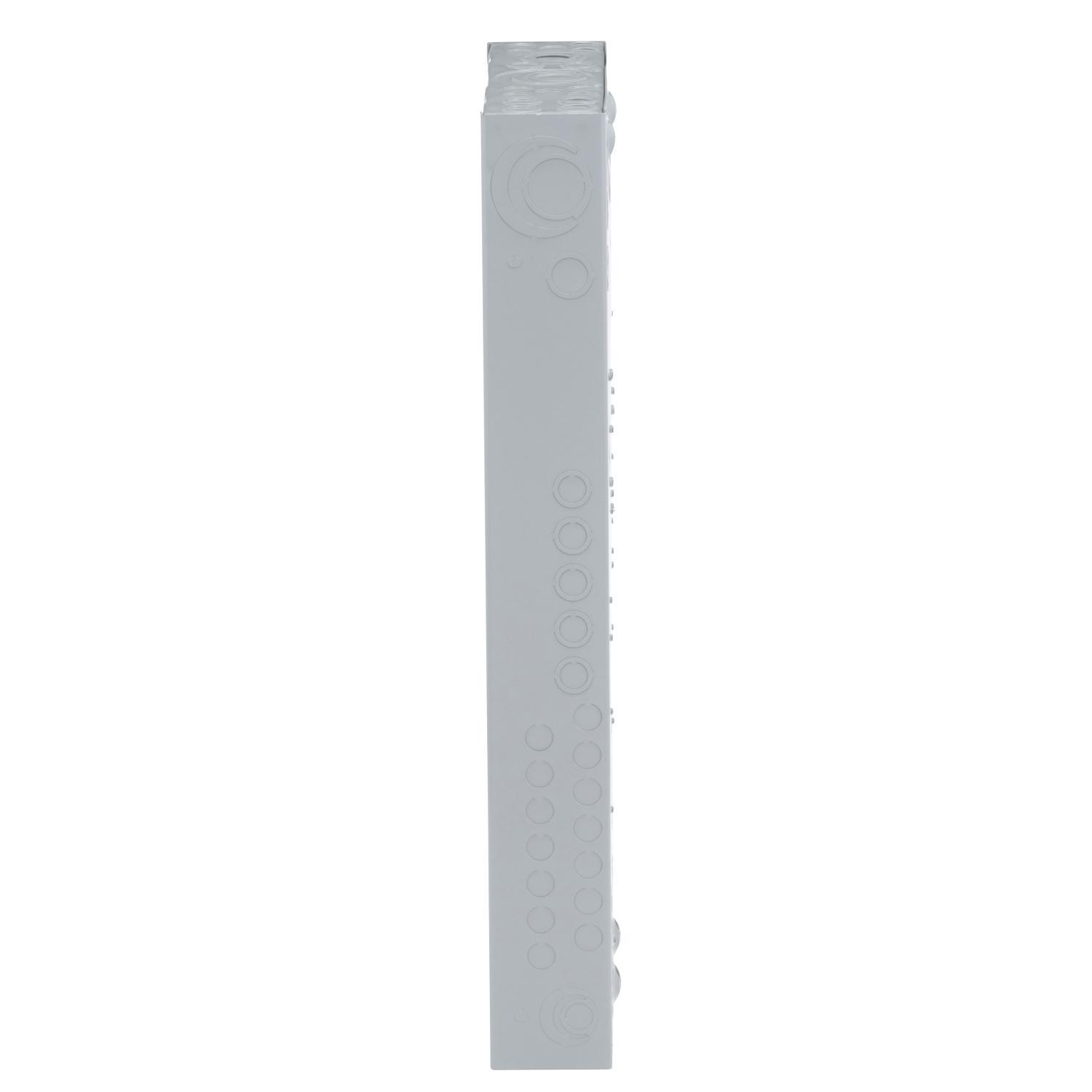

Square D™ QO318L200G
Square D™ QO® QO318L200G 3-Phase Fixed Main Lug Load Center, 208Y/120 VAC, 240/120 Delta VAC, 240 Delta VAC, 200 A, 1 Poles, 65 kA Interrupt
Brand: Square D™
Item ID: 468812
MPN: QO318L200G
UPC: 785901295440
Login for Price
Features
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Shielded one piece tin plated aluminum bus construction on convertible mains panels, an industry exclusive for protection and performance
- Service entrance equipment capable panels
- Split branch neutral for clutter-free wiring
- Top or bottom feed by rotating enclosure
- Single captive screw interior mounting on indoor panels to ease removal
- Straight in wiring to help minimize service cable installation
- Side hinge doors on outdoor convertible main panels
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Outdoor panel covers are lockable with padlock
- Does not accepts plug-on neutral circuit breaker
- Lug electrical connection
Description
Square D™ QO® Main Lug Load Center, 3-Phase Fixed, 208Y/120 VAC, 240/120 Delta VAC, 240 Delta VAC, 200 A, 1 Pole, 50/60 Hz Frequency, 65 kA Interrupt, 18 Circuits, QO/MLO Breaker, Panel Breaker Mounting, 3/4-Wire Wiring Configuration, 18 Spaces, 6 AWG to 250 kcmil Wire, Bolt-On Mounting, NEMA 1 Enclosure, 9 Enclosure Box, Steel Housing Material, 14.25 in W x 3.75 in D x 29.86 in H Dimensions
Specifications
Amperage Rating |
200 A |
Breaker Mounting |
Panel |
Breaker Type |
QO/MLO |
Dimensions |
14.25 in W x 3.75 in D x 29.86 in H |
Enclosure Box Size |
9 |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Housing Material |
Steel |
Interrupt Rating |
65 kA |
Mounting Type |
Bolt-On |
Number of Circuits |
18 |
Number of Poles |
1 |
Number of Spaces |
18 |
Type |
3-Phase Fixed |
Voltage Rating |
208Y/120 VAC, 240/120 Delta VAC, 240 Delta VAC |
Wire Size |
6 AWG to 250 kcmil |
Wiring Configuration |
3/4-Wire |
Standard Approval |
RoHS Compliant|UL Listed|NOM Certified|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov |
Application |
For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_38883d9af2fb32181f8bca874df3f5842627c8bedd5020f055c26b745d7f3963.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM24L70F_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9d2232c2f4411598256cca147abe9865e88e510b55c3b16d8978c36902f927e1.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO312L125G_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO312L125G_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO403L60NS_Technical_Bulletin.pdf
