Square D™ QO324L125G

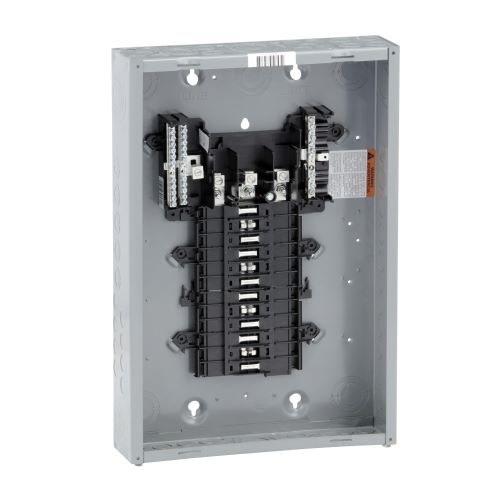

Square D™ QO324L125G 3-ph Fixed Main Lug Load Center, 208Y/120/240 VAC, 125 A, 1 Poles, 65 kA Interrupt
Brand: Square D™
Item ID: 57305
MPN: QO324L125G
Login for Price
Features
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Service entrance equipment capable panels
- Single captive screw interior mounting on indoor panels to ease removal
- New side hinge doors on outdoor convertible main panels
- Outdoor panel covers are lockable with padlock
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Top or bottom feed by rotating enclosure
- Does not accepts plug-on neutral circuit breaker
- Lug electrical connection
- 0 tandem circuit breaker
- Straight-in wiring to help minimize service cable installation
Description
QO™ circuit breaker load centers from square D™ are underwriters laboratories (UL) listed panel boards. They are designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.
Square D™, QO324L125G, Main Lug Load Center, 3-ph Fixed, 208Y/120/240 VAC, 125 A, 1 Pole, 50/60 Hz Frequency, 65 kA Interrupt, 24 Circuits, QO/MLO Breaker, Panel Breaker Mounting, 3/4-Wire Wiring Configuration, 24 Spaces, 6 to 2/0 AWG Wire, Bolt-On Mounting, NEMA 1 Enclosure, Sheet Steel Housing Material, 14.25 in W x 3.75 in D x 20.92 in H Dimensions
Specifications
Amperage Rating |
125 A |
Breaker Mounting |
Panel |
Breaker Type |
QO/MLO |
Dimensions |
14.25 in W x 3.75 in D x 20.92 in H |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Housing Material |
Sheet Steel |
Interrupt Rating |
65 kA |
Mounting Type |
Bolt-On |
Number of Circuits |
24 |
Number of Poles |
1 |
Number of Spaces |
24 |
Type |
3-ph Fixed |
Voltage Rating |
208Y/120/240 VAC |
Wire Size |
6 to 2/0 AWG |
Wiring Configuration |
3/4-Wire |
Standard Approval |
RoHS Compliant|UL Listed|NOM Certified|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov |
Application |
For residential, commercial and industrial requirements to protect electrical systems, equipment and people applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3693e65bc875cb7e695c677856a422c44ec7ebc382aa6f09b8fb10cf6213c58f.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM24L70F_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_038e73ce7b8a053a7dbc0a2cce54f59186682e9ff5ff127021ba2b9ca959f104.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BW463_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_351c7e4a44d3844bae0ffe284fbfbe0fb593a61c37acfe41d63dd1285ff228ec.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO312L125G_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO312L125G_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO403L60NS_Technical_Bulletin.pdf
