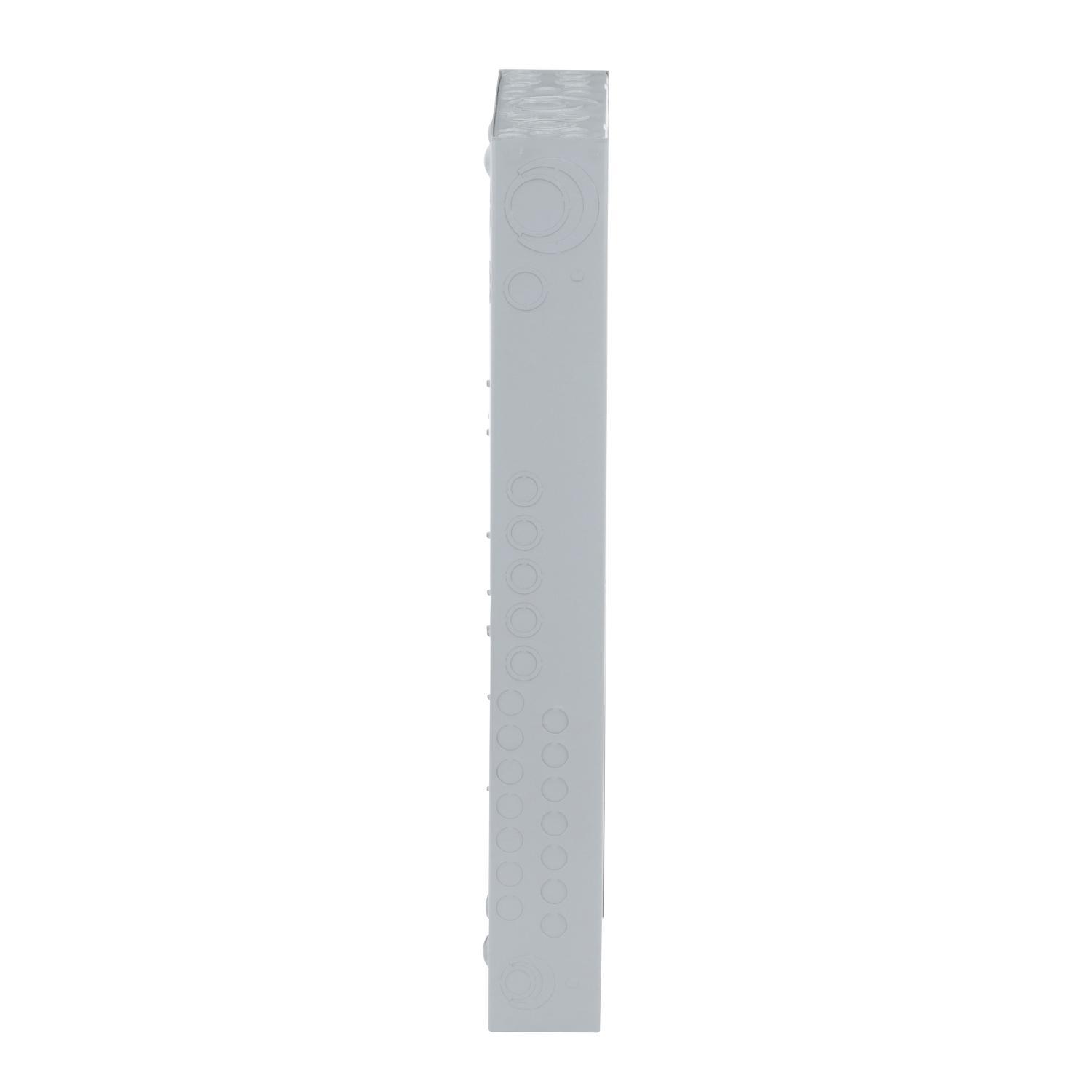

Square D™ QO327M100
Square D™ QO327M100 Convertible Main Breaker Load Center, 208Y/120 VAC, 240/120 Delta VAC, 240 Delta VAC, 100 A, 1 Poles, 25 kA Interrupt
Brand: Square D™
Item ID: 57310
MPN: QO327M100
Login for Price
Features
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Service entrance equipment capable panels
- Single captive screw interior mounting on indoor panels to ease removal
- New side hinge doors on outdoor convertible main panels
- Outdoor panel covers are lockable with padlock
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Top or bottom feed by rotating enclosure
- Does not accepts plug-on neutral circuit breaker
- Lug electrical connection
- 208Y/120 VAC, 120/240 VAC delta, 240 VAC delta
- Aluminum/copper wire
- Straight-in wiring to help minimize service cable installation
- 0 tandem circuit breaker
Description
QO™ Circuit Breaker Load Centers from Square D™ are Underwriters Laboratories (UL) Listed panel boards. They are designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.
Square D™, QO327M100, Convertible Main Breaker Load Center, 208Y/120 VAC, 240/120 Delta VAC, 240 Delta VAC, 100 A, 1 Pole, 50/60 Hz Frequency, 25 kA Interrupt, 27 Circuits, MB/QO Breaker, Panel Breaker Mounting, 4-Wire Wiring Configuration, 27 Spaces, 4 to 2/0 AWG Wire, Bolt-On Mounting, NEMA 1 Enclosure, Sheet Steel Housing Material, 14.25 in W x 3.75 in D x 29.86 in H Dimensions
Specifications
Amperage Rating |
100 A |
Breaker Mounting |
Panel |
Breaker Type |
MB/QO |
Dimensions |
14.25 in W x 3.75 in D x 29.86 in H |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Housing Material |
Sheet Steel |
Interrupt Rating |
25 kA |
Mounting Type |
Bolt-On |
Number of Circuits |
27 |
Number of Poles |
1 |
Number of Spaces |
27 |
Type |
3-ph Convertible |
Voltage Rating |
208Y/120 VAC, 240/120 Delta VAC, 240 Delta VAC |
Wire Size |
4 to 2/0 AWG |
Wiring Configuration |
4-Wire |
Standard Approval |
RoHS Compliant|UL Listed|NOM Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
For residential, commercial and industrial requirements to protect electrical systems, equipment and people applications |
