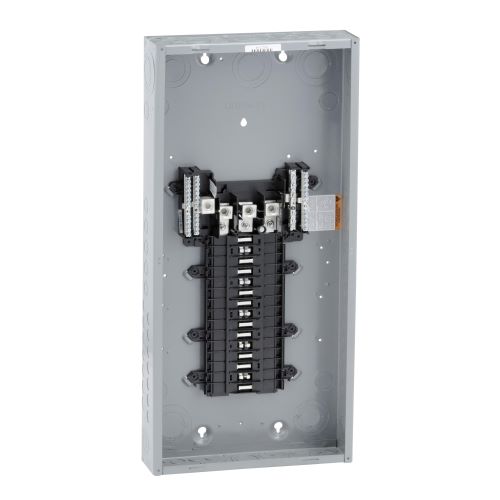

Square D™ QO330L200G
Square D™ QO330L200G 3-ph Fixed Three Main Lug Load Center, 208Y/120/240 VAC, 200 A, 1 Poles, 65 kA Interrupt
Brand: Square D™
Item ID: 57318
MPN: QO330L200G
Login for Price
Features
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Service entrance equipment capable panels
- Straight-in wiring to help minimize service cable installation
- Single captive screw interior mounting on indoor panels to ease removal
- New side hinge doors on outdoor convertible main panels
- Outdoor panel covers are lockable with padlock
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Top or bottom feed by rotating enclosure
- Does not accepts plug-on neutral circuit breaker
- Lug electrical connection
- 0 tandem circuit breaker
Description
QO® Circuit Breaker Load Centers from Square D® are Underwriters Laboratories (UL) Listed panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.
Square D™, QO330L200G, Three Main Lug Load Center, 3-ph Fixed, 208Y/120/240 VAC, 200 A, 1 Pole, 50/60 Hz Frequency, 65 kA Interrupt, 30 Circuits, QO Breaker, Panel Breaker Mounting, 3/4-Wire Delta Wiring Configuration, 30 Spaces, 6 AWG to 250 kcmil Wire, Bolted-On Mounting, NEMA 1 Enclosure, Welded Sheet Steel Housing Material, 29.86 in H x 14.25 in W x 3.75 in D Dimensions
Specifications
Amperage Rating |
200 A |
Breaker Mounting |
Panel |
Breaker Type |
QO |
Dimensions |
29.86 in H x 14.25 in W x 3.75 in D |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Housing Material |
Welded Sheet Steel |
Interrupt Rating |
65 kA |
Mounting Type |
Bolted-On |
Number of Circuits |
30 |
Number of Poles |
1 |
Number of Spaces |
30 |
Type |
3-ph Fixed |
Voltage Rating |
208Y/120/240 VAC |
Wire Size |
6 AWG to 250 kcmil |
Wiring Configuration |
3/4-Wire Delta |
Standard Approval |
UL Listed|NOM Rated|RoHS Compliant |
Application |
Residential, Commercial and Industrial Application |
