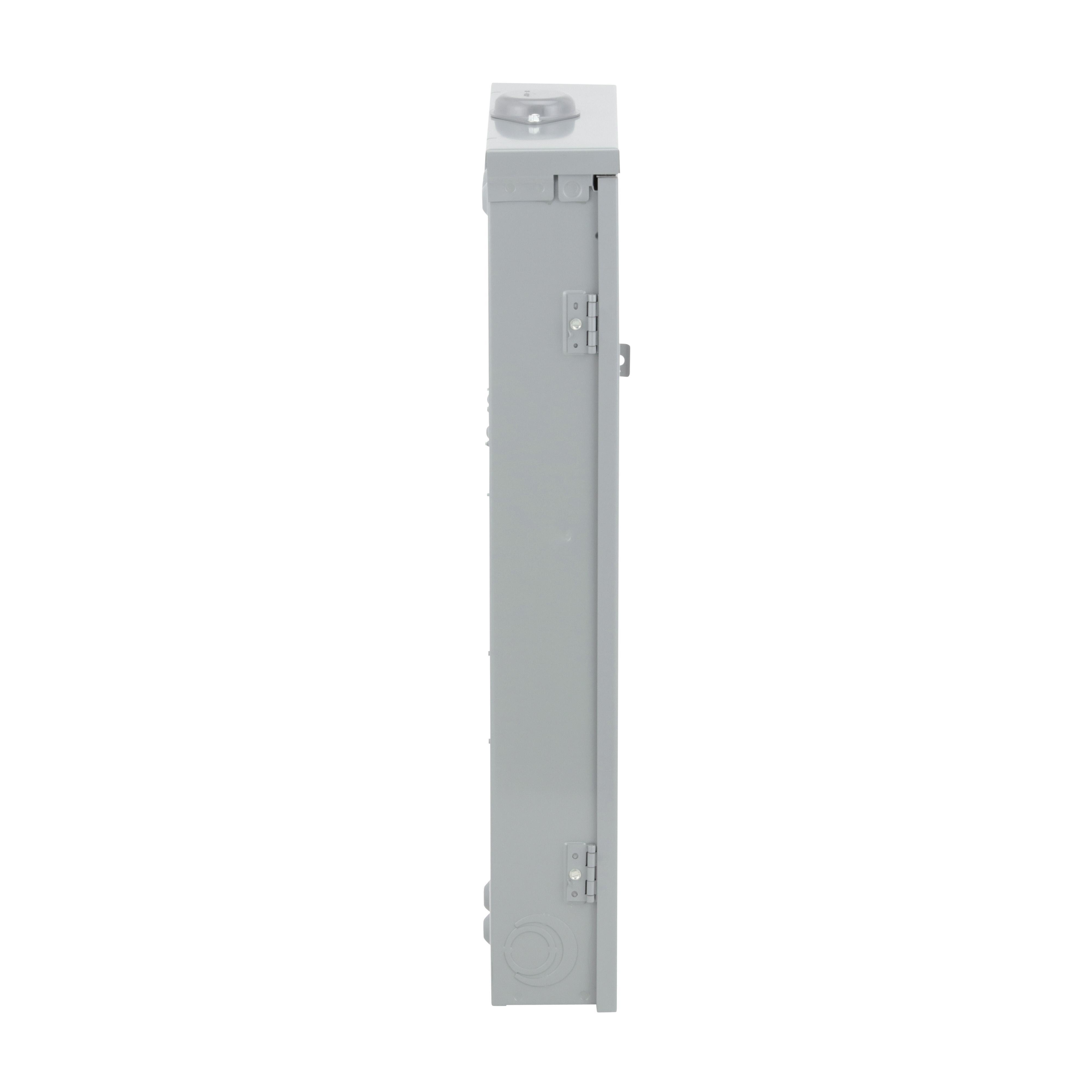

Square D™ QO330L200GRB
Square D™ QO™ QO330L200GRB 3-ph Fixed Main Lug Load Center, 208Y/120 VAC, 240/120 Delta VAC, 240 Delta VAC, 200 A, 1 Pole, 65 kA Interrupt
Brand: Square D™
Item ID: 57319
MPN: QO330L200GRB
UPC: 785901295525
Login for Price
Features
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Service entrance equipment capable panels
- Straight in wiring to help minimize service cable installations
- Single captive screw interior mounting on indoor panels to ease removal
- New side hinge doors on outdoor convertible main panels
- Outdoor panel covers are lockable with padlock
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Top or bottom feed by rotating enclosure
- Does not accepts plug-on neutral circuit breaker
- Lug electrical connection
- 208Y/120 VAC, 120/240 vac delta, 240 vac delta
- Aluminum/copper wire
Description
QO™ circuit breaker load centers from square D™ are underwriters laboratories (UL) listed panel boards. They are designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.
Square D™ QO™ Main Lug Load Center, 3-ph Fixed, 208Y/120 VAC, 240/120 Delta VAC, 240 Delta VAC, 200 A, 1 Pole, 50/60 Hz, 65 kA Interrupt, 30 Circuits, QO/MLO Breaker, Bolt-On Breaker Mounting, 4-Wire Wiring Configuration, 30 Spaces, 6 AWG to 300 kcmil Wire, Flush Mount, NEMA 3R, Galvanized Steel Housing, 14.76 in W x 29.84 in H
Specifications
Amperage Rating |
200 A |
Breaker Mounting |
Bolt-On |
Breaker Type |
QO/MLO |
Dimensions |
14.76 in W x 29.84 in H |
Enclosure Type |
NEMA 3R |
Frequency Rating |
50/60 Hz |
Housing Material |
Galvanized Steel |
Interrupt Rating |
65 kA |
Mounting Type |
Flush |
Number of Circuits |
30 |
Number of Poles |
1 |
Number of Spaces |
30 |
Type |
3-ph Fixed |
Voltage Rating |
208Y/120 VAC, 240/120 Delta VAC, 240 Delta VAC |
Wire Size |
6 AWG to 300 kcmil |
Wiring Configuration |
4-Wire |
Standard Approval |
RoHS Compliant|UL Listed|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov |
Application |
For residential, commercial and industrial requirements to protect electrical systems, equipment and people applications |
