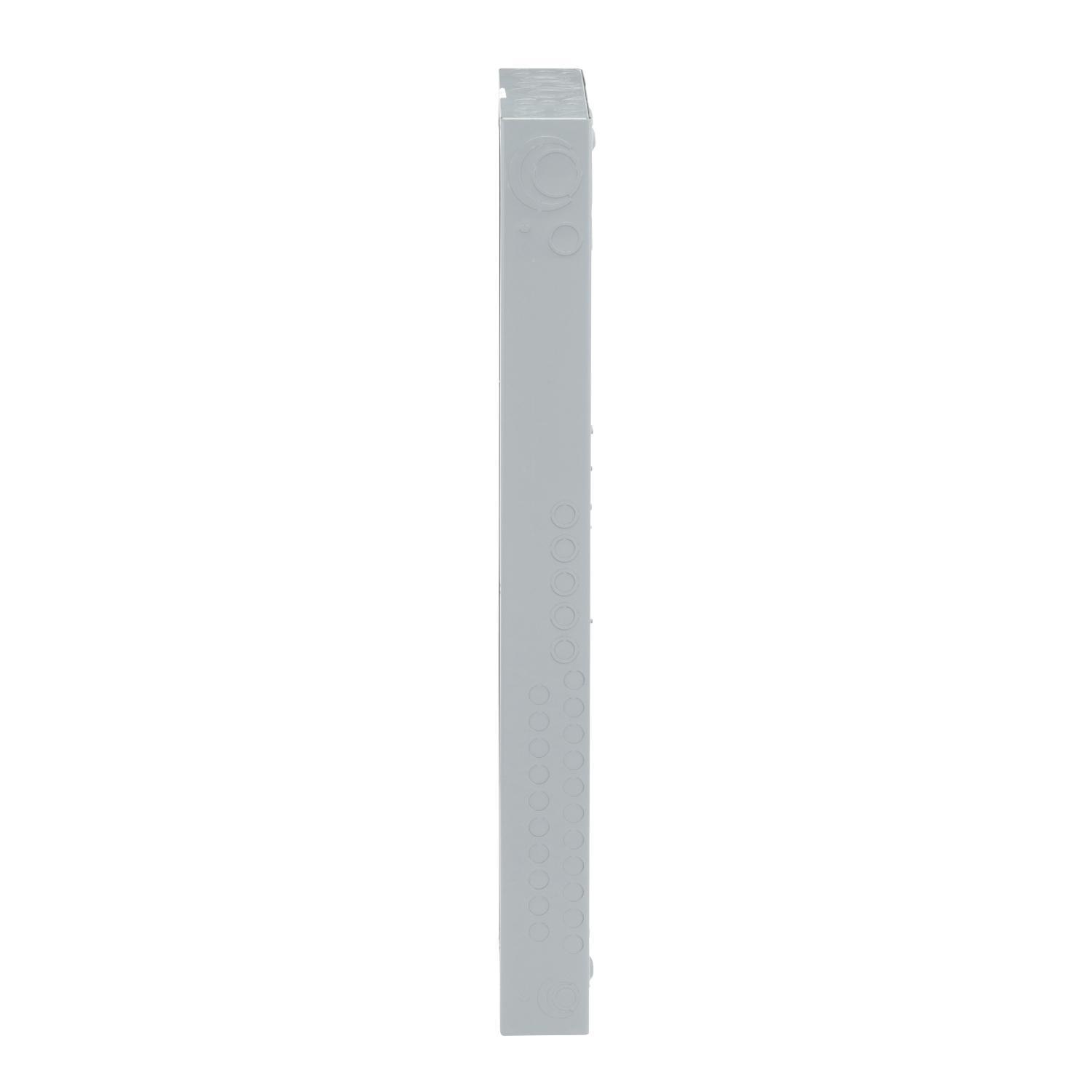

Square D™ QO330MQ125
Square D™ QO® QO330MQ125 3-Phase Convertible Main Breaker Load Center, 208Y/120 VAC/120/240 Delta VAC/240 Delta VAC, 125 A, 1 Poles, 25 kA Interrupt
Brand: Square D™
Item ID: 513023
MPN: QO330MQ125
UPC: 785901290520
Login for Price
Features
- Aluminum bus construction on fixed mains panels
- Shielded one piece tin plated aluminum bus construction on convertible mains panels, an industry exclusive for protection and performance
- Service entrance equipment capable panels
- Split branch neutral for clutter-free wiring
- Top or bottom feed by rotating convertible mains panels 180 deg
- Single captive screw interior mounting on indoor panels to ease removal
- Straight in wiring to help minimize service cable installation
- Side hinge doors on outdoor convertible main panels
- Gray baked enamel surface finish
- Provisions for door lock on convertible mains panel covers
Description
Square D™ QO® Main Breaker Load Center, 3-Phase Convertible, 208Y/120 VAC/120/240 Delta VAC/240 Delta VAC, 125 A, 1 Pole, 50/60 Hz Frequency, 25 kA Interrupt, 30 Circuits, Panel Breaker Mounting, 3/4-Wire Wiring Configuration, 30 Spaces, 4 AWG to 300 kcmil Al/Cu Wire, NEMA 1 Enclosure, NEMA 12 Enclosure Box, Sheet Steel Housing Material, 14.25 in W x 3.75 in D x 39.37 in H Dimensions
Specifications
Amperage Rating |
125 A |
Breaker Mounting |
Panel |
Dimensions |
14.25 in W x 3.75 in D x 39.37 in H |
Enclosure Box Size |
NEMA 12 |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Housing Material |
Sheet Steel |
Interrupt Rating |
25 kA |
Number of Circuits |
30 |
Number of Poles |
1 |
Number of Spaces |
30 |
Type |
3-Phase Convertible |
Voltage Rating |
208Y/120 VAC/120/240 Delta VAC/240 Delta VAC |
Wire Size |
4 AWG to 300 kcmil Al/Cu |
Wiring Configuration |
3/4-Wire |
Standard Approval |
RoHS Compliant|UL Listed|NOM Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b05e0e8c8120ebf485d822a630ec9b2b785fa0ac666792ea6e3f58cd6f7cc39b.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_92e1026747e27cc60af34af34e64b53a6a7921761872aef77f3a5fa421a16abd.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM24L70F_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_84bf0ebda0dff4042f3e3817a3bc08c889330e0e23318d431aa92a16acecd1a9.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO312L125G_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO312L125G_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO403L60NS_Technical_Bulletin.pdf
