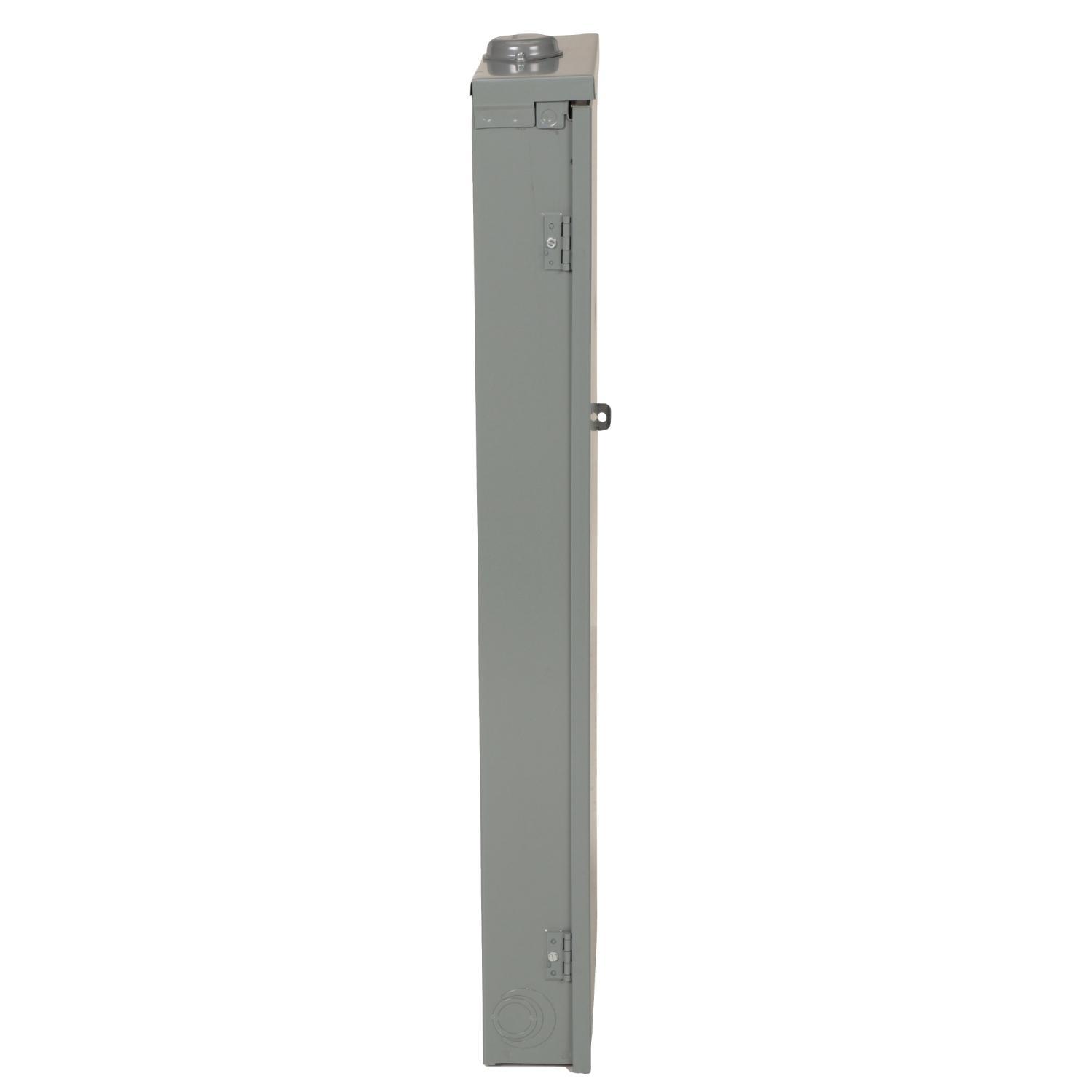

Square D™ QO330MQ125RB
Square D™ QO® QO330MQ125RB 3-Phase Convertible Main Breaker Load Center With Rainproof Cover, 208Y/120 VAC, 120/240 Delta VAC, 240 Delta VAC, 125 A, 1 Poles, 25 kA Interrupt
Brand: Square D™
Item ID: 312760
MPN: QO330MQ125RB
UPC: 785901290599
Login for Price
Features
- Aluminum bus construction on fixed mains panels
- Shielded one piece tin plated aluminum bus construction on convertible mains panels, an industry exclusive for protection and performance
- Service entrance equipment capable panels
- Split branch neutral for clutter-free wiring
- Top or bottom feed by rotating convertible mains panels 180 deg
- Single captive screw interior mounting on indoor panels to ease removal
- Straight in wiring to help minimize service cable installation
- Side hinge doors on outdoor convertible main panels
- Gray baked enamel surface finish
- Provisions for door lock on convertible mains panel covers
- 4 AWG to 300 kcmil aluminum/copper wire
Description
Square D™ QO® Main Breaker Load Center, 3-Phase Convertible, 208Y/120 VAC, 120/240 Delta VAC, 240 Delta VAC, 125 A, 1 Pole, 50/60 Hz Frequency, 25 kA Interrupt, 30 Circuits, Panel Breaker Mounting, 3/4-Wire Wiring Configuration, 30 Spaces, 4 AWG to 300 kcmil Wire, NEMA 3R Enclosure, NEMA 14R Enclosure Box, Galvannealed Steel Housing Material, 14.75 in W x 4.52 in D x 39.37 in H Dimensions
Specifications
Amperage Rating |
125 A |
Breaker Mounting |
Panel |
Dimensions |
14.75 in W x 4.52 in D x 39.37 in H |
Enclosure Box Size |
NEMA 14R |
Enclosure Type |
NEMA 3R |
Frequency Rating |
50/60 Hz |
Housing Material |
Galvannealed Steel |
Interrupt Rating |
25 kA |
Number of Circuits |
30 |
Number of Poles |
1 |
Number of Spaces |
30 |
Type |
3-Phase Convertible |
Voltage Rating |
208Y/120 VAC, 120/240 Delta VAC, 240 Delta VAC |
Wire Size |
4 AWG to 300 kcmil |
Wiring Configuration |
3/4-Wire |
Standard Approval |
RoHS Compliant|UL Listed|NOM Certified|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For outdoor, residential, commercial, industrial requirements to protect electrical systems, equipment and people applications |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO330MQ125RB_Full_Engineering_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO330MQ125RB_Full_Engineering_Drawing.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO330MQ150RB_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM24L70F_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_54b7235f320bdb28bed774f8b5819a0d7974d3195147d927c209977cfb84dc44.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO312L125G_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO312L125G_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO403L60NS_Technical_Bulletin.pdf
