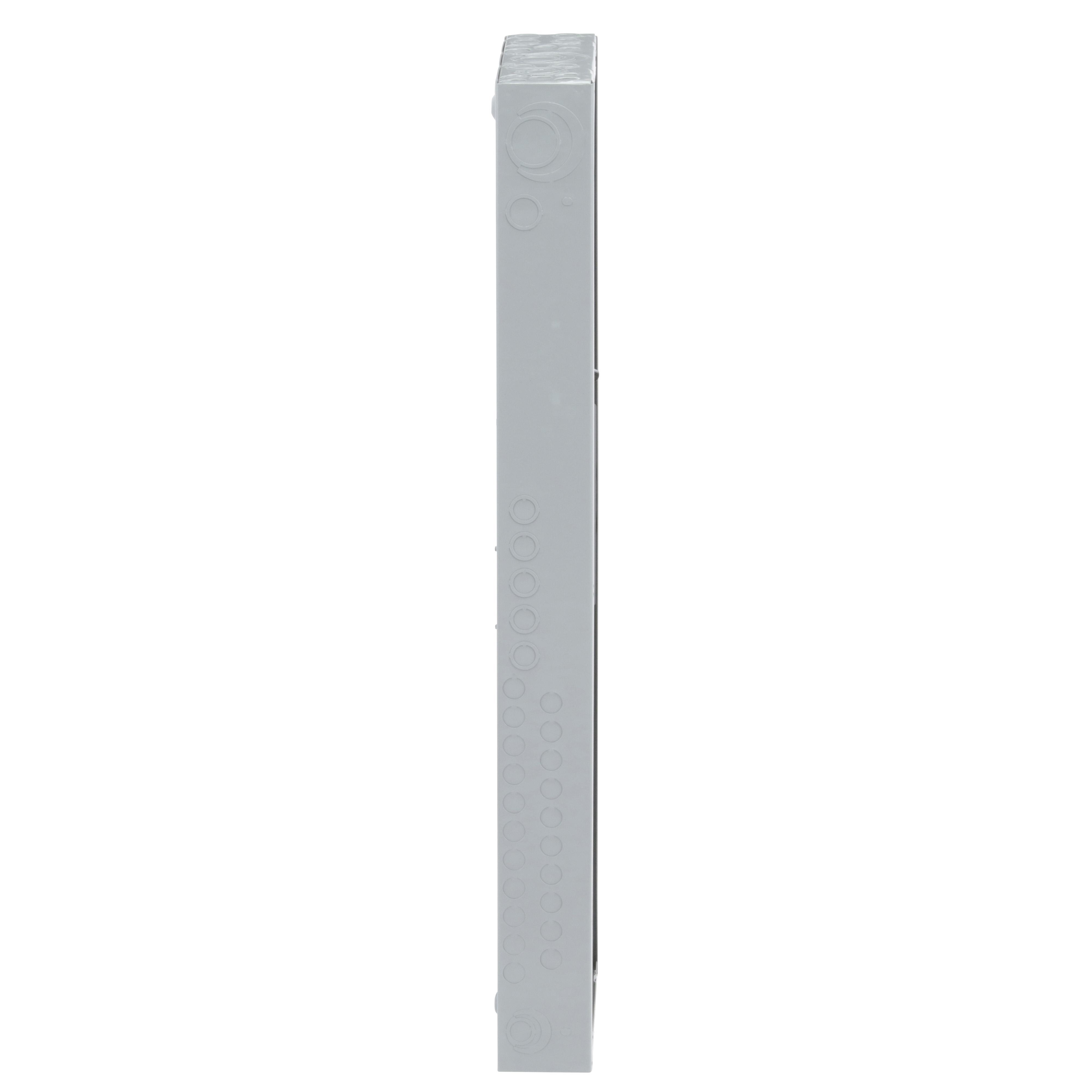

Square D™ QO330MQ150
Square D™ QO® QO330MQ150 3-Phase Convertible Main Breaker Load Center, 208Y/120 VAC/240/120 Delta VAC/240 Delta VAC, 150 A, 1 Poles, 25 kA Interrupt
Brand: Square D™
Item ID: 339160
MPN: QO330MQ150
UPC: 785901290537
Login for Price
Features
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Shielded one piece tin plated aluminum bus construction on convertible mains panels, an industry exclusive for protection and performance
- Service entrance equipment capable panels
- Split branch neutral for clutter-free wiring
- Top or bottom feed by rotating enclosure
- Single captive screw interior mounting on indoor panels to ease removal
- Straight in wiring to help minimize service cable installation
- Side hinge doors on outdoor convertible main panels
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Outdoor panel covers are lockable with padlock
- Does not accepts plug-on neutral circuit breaker
Description
Square D™ QO® Main Breaker Load Center, 3-Phase Convertible, 208Y/120 VAC/240/120 Delta VAC/240 Delta VAC, 150 A, 1 Pole, 50/60 Hz Frequency, 25 kA Interrupt, 30 Circuits, Panel Breaker Mounting, 4-Wire Wiring Configuration, 30 Spaces, 4 AWG to 300 kcmil Wire, Bolt-On Mounting, NEMA 1 Enclosure, NEMA 12 Enclosure Box, Steel Housing Material, 14.25 in W x 3.75 in D x 39.37 in H Dimensions
Specifications
Amperage Rating |
150 A |
Breaker Mounting |
Panel |
Dimensions |
14.25 in W x 3.75 in D x 39.37 in H |
Enclosure Box Size |
NEMA 12 |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Housing Material |
Steel |
Interrupt Rating |
25 kA |
Mounting Type |
Bolt-On |
Number of Circuits |
30 |
Number of Poles |
1 |
Number of Spaces |
30 |
Type |
3-Phase Convertible |
Voltage Rating |
208Y/120 VAC/240/120 Delta VAC/240 Delta VAC |
Wire Size |
4 AWG to 300 kcmil |
Wiring Configuration |
4-Wire |
Standard Approval |
RoHS Compliant|CE Certified|UL Listed|NOM Certified|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8daa7427cf6b792417718d1c460c23384ff1ce47da5524bb39c662ff462e1195.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4f0adf988d7c62035283443640ff836d1c2a5d1cd28bf21c190847a29e735ee6.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM24L70F_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f83f15171f1716948419d56c295667d461efcbb3add521b74e3180274ae24c27.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO312L125G_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO312L125G_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO403L60NS_Technical_Bulletin.pdf
