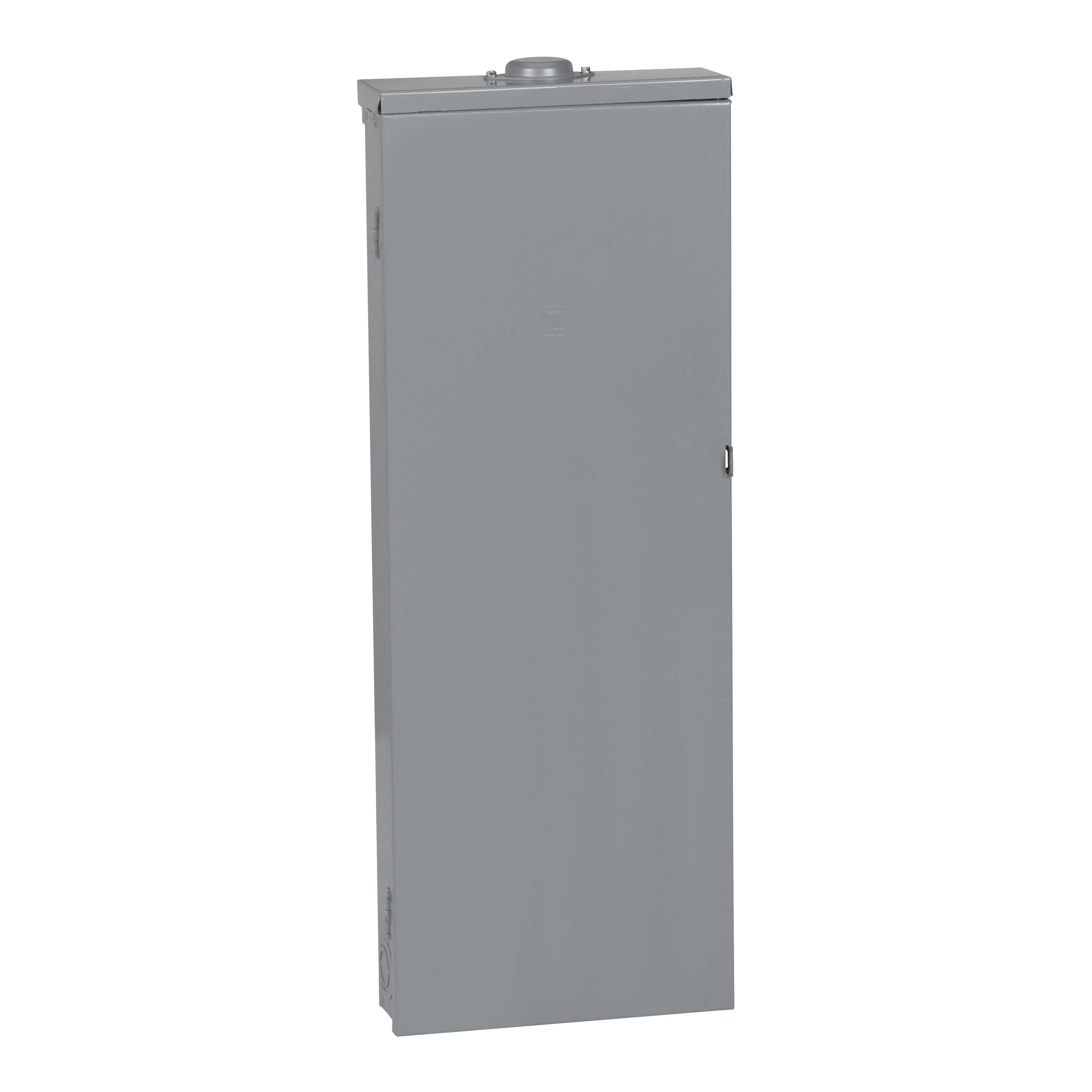

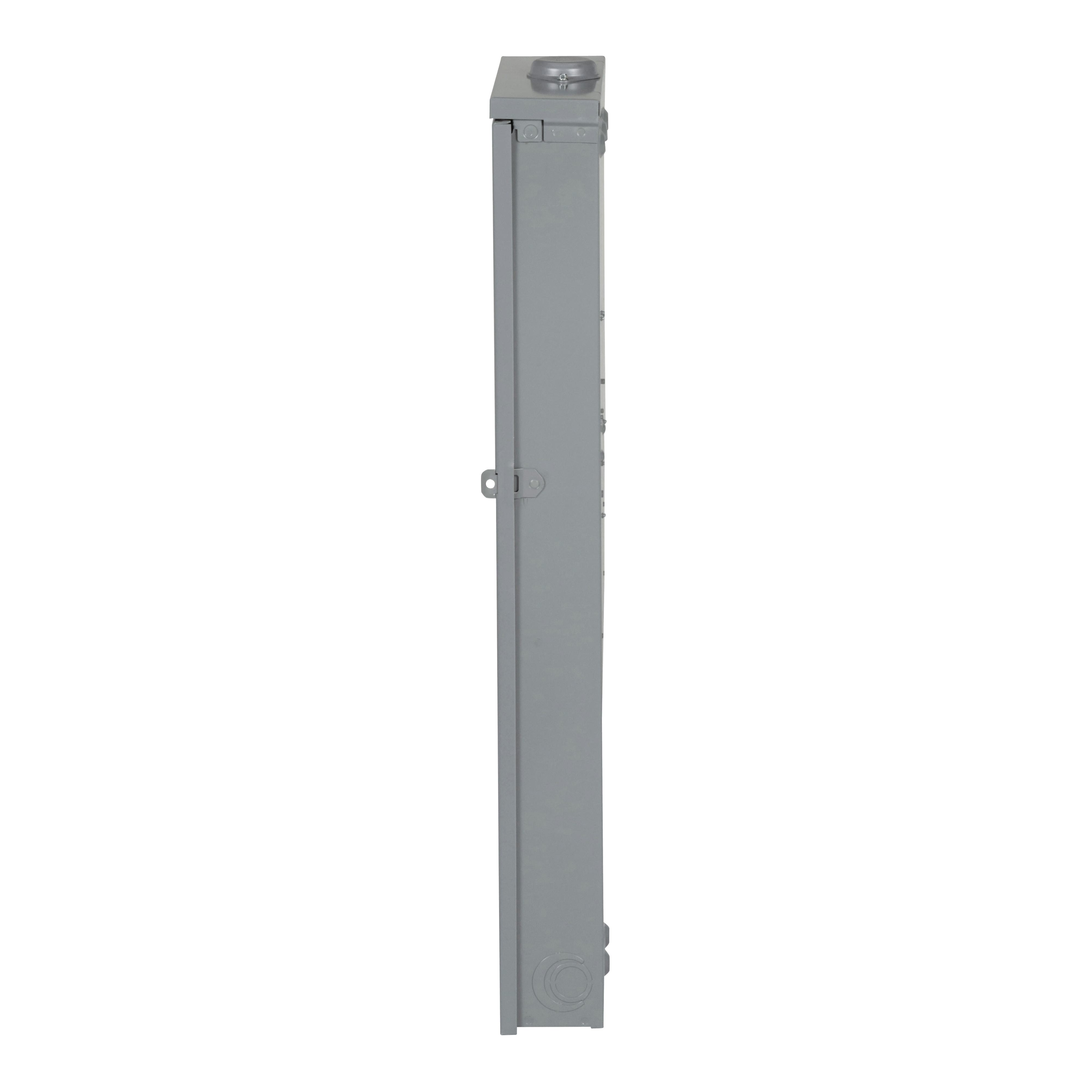

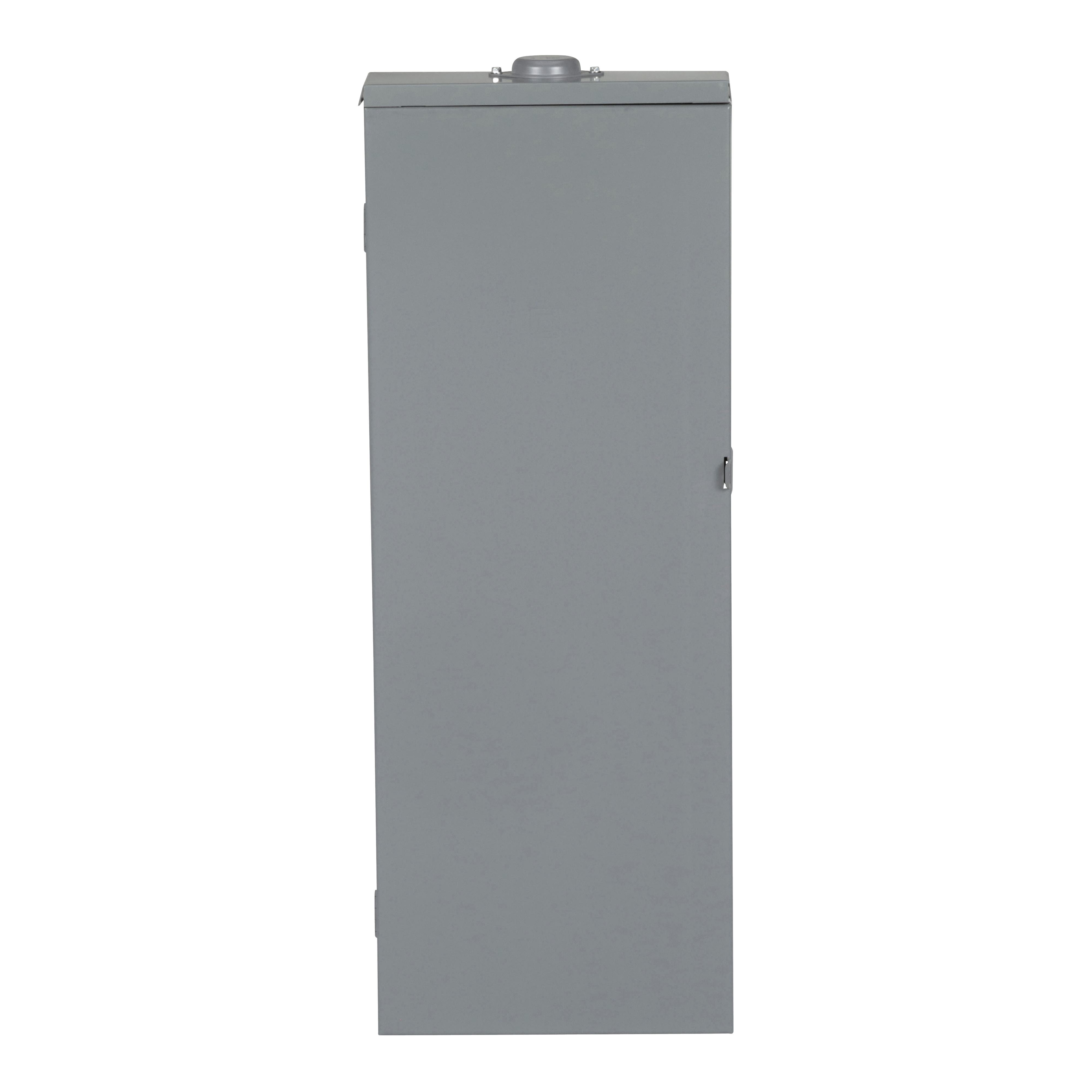

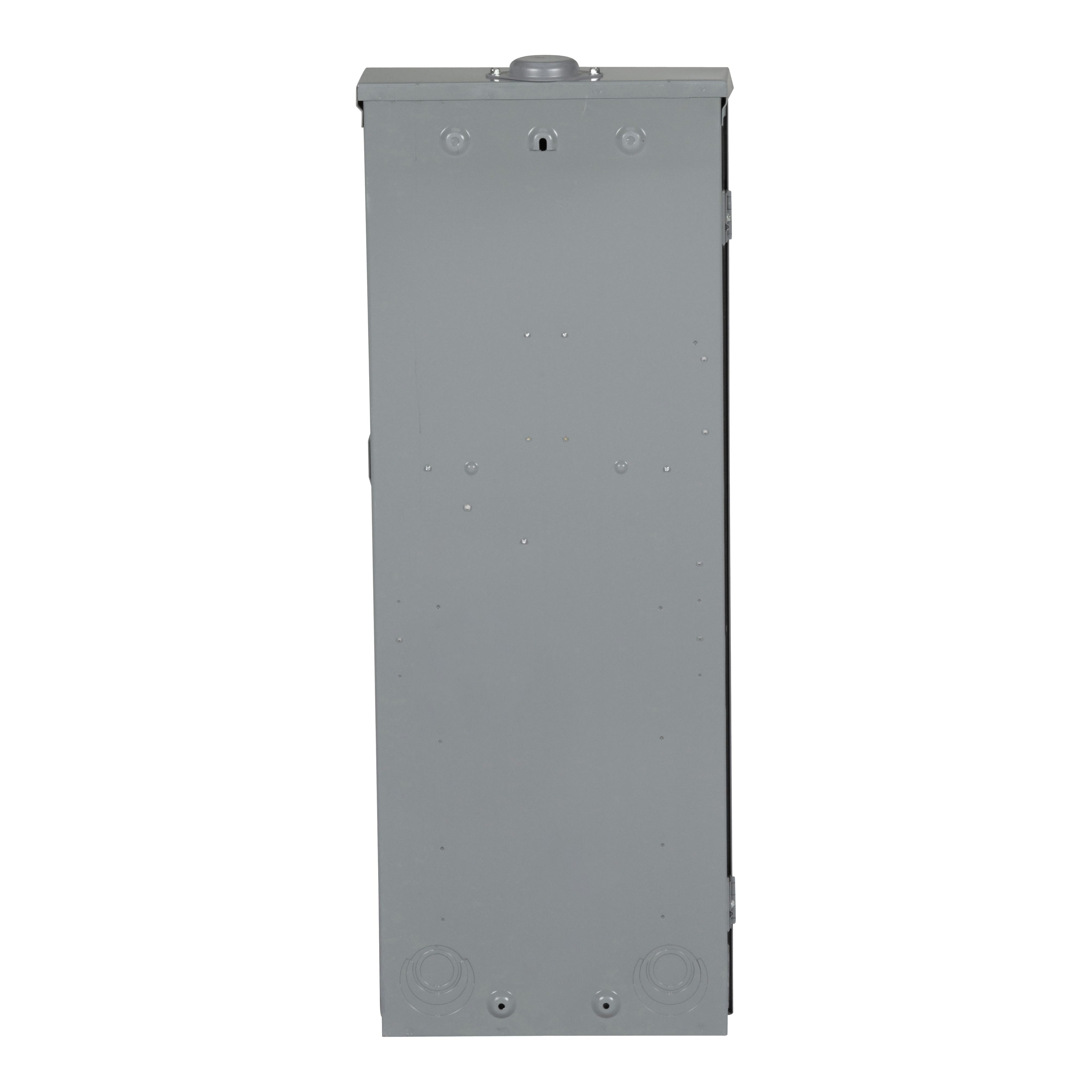

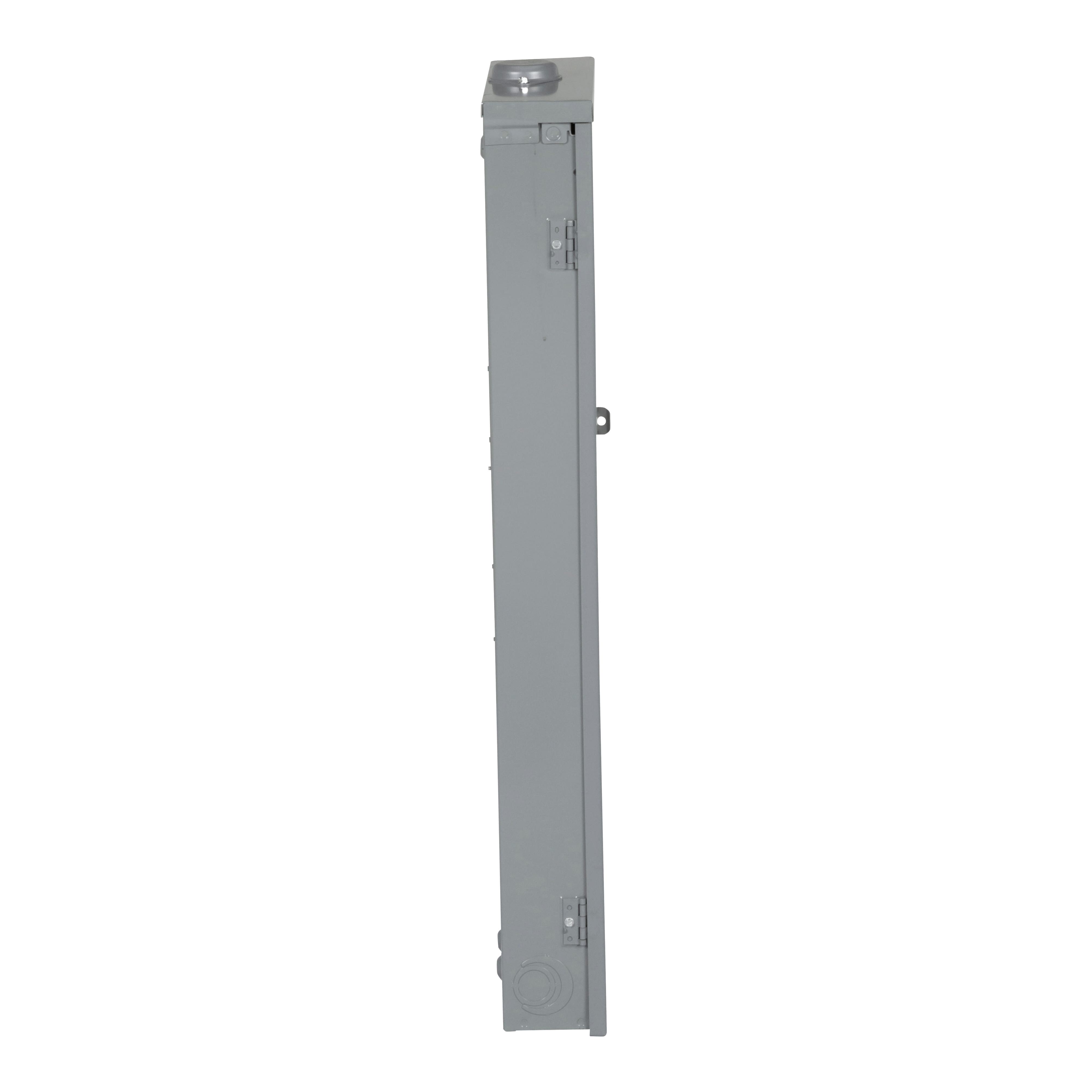

Square D™ QO330MQ150RB
Square D™ QO® QO330MQ150RB 3-Phase Convertible Main Breaker Load Center With Rainproof Cover, 208Y/120 VAC, 240/120 Delta VAC, 240 Delta VAC, 150 A, 1 Poles, 25 kA Interrupt
Brand: Square D™
Item ID: 312762
MPN: QO330MQ150RB
UPC: 785901290605
Login for Price
Features
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Shielded one piece tin plated aluminum bus construction on convertible mains panels, an industry exclusive for protection and performance
- Service entrance equipment capable panels
- Split branch neutral for clutter-free wiring
- Top or bottom feed by rotating enclosure
- Single captive screw interior mounting on indoor panels to ease removal
- Straight in wiring to help minimize service cable installation
- Side hinge doors on outdoor convertible main panels
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Outdoor panel covers are lockable with padlock
- Does not accepts plug-on neutral circuit breaker
- 4 AWG to 300 kcmil aluminum/copper wire
Description
Square D™ QO® Main Breaker Load Center, 3-Phase Convertible, 208Y/120 VAC, 240/120 Delta VAC, 240 Delta VAC, 150 A, 1 Pole, 50/60 Hz Frequency, 25 kA Interrupt, 30 Circuits, Panel Breaker Mounting, 4-Wire Wiring Configuration, 30 Spaces, 4 AWG to 300 kcmil Wire, Bolt-On Mounting, NEMA 3R Enclosure, NEMA 14R Enclosure Box, Steel Housing Material, 14.75 in W x 4.52 in D x 39.37 in H Dimensions
Specifications
Amperage Rating |
150 A |
Breaker Mounting |
Panel |
Dimensions |
14.75 in W x 4.52 in D x 39.37 in H |
Enclosure Box Size |
NEMA 14R |
Enclosure Type |
NEMA 3R |
Frequency Rating |
50/60 Hz |
Housing Material |
Steel |
Interrupt Rating |
25 kA |
Mounting Type |
Bolt-On |
Number of Circuits |
30 |
Number of Poles |
1 |
Number of Spaces |
30 |
Type |
3-Phase Convertible |
Voltage Rating |
208Y/120 VAC, 240/120 Delta VAC, 240 Delta VAC |
Wire Size |
4 AWG to 300 kcmil |
Wiring Configuration |
4-Wire |
Standard Approval |
RoHS Compliant|UL Listed|NOM Certified|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Application |
For outdoor, residential, commercial, industrial requirements to protect electrical systems, equipment and people applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_de2b77a97bc3f75a54ad4f88b917777694a2f93a7821255928b97400e1c14e5a.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO330MQ150RB_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM24L70F_Installation_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LA9E01_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO330MQ150RB_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3f14b810b0d448be36d6ac226f6f1e25317d301b6942a2347d265c79c727bf74.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO330MQ150RB_Specification_Sheet.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO124L125PG_Technical_Bulletin.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO1816M150FTRB_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO1816M150FTRB_Technical_Bulletin.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO403L60NS_Technical_Bulletin.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM120GFI_Warranty.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220GFIC_Warranty_Information.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM220GFIC_Warranty_Information.pdf
